Supermicro
Supermicro MBD-X11SCA-O LGA 1151 C246 DDR4 ATX server motherboard
Supports Intel Xeon E and 8th/9th Gen Core CPUs with dual 1GbE LAN, 8 SATA 6.0Gb/s ports and up to 128GB DDR4 ECC memory
- CPU Socket TypeLGA 1151
- CPU TypeSupports : Intel Xeon E-2100 Processor Intel Xeon E-2200 Pro
- North BridgeIntel C246
- DDR4 Standard2666 / 2400 / 2133 / 1866 / 1600MHz ECC / Non-ECC DDR4 SDRAM
- Maximum Memory SupportedUp to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666MHz, in
- PCI Express x162 x PCI-E x16 slots are running at NA/16, or 8/8
- Supports Xeon E-2100 and E-2200 processors with LGA 1151 socket
- Intel C246 chipset enables dual 1 GbE LAN via I210-AT and I219-LM
- Up to 64 GB DDR4-2666 ECC or non-ECC UDIMM across four 288-pin slots
- Eight SATA 6.0 Gb/s ports with RAID 0/1/5/10 for flexible storage arrays
- Two PCI-E 3.0 x16 slots configurable at x16/x0 or x8/x8 plus one x4 and one x1 slot
Server motherboard for Xeon and Core CPUs

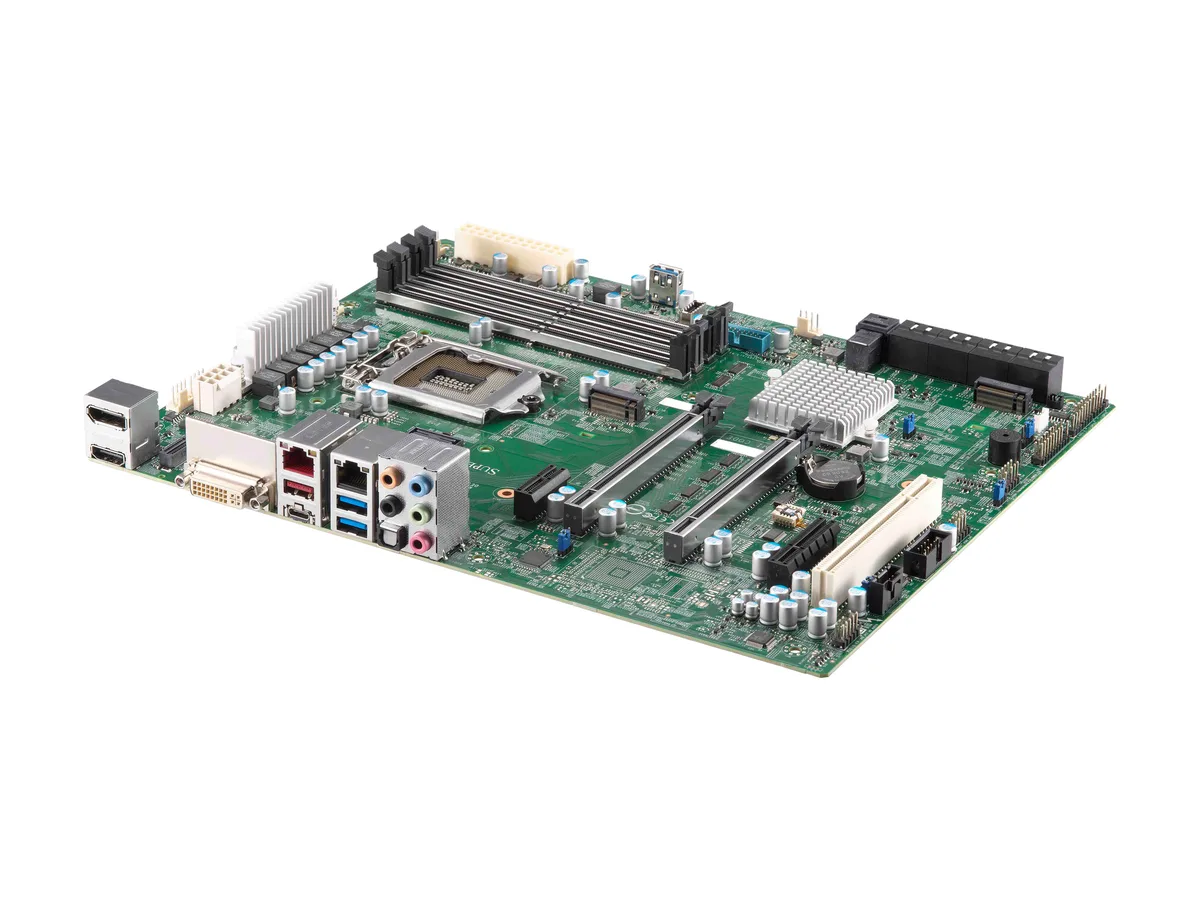

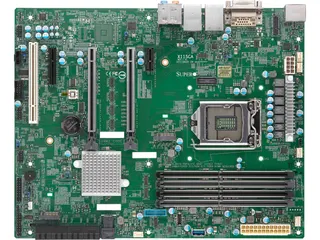

The Supermicro MBD-X11SCA-O is an ATX server board built around the Intel C246 chipset and the LGA 1151 socket. It accepts Xeon E-2100 and E-2200 processors as well as 8th and 9th generation Core i9, i7, i5, i3, Pentium and Celeron chips. Four DDR4 UDIMM slots support up to 64 GB of ECC or non-ECC memory at 2666 MHz.
Suits builders who need dual gigabit LAN and RAID
Two Intel gigabit controllers provide redundant network links, while eight SATA 6.0 Gb/s ports with RAID 0, 1, 5 and 10 cover local storage arrays. The board lacks onboard video unless a Xeon E-21XXG processor is installed, so a discrete graphics card is required for most CPUs. Buyers who want more storage lanes or integrated graphics on every CPU should look elsewhere.
Sustained load stays within 95 W CPU limit
The socket is rated for processors up to 95 W TDP, so thermal output remains predictable during long compute runs. PCI Express slots operate at x16 or dual x8 for the primary pair, plus one x4 and one x1 slot, keeping bandwidth steady for add-in cards. Dual LAN and SATA controllers maintain throughput without saturating the chipset.
Fordele
- Supports Xeon E-2100 and E-2200 processors with LGA 1151 socket
- Intel C246 chipset enables dual 1 GbE LAN via I210-AT and I219-LM
- Up to 64 GB DDR4-2666 ECC or non-ECC UDIMM across four 288-pin slots
- Eight SATA 6.0 Gb/s ports with RAID 0/1/5/10 for flexible storage arrays
- Two PCI-E 3.0 x16 slots configurable at x16/x0 or x8/x8 plus one x4 and one x1 slot
Specifikationer
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SCA-O |
| CPU Socket Type | LGA 1151 |
| CPU Type | Supports : Intel Xeon E-2100 Processor Intel Xeon E-2200 Processor 8th/9th Generation Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron Processor |
| North Bridge | Intel C246 |
| DDR4 Standard | 2666 / 2400 / 2133 / 1866 / 1600MHz ECC / Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM |
| Maximum Memory Supported | Up to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slot |
| PCI Express x16 | 2 x PCI-E x16 slots are running at NA/16, or 8/8 |
| PCI Express x4 | 1 x PCI-E 3.0 x4 |
| PCI Express x1 | 1 x PCI-E 3.0 x1 |
| SATA | 8 x SATA 6.0Gb/s |
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Intel UHD P630 graphic (For CPU Xeon E-21XXG series only) |
| LAN Chipset | Intel I210-AT |
| Second LAN Chipset | Intel I219-LM |
| Max LAN Speed | 2 x 1Gbps |
| RJ45 | 2 x 1 GbE LAN ports |
| USB 3.1 | 2 x USB 3.1 Gen1 ports (2 Rears Type A) 2 x USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C) |
| Features | 8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processor, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation, Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP Intel C246 Up to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666 MHz, in 4 DIMM slots 1 x PCI-E 3.0 x4 1 x PCI-E 3.0 x1 2 x PCI-Ex16 slots are running at NA / 16, or 8 / 8 1 - 5V PCI 32bit M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 M.2 Form Factor: 22110 M.2 Key: M-Key M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shar |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Forsendelsesvægt | 1.18 kg |
| Pakkestørrelse | 340 × 264 × 71 mm |
Spørgsmål om denne vare
What CPU and cooler do I need to run this LGA 1151 board?
You need an 8th or 9th Generation Intel Core i9, i7, i5, i3, Pentium or Celeron, or a Xeon E-2100 or E-2200 processor, plus a cooler rated for up to 95 W TDP.
Can I keep my older DDR4-2133 ECC UDIMMs when upgrading to this motherboard?
Yes, the board supports 2666, 2400, 2133, 1866 and 1600 MHz ECC or non-ECC DDR4 UDIMMs in its four 288-pin slots.
How can I confirm the onboard graphics are active after installing a Xeon E-21XXG processor?
Connect a display to the DisplayPort, HDMI or DVI port; if the Intel UHD P630 driver loads and outputs video, the graphics are working.
