White 200mm square case fan with nine ARGB LEDs and hydraulic bearing

Thermaltake

Thermaltake CL-F180-PL20SW-A 200mm case fan

SKU CH-AYNF-0YG66 MPN CL-F180-PL20SW-A

A 200 mm case fan delivering 131.6 CFM airflow at 500–900 RPM with hydraulic bearing and 5 V ARGB lighting

  • Fan Counts1 Fan
  • TypeCase Fan
  • Bearing TypeHydraulic Bearing
  • RPMPWM 500~900 R.P.M
  • Air Flow131.6 CFM
  • Noise Level27.2 dB-A

LED ARGB

  • ARGB
  • Non-LED

De overstregede versioner findes, men er ikke på lager her.

  • High airflow of 131.6 CFM for effective cooling
  • Quiet operation at 27.2 dB-A with hydraulic bearing
  • ARGB lighting with 16.8 million colours via 5V sync
  • PWM speed control from 500 to 900 RPM
  • Daisy-chainable 4-pin PWM connectors simplify installation

Single 200mm ARGB PWM fan

The Thermaltake CL-F180-PL20SW-A is a single 200mm case fan built for white-themed builds that want addressable lighting and hydraulic-bearing reliability. It suits system builders who need a large-diameter cooler for high-airflow chassis positions.

PWM 500~900 rpm speed range

The fan spins between 500 and 900 rpm under PWM control, so the motherboard can tune noise against cooling demand. At the upper end it delivers 131.6 CFM with 1.92 mm-H2O static pressure while keeping acoustics to 27.2 dB-A.

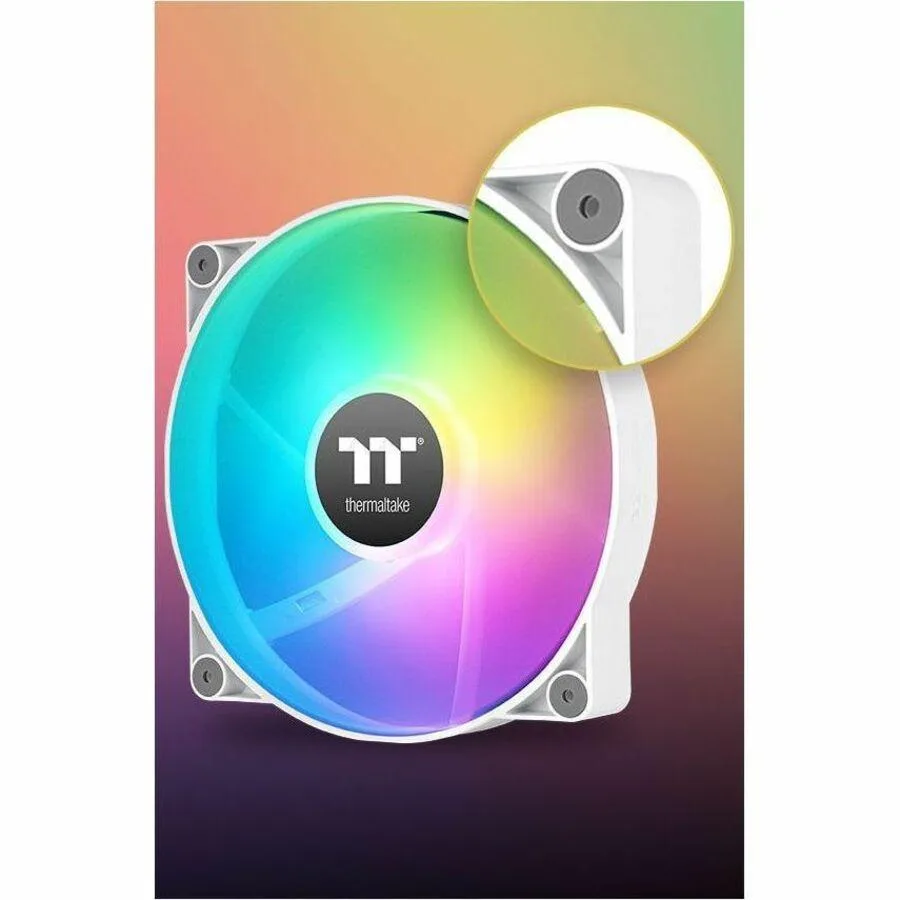

Nine addressable LEDs and daisy-chain connectors

Nine ARGB LEDs provide 16.8 million colours via a 3-pin 5V sync header, and the 4-pin PWM plugs daisy-chain for tidy cable routing. The hydraulic bearing supports long-term operation at these speeds, but the single-fan pack leaves multi-fan arrays to separate purchases.

Fordele

  • High airflow of 131.6 CFM for effective cooling
  • Quiet operation at 27.2 dB-A with hydraulic bearing
  • ARGB lighting with 16.8 million colours via 5V sync
  • PWM speed control from 500 to 900 RPM
  • Daisy-chainable 4-pin PWM connectors simplify installation

Specifikationer

BrandThermaltake
ModelCL-F180-PL20SW-A
Part NumberCL-F180-PL20SW-A
Fan Counts1 Fan
TypeCase Fan
Bearing TypeHydraulic Bearing
RPMPWM 500~900 R.P.M
Air Flow131.6 CFM
Noise Level27.2 dB-A
Power Connector4 Pin - PWM
3 Pin - ARGB Sync
ColorWhite
LEDARGB
Forsendelsesvægt0.59 kg
Pakkestørrelse267 × 229 × 38 mm

Spørgsmål om denne vare

How much air does the 131.6 CFM rating actually move through a case?

At full speed the fan pushes up to 131.6 CFM with 1.92 mm-H₂O static pressure, so it can feed a mesh-front chassis or a radiator without choking on restrictive filters.

What does the 4-pin PWM and 3-pin 5 V ARGB connector combination control?

The 4-pin PWM header lets the motherboard vary speed between 500 and 900 RPM, while the 3-pin 5 V ARGB header syncs the 9 addressable LEDs to 16.8 million colours via standard motherboard software.

Will the 200 mm by 30 mm white frame fit my case’s 200 mm mount points?

Yes — the fan measures 200 mm square and 30 mm thick, matching the standard 200 mm mounting pattern used on most full-tower and mid-tower cases.
