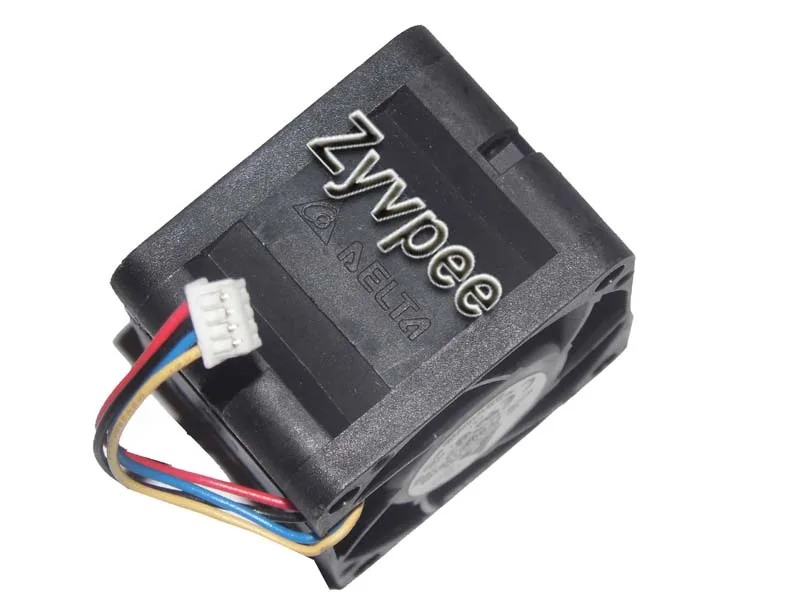

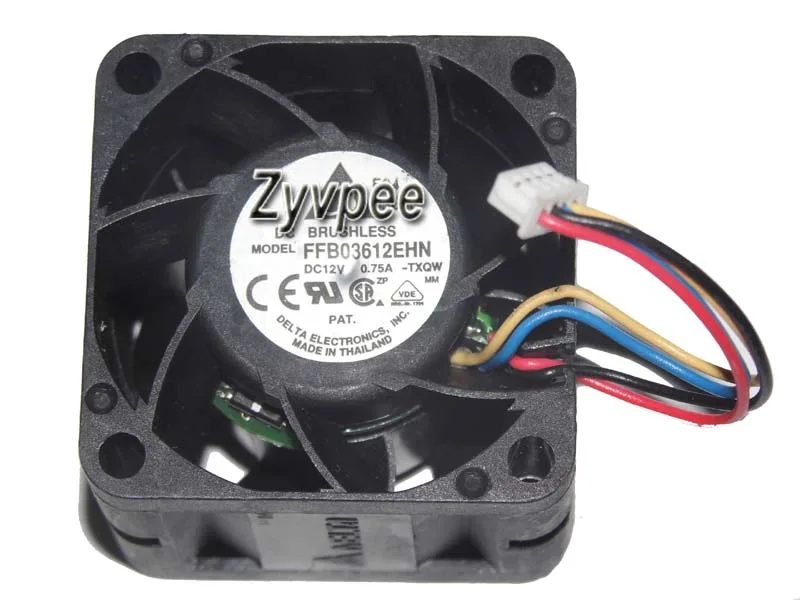

Small black 36mm square case fan 28mm thick four pin connector

Zyvpee

Zyvpee FFB03612EHN 36mm 3628 12V .75A 4 Pin Case Fan

SKU CH-8352-HG8XD MPN FFB03612EHN

A 35 mm double ball-bearing case fan with 4-pin PWM speed control running at 12 V and 0.75 A

  • TypeCase Fan
  • CompatibilityCPU Cooler
  • Fan Size35mm
  • Bearing TypeBall
  • Power Connector4 Pin
  • ColorBlack
  • Compact 35 mm frame fits tight builds
  • Double ball bearing extends service life
  • 12 V 0.75 A delivers strong airflow
  • 4-pin connector enables precise speed control
  • Non-LED black design keeps system stealthy

Zyvpee 36mm 4-Pin Case Fan

The Zyvpee FFB03612EHN is a 36mm square frame case fan designed for CPU cooler mounting or tight chassis spaces. It runs on 12V DC power and draws 0.75A current through a standard 4-pin connector. The fan uses a double ball bearing for rotational durability and has no LED lighting.

Installation notes for 3628 frame

The 35mm thick body fits 36*28mm mounting holes and connects directly to a 4-pin motherboard header for PWM speed control. Builders must verify their cooler or case accepts the 36mm square footprint because many standard mounts expect larger frames. The 4-wire interface enables automatic speed regulation when the header supports it.

Limits of the 4-pin PWM interface

The 4-pin connector provides speed reporting and variable control only when the motherboard header implements PWM signalling; otherwise the fan runs at full 12V speed. Current draw of 0.75A means the header must supply enough amperage without tripping protection. No RGB or addressable lighting control is available through this interface.

Fordele

  • Compact 35 mm frame fits tight builds
  • Double ball bearing extends service life
  • 12 V 0.75 A delivers strong airflow
  • 4-pin connector enables precise speed control
  • Non-LED black design keeps system stealthy

Specifikationer

Brand3ccooler.com
SeriesFFB03612EHN TXQW
ModelFFB03612EHN
TypeCase Fan
CompatibilityCPU Cooler
Fan Size35mm
Bearing TypeBall
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesCase Fan
Dimensions36*28mm

Spørgsmål om denne vare

How can I confirm the 4-pin connector is reporting RPM correctly in BIOS after installing the FFB03612EHN?

Connect the fan to a 4-pin motherboard header, power on, and check the hardware-monitor section of BIOS or a Windows utility; the fourth wire carries the tachometer signal so the reported speed should match the fan's actual rotation.

What comes in the box with the 36 mm double ball-bearing fan and what must I source separately?

The package contains the 36×36×28 mm fan with its attached 4-pin cable; mounting screws, fan filters or a PWM controller are not included and must be purchased separately if required.

Which current rating should I choose for a 12 V header — the .75 A version or a lower-draw model?

The FFB03612EHN draws .75 A at 12 V; select it only if your motherboard or controller header is rated for at least that current, otherwise choose a fan with a lower amperage rating.
