Black 90x90x38mm square case fan with three-pin connector

Zyvpee

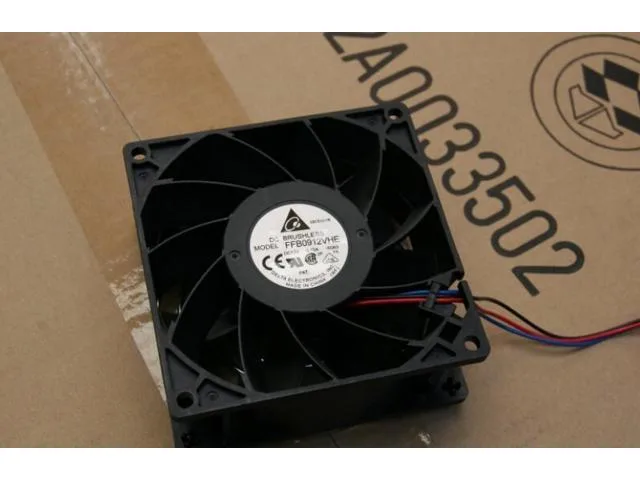

Zyvpee FFB0912VHE 90x90x38mm 12V .75A 3 Pin 2 Ball case fan

SKU CH-WF2K-848PA

90 mm dual-ball-bearing case fan with 38 mm thickness, 12 V 0.75 A 3-pin power and non-LED black frame

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • High airflow for dense server builds with 90×90×38 mm frame
  • Dual ball bearings extend service life in continuous operation
  • 12 V, 0.75 A draw suits standard 3-pin headers
  • Designed as direct replacement for Intel SC5300 chassis
  • Non-LED black housing keeps rack aesthetics clean

Intel SC5300 Server Cooling

The Zyvpee FFB0912VHE is a 12V DC case fan built for the Intel SC5300 chassis. It draws 0.75A and uses a two-ball bearing for continuous server duty. The 90×90×38 mm frame fits the 9CM mounting pattern required by that platform.

Three-Pin Power Installation

The fan connects via a standard three-pin header and receives constant 12V supply. Polarity must match the header layout; reversed pins will prevent spin-up. The square DC cooler frame aligns with the SC5300 mounting holes, so no adapter bracket is needed.

Fixed-Speed 12V Operation

The three-pin interface provides no PWM control, so the fan runs at full rated speed whenever powered. Builders who need variable speed or motherboard-based fan curves cannot use this unit. The 38 mm thickness may also exceed clearance in non-server cases.

Fordele

  • High airflow for dense server builds with 90×90×38 mm frame
  • Dual ball bearings extend service life in continuous operation
  • 12 V, 0.75 A draw suits standard 3-pin headers
  • Designed as direct replacement for Intel SC5300 chassis
  • Non-LED black housing keeps rack aesthetics clean

Specifikationer

SeriesFFB0912VHE
ModelFFB0912VHE
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions90*90*38mm

Spørgsmål om denne vare

How can I confirm the FFB0912VHE is spinning correctly after I connect the 3-pin header?

The fan runs on 12 V at .75 A; if the blades turn smoothly and the system BIOS or monitoring software reports a steady RPM, the unit is operating as intended.

What comes with the FFB0912VHE and what must I source separately?

The package contains the 90x90x38 mm 2-ball-bearing fan with a 3-pin power connector; mounting screws and any fan-controller or splitter cables are not included.

Which FFB0912VHE version should I choose for an Intel SC5300 chassis?

The FFB0912VHE 12 V .75 A 9038 model is the one specified for the Intel SC5300; no other capacity or voltage variant is listed for that server.
