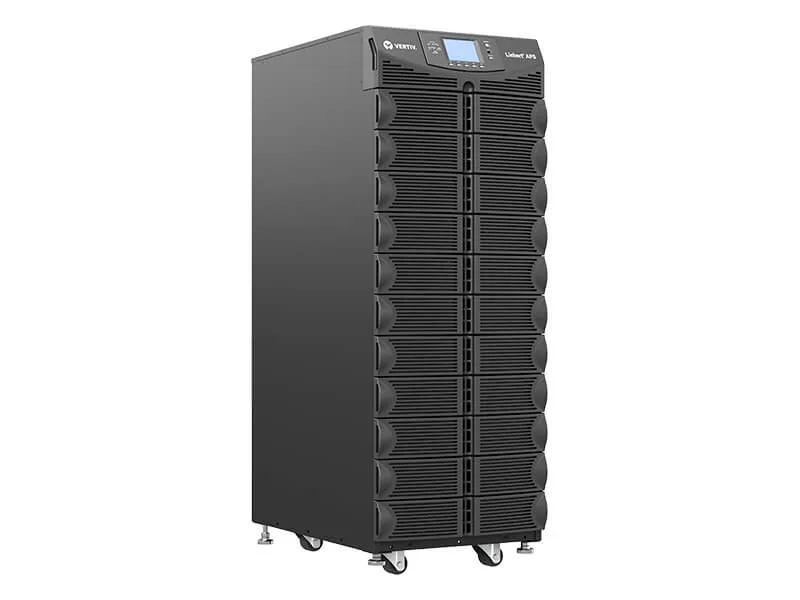

Tall rectangular rack-tower UPS in dark grey metal finish with front vent slots and control panel

Vertiv

Vertiv Liebert AL4C0NHWGNNXLKB UPS 15kVA 13.5kW 208V 8min runtime

SKU CH-DTZP-3QZFB MPN AL4C0NHWGNNXLKB

Three-phase double-conversion UPS delivers 15kVA and 13.5kW with lithium-ion batteries giving 8 minutes at full load and 17 minutes at half load

  • International Version208V
  • Input Voltage Range200/208/220/230/240 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection3-Wire (L-L-G)
  • VA Rating15kVA
  • Watts13.5kW

Option AL4C0NHWGNNXLKB

Näita veel 16 konfiguratsiooni
  • 15 kVA and 13.5 kW capacity protects critical loads
  • Double-conversion online topology delivers clean 208/120 VAC output
  • Lithium-ion battery provides 8 minutes at full load and 17 minutes at half load

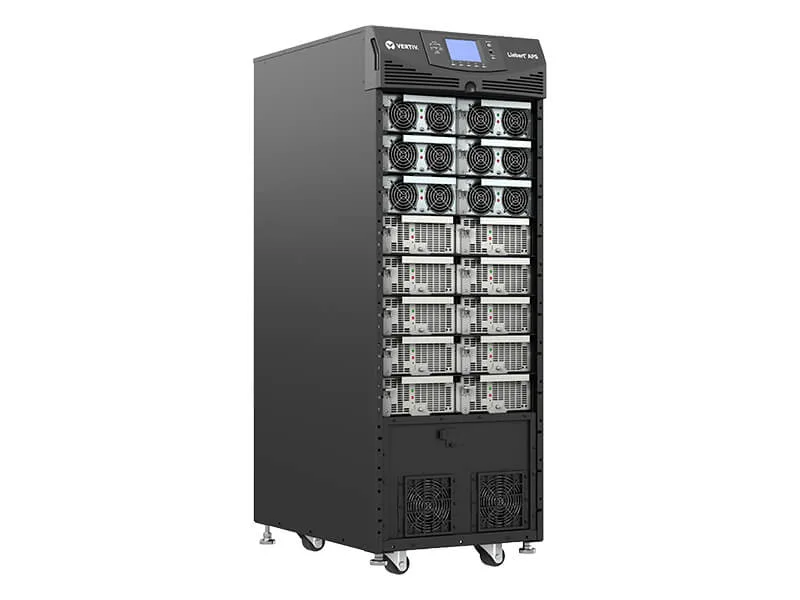

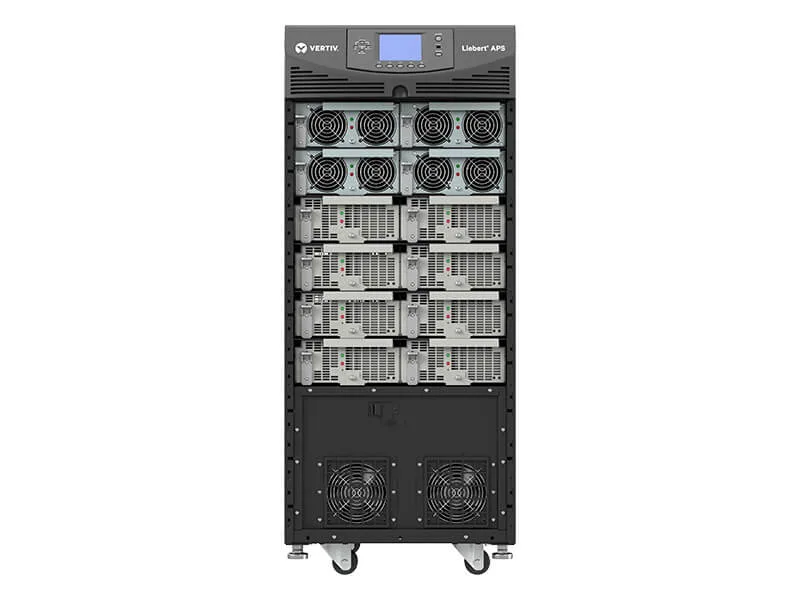

  • Hot-swappable power, battery and control modules enable maintenance without downtime
  • Wide 200–240 VAC input range with 40–70 Hz auto-sensing accepts unstable power

Vertiv Liebert 15kVA 208V UPS

The Vertiv Liebert AL4C0NHWGNNXLKB is a 15kVA, 13.5kW double-conversion online UPS that delivers 208/120VAC output from a 208VAC three-wire input. It uses lithium-ion batteries and hot-swappable power, battery and control modules for maintenance without interruption.

Suits critical 208VAC loads needing continuous power

This unit supports equipment that requires 208/120VAC output and can accept a 200–240VAC input range with 40–70Hz auto-sensing. It is not for installations that need longer battery autonomy than the rated runtime, or sites that cannot accommodate a 663 lb rack/tower chassis.

8-minute runtime at 15kVA load

At full rated load the lithium-ion batteries provide eight minutes of backup; at half load the runtime extends to seventeen minutes. This single figure determines whether the unit covers the required bridge time to generator start or orderly shutdown.

Põhijooned

  • 15 kVA and 13.5 kW capacity protects critical loads
  • Double-conversion online topology delivers clean 208/120 VAC output
  • Lithium-ion battery provides 8 minutes at full load and 17 minutes at half load
  • Hot-swappable power, battery and control modules enable maintenance without downtime
  • Wide 200–240 VAC input range with 40–70 Hz auto-sensing accepts unstable power

Tehnilised andmed

BrandVertiv
SeriesLiebert
ModelAL4C0NHWGNNXLKB
International Version208V
Input Voltage Range200/208/220/230/240 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection3-Wire (L-L-G)
VA Rating15kVA
Watts13.5kW
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeLithium Ion
Battery Run TimeFull Load: 8 mins.
Half Load: 17 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions49" x 17" x 34"
Weight663 lbs.
Tarnekaal300.73 kg
Pakendi mõõtmed1245 × 1245 × 432 mm

Selle mudeli teised versioonid

5 veel samast sarjast

Sama seeria, erinev mälumaht, jahutus või taktsagedus — võrrelge enne otsustamist.

Küsimused selle toote kohta

How long does the 13.5kW lithium-ion battery last at full load?

The internal lithium-ion battery provides 8 minutes of runtime at the full 13.5kW load and 17 minutes at half load.

What is the operating temperature range for continuous 24/7 operation?

The unit is rated for continuous operation between 32°F and 104°F (0°C to 40°C) with 0 to 95% non-condensing humidity.

What input wiring and voltage service are required for installation?

A 208VAC three-wire line-line-ground service is required; the input accepts 200/208/220/230/240 VAC at 40-70 Hz auto-sensing.
