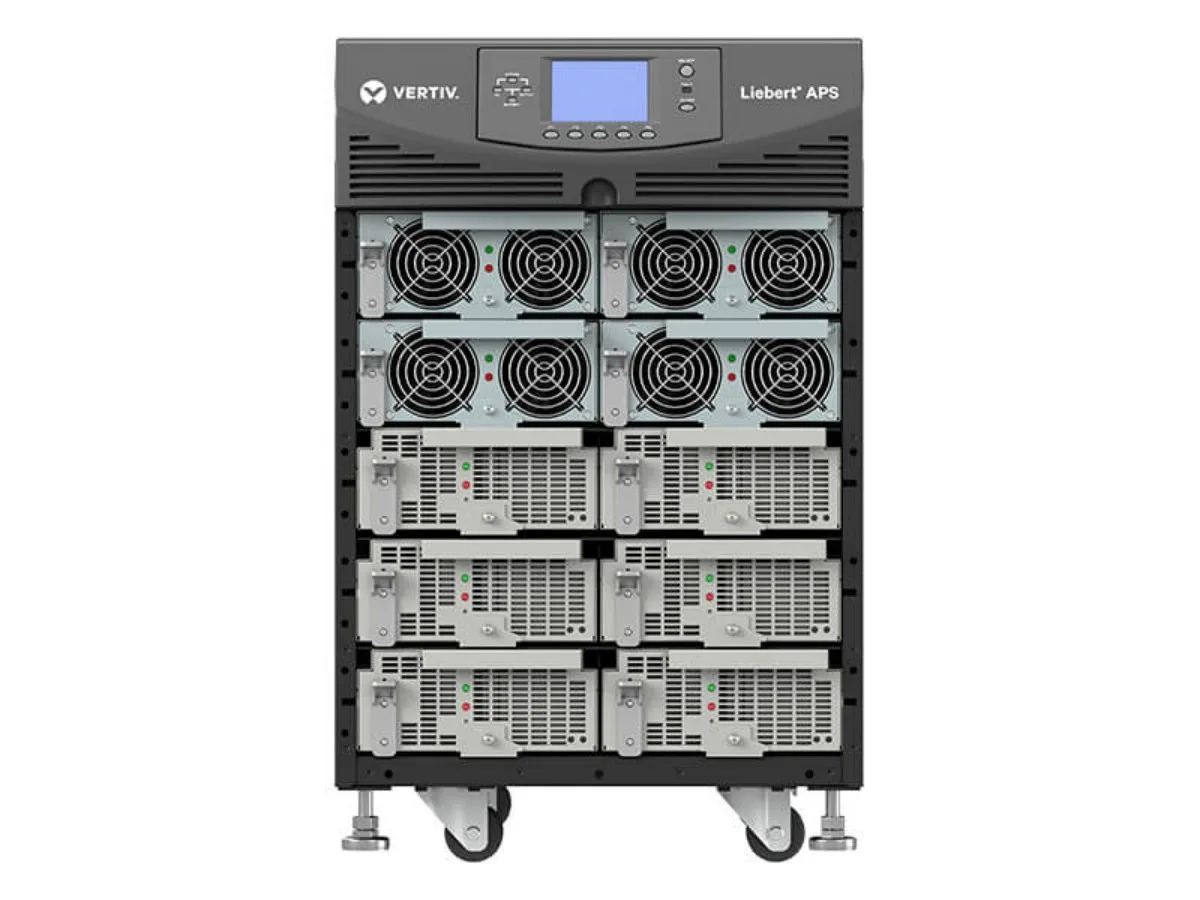

Tall rectangular UPS cabinet in dark finish, rack tower form factor, 27 by 17 by 32 inches

Vertiv

Vertiv Liebert AL5B0NHVGNNXLKB UPS 10kVA/9kW 208/120V 8min runtime

SKU CH-NPME-NY2NX MPN AL5B0NHVGNNXLKB

A 10 kVA / 9 kW double-conversion UPS with lithium-ion batteries delivering 8 minutes at full load and hot-swappable modules for maintenance without interruption

  • International Version208V
  • Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection4-Wire (L-L-N-G)
  • VA Rating10kVA
  • Watts9kW

Option AL5B0NHVGNNXLKB

Näita veel 16 konfiguratsiooni
  • Double-conversion online topology delivers clean 9kW output
  • Lithium-ion battery provides 8 minutes at full load or 18 minutes at half load
  • Hot-swappable power, battery and control modules enable maintenance without load interruption
  • Wide 200–240VAC input range with 40–70Hz auto-sensing suits global power environments
  • Rack/tower form factor fits 27×17×32in footprint weighing 362lbs

Purpose and audience

The Vertiv Liebert AL5B0NHVGNNXLKB is a 10kVA, 9.0kW double-conversion online UPS designed for critical IT infrastructure. It suits data centres and server rooms that require continuous, clean power with hot-swappable modules for maintenance without load interruption.

Capacity and headroom

At full 9.0kW load the lithium-ion battery delivers 8 minutes of runtime, extending to 18 minutes at half load. The unit accepts a wide input range of 200/100, 208/120, 220/110, 230/115, 240/120 VAC and auto-senses 40 Hz to 70 Hz, but it cannot sustain loads beyond its rated capacity for extended periods.

Thermals, noise and power draw

Operating temperature spans 0°C to 40°C with humidity tolerance up to 95% non-condensing. The rack/tower form factor measures 27" x 17" x 32" and weighs 362 lbs, relying on internal forced-air cooling that produces audible fan noise under load.

Põhijooned

  • Double-conversion online topology delivers clean 9kW output
  • Lithium-ion battery provides 8 minutes at full load or 18 minutes at half load
  • Hot-swappable power, battery and control modules enable maintenance without load interruption
  • Wide 200–240VAC input range with 40–70Hz auto-sensing suits global power environments
  • Rack/tower form factor fits 27×17×32in footprint weighing 362lbs

Tehnilised andmed

BrandVertiv
SeriesLiebert
ModelAL5B0NHVGNNXLKB
International Version208V
Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection4-Wire (L-L-N-G)
VA Rating10kVA
Watts9kW
Output Voltage200/100, 208/120, 220/110, 230/115, 240/120 VAC
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeLithium Ion
Battery Run TimeFull Load: 8 mins.
Half Load: 18 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions27" x 17" x 32"
Weight362 lbs.
Tarnekaal164.20 kg
Pakendi mõõtmed813 × 686 × 432 mm

Selle mudeli teised versioonid

5 veel samast sarjast

Sama seeria, erinev mälumaht, jahutus või taktsagedus — võrrelge enne otsustamist.

Küsimused selle toote kohta

Will the 208/120V 4-wire input on this UPS work with my existing 208V three-phase panel?

Yes, the input accepts 208/120VAC on a 4-wire L-L-N-G connection and auto-senses 40–70 Hz, so it connects directly to a standard 208V three-phase service.

How do I confirm the double-conversion inverter is regulating voltage correctly after installation?

The front LCD shows real-time input/output voltage, frequency and load percentage; verify output reads 208/120V at 60 Hz (or 50 Hz if configured) with zero transfer time during a utility failure.

Does the shipment include the lithium-ion battery modules, or must they be ordered separately?

The 8-minute full-load runtime is provided by internal lithium-ion modules that ship installed; the 362 lb unit arrives ready to rack-mount or tower-mount with no extra battery purchase required.
