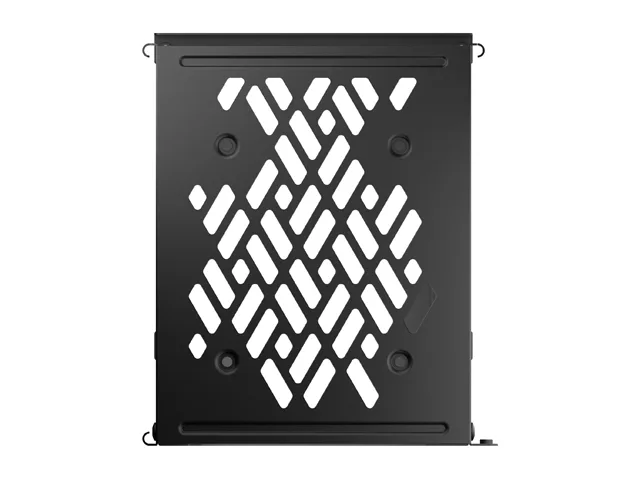

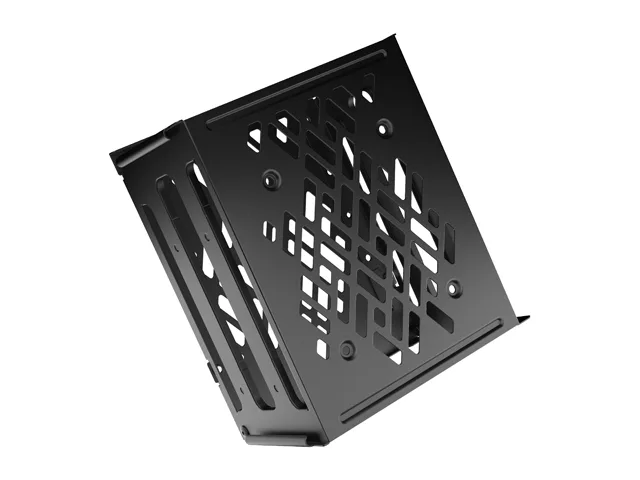

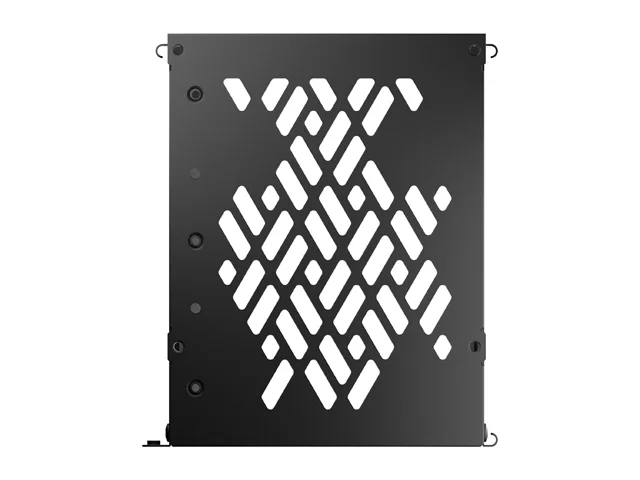

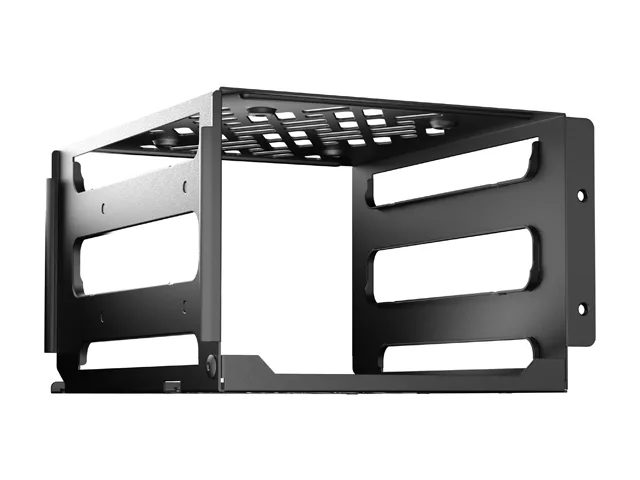

Black metal HDD cage kit with four mounting screws

Fractal Design

Fractal Design FD-A-CAGE-001 Type-B HDD Cage Kit case accessory

SKU CH-1BVF-PSYNF MPN FD-A-CAGE-001

Adds two 3.5" or 2.5" drive trays to Define 7 Series cases via HDD cage or 120 mm fan slots

  • TypesDrive Mounts
  • ColorsBlack
  • SpecificationsCompatibility: Cases with Fractal Design Type-B HDD Mounts (
  • FeaturesMounts to available HDD cage positions and/or 120 mm fan slo
  • Adds two drive bays by fitting into any 120 mm fan slot or cage position
  • Supports both 3.5" and 2.5" drives using Type-B trays sold separately
  • Extra 2.5" mount on top of the cage for additional SSD space
  • Four-point tray support keeps drives secure during transport or vibration
  • Black finish matches Define 7 Series and compatible Fractal Design cases

Storage expansion kit

The Fractal Design FD-A-CAGE-001 is a black HDD cage kit built for Define 7 Series and compatible Fractal Design cases. It lets owners trade a 120 mm fan slot or existing cage position for additional drive capacity. The accessory includes the cage and four 6-32 screws for secure installation. Builders who need more bays without changing cases will find it fits directly into the mounting pattern.

Type-B tray compatibility

This cage accepts up to two Fractal Design Type-B 3.5 inch or 2.5 inch drive trays, which are sold separately. It mounts to any standard hard-drive cage position or to a 120 mm fan location using the 105 x 105 mm screw spacing. Without the matching Type-B trays the cage cannot hold drives, so buyers must source those trays before the upgrade works.

Two-drive limit with top 2.5 inch option

Each installed cage holds a maximum of two drives in the Type-B trays and adds a third 2.5 inch mounting point on top for a single SSD. That gives three drives per cage when the top slot is used, but no more trays fit in the main slots. Users planning larger arrays will need multiple cages and available fan or cage positions to scale further.

Kohokohdat

  • Adds two drive bays by fitting into any 120 mm fan slot or cage position
  • Supports both 3.5" and 2.5" drives using Type-B trays sold separately
  • Extra 2.5" mount on top of the cage for additional SSD space
  • Four-point tray support keeps drives secure during transport or vibration
  • Black finish matches Define 7 Series and compatible Fractal Design cases

Tekniset tiedot

BrandFractal Design
ModelFD-A-CAGE-001
TypesDrive Mounts
ColorsBlack
SpecificationsCompatibility: Cases with Fractal Design Type-B HDD Mounts (Define 7 Series)
Package Contents:
HDD Cage
4 x 6-32 Screws for MB and brackets
FeaturesMounts to available HDD cage positions and/or 120 mm fan slots (105 x 105 mm screw spacing)
Designed for use in Define 7 Series and compatible cases
Holds up to two Fractal Design Type-B 3.5"/2.5" drive trays (sold separately)
Additional mounting holes for 2.5" drive on top
Sturdy four-point tray support
Lähetyspaino0.40 kg
Pakkauksen mitat185 × 162 × 109 mm

Kysymyksiä tästä tuotteesta

How many drives can this cage hold once installed in a Define 7 case?

The cage accepts up to two Fractal Design Type-B 3.5" or 2.5" drive trays, which are sold separately.

What mounting standard does the cage use for 120 mm fan slots?

It mounts to any 120 mm fan position using the 105 x 105 mm screw spacing.

What physical space does the cage need to fit inside the case?

It fits any available hard drive cage position or a 120 mm fan slot, and includes four 6-32 screws for mounting.
