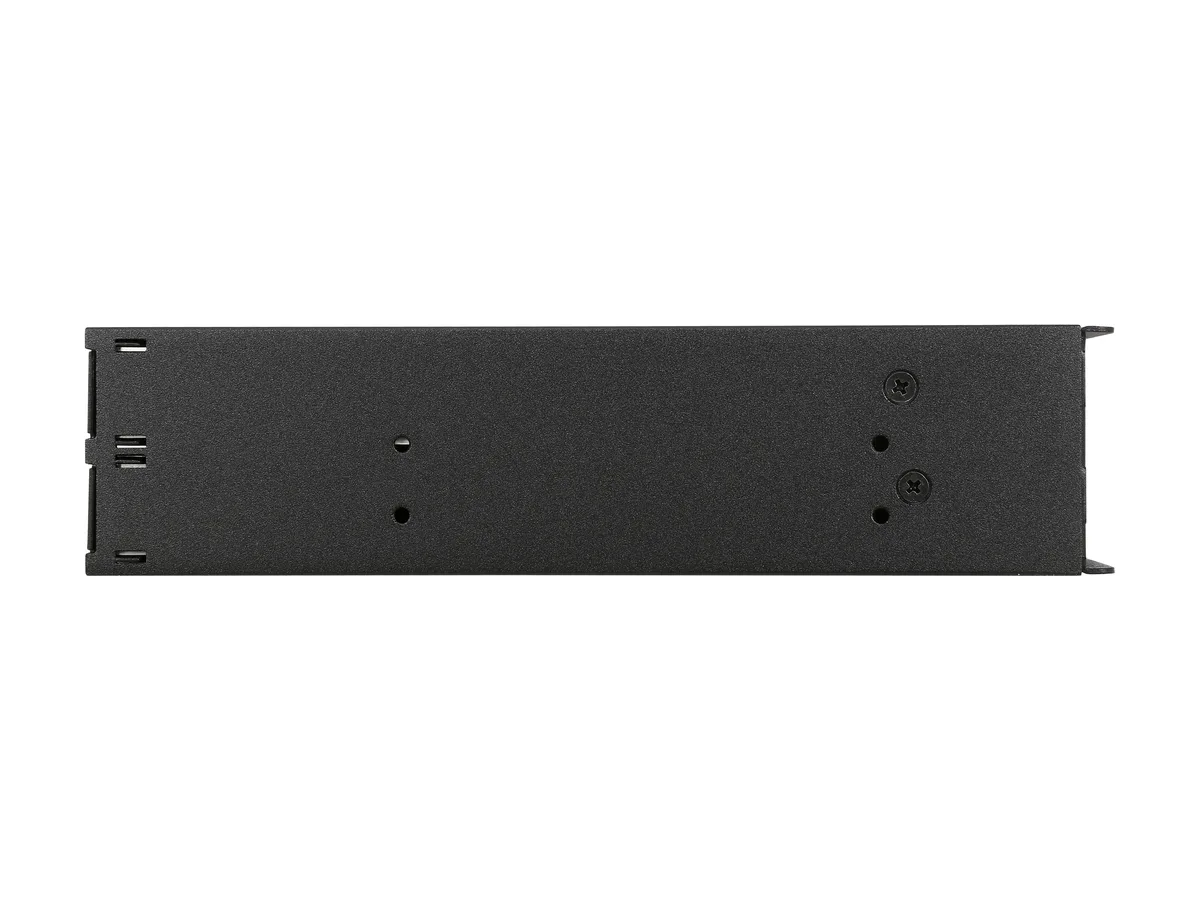

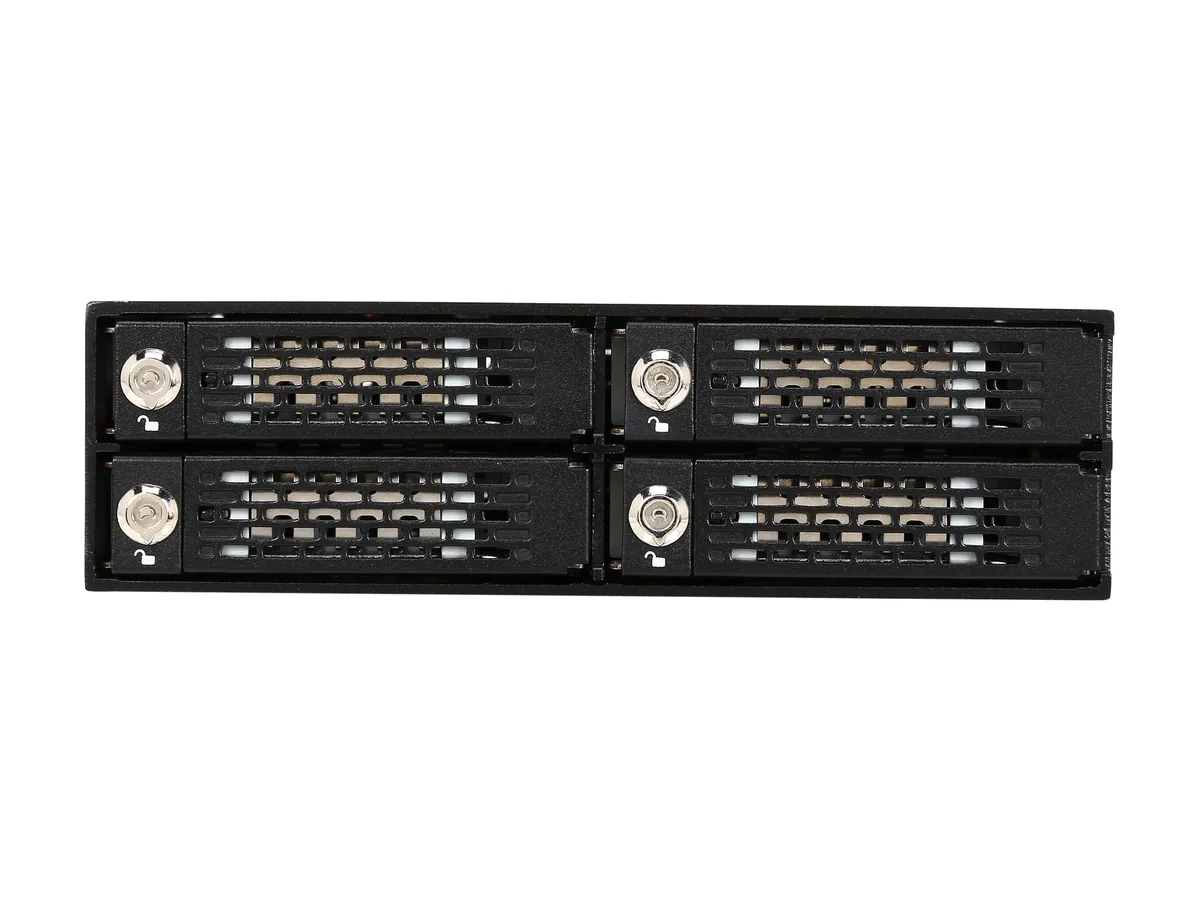

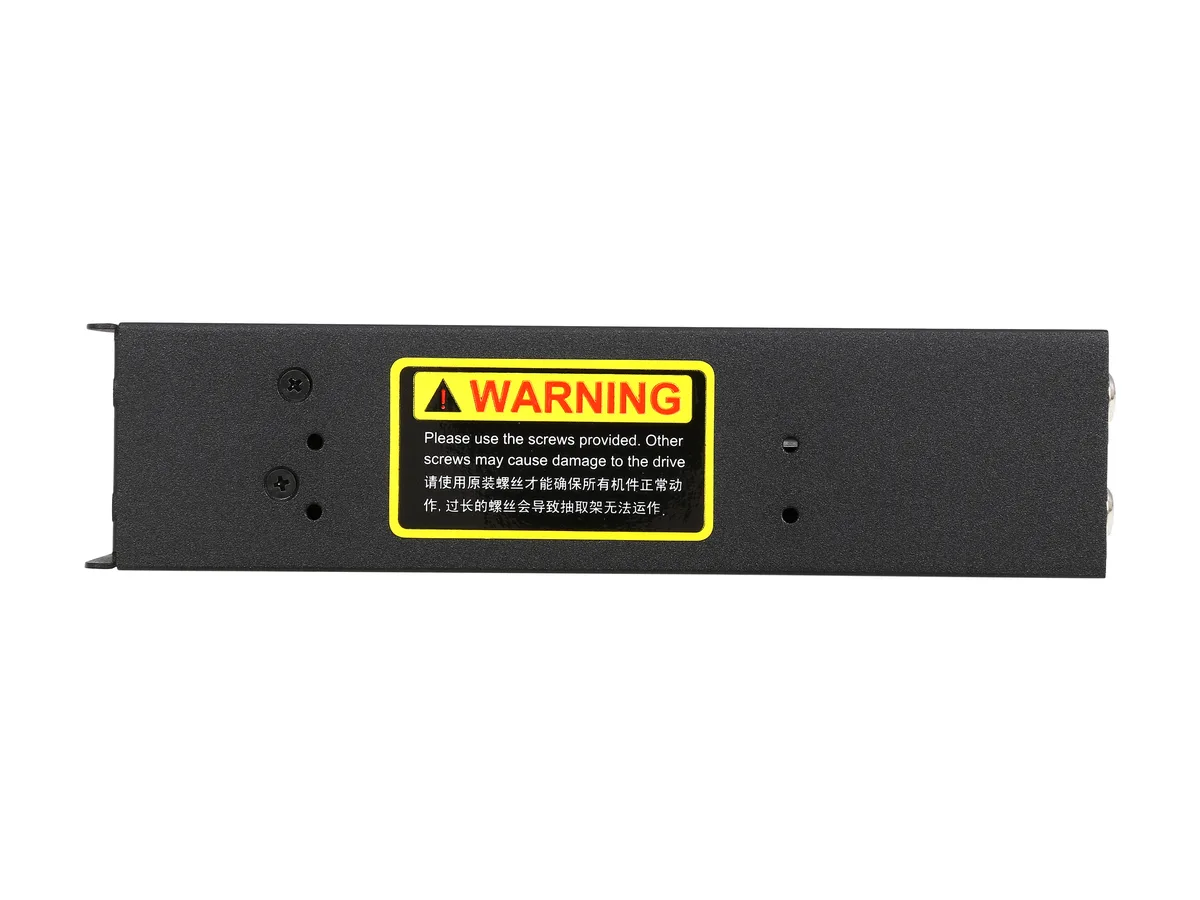

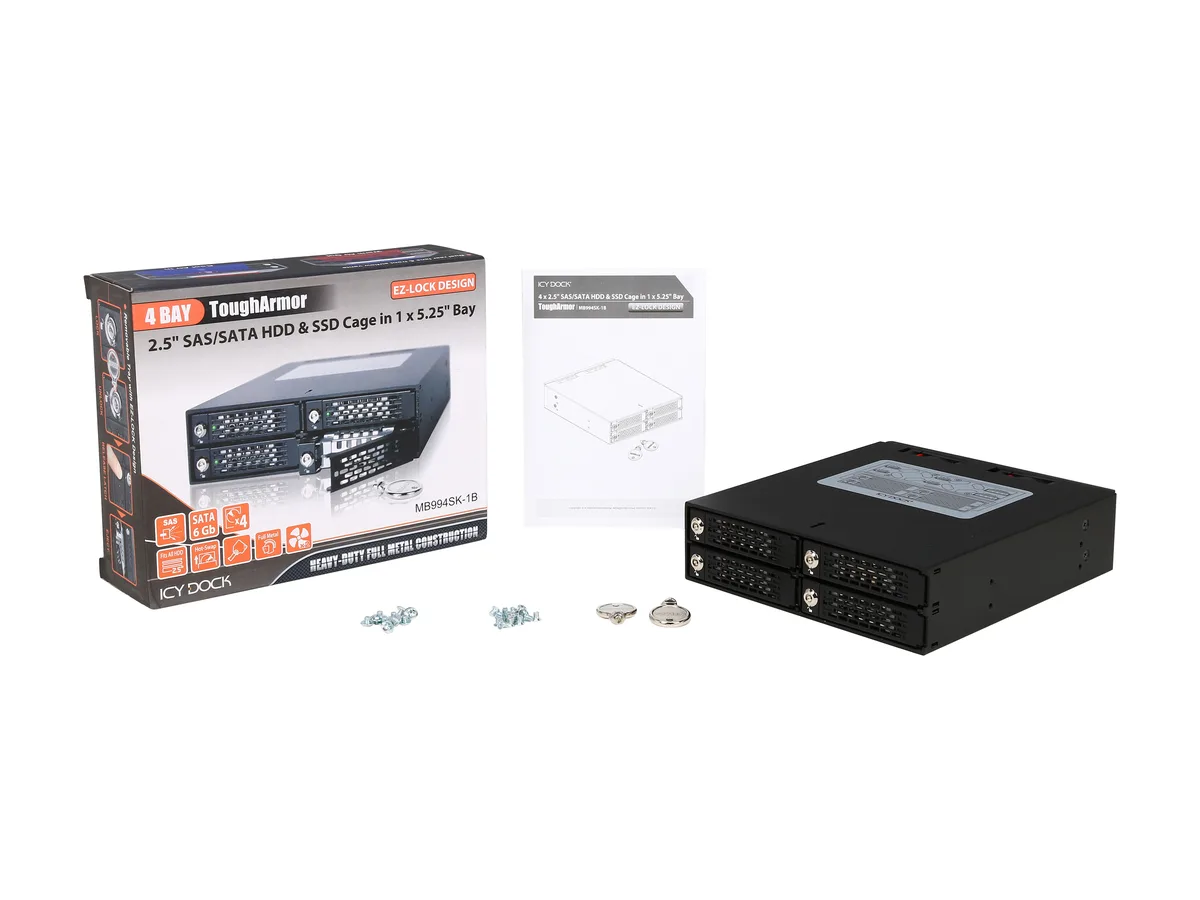

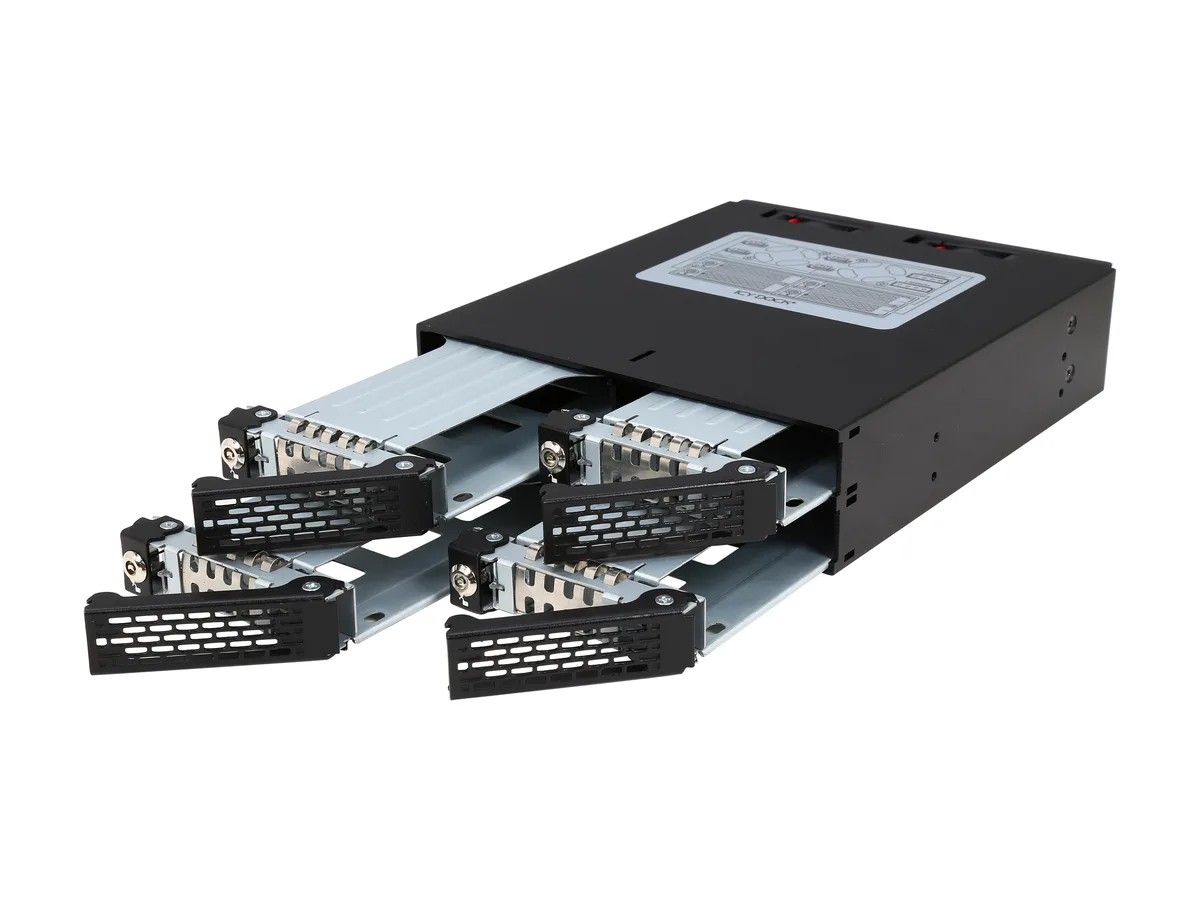

Black metal cage holding four 2.5 inch drives in a 5.25 bay with dual 40mm fans

ICY DOCK

ICY DOCK MB994SK-1B 4 x 2.5 SATA/SAS HDD Accessory

SKU CH-14K9-VHS4W MPN MB994SK-1B

Holds four 2.5-inch SATA or SAS drives in one 5.25-inch bay with individual key locks and hot-swap support

  • ColorBlack
  • Conversion Tray4 x 2.5" Drive to 5.25" Bay
  • Mobile Rack Drives SupportMulti 2.5" Drives to 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Compatible Products4 x 2.5" SAS or SATA I/ II/ III HDD/ SSD
  • SpecificationsHost Interface : 4 x 7pin SATA Drive Bay : Single 5.25" half
  • Holds four 2.5″ drives in one 5.25″ bay
  • Individual key lock secures each drive bay
  • Full metal construction withstands harsh environments
  • Dual 40 mm fans cool drives 24/7
  • Supports SATA and SAS drives up to 6 Gb/sec

4 x 2.5" SATA/SAS Hot-Swap Cage

The ICY DOCK MB994SK-1B fits four 2.5" SATA or SAS drives into a single 5.25" half-height bay. Each drive tray has an individual steel key lock for physical security. Full metal construction and dual 40mm fans with front and rear ventilation provide continuous cooling for 24/7 operation.

Suited for secured multi-drive arrays

This unit serves military, medical, industrial and enterprise systems that require hot-swap access and locked drive bays in a rugged enclosure. Builders needing support for drives thicker than 15mm, or installations without a 5.25" bay and Molex power connectors, should consider other solutions.

Four independent SATA host ports

The backplane presents four separate 7-pin SATA connections, each capable of up to 6 Gb/sec transfer rates depending on the installed drive. Matching four motherboard or controller ports is the single specification that determines whether this cage integrates directly into your storage topology.

Kohokohdat

  • Holds four 2.5″ drives in one 5.25″ bay
  • Individual key lock secures each drive bay
  • Full metal construction withstands harsh environments
  • Dual 40 mm fans cool drives 24/7
  • Supports SATA and SAS drives up to 6 Gb/sec

Tekniset tiedot

BrandICY DOCK
ModelMB994SK-1B
ColorBlack
Conversion Tray4 x 2.5" Drive to 5.25" Bay
Mobile Rack Drives SupportMulti 2.5" Drives to 5.25" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Compatible Products4 x 2.5" SAS or SATA I/ II/ III HDD/ SSD
SpecificationsHost Interface : 4 x 7pin SATA
Drive Bay : Single 5.25" half height device bay
Transfer Rate : Up to 6 Gb/sec. (depending on hard drive speed)
Power Input : 2 x 4pin Molex power port
Insert& Extract connection Via : Direct SAS/ SATA hard drive connection
Structure : Aluminum & SECC
Drive Cooling : 40mm rear cooling fan x 2 & metal heat dispersion
LED Indication : Device Power & Drive Activity
LED Color : Green : Device Power ; Amber : Drive Activity
Drive Security : Custom Steel Lock
Dimension (L x W x H) : 6.70" x 5.75" x 1.63"
Weight : 1.98 lbs
Lähetyspaino0.91 kg
Pakkauksen mitat188 × 155 × 56 mm

Kysymyksiä tästä tuotteesta

What size drive bay does the MB994SK-1B require for installation?

The MB994SK-1B fits a single 5.25" half-height device bay in your chassis.

How do I connect power to the MB994SK-1B backplane, and what step is often missed?

Connect both 4-pin Molex power plugs to the backplane; missing the second connector will leave half the drive bays without power.

What drive heights can the MB994SK-1B trays accept for future replacements?

Each tray supports 2.5" SATA or SAS drives from 7 mm up to 15 mm tall.
