iStarUSA Inc.
iStarUSA Inc. D-200 2U Rackmount Server Chassis Black
A 2U rackmount server chassis with two 5.25" and two 3.5" drive bays, three expansion slots, front USB 2.0 ports, an 80 mm fan and an aluminium front bezel
- Chassis TypeRackmount
- Form Factor2U
- ColorBlack
- Case MaterialMaterial of Front Bezel: Aluminum alloy Material of Handle:
- External 5.25" Drive Bays2
- External 3.5" Drive Bays2
Model D-200
- D-200
- D-200-FS
- D200ND-2T7SA-BL
- D200ND-2T7SA-RD
- D-200SEA-RD
Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

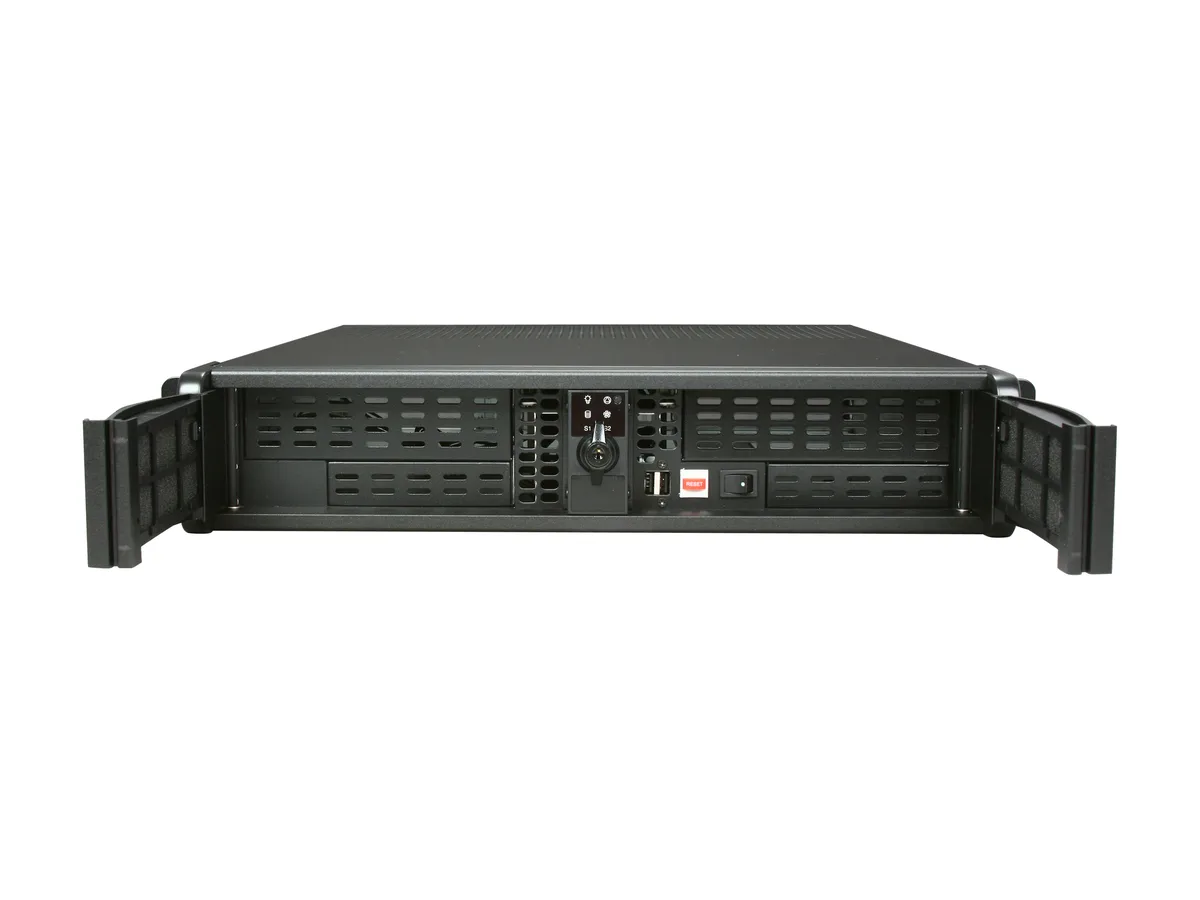

- Aluminium front bezel with lock secures the rackmount server
- Two front USB 2.0 ports give quick peripheral access
- Single 80 mm fan and removable filter keep airflow clean

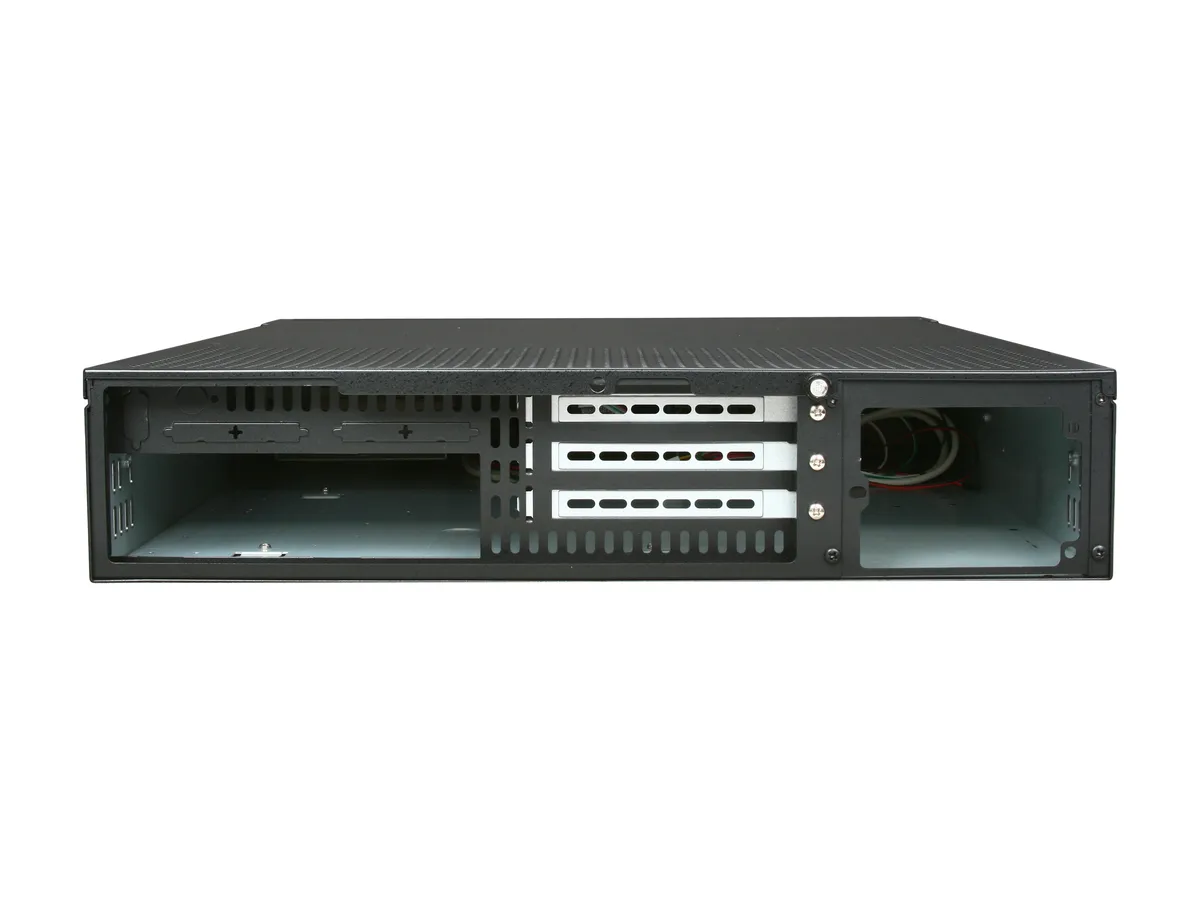

- Three expansion slots support PCI, PCI-X, AGP or PCI-Express cards
- Four drive bays (two 5.25" and two 3.5") provide storage flexibility
Compact 2U Rackmount Server Chassis
The iStarUSA D-200 is a 2U rackmount chassis built for standard 19-inch server racks. It suits system integrators and IT teams who need a compact, lockable enclosure for an ATX motherboard and up to three expansion cards in space-constrained environments.
Build Integration and Drive Flexibility
The aluminium front bezel provides two 5.25-inch and two 3.5-inch external bays plus front-access USB 2.0 ports. A single 80mm fan and removable air filter handle airflow, while the SECC steel frame and optional aluminium body option keep the structure rigid without adding unnecessary mass.
Upgrade Path from Tower or 1U Units
Teams moving from tower servers or 1U enclosures gain full ATX I/O clearance and three slot positions for PCI, PCI-X, AGP or PCI-Express add-in cards. The jump makes sense when hot-swap drive cages and front-panel lockable access become operational requirements.
Kohokohdat
- Aluminium front bezel with lock secures the rackmount server
- Two front USB 2.0 ports give quick peripheral access
- Single 80 mm fan and removable filter keep airflow clean
- Three expansion slots support PCI, PCI-X, AGP or PCI-Express cards
- Four drive bays (two 5.25" and two 3.5") provide storage flexibility
Tekniset tiedot
| Brand | iStarUSA |
|---|---|
| Model | D-200 |
| Chassis Type | Rackmount |
| Form Factor | 2U |
| Color | Black |
| Case Material | Material of Front Bezel: Aluminum alloy Material of Handle: SECC Zinc-Coated Steel Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| External 5.25" Drive Bays | 2 |
| External 3.5" Drive Bays | 2 |
| Expansion Slots | 3 |
| Front Ports | 2 x USB 2.0 |
| 80mm Fans | 1 |
| Features | Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) Switches: Power, Reset |
| Dimensions | 19.00" x 3.50" x 20.80" |
| Lähetyspaino | 10.86 kg |
| Pakkauksen mitat | 683 × 549 × 201 mm |
Kysymyksiä tästä tuotteesta
What limits the number of expansion cards I can install in the D-200?
The chassis provides three expansion slots, so only three add-on cards such as PCI, PCI-X, AGP or PCI-Express can be fitted.
How much airflow does the single 80 mm fan deliver during continuous operation?
One 80 mm fan is included; its airflow rating is not supplied, so sustained thermal performance depends on the rest of your cooling design.
Which motherboard form factors fit the D-200 without modification?
The full-size I/O shield supports standard ATX motherboards; smaller boards such as micro-ATX will also mount, but larger E-ATX boards are not confirmed to fit.
