Green rectangular circuit board with a central module socket, 40-pin GPIO header along one edge

LORDWORLD

LORDWORLD CM5 to Pi5 Adapter Board 40PIN GPIO development board

SKU CH-XQV2-WJXR1

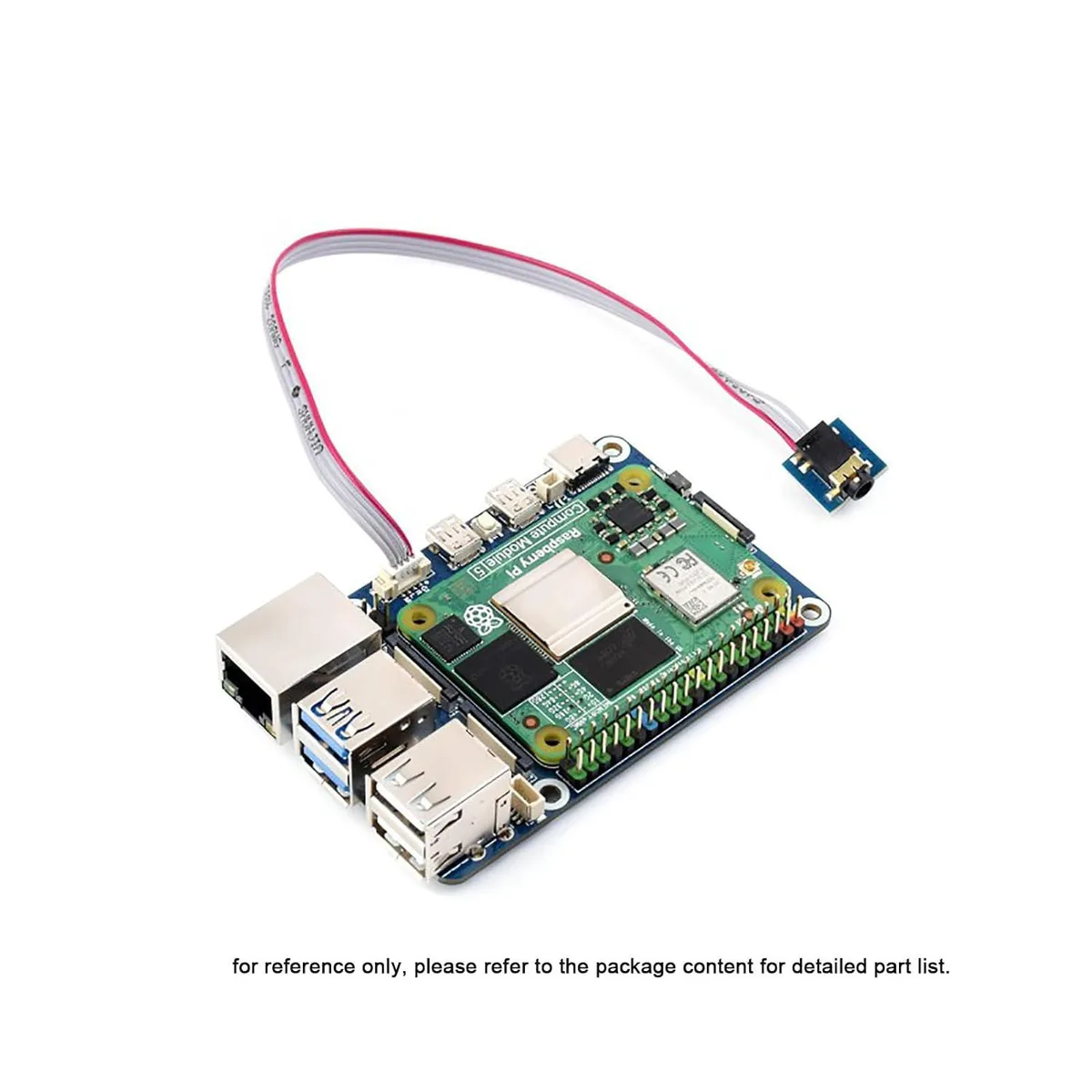

Adapter board lets a Compute Module 5 replicate Raspberry Pi 5 I/O with 40PIN GPIO, HDMI, USB and onboard USB audio decoder with microphone header

  • Replicate Pi 5 I/O layout with Compute Module 5 for custom embedded deployments
  • Support both CM5 Lite and eMMC versions via standard CM5 socket for wide applicability
  • Integrated USB audio decoder chip and microphone header enable audio input/output for AI voice projects
  • 40PIN GPIO header plus HDMI and USB match Pi 5 layout for seamless software porting
  • Breakout board mimics Pi 5 for embedded projects, edge devices or production test platforms

CM5-to-Pi5 adapter for embedded developers

This adapter board lets developers replicate the Raspberry Pi 5 I/O layout using a Compute Module 5. It targets engineers building custom carrier boards, edge devices, or production test platforms. The design supports both CM5 Lite and eMMC variants, so the same board works across development and volume deployment.

Practical limits of the 40PIN GPIO interface

The board exposes a 40PIN GPIO header that mirrors the Pi 5 pinout, enabling software porting and hardware reuse. Only the interfaces physically routed to this header and the onboard HDMI and USB ports are available; any additional Pi 5 peripherals not mapped here cannot be used. Audio input and output rely on the integrated USB audio decoder chip and microphone header.

Compute Module 5 socket compatibility decides fit

The single specification that determines whether this is the right part is the standard CM5 socket, which accepts both Lite and eMMC Compute Module 5 boards. Projects requiring a different module form factor or a non-Pi-5 pinout cannot use this adapter.

Kohokohdat

  • Replicate Pi 5 I/O layout with Compute Module 5 for custom embedded deployments
  • Support both CM5 Lite and eMMC versions via standard CM5 socket for wide applicability
  • Integrated USB audio decoder chip and microphone header enable audio input/output for AI voice projects
  • 40PIN GPIO header plus HDMI and USB match Pi 5 layout for seamless software porting
  • Breakout board mimics Pi 5 for embedded projects, edge devices or production test platforms

Tekniset tiedot

BrandLORDWORLD

Kysymyksiä tästä tuotteesta

Should I choose the CM5 Lite or eMMC version for this adapter board?

The board's standard CM5 socket accepts both Compute Module 5 Lite and eMMC versions, so you can use whichever module suits your storage needs.

What does the 40PIN GPIO header provide when a CM5 is installed?

It replicates the Raspberry Pi 5 I/O layout, giving you the same 40-pin GPIO access for hardware reusability and software porting.

How does the onboard USB audio chip connect to the CM5?

The integrated USB audio decoder and microphone header link via the CM5's USB interface to add audio input and output for voice or sound projects.
