Green circuit board with metal bracket, five external ports three rectangular Type A and two oval Type C

LORDWORLD

LORDWORLD PCIe USB 3.2 Gen 2 5-Port Card (3×A 2×C) 20 Gbps

SKU CH-P8QG-NE4KS

Adds five USB 3.2 Gen 2 ports (three Type-A, two Type-C) via PCI Express with 20 Gbps total bandwidth

  • Connect up to five peripherals with three Type-A and two Type-C ports
  • Achieve up to 20 Gbps total bandwidth across two independent 10 Gbps controllers
  • Each port delivers up to 10 Gbps when used individually for fast transfers
  • Works with Windows 7 8 10 11 and OS X 10.8.2 plus Linux
  • PCI Express slot mounting ensures a stable internal connection

PCIe USB 3.2 Gen 2 expansion card

This LORDWORLD card adds five USB 3.2 Gen 2 ports to a desktop computer through a PCI Express slot. Three ports use the Type A connector and two use Type C. The board delivers a total of 20 Gbps bandwidth split across two independent 10 Gbps controllers. Each port can reach 10 Gbps when used alone.

Builders adding high-speed USB to Windows or macOS

The card works with Windows 7, 8, 10 and 11 on both 32-bit and 64-bit installations, and with macOS 10.8.2 or later. Linux systems and Windows 10 or 11 do not need extra drivers. Windows 7 and Server editions do require a driver install. Systems without a free PCI Express slot cannot use this card.

Bandwidth layout and practical limits

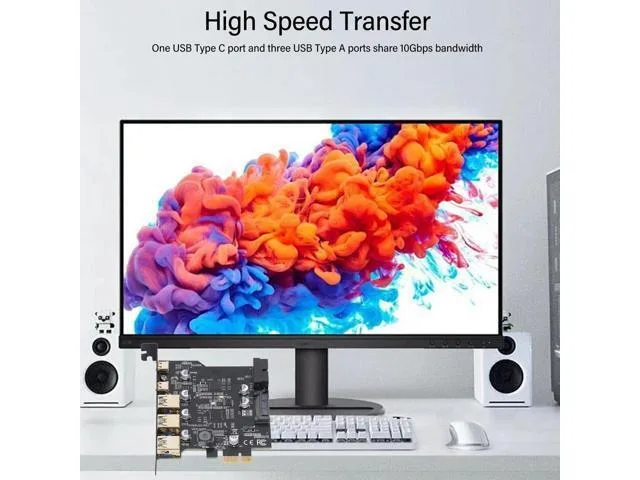

Two controller groups each provide 10 Gbps; one group serves one Type C and three Type A ports, the other serves the remaining ports. A single drive or device can saturate its port at 10 Gbps, but simultaneous heavy transfers on ports sharing a controller will divide that 10 Gbps pool. The card adds connectivity only; it does not supply additional power beyond the slot and port specifications.

Kohokohdat

  • Connect up to five peripherals with three Type-A and two Type-C ports
  • Achieve up to 20 Gbps total bandwidth across two independent 10 Gbps controllers
  • Each port delivers up to 10 Gbps when used individually for fast transfers
  • Works with Windows 7 8 10 11 and OS X 10.8.2 plus Linux
  • PCI Express slot mounting ensures a stable internal connection

Tekniset tiedot

BrandLORDWORLD

Kysymyksiä tästä tuotteesta

What motherboard slot does the LORDWORLD PCIe USB 3.2 Gen 2 card need?

The card installs in any free PCI Express slot on the motherboard.

Will the 10 Gbps per-port speed drop when I plug in older USB 2.0 drives?

Legacy devices run at their own rated speed; the card's 10 Gbps and 20 Gbps totals remain available for faster ports.

How can I verify each port delivers up to 10 Gbps after installing the card?

Connect a USB 3.2 Gen 2 drive to a single port and measure throughput with a benchmark tool; it should approach 10 Gbps.
