Silver 12.1 inch all-in-one panel PC with resistive touchscreen and aluminium housing

partaker

partaker A2-PA-121TPC-CE5B(J19)-8G512G 12.1" all-in-one PC

SKU CH-0JWD-R1EHS

12.1-inch industrial panel PC with IP65 front protection, Intel Celeron J1900, 8 GB DDR3L RAM, 512 GB SSD, fanless aluminium chassis and wide-temperature resistive touchscreen

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis operates silently in harsh environments
  • High-temperature 5-wire resistive touch rated for 200 million touches
  • Intel Celeron J1900 up to 2.42 GHz with 8 GB DDR3L and 512 GB SSD

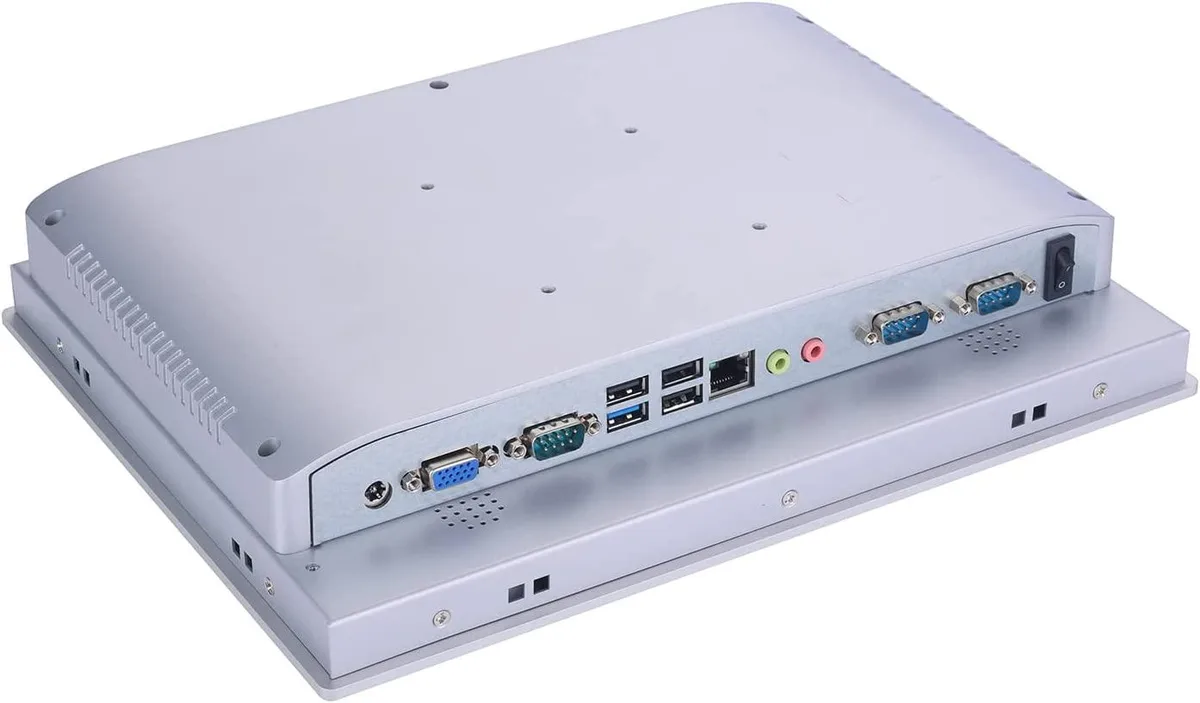

  • Rich industrial I/O including 3 COM, VGA, LAN, USB 3.0 and Mini PCIe expansion

Industrial Panel PC for Embedded Use

The Partaker A2-PA-121TPC-CE5B(J19) is a 12.1 inch all-in-one computer built for industrial environments. It integrates an Intel Celeron J1900 processor, 8GB DDR3L memory and a 512GB SSD within a compact aluminium chassis. The IP65-rated front panel and high-temperature five-wire resistive touchscreen suit factory automation, kiosk or machine-interface deployments.

Fanless Cooling and Low Power Draw

An aluminium alloy chassis dissipates heat without fans, ensuring silent operation and reduced dust ingress. The system runs on a 12V DC input supplied by a 100-240V AC adapter, drawing minimal power for continuous 24/7 duty. Operating temperature ranges from 0 to 50°C with the installed SSD, while the fanless design eliminates moving-part wear and acoustic noise.

Sustained Load Behaviour in Industrial Settings

Under prolonged workloads the passively cooled J1900 maintains stable frequencies within its thermal envelope, avoiding the throttling cycles common in actively cooled small-form-factor PCs. The five-wire resistive touchscreen retains accuracy after 200 million touches, and the watchdog timer supports unattended recovery. Expansion via a full-size Mini PCIe slot allows wireless or 4G modules for remote monitoring.

Kohokohdat

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis operates silently in harsh environments
  • High-temperature 5-wire resistive touch rated for 200 million touches
  • Intel Celeron J1900 up to 2.42 GHz with 8 GB DDR3L and 512 GB SSD
  • Rich industrial I/O including 3 COM, VGA, LAN, USB 3.0 and Mini PCIe expansion

Tekniset tiedot

ModelA2-PA-121TPC-CE5B(J19)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How is the 12.1" panel PC mounted using the embedded buckle kits, and what cut-out size must be prepared?

The unit fits a 301 x 229 mm rectangular opening; the four spring-loaded buckles snap into the chassis sides and lock against the panel rear, so the panel must be inserted from the front before tightening — reversing the order leaves the buckles inaccessible.

Which storage slot will need attention first if the 512 GB mSATA SSD reaches its write endurance?

The board provides one mSATA slot (occupied) and one 2.5" SATA bay (empty); adding a 2.5" SATA SSD or HDD there is the only internal expansion path without removing the existing drive.

At what ambient temperature does the fanless aluminium chassis hit its thermal limit during continuous load?

Rated operating ceiling is 50 °C with the installed SSD; sustained full-load operation above that temperature will trigger CPU throttling because the passive heatsink cannot dissipate the J1900's heat fast enough.
