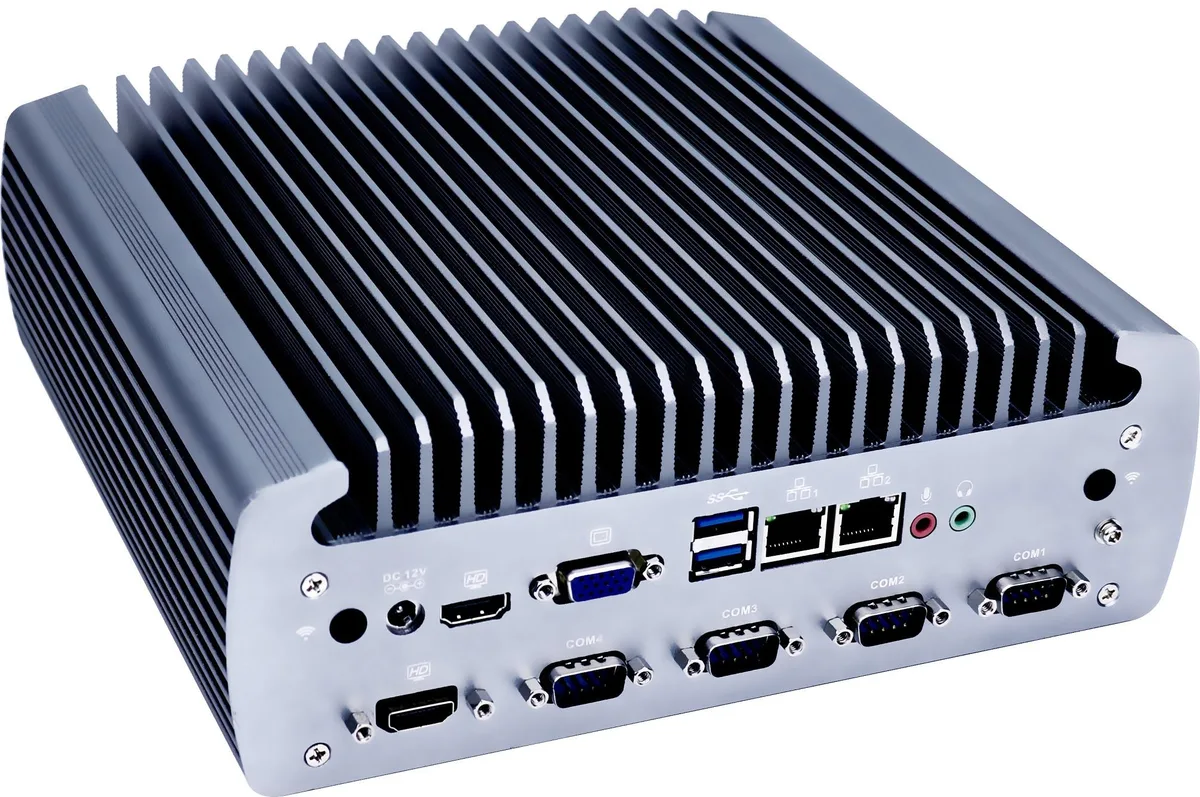

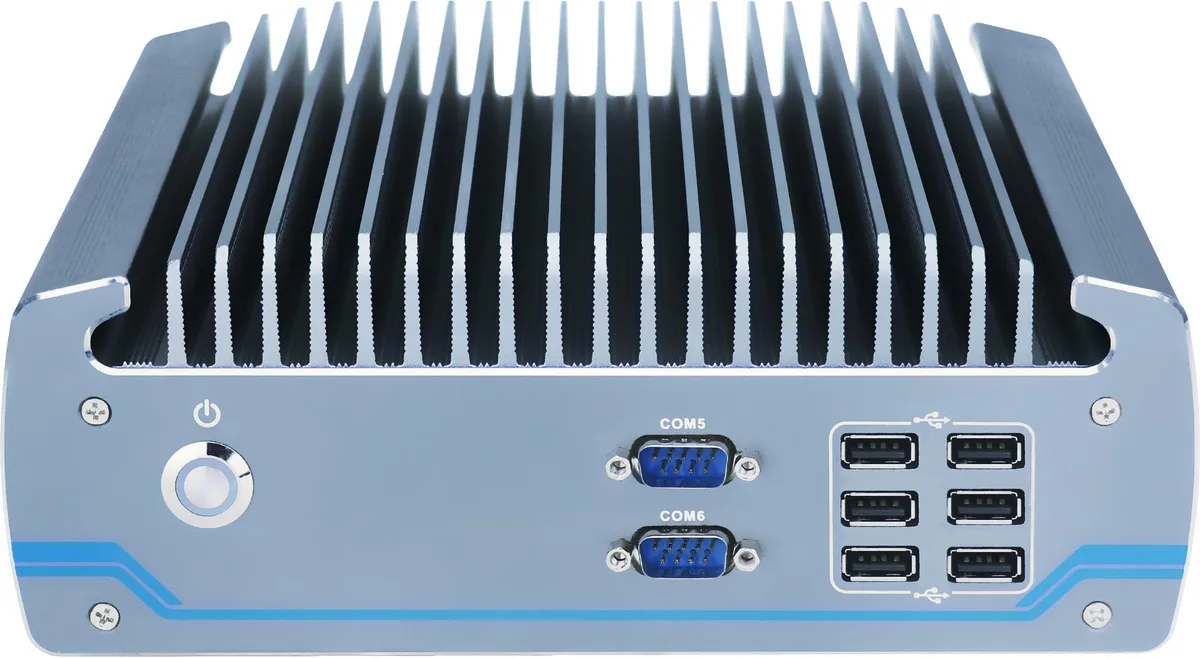

Compact gray aluminium mini PC with fanless industrial design

partaker

partaker I21 barebone mini PC i5-8500T 32GB 512GB

SKU CH-C2TS-CYV4S

Fanless embedded mini PC with Core i5-8500T, 32 GB DDR4 and 512 GB storage, dual LAN, six COM ports and wide 12–19 V DC input

  • ColorGray
  • CPU TypeIntel Core i5 8th Gen

CPU Type Intel Core i5

Group 32GB RAM+512GB SSD

  • Fanless aluminium chassis enables silent operation in noise-sensitive environments
  • Intel Core i5-8500T six-core processor reaches 3.5 GHz for responsive compute performance
  • 32 GB DDR4 memory supports smooth multitasking across industrial workloads
  • 512 GB M.2 storage plus optional 2.5-inch drive bay offers flexible capacity
  • Dual gigabit LAN with four serial ports simplifies integration into automation networks

Fanless embedded mini PC

The Partaker I21 is a compact barebone system built around an onboard Intel Core i5-8500T processor with six cores and six threads running at a base frequency of 2.1 GHz up to a maximum of 3.5 GHz. Its all-aluminium chassis uses passive cooling for silent operation across a commercial temperature range of 0 to +50 °C and an industrial range of -20 to +60 °C. The unit ships with 32 GB of DDR4 memory and a 512 GB M.2 2280 solid-state drive installed.

Industrial automation and kiosk builders

This platform suits integrators who need dual-display output via VGA and two HDMI ports, dual Gigabit LAN, six COM ports with optional RS232/RS422/RS485 modes, eight USB ports and a GPIO header for peripheral control. Buyers who require active cooling, a discrete graphics card slot or a larger number of high-speed USB 3.0 connections should look at alternative form factors.

32 GB DDR4 memory limit

The board provides two SODIMM slots supporting DDR4 at 2133 or 2400 MT/s with a hard ceiling of 32 GB, so the supplied configuration already reaches the maximum addressable capacity. Expansion is limited to one M.2 2280 slot compatible with both PCIe and SATA drives, one optional 2.5-inch bay and a Mini PCIe slot for wireless modules.

Kohokohdat

  • Fanless aluminium chassis enables silent operation in noise-sensitive environments
  • Intel Core i5-8500T six-core processor reaches 3.5 GHz for responsive compute performance
  • 32 GB DDR4 memory supports smooth multitasking across industrial workloads
  • 512 GB M.2 storage plus optional 2.5-inch drive bay offers flexible capacity
  • Dual gigabit LAN with four serial ports simplifies integration into automation networks

Tekniset tiedot

ColorGray
CPU TypeIntel Core i5 8th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How do I confirm the i5-8500T is running at its 3.5 GHz maximum after setup?

Enter the AMI EFI BIOS and watch the CPU frequency readout under load; it should reach 3.5 GHz when the six cores are fully utilised.

The listing mentions 32 GB RAM and 512 GB SSD — are both already installed or do I need to add them?

The unit ships with 32 GB DDR4 (two SODIMM modules) and a 512 GB M.2 2280 drive already fitted; no extra memory or storage purchase is required.

Which storage version should I choose — the M.2 2280 slot or the optional 2.5-inch bay?

The M.2 2280 slot supports both PCIe and SATA drives and is populated with the 512 GB SSD; the 2.5-inch bay is optional for a second drive if you need more capacity.
