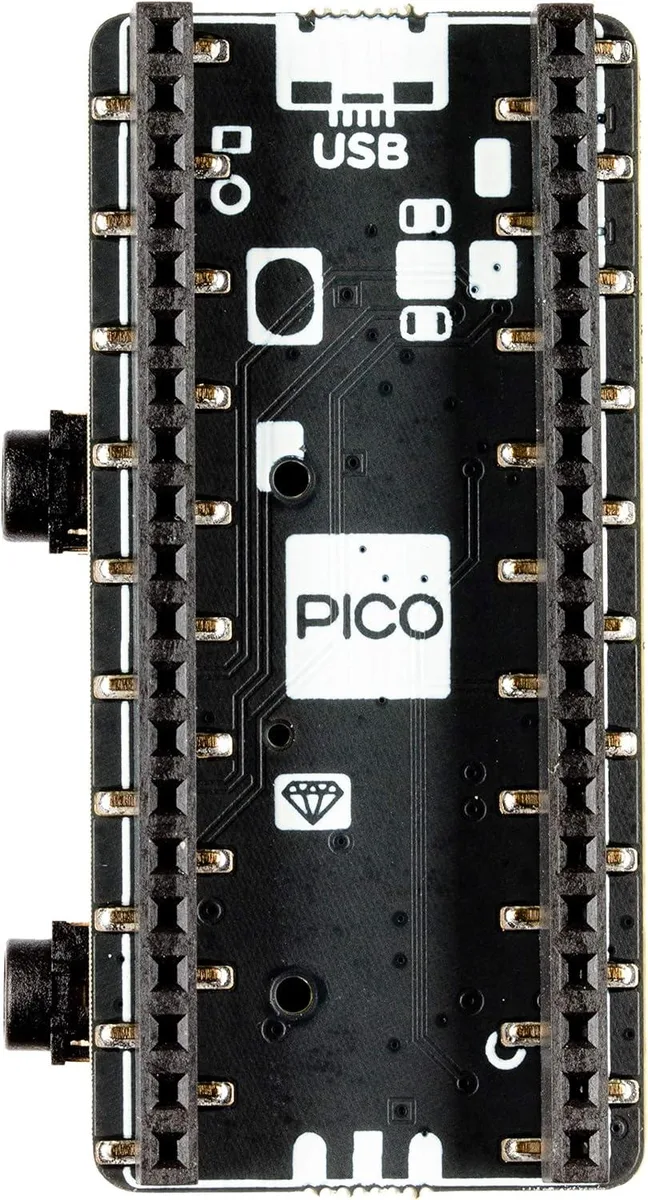

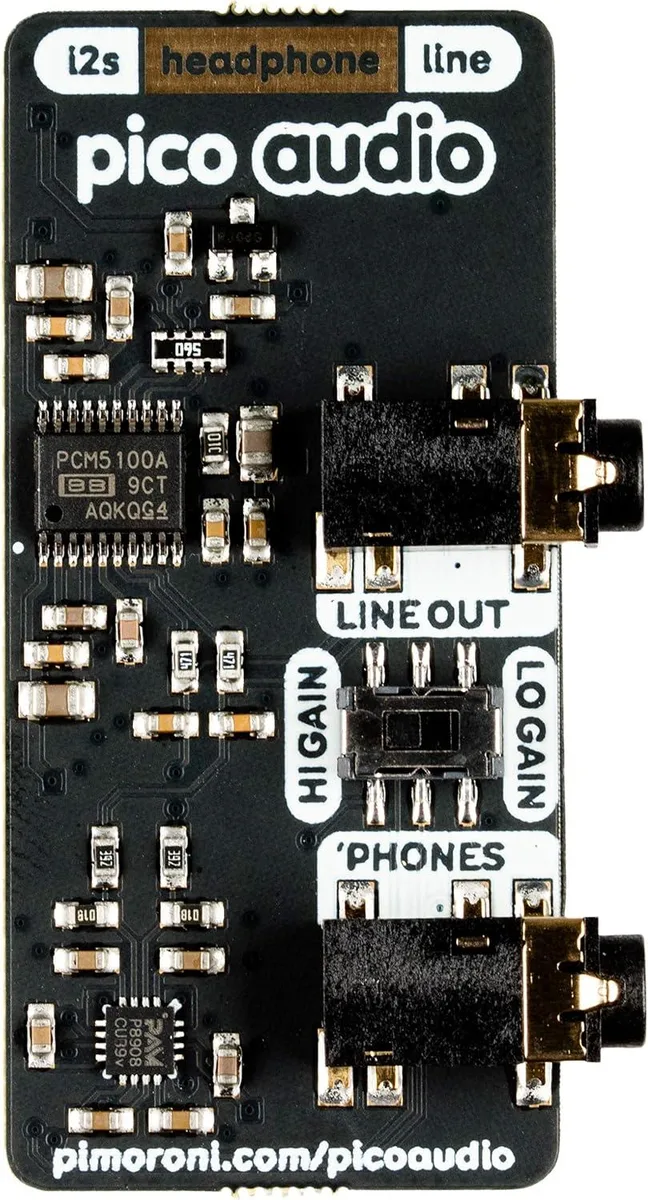

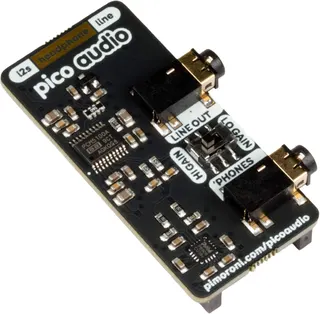

Green rectangular circuit board with two 3.5mm audio jacks and pre-soldered female headers

Pimoroni

Pimoroni PIM544 PICO Audio Pack LINE-Out Headphone AMP development board

SKU CH-BHA1-HXKS6

Stereo audio add-on for Raspberry Pi Pico with PCM5100A DAC, PAM8908JER headphone amplifier, 3.5mm line-out and headphone jacks, and selectable gain

  • 32-bit 384 kHz stereo output via PCM5100A DAC
  • Amplified headphone audio from PAM8908JER stereo amp
  • 5 mm line-out jack for external amps or speakers
  • 5 mm headphone jack with low/high gain switch
  • Pre-soldered headers attach directly to Raspberry Pi Pico

What it is and who it’s for

This Pimoroni development board adds high-quality stereo audio to a Raspberry Pi Pico. It integrates a PCM5100A DAC and a PAM8908JER headphone amplifier on a fully assembled PCB with pre-soldered female headers. Makers and experimenters can output 32-bit, 384 kHz audio through either a 3.5 mm line-out or headphone jack.

Who it suits and who should look elsewhere

Suits anyone building Pico-based audio players, synthesisers or voice projects that need both line-level and amplified headphone outputs with selectable gain. Not for users who require microphone input, digital audio interfaces like I2S input, or a standalone module that works without a Raspberry Pi Pico host.

Audio specification that decides fit

The PCM5100A DAC delivers up to 32-bit resolution at 384 kHz sample rate, driving both the line-out and headphone sockets. This single figure determines whether the board meets your project’s fidelity and bandwidth requirements.

Kohokohdat

  • 32-bit 384 kHz stereo output via PCM5100A DAC
  • Amplified headphone audio from PAM8908JER stereo amp
  • 5 mm line-out jack for external amps or speakers
  • 5 mm headphone jack with low/high gain switch
  • Pre-soldered headers attach directly to Raspberry Pi Pico

Tekniset tiedot

Tälle tuotteelle ei ole vielä julkaistu teknisiä tietoja.

Kysymyksiä tästä tuotteesta

What Raspberry Pi board is required to use the PIM544 Audio Pack?

The board is designed for the Raspberry Pi Pico and includes pre-soldered female headers that plug directly onto the Pico's GPIO pins.

Can I connect passive speakers directly to the 3.5mm line out jack?

The line out jack provides a line-level signal intended for an external amplifier or powered speakers; it will not drive passive speakers on its own.

How can I verify the PCM5100A DAC is outputting audio after connecting the pack?

Plug headphones into the 3.5mm headphone jack, set the gain switch to low or high, and play a test tone; audible output confirms the DAC and PAM8908 amplifier are working.
