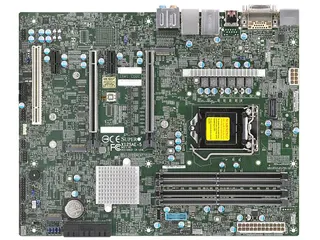

Green ATX server motherboard with silver LGA 1200 socket, four black DDR4 slots, two full-length PCIe x16 slots, dual RJ45 LAN ports

Supermicro

Supermicro MBD-X12SAE-5-O server motherboard

SKU CH-FP7S-SHX6K MPN MBD-X12SAE-5-O

ATX server motherboard with LGA 1200 socket supporting 11th Gen Intel Core and Xeon W-1300 CPUs, four DDR4-3200 slots up to 128 GB ECC, dual 2.5 GbE and 1 GbE LAN, two PCIe 4.0 x16 slots.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Generation Intel Core i5/i7/i9 Processors, Int
  • North BridgeIntel W580
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM
  • Supports 11th Gen Intel Core and Xeon W-1300 CPUs on LGA 1200 socket
  • Up to 128 GB DDR4-3200 ECC memory across four 288-pin slots
  • Dual PCIe 4.0 x16 slots configurable as 16/0 or 8/8 for GPU or add-in cards
  • Three M.2 slots with PCIe 4.0 x4 and two PCIe 3.0 x4 supporting RAID 0/1
  • Dual Intel LAN with 2.5 GbE and 1 GbE plus rear USB 3.2 Gen2 and Gen2x2 ports

Server motherboard for 11th Gen Intel

The Supermicro MBD-X12SAE-5-O is an ATX server motherboard built around the Intel W580 chipset and LGA 1200 socket. It supports 11th Generation Intel Core i5, i7 and i9 processors plus Intel Xeon W-1300 series CPUs up to 125W TDP. The board targets workstation and entry-server builds that need ECC memory and dual LAN in a standard form factor. Buyers who want more storage expansion than four SATA ports and three M.2 slots should look elsewhere.

Memory and storage layout

Four 288-pin DDR4 slots accept unbuffered ECC or non-ECC UDIMMs up to 128GB total at 3200MHz. Storage connectivity covers four SATA 6.0Gb/s ports with RAID 0, 1, 5 and 10 plus three M.2 sockets: one PCIe 4.0 x4 and two PCIe 3.0 x4, all M-keyed for 2280 and 22110 modules with RAID 0 and 1 support. Note that RAID 5 on the M.2 interface applies only to Intel storage devices.

Installation and common issues

Dual Intel LAN (I225-V at 2.5Gbps and I219-LM at 1Gbps) and a Realtek ALC888S audio codec are integrated on the rear I/O alongside four USB 3.2 Gen2 Type-A, two USB 3.2 Gen2x2 (one Type-C), two USB 3.2 Gen1 and two USB 2.0 headers. Expansion includes two PCIe 4.0 x16 slots configurable as 16/0 or 8/8 plus two PCIe 3.0 x1 slots. Builders should verify case clearance for the ATX footprint and confirm CPU cooler mounting for the LGA 1200 socket before purchase.

Kohokohdat

  • Supports 11th Gen Intel Core and Xeon W-1300 CPUs on LGA 1200 socket
  • Up to 128 GB DDR4-3200 ECC memory across four 288-pin slots
  • Dual PCIe 4.0 x16 slots configurable as 16/0 or 8/8 for GPU or add-in cards
  • Three M.2 slots with PCIe 4.0 x4 and two PCIe 3.0 x4 supporting RAID 0/1
  • Dual Intel LAN with 2.5 GbE and 1 GbE plus rear USB 3.2 Gen2 and Gen2x2 ports

Tekniset tiedot

BrandSUPERMICRO
ModelMBD-X12SAE-5-O
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1300 Processors
North BridgeIntel W580
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
ECC SupportedYes
PCI Express 4.0 x162 x PCI Express 4.0 x16 (16/NA or 8/8)
PCI Express x12 x PCI Express 3.0 x1
SATA4 x SATA 6.0Gb/s
SATA RAID0/1/5/10
M.2M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key
RAID 5 only applied for INTEL Storage Device
Audio ChipsetRealtek ALC888S
LAN ChipsetIntel I225-V
LAN Speed2.5Gbps
Second LAN ChipsetIntel I219-LM
Second LAN Speed10/100/1000Mbps
Back I/O Ports1 x RJ45 2.5 Gigabit Ethernet LAN port
1 x RJ45 Gigabit Ethernet LAN ports
2 x USB 2.0 ports (2 via headers)
2 x USB 3.2 Gen1 ports (2 via headers)
4 x USB 3.2 Gen2 ports (4 Rear Type A)
2 x USB 3.2 Gen2x2 ports (1 Type C)
1 x DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
1 x COM Port (1 header)
1 x TPM Header
Form FactorATX

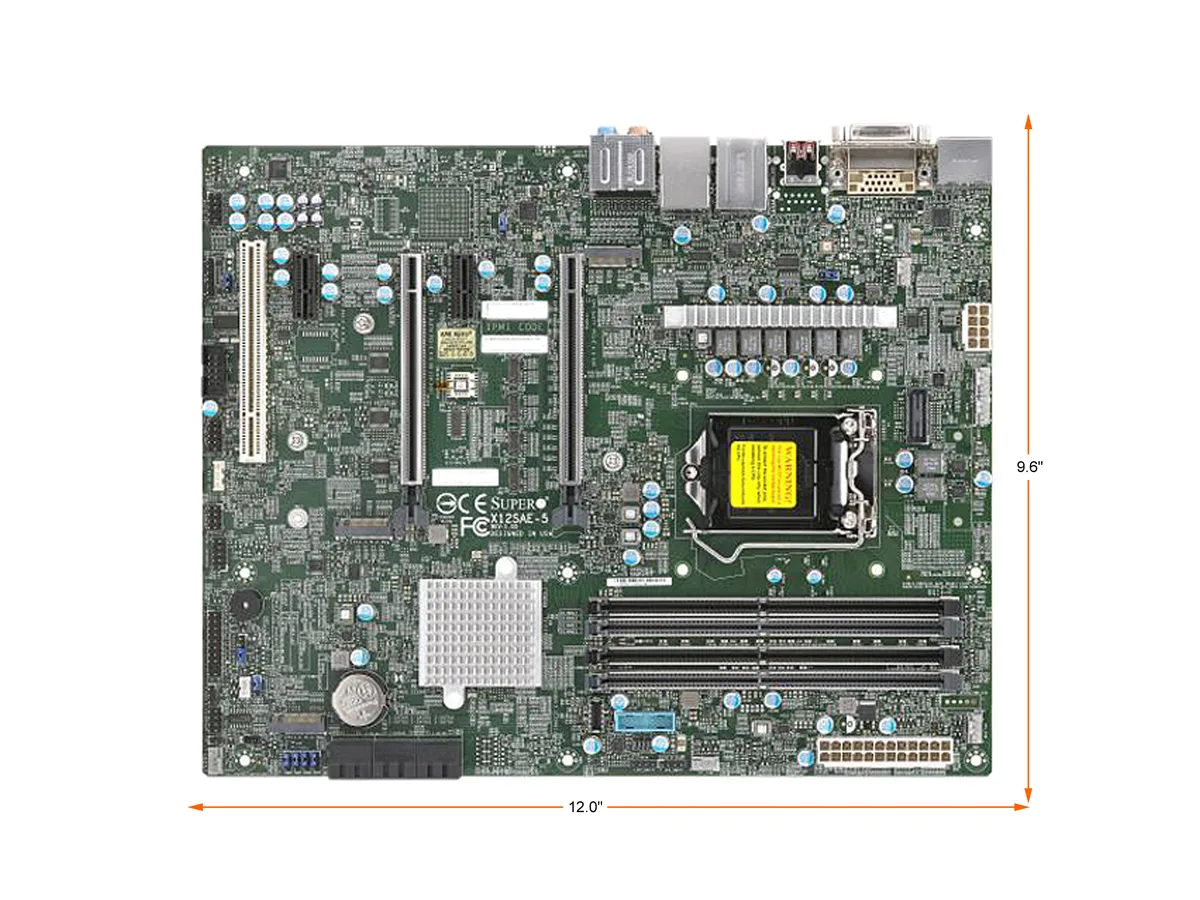

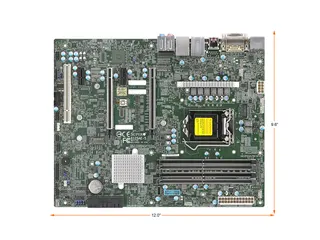

Dimensions (W x L)12.0" x 9.6"
Lähetyspaino1.22 kg
Pakkauksen mitat338 × 262 × 71 mm

Kysymyksiä tästä tuotteesta

Will the 125W TDP CPU limit require a cooler upgrade later?

The board supports CPUs up to 125W TDP; choose a cooler rated for that thermal envelope from the start.

Does the 2.5Gbps Intel I225-V LAN saturate before the 10Gbps M.2 PCIe 4.0 x4 slot?

Yes, the 2.5Gbps Ethernet port reaches its ceiling well before the M.2 slot hits its 16Gbps theoretical maximum.

How loud does the chipset fan run when the W580 PCH handles sustained 4.0 x4 M.2 plus dual 4.0 x16 GPU traffic?

The W580 PCH is passively cooled on this board, so it adds no fan noise regardless of sustained I/O load.
