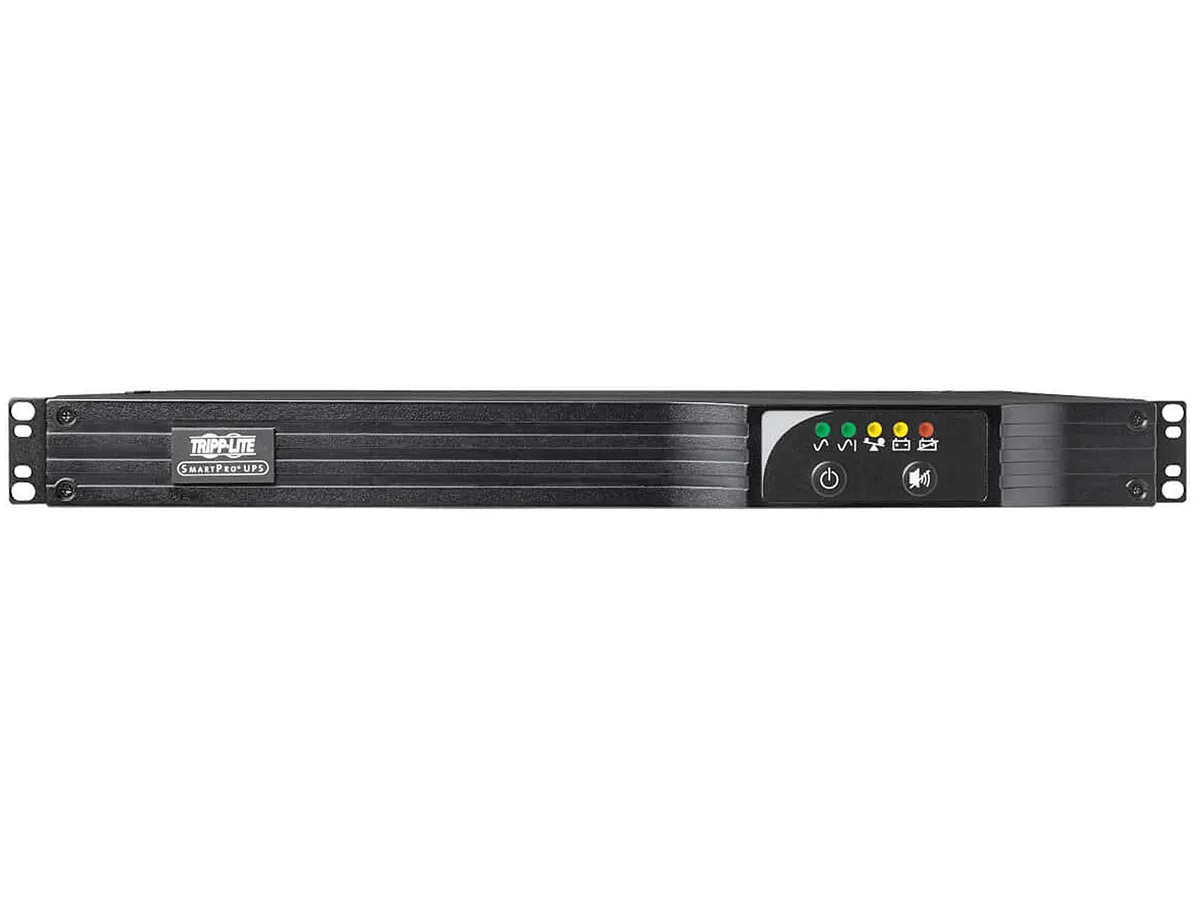

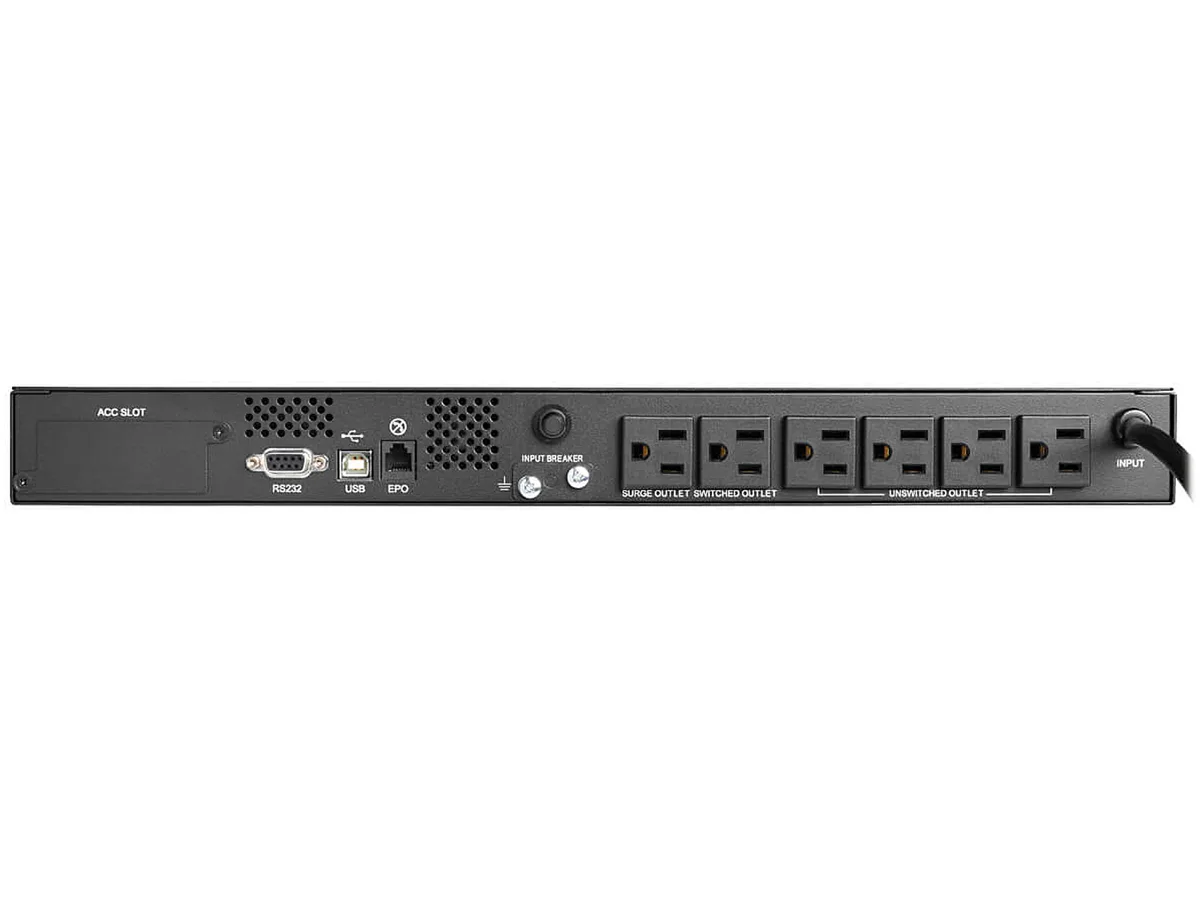

Black 1U rack-tower UPS with six NEMA 5-15R outlets on the rear

Tripp Lite

Tripp Lite SMART500RT1U 500VA 300W 120V UPS 6 NEMA 5-15R

SKU CH-P9FN-GKHM1 MPN SMART500RT1U

Line-interactive UPS delivers 500 VA and 300 W with six NEMA 5-15R outlets, USB and serial management ports, and an optional network card slot in a 1U rack or tower form factor

  • International Version120V
  • Input Frequency60 Hz +/- 3 Hz
  • Input Connection5-15P
  • VA Rating500 VA
  • Watts300 Watts
  • Output Voltage120Vac +/- 5%

VA 500 VA

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • 500 VA capacity supports essential network gear during outages
  • 300 watt output keeps servers running for safe shutdown
  • 1U rack or tower form fits tight server rooms
  • 6 NEMA 5-15R outlets power multiple devices from one unit
  • USB, DB9 and optional network card enable remote monitoring

Purpose and audience

The Tripp Lite SMART500RT1U is a line-interactive UPS rated at 500 VA and 300 W for 120 V environments. It delivers battery backup and surge protection for small network, telecom or digital-signage loads in a 1U rack or tower form factor.

Who it suits and who it does not

Six NEMA 5-15R outlets, USB, DB9 serial and an optional network management card slot make it a fit for administrators who need remote monitoring and safe shutdown software. Sites that require longer runtime at full load or higher wattage capacity should consider a larger unit.

The deciding specification

At full 300 W load the battery provides 3 minutes of runtime; at 150 W half load it extends to 14 minutes. Recharge to 90 % takes less than 12 hours and surge energy rating is 567 J.

Kohokohdat

  • 500 VA capacity supports essential network gear during outages
  • 300 watt output keeps servers running for safe shutdown
  • 1U rack or tower form fits tight server rooms
  • 6 NEMA 5-15R outlets power multiple devices from one unit
  • USB, DB9 and optional network card enable remote monitoring

Tekniset tiedot

BrandTRIPP LITE
ModelSMART500RT1U
International Version120V
Input Frequency60 Hz +/- 3 Hz

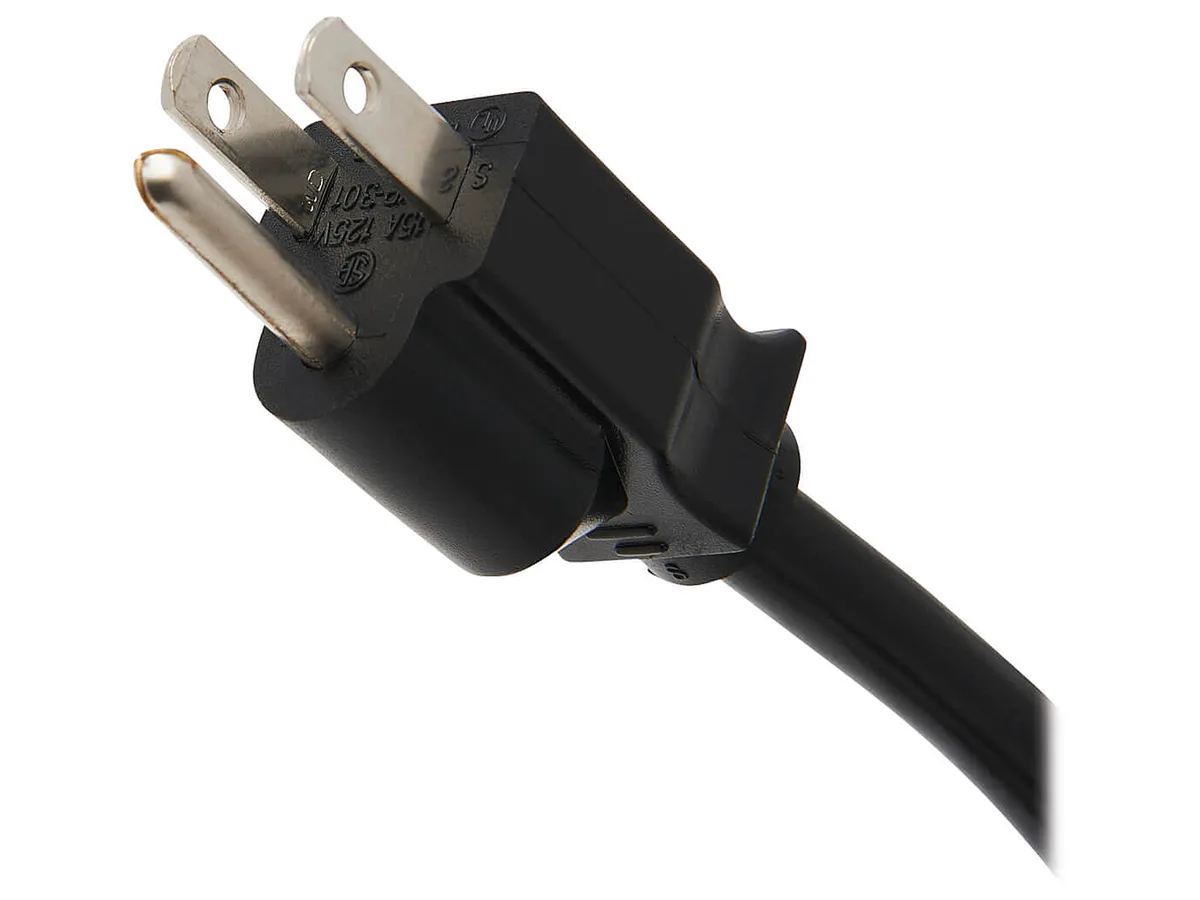

Input Connection5-15P
VA Rating500 VA
Watts300 Watts
Output Voltage120Vac +/- 5%
Output Frequency60 Hz
Outlets6
Outlet Type5-15R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load Runtime (min.): 3 min. (300w)
Half Load Runtime (min.): 14 min. (150w)
Battery Recharge TimeLess than 12 hours to 90%
AlarmsAudible alarm indicates power-failure, overload and low-battery conditions
Interface PortUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Management SoftwarePowerAlert
RackmountableYes
Surge Energy Rating567J
FeaturesProtects equipment against blackouts, brownouts, transient surges and line noise
Keeps AC power running during blackouts to allow time for file saves and safe shutdown
Maintains continuous 120V nominal output during brownouts as low as 90V
6 NEMA 5-15R outlets power and protect networking, telecom and other sensitive equipment
Dimensions1.73" x 17.32" x 11.26"
Weight15.84 lbs.

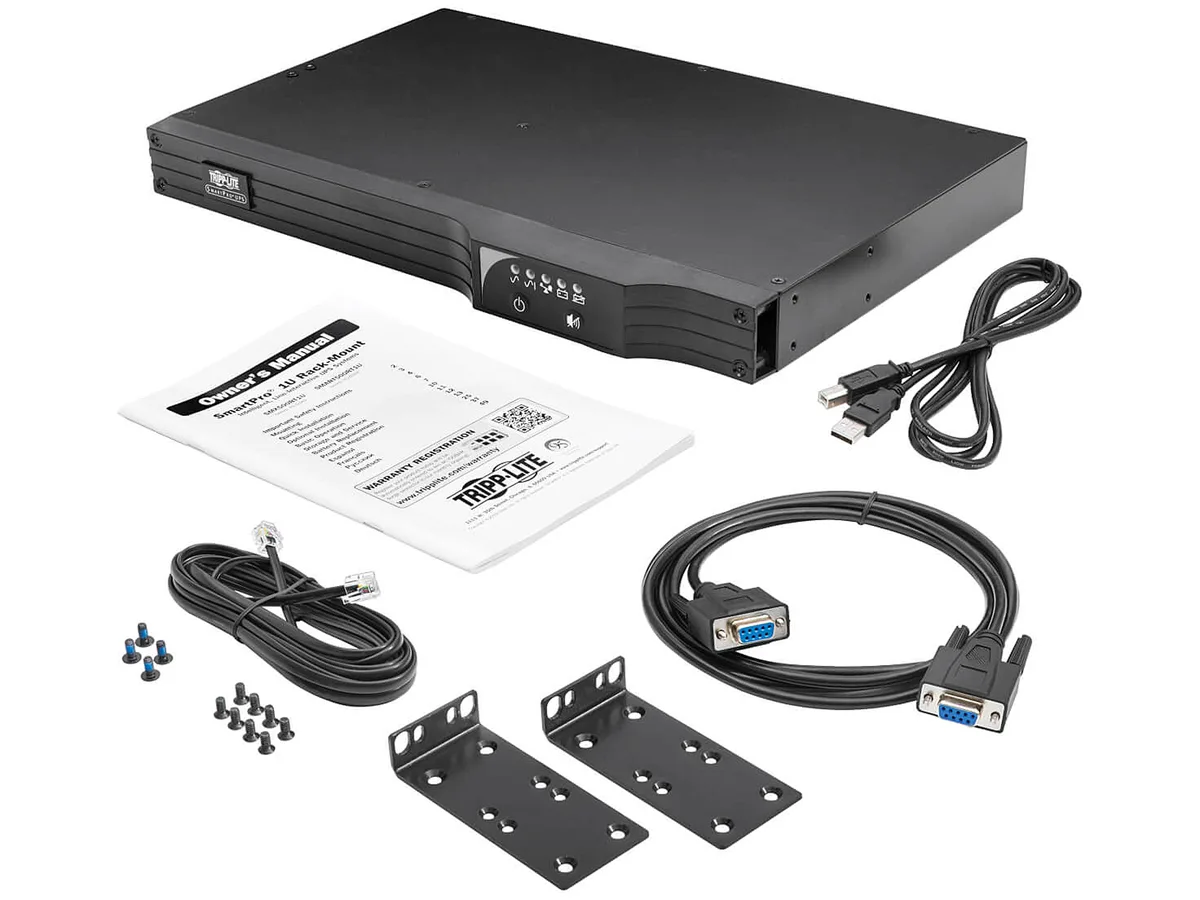

Package ContentsSMART500RT1U 500 VA 300W 120V Line-Interactive UPS
USB cable
DB9 cable
EPO cable

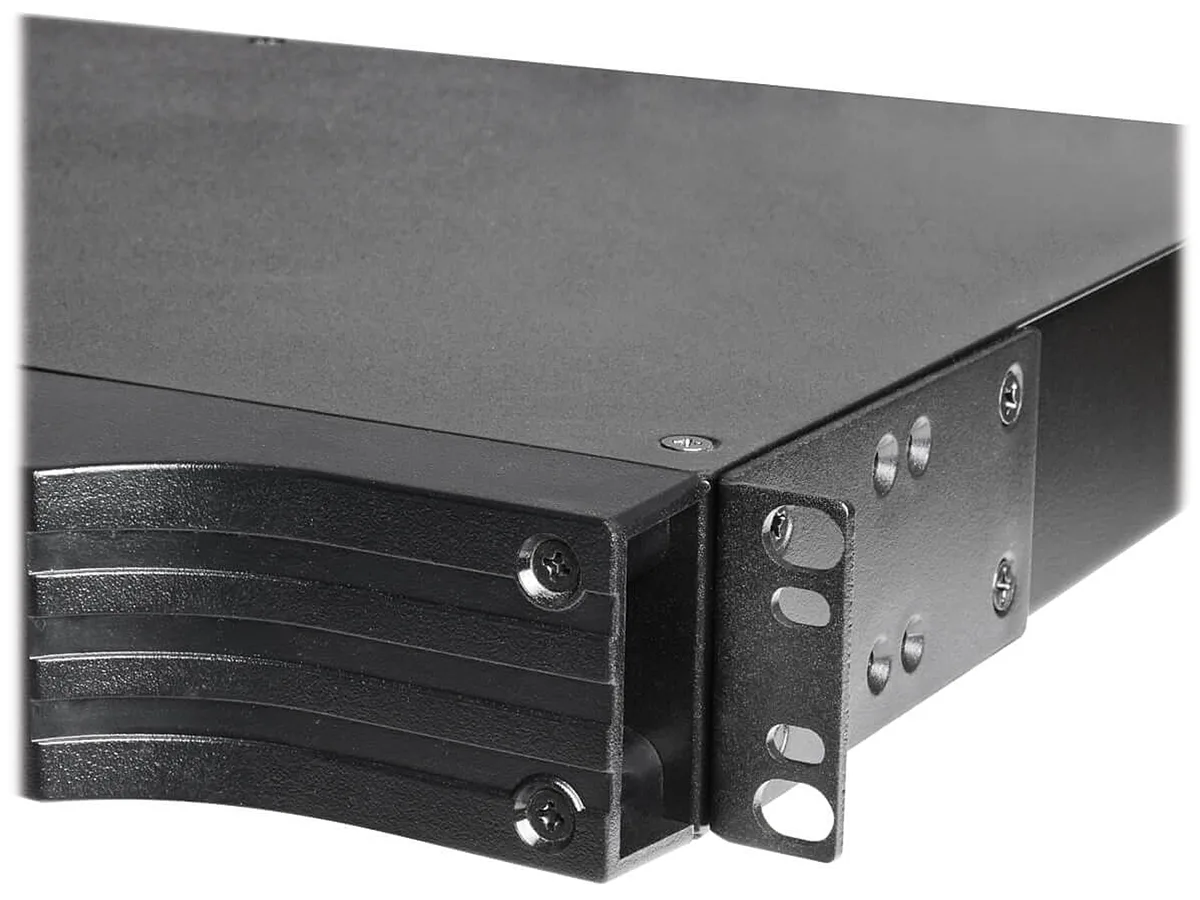

Rack-mounting hardware
Owner's manual
Lähetyspaino9.03 kg
Pakkauksen mitat554 × 386 × 122 mm

Tämän mallin muut versiot

3 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Is the 500 VA / 300 W rating sufficient for my router and switch stack?

The unit delivers 500 VA and 300 W; at full 300 W load it runs for 3 minutes, while at 150 W it provides 14 minutes, so size your load accordingly.

What does the 300 W output actually sustain during a blackout?

It maintains 120 V nominal output for 3 minutes at 300 W or 14 minutes at 150 W, giving time to save files and shut down safely.

Which management interfaces are built in and what does the optional card add?

USB HID, DB9 serial and an EPO port are standard; the optional SNMP/Web card enables 24/7 remote monitoring and control.
