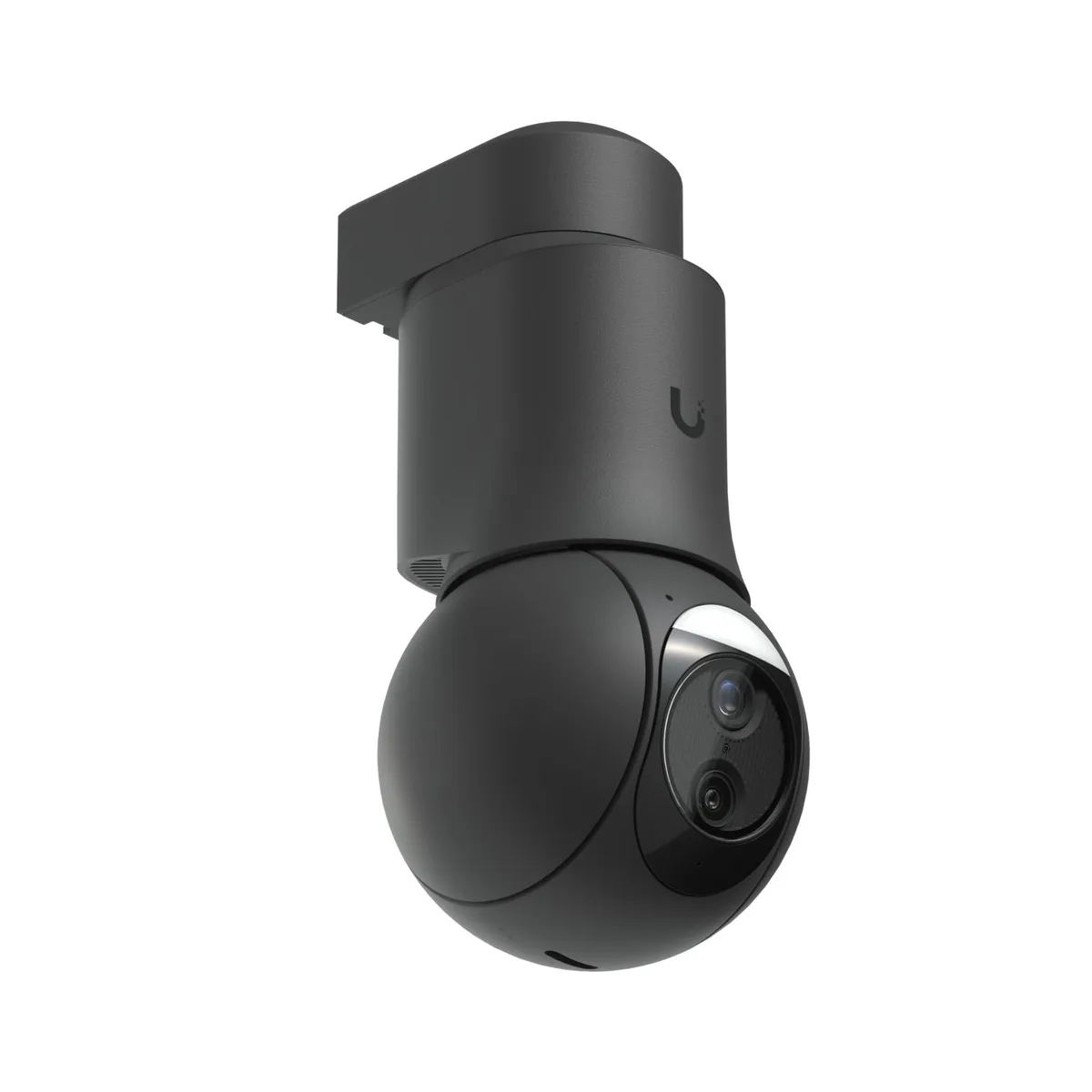

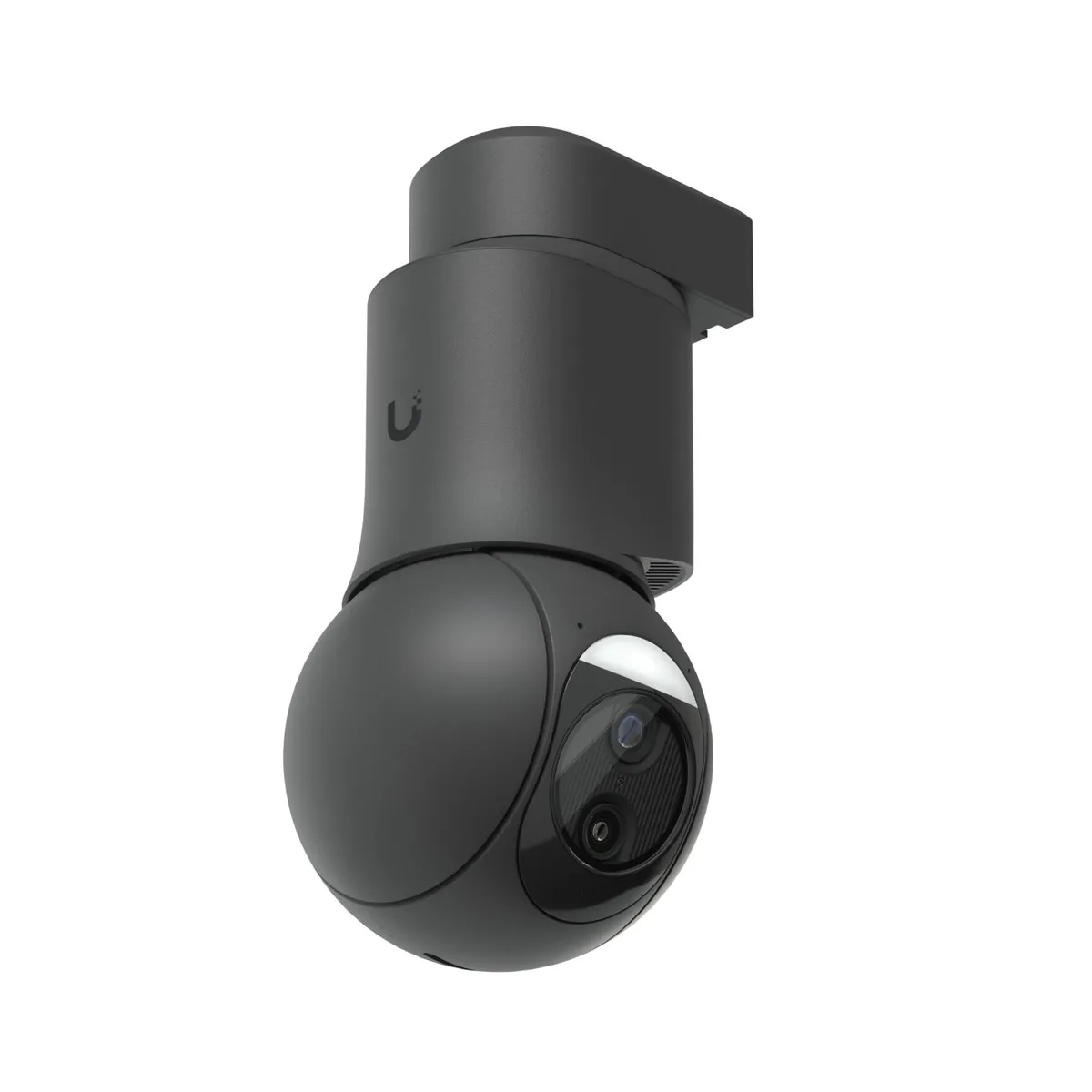

Black cylindrical outdoor PTZ camera with dual lenses and included mounting arm

Ubiquiti Networks

Ubiquiti Networks UVC-G6-PTZ-B 10x hybrid zoom 4K network camera

SKU CH-4723-SJTF9 MPN UVC-G6-PTZ-B

Outdoor 4K PTZ camera with 10x hybrid zoom, 350° pan, 100° tilt, IR night vision to 30 m, two-way audio, IP66 weatherproofing, and PoE+ power

  • TypePTZ Camera
  • Mounting LocationOutdoor
  • Pan/TiltPan: 350° Tilt: 100° Zoom: 10x Hybrid
  • Sensor & DetectorWide: 1/1.8" 8MP Tele: 1/1.8" 8MP
  • HD Resolution8MP
  • MAX Resolution3840 x 2160
  • 4K dual-lens sensor captures 3840 x 2160 detail
  • 10x hybrid zoom switches between wide and tele lenses
  • 350° pan and 100° tilt cover expansive outdoor areas
  • IR night vision reaches 30 m in total darkness
  • IP66 weatherproof and IK04 tamper rated for harsh conditions

All-weather 4K dual-lens PTZ camera

The Ubiquiti UVC-G6-PTZ-B is an outdoor network camera with dual 1/1.8" 8MP sensors and 10x hybrid zoom. It captures 4K video at 3840 x 2160 resolution and 30 fps. Integrated IR LEDs provide night vision up to 30 m. It is suited for sites that need wide-area coverage and detailed close-ups from a single mounting point.

24.5 W PoE+ power with IP66 and IK04 ratings

The camera draws a maximum of 24.5 W over PoE+ at 42.5-57 V DC. Its IP66-rated housing resists dust and heavy rain, while the IK04 rating protects against light impact. No separate power supply or cooling hardware is required, simplifying outdoor installation on walls, ceilings or poles.

Replaces separate wide and telephoto cameras

One unit covers both wide 109.9° and tele 26.6° horizontal fields of view, removing the need for two fixed cameras and the associated cabling. The jump is worth it when you need motorised pan of 350° and tilt of 100° with smart detections for people, vehicles and animals, plus face and licence-plate recognition, all managed in UniFi Protect. Not for buyers who need more than 10x optical reach or a narrower telephoto angle than 15.1° vertical.

Kohokohdat

  • 4K dual-lens sensor captures 3840 x 2160 detail
  • 10x hybrid zoom switches between wide and tele lenses
  • 350° pan and 100° tilt cover expansive outdoor areas
  • IR night vision reaches 30 m in total darkness
  • IP66 weatherproof and IK04 tamper rated for harsh conditions

Tekniset tiedot

BrandUbiquiti
ModelG6 PTZ Black
Part NumberUVC-G6-PTZ-B
TypePTZ Camera
Mounting LocationOutdoor
Pan/TiltPan: 350°
Tilt: 100°
Zoom: 10x Hybrid
Sensor & DetectorWide: 1/1.8" 8MP
Tele: 1/1.8" 8MP
HD Resolution8MP
MAX Resolution3840 x 2160
Video Capture ResolutionImage Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Frame Rate30fps
Lens TypeWide: F 4.46 mm; ƒ/1.65
Tele: F 16.3 mm; ƒ/2.4
Night VisionYes
AudioTwo-way audio
PowerMax. Power Consumption: 24.5W
Supported Voltage Range: 42.5-57V DC
Power Method: PoE+
DimensionWithout mount: ?107.2 x 104.5 x 203.2 mm
(?4.2 x 4.1 x 8")
With mount: ?107.2 x 111 x 230.2 mm
(?4.2 x 4.8 x 9.1")
WeightWithout arm mount: 1 kg (2.2 lb)
With arm mount: 1.1 kg (2.4 lb)
FeaturesFace Recognition
License Plate Recognition
Smart Detections (People, Vehicles, Animals)
Weatherproofing: IP66
Tamper Resistance: IK04
Mounting: Wall, Surface, Ceiling, Pole mount (Included) Corner, In-Ceiling, Pendant mount, Conduit adapter (Optional)
Enclosure Material: Aluminum alloy, polycarbonate
Mount Material: Arm mount: polycarbonate / Pole mount: aluminum alloy
Expansion Slot: MicroSD card
Button: (1) Factory reset
Lähetyspaino1.81 kg
Pakkauksen mitat432 × 178 × 178 mm

Kysymyksiä tästä tuotteesta

How do I power the UVC-G6-PTZ-B during installation, and what PoE standard does it require?

Connect the camera to a PoE+ injector or switch delivering 42.5–57 V DC; the RJ45 port handles both data and up to 24.5 W of power, so no separate power supply is needed.

What ongoing maintenance does the camera need after it is mounted outdoors?

Periodically clean the IR window and both lens surfaces to keep night vision clear to 30 m; the IP66 housing and IK04 rating protect internals, so no internal servicing is required.

At what point does the hybrid zoom stop providing optical detail and switch to digital crop?

The 10× hybrid zoom blends the 4.46 mm wide lens and 16.3 mm tele lens; beyond 10× the camera crops the 8 MP sensor, reducing resolved detail.
