Gray 15-inch industrial all-in-one PC with flat resistive touchscreen and fanless aluminum-steel chassis

partaker

partaker A20 all-in-one PC 15" i5-1235U 32GB 1TB

SKU CH-X19F-JRFT3

15-inch fanless industrial panel PC with Intel Core i5-1235U, 32GB DDR5, 1TB NVMe, IP65 front, six COM ports and 9-36V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 32GB RAM / 1TB SSD

  • Fanless aluminium-steel chassis with IP65 front panel resists dust and water ingress
  • Intel Core i5-1235U, 10 cores up to 4.40 GHz handles demanding industrial workloads
  • 32 GB DDR5 4800 MHz and 1 TB NVMe SSD deliver fast, responsive operation
  • Six COM ports, three LAN (including 2.5G) plus 8 isolated GPIO connect diverse equipment
  • 9-36 V DC input with reverse-polarity protection, TPM 2.0 and watchdog timer ensure reliable deployment

Industrial All-in-One with 15" Resistive Touch

The Partaker A20 is a fanless industrial panel PC built around an Intel Core i5-1235U processor with 10 cores and 12 threads. It ships with 32GB of DDR5 memory and a 1TB SSD installed in a rugged aluminium-and-steel chassis rated IP65 at the front. The 15-inch 4:3 display delivers 1024×768 resolution at 350 cd/m² brightness for reliable operation in harsh environments.

Verify Power, Mounting and Expansion Needs

Confirm your site can supply 9-36V DC through the 2×2-pin Phoenix connector before ordering. The embedded cut-out measures 355×279 mm, so check panel space against the 366×290×66 mm overall dimensions. Ensure the single DDR5 SODIMM slot and dual M.2 2280 bays match your planned storage layout, and note that extra USB, GPIO or HDMI ports require a custom order.

Fanless Design Frees Rack Space

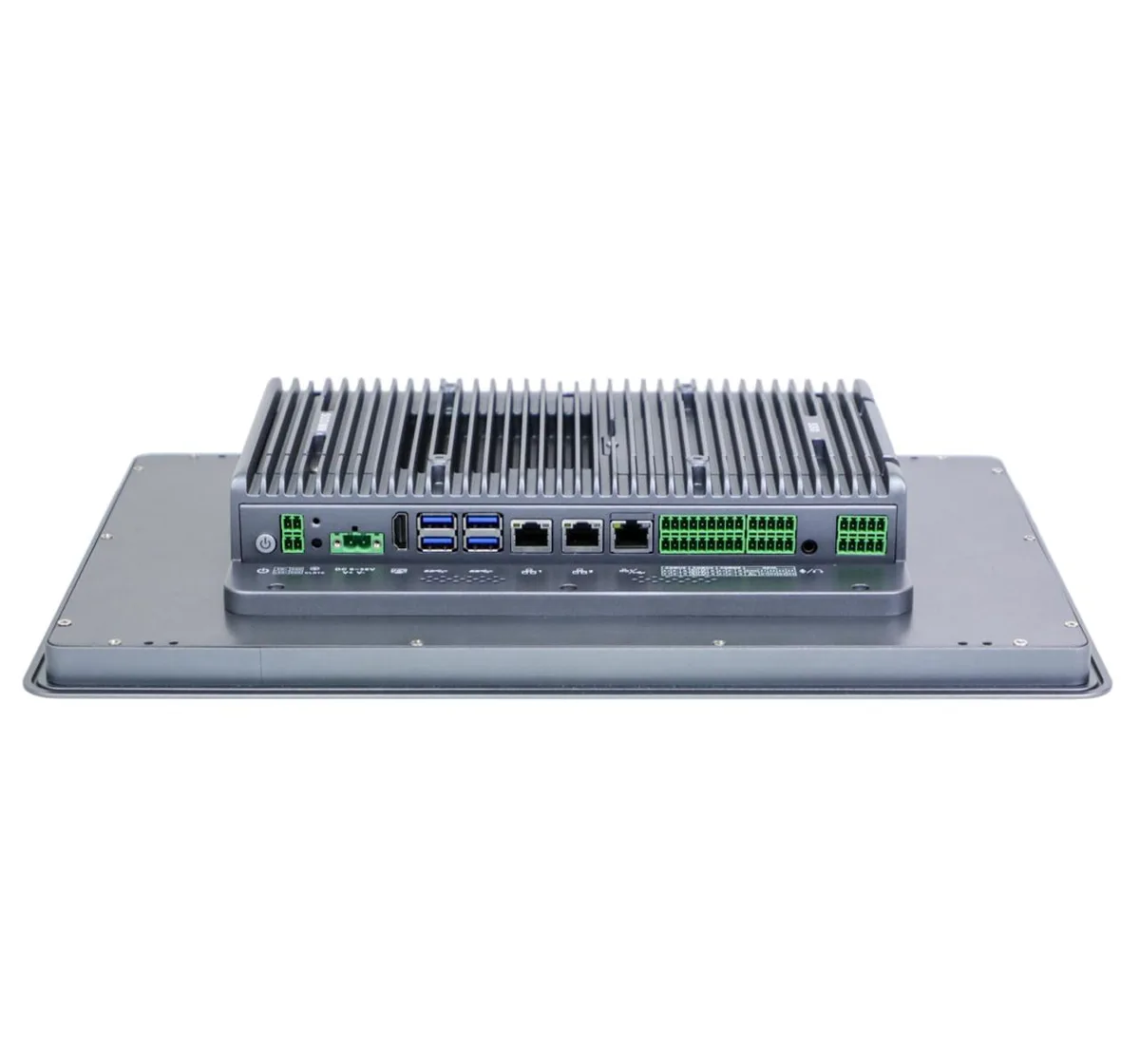

Passive aluminium-alloy cooling eliminates moving parts, saving depth in cabinets and removing filter changes. Three independent display outputs — HDMI, optional JHDMI and internal LVDS — drive multiple screens from one unit. Six COM ports with RS232/485 flexibility, 4-in/4-out isolated GPIO, and three LAN ports (two 1000M, one 2.5G) connect legacy and modern equipment without extra adapters.

Istaknuto

  • Fanless aluminium-steel chassis with IP65 front panel resists dust and water ingress
  • Intel Core i5-1235U, 10 cores up to 4.40 GHz handles demanding industrial workloads
  • 32 GB DDR5 4800 MHz and 1 TB NVMe SSD deliver fast, responsive operation
  • Six COM ports, three LAN (including 2.5G) plus 8 isolated GPIO connect diverse equipment
  • 9-36 V DC input with reverse-polarity protection, TPM 2.0 and watchdog timer ensure reliable deployment

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the Partaker A20 ship with the 32 GB DDR5 SODIMM and 1 TB NVMe drive already installed?

Yes, the unit is supplied with a 32 GB DDR5 4800 MHz SODIMM and a 1 TB NVMe M.2 2280 SSD fitted.

Which storage combination does this model use — single M.2, dual M.2 or M.2 plus 2.5-inch bay?

This configuration uses one occupied M.2 2280 NVMe slot for the 1 TB drive; a second M.2 2280 slot and a 2.5-inch bay remain free for expansion.

How does the 1024 × 768 resistive panel perform in a typical industrial HMI application?

The 15-inch 4:3 display delivers 350 cd/m² brightness with full viewing angles, suited for control-room HMIs and outdoor-readable kiosks.
