Gray 15-inch industrial all-in-one with resistive touchscreen and fanless aluminum-steel chassis

partaker

partaker A20 15" all-in-one PC i5-1235U 8GB 512GB Windows 11 Pro

SKU CH-NVYP-WP9A1

A 15-inch fanless industrial panel PC with a resistive touchscreen, Intel Core i5-1235U processor, 8GB DDR5 memory, 512GB NVMe storage, Windows 11 Pro, triple LAN, six COM ports, isolated GPIO.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 8GB RAM / 512GB SSD

  • Fanless cooling runs silently in harsh environments
  • IP65 front panel resists dust and water ingress
  • 15-inch 4:3 resistive touchscreen operates with gloves
  • Triple LAN plus six COM ports connect legacy gear
  • 9–36V DC input with reverse polarity protection

Industrial panel PC for automation

The Partaker A20 is a 15 inch all-in-one computer built around an Intel Core i5-1235U processor with 10 cores and 12 threads. It ships with 8GB DDR5 memory and a 512GB NVMe SSD, running Windows 11 Pro. The IP65-rated front panel and fanless aluminium-steel chassis target machine builders and system integrators deploying HMIs, SCADA nodes or edge gateways on the factory floor.

Sustained load on the shop floor

Fanless cooling relies on the full aluminium alloy body to dissipate heat from the 4.40 GHz boost clock without moving parts. The 9-36V DC input with reverse polarity protection keeps the unit running through voltage drops common on industrial buses. TPM 2.0, watchdog timer, Wake-on-LAN and PXE boot support unattended 24/7 operation and remote recovery after power events.

Verify mounting and I/O before ordering

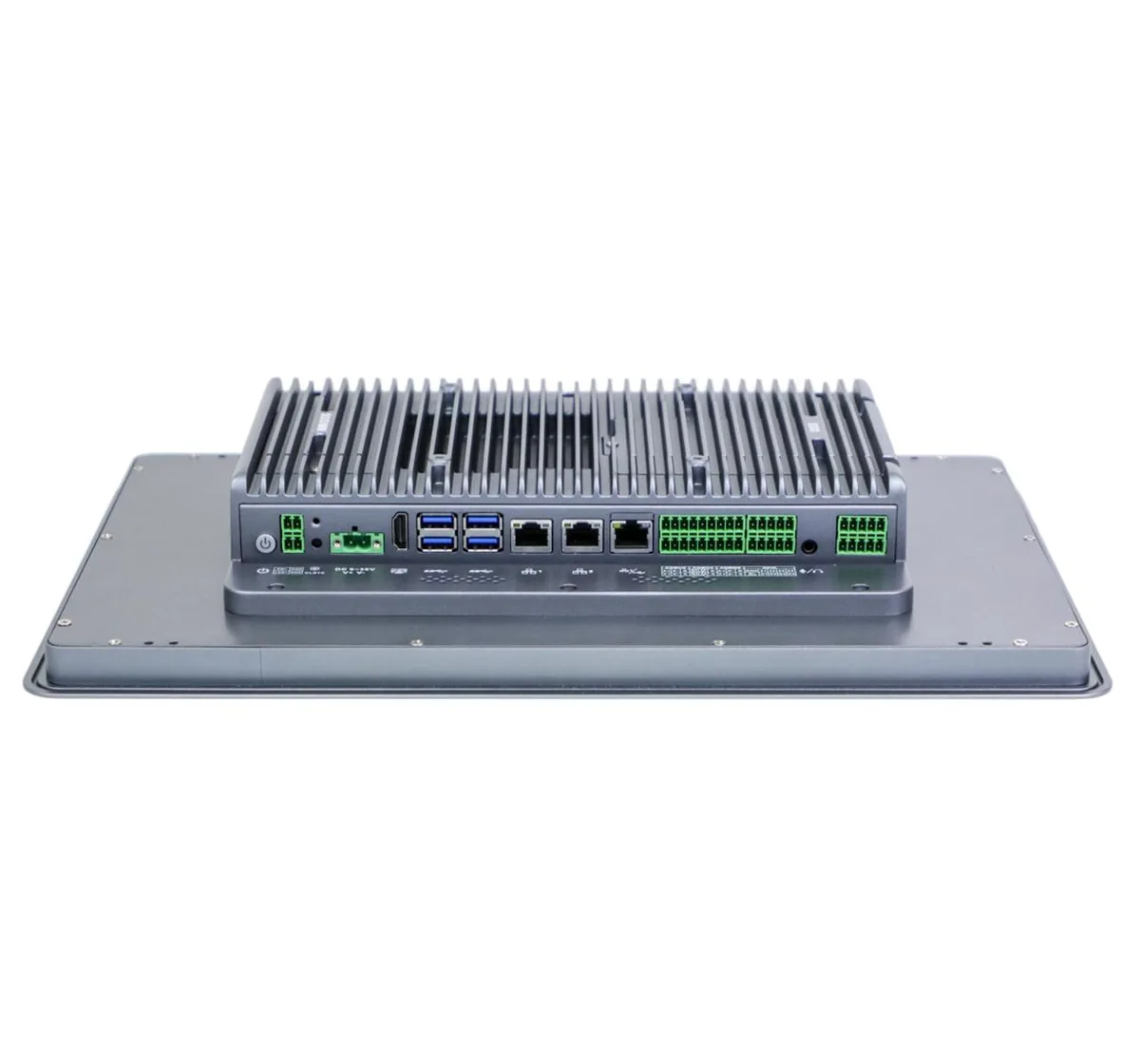

The panel cut-out measures 355 x 279 mm and the overall depth is 66 mm, so confirm your enclosure or VESA arm clears those dimensions. Six COM ports (two switchable to RS-485), three LAN ports (two 1000M, one 2.5G) and 8 isolated GPIO lines cover most legacy and modern fieldbus needs. Expansion uses one Mini PCIe with SIM slot and one M.2 E-key slot; the second HDMI and extra USB or GPIO require a custom order.

Istaknuto

  • Fanless cooling runs silently in harsh environments
  • IP65 front panel resists dust and water ingress
  • 15-inch 4:3 resistive touchscreen operates with gloves
  • Triple LAN plus six COM ports connect legacy gear
  • 9–36V DC input with reverse polarity protection

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How much heat and noise does the fanless aluminum-steel chassis produce when the i5-1235U runs continuously?

The fanless design eliminates moving parts, so the system runs silently and relies on the aluminum alloy chassis to dissipate heat passively during all-day operation.

Which cables and peripherals must I already have to power and connect this 9-36V DC unit?

You need a 9-36V DC power source with the 2×2-pin Phoenix connector, plus any COM, USB, LAN or HDMI cables required for your specific devices.

Will my legacy RS-232 and RS-485 equipment plug straight into the six COM ports?

Yes, all six COM ports support RS-232, and COM3 and COM4 can be configured for RS-485, letting you connect older serial gear directly.
