Gray 15-inch industrial all-in-one with flat capacitive touchscreen and fanless aluminum-steel chassis

partaker

partaker A20 all-in-one PC i5-1235U 8GB 512GB 15" touchscreen Windows 11 Pro

SKU CH-48D5-PJKDK

A fanless 15-inch industrial all-in-one with a 1024×768 capacitive touchscreen, Intel Core i5-1235U, 8GB DDR5, 512GB NVMe, six COM ports, three LAN, 8 isolated GPIO, 9–36V DC input and TPM 2.0

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 8GB RAM / 512GB SSD

  • Industrial-grade durability with IP65-rated front panel resisting dust and water ingress
  • Fanless cooling ensures silent operation in noise-sensitive environments
  • Intel Core i5-1235U delivers 10 cores and 12 threads for responsive multitasking
  • Expandable to 32GB DDR5 memory and dual M.2 storage slots
  • Wide 9-36V DC input with reverse polarity protection for unstable power sources

Industrial Panel PC for harsh environments

The Partaker A20 is a fanless all-in-one computer built around a 15-inch IP65-rated capacitive touch display with a 4:3 aspect ratio. It integrates an Intel Core i5-1235U processor, 8GB of DDR5 memory and a 512GB NVMe SSD within a rugged aluminium and steel chassis. The system runs Windows 11 Pro and operates on a wide 9-36V DC input with reverse polarity protection, targeting automation, kiosk and machine-interface deployments.

Sustained load behaviour without active cooling

Passive aluminium-alloy cooling dissipates heat from the 10-core, 12-thread processor across the full chassis surface, maintaining silent operation during continuous duty. The 350 cd/m² panel remains readable at wide viewing angles while the TPM 2.0 module, watchdog timer and auto power-on features support unattended reliability. Three independent display outputs via HDMI and internal interfaces allow extended visualisation without taxing the thermal envelope.

Integration checks before ordering

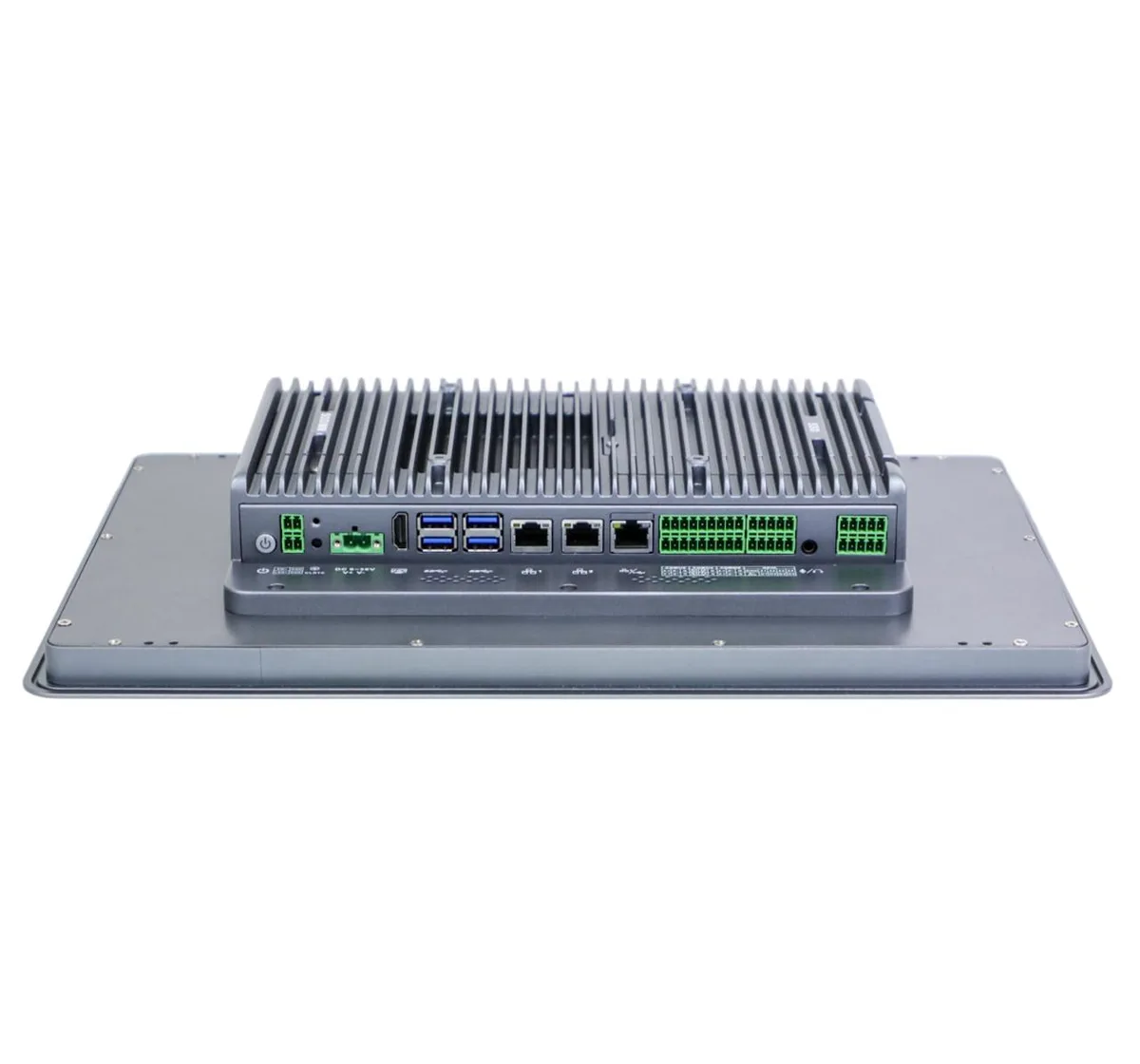

Verify that the 355 x 279mm embedded cut-out matches your enclosure and that the 66mm depth clears internal cabling. Confirm the 2*2-pin Phoenix power connector suits your 9-36V DC supply and plan for the six COM ports, two Gigabit LAN, one 2.5G LAN and four-in/four-out GPIO wiring. Note that the single SODIMM slot limits memory to 32GB and expansion relies on Mini PCIe and M.2 E-Key slots for wireless or additional I/O.

Istaknuto

  • Industrial-grade durability with IP65-rated front panel resisting dust and water ingress
  • Fanless cooling ensures silent operation in noise-sensitive environments
  • Intel Core i5-1235U delivers 10 cores and 12 threads for responsive multitasking
  • Expandable to 32GB DDR5 memory and dual M.2 storage slots
  • Wide 9-36V DC input with reverse polarity protection for unstable power sources

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How does the fanless aluminium-and-steel chassis keep the i5-1235U cool during continuous 24/7 operation?

The industrial panel PC uses a full aluminium-alloy chassis as a passive heatsink, so the 10-core 12-thread CPU runs silently without any moving parts while dissipating heat across the 366×290×66 mm enclosure.

Which peripherals and cables must I already have to power and connect this 15-inch touchscreen panel PC?

You need a 9-36 V DC source with the supplied 2×2-pin Phoenix connector, plus any USB 3.0, HDMI, Gigabit or 2.5 GbE LAN, COM (RS-232/485) or GPIO devices you intend to use.

Will my existing RS-232 and RS-485 serial equipment plug straight into the six COM ports on this unit?

Yes — all six COM ports are standard DB-9, and COM3/COM4 can be switched between RS-232 and RS-485 in BIOS to match legacy industrial devices.
