15 inch gray fanless all-in-one PC with resistive touchscreen

partaker

partaker A20 all-in-one PC i5-1235U 15" resistive 8GB 256GB

SKU CH-QBWS-XZW1H

Fanless industrial all-in-one with a 15" resistive touchscreen, Intel Core i5-1235U, 8GB DDR5 and 256GB NVMe, plus six COM ports, three LAN and 9-36V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminum-steel chassis runs silently in harsh environments
  • Intel Core i5-1235U delivers 10 cores and 12 threads up to 4.40 GHz
  • 6 COM ports plus 4-in/4-out GPIO integrate legacy industrial gear
  • 9-36 V DC input with reverse polarity protection suits unstable power

Industrial panel PC for harsh environments

The Partaker A20 is a fanless all-in-one computer built around an Intel Core i5-1235U processor with 10 cores and 12 threads running up to 4.40 GHz. It ships with Windows 11 Pro, 8 GB of DDR5 memory and a 256 GB NVMe SSD. The 15 inch resistive touchscreen operates at 1024 x 768 resolution with a 4:3 aspect ratio and 350 cd/m² brightness, designed for reliable input with gloves or stylus in demanding settings.

Rugged aluminum and steel chassis with extensive I/O

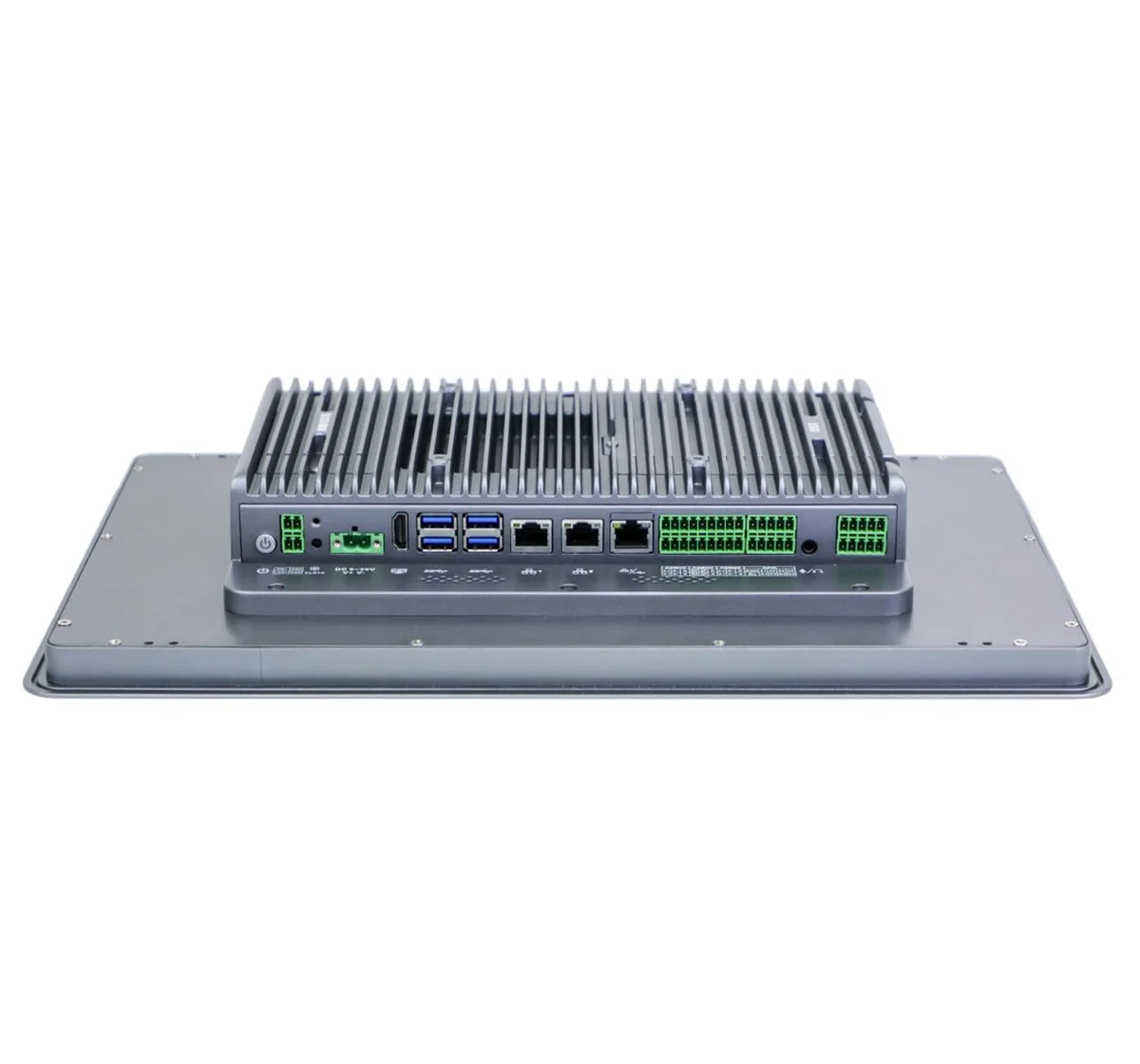

The IP65-rated front panel seals against dust and water jets while the fanless aluminum alloy cooling maintains silent operation. Connectivity includes four USB 3.0 ports, two Gigabit LAN ports, one 2.5G LAN port, HDMI output and six COM ports with COM3 and COM4 configurable for RS232 or RS485. An isolated GPIO block provides four inputs and four outputs, and a Phoenix-style connector accepts 9-36V DC power with reverse polarity protection.

Verify mounting space

The unit measures 366 x 290 x 66 mm and requires a 355 x 279 mm cut-out for embedded installation, weighing 3.8 kg. Memory can be expanded to 32 GB via a single SODIMM slot, while storage supports two M.2 2280 slots and one 2.5 inch drive bay. Wireless or cellular expansion uses the Mini PCIe slot with SIM holder or the M.2 E-Key slot; additional USB, GPIO or HDMI functions require a custom order.

Istaknuto

  • IP65 front panel resists dust and water jets
  • Fanless aluminum-steel chassis runs silently in harsh environments
  • Intel Core i5-1235U delivers 10 cores and 12 threads up to 4.40 GHz
  • 6 COM ports plus 4-in/4-out GPIO integrate legacy industrial gear
  • 9-36 V DC input with reverse polarity protection suits unstable power

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

What does the 2.5G LAN port cap at in practice?

The 2.5G LAN port supports up to 2.5 Gbps throughput; actual speed depends on the connected switch, cabling and network load.

What are the panel cut-out dimensions for embedded mounting?

The embedded installation cut-out is 355 x 279 mm; the full unit measures 366 x 290 x 66 mm and weighs 3.8 kg.

How is the resistive touch screen calibrated, and what step is often missed?

Calibrate via Windows 11 Pro Tablet PC Settings after driver load; the common miss is skipping the four-point alignment before saving.
