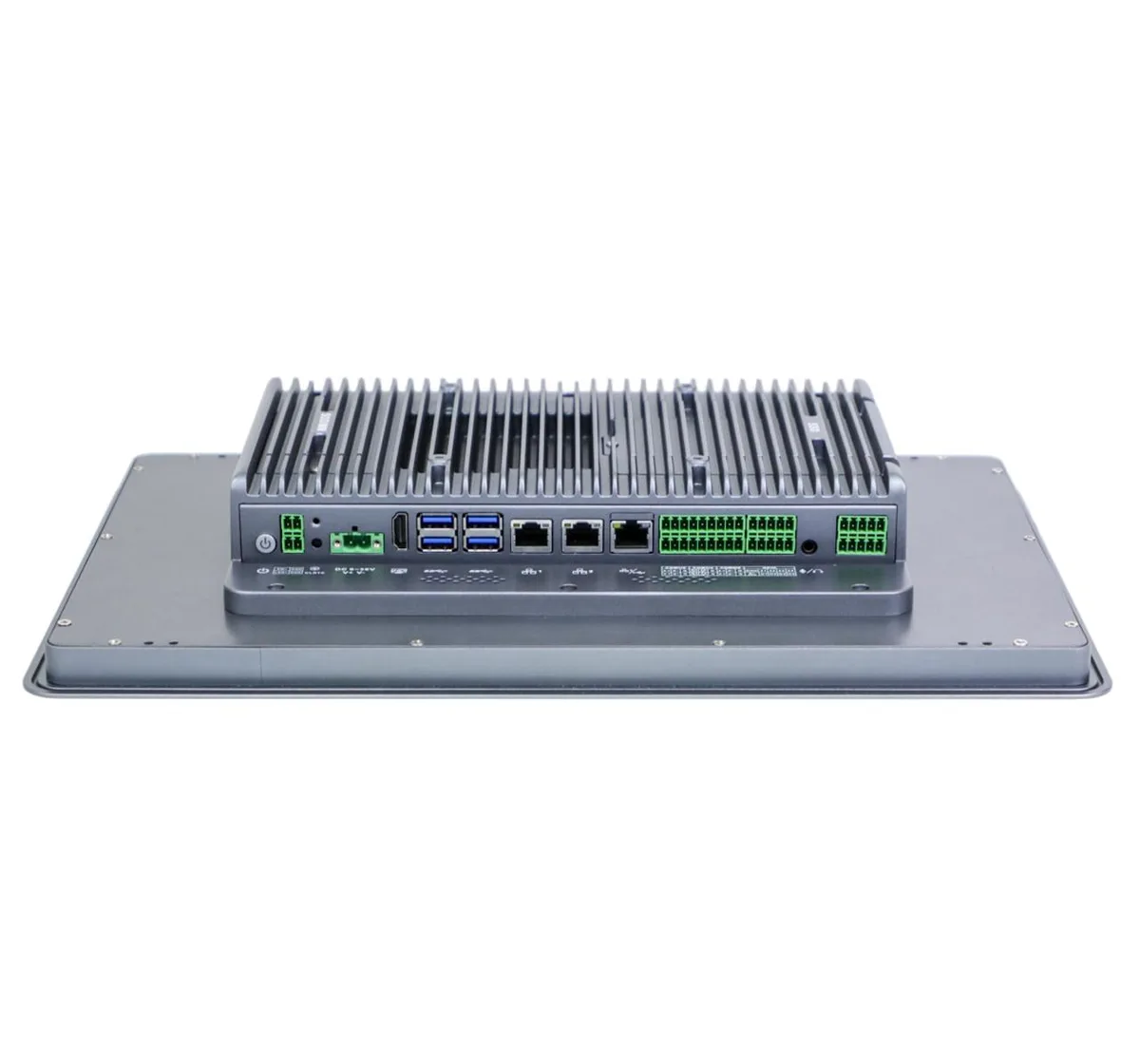

Gray 15-inch industrial all-in-one with resistive touchscreen and fanless aluminum-steel chassis

partaker

Partaker A20 i7-1255U 15" resistive all-in-one PC 8GB 512GB

SKU CH-QQND-CXSNW

Industrial 15" resistive touch all-in-one with IP65 front panel, Intel Core i7-1255U, 8GB DDR5, 512GB NVMe, 6 COM ports, 3 LAN, 8 isolated GPIO and 9-36V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 12th Gen
  • Screen Size15"

Option 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium-steel chassis runs silently without moving parts
  • Intel Core i7-1255U delivers 10 cores and 12 threads up to 4.70 GHz
  • 6 COM ports plus 4-in/4-out GPIO connect legacy and industrial gear
  • 9-36 V DC input with reverse polarity protection suits unstable power

Industrial 15-inch AIO with i7-1255U

The Partaker A20 is a 15-inch industrial all-in-one PC built around an Intel Core i7-1255U processor with 10 cores and 12 threads. It ships with Windows 11 Pro, 8GB of DDR5 memory and a 512GB NVMe SSD. The IP65-rated front panel uses a 4:3 resistive touchscreen at 1024×768 resolution, suited for gloved or stylus operation in factories, kiosks or outdoor enclosures. Fanless aluminium-steel construction allows silent operation across a wide temperature range.

VESA or panel-mount with 9-36V DC input

Mounting uses the embedded cut-out of 355×279mm or standard VESA points on the 366×290×66mm chassis. Power connects via a 2×2-pin Phoenix connector accepting 9-36V DC with reverse-polarity protection; no AC adapter is included. The resistive touch layer requires firm pressure, so operators wearing heavy gloves should test actuation force before final installation. Cable glands are recommended for the six COM ports and GPIO to maintain the IP65 seal.

Verify DDR5 SODIMM, M.2 keying and legacy COM needs

The single DDR5 SODIMM slot supports up to 32GB at 4800MHz; confirm any added module matches that spec. Two M.2 2280 slots accept NVMe or SATA drives — check keying before purchase. Six COM ports provide RS-232, with COM3 and COM4 switchable to RS-485; ensure your serial devices match those interfaces. Expansion via Mini PCIe and M.2 E-key requires custom orders for extra USB, GPIO or HDMI.

Istaknuto

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium-steel chassis runs silently without moving parts
  • Intel Core i7-1255U delivers 10 cores and 12 threads up to 4.70 GHz
  • 6 COM ports plus 4-in/4-out GPIO connect legacy and industrial gear
  • 9-36 V DC input with reverse polarity protection suits unstable power

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How can I confirm the Partaker A20 is operating correctly after installation?

Verify the 15" 1024×768 resistive touchscreen responds to input, check Windows 11 Pro boots to the desktop, and confirm the 3.8 kg fanless chassis runs silently with all 6 COM ports and 3 LAN ports detected in Device Manager.

What comes in the box with the Partaker A20 and what must I purchase separately?

The unit includes the IP65 front panel PC with 8GB DDR5 4800MHz RAM and 512GB NVMe SSD installed; you must buy any additional DDR5 SODIMM up to 32GB, extra M.2 2280 NVMe/SATA drives, a 2.5" SSD/HDD, Mini PCIe Wi-Fi/4G module, and a 9–36V DC power supply separately.

Which memory and storage configuration should I choose for the Partaker A20?

The system ships with one 8GB DDR5 4800MHz SODIMM and a 512GB NVMe M.2 2280 drive; add a second SODIMM for up to 32GB total RAM, populate the second M.2 2280 slot with NVMe or SATA, and use the 2.5" bay for additional SSD or HDD capacity.
