Gray 15-inch fanless all-in-one panel PC with flat capacitive touchscreen and rugged aluminum-steel chassis

partaker

Partaker A20 15" All-in-One PC i5-1235U 16GB 256GB

SKU CH-A2H2-651SA

A 15-inch industrial all-in-one with an IP65 front panel, fanless cooling and a 12th-generation Intel Core i5

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium-steel chassis runs silently without moving parts
  • Intel Core i5-1235U with 10 cores and 12 threads up to 4.40 GHz
  • 16 GB DDR5 4800 MHz and 256 GB NVMe SSD included
  • 9-36 V DC input with reverse-polarity protection for industrial power flexibility

Industrial Panel PC for Harsh Environments

The Partaker A20 is a 15 inch fanless all-in-one computer built for industrial settings. It runs Windows 11 Pro on an Intel Core i5-1235U processor with 16GB of DDR5 memory and a 256GB SSD. The IP65-rated front panel and aluminum-steel chassis protect internal components from dust and water ingress. This unit suits automation, kiosk, and machine-interface deployments where reliability matters.

Connectors and Mounting for Daily Integration

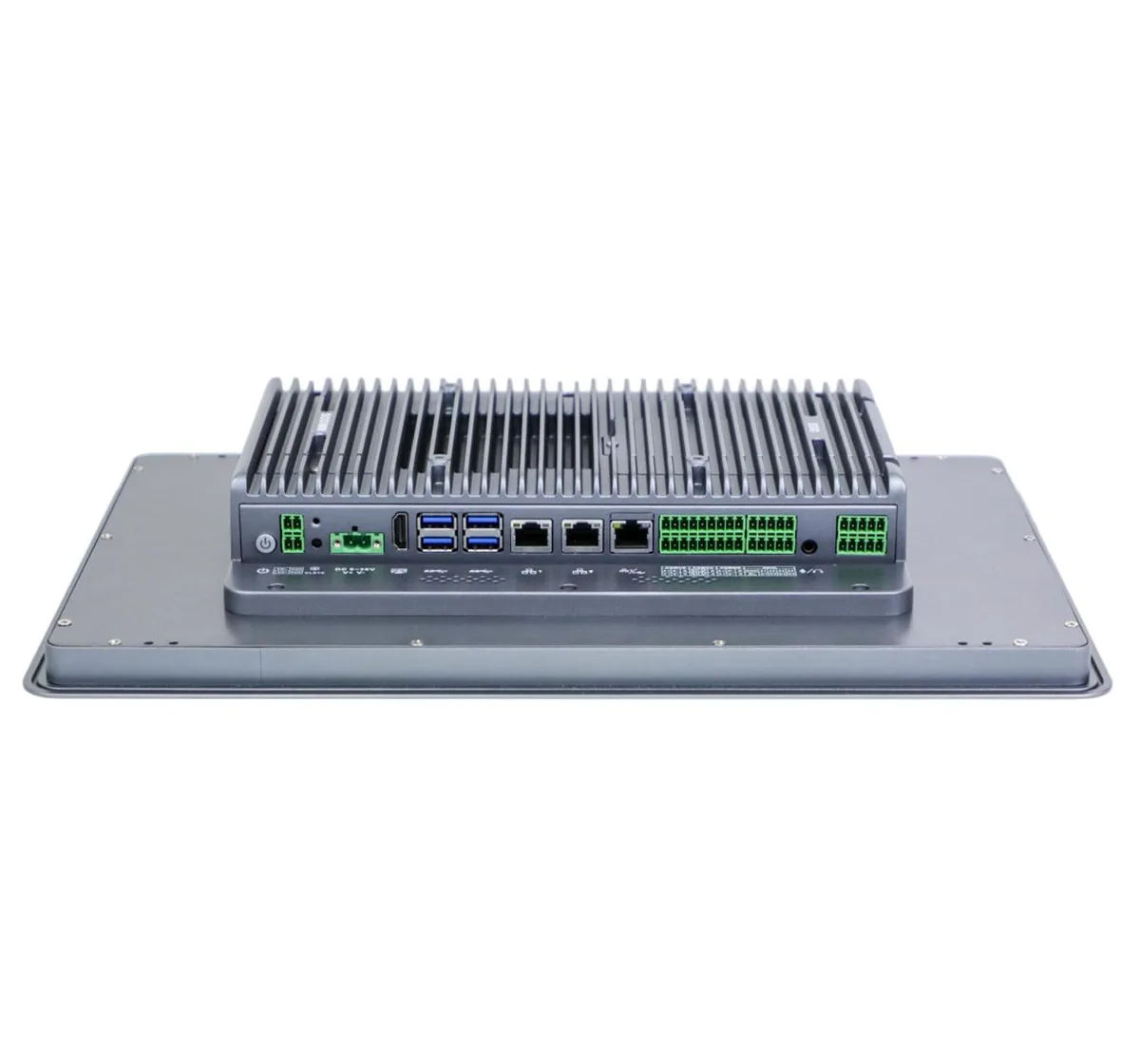

A 9-36V DC Phoenix connector enables wide-range power input with reverse polarity protection. Video output uses HDMI, while networking relies on two Gigabit LAN ports and one 2.5G LAN port. Six COM ports, four USB 3.0 ports, and isolated 4-in/4-out GPIO connect legacy and modern peripherals. The 355 x 279mm embedded cut-out and VESA pattern allow flush panel or arm mounting in cabinets.

Compatibility Checks Before Ordering

Verify that your application can use a 4:3 aspect ratio display at 1024 x 768 resolution. Confirm the 9-36V DC supply matches your facility power infrastructure. Ensure peripheral interfaces align with the six COM ports, GPIO pinout, and three LAN ports provided. Check that the 66mm depth and 355 x 279mm cut-out dimensions fit your enclosure or mounting surface.

Istaknuto

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium-steel chassis runs silently without moving parts
  • Intel Core i5-1235U with 10 cores and 12 threads up to 4.40 GHz
  • 16 GB DDR5 4800 MHz and 256 GB NVMe SSD included
  • 9-36 V DC input with reverse-polarity protection for industrial power flexibility

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

What display standard does the 15 inch 4:3 panel use, and what resolution does it cap at?

The 15 inch 4:3 capacitive touch panel runs at 1024 x 768 resolution with 350 cd/m² brightness.

What are the exact cut-out dimensions for embedded installation of this 366 x 290 x 66 mm unit?

The embedded installation cut-out measures 355 x 279 mm for the aluminum and steel chassis.

How is the DDR5 SODIMM installed, and which slot limitation do builders often miss?

Insert the single DDR5 4800 MHz SODIMM into the sole slot; the board supports up to 32 GB total.
