Compact gray aluminium fanless mini PC with mounting ears, 280 x 143 x 40 mm

partaker

partaker PA-3046 i7-10810U 16GB DDR4 256GB SSD barebone mini PC

SKU CH-9R33-AFDHX

Fanless industrial mini PC with 6-core i7-10810U, 16GB DDR4, 256GB SSD, four LAN and four COM ports, 9-36V input and TPM 2.0

  • ColorGray
  • CPU TypeIntel Core i7 10th Gen

CPU Type Intel Core i7-10710U

Group 16GB RAM / 256GB SSD

  • 6-core i7-10810U up to 4.9 GHz handles demanding workloads
  • fanless aluminium chassis runs silently from 0 °C to 50 °C

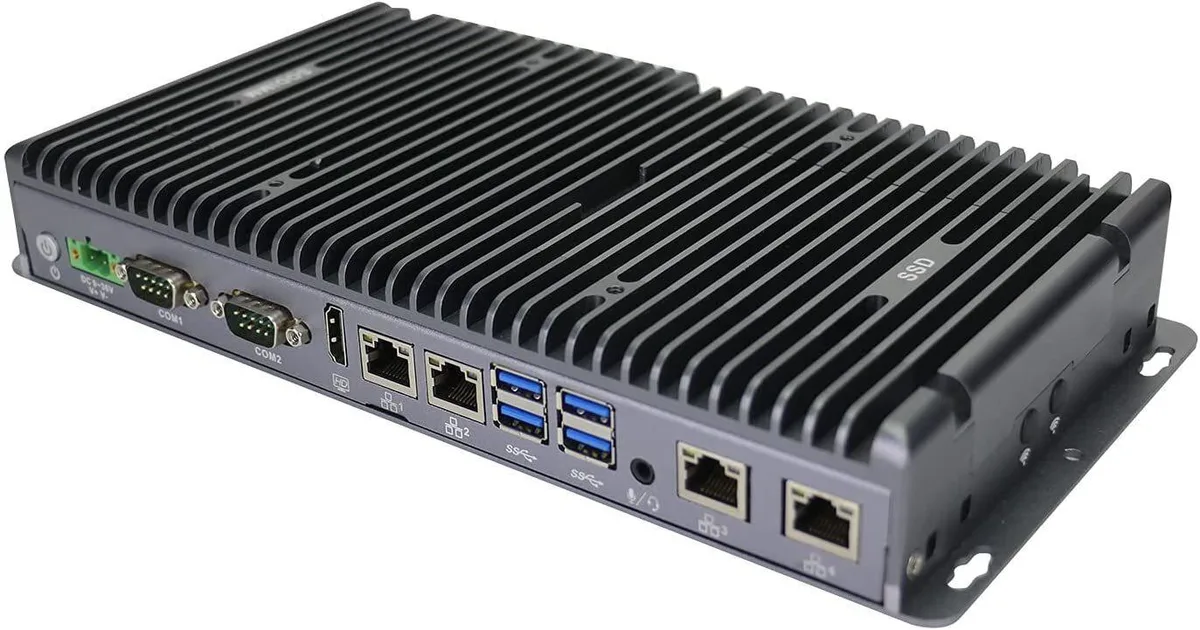

  • four Intel I211-AT gigabit LAN ports for redundant networking

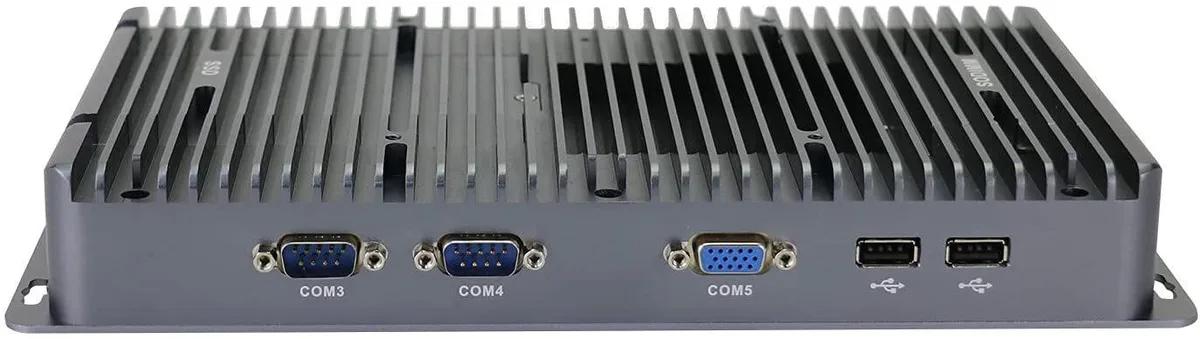

  • four COM ports with RS232/422/485 options connect legacy gear
  • TPM 2.0 plus 9–36 V wide-range input secures industrial deployments

Industrial Mini-PC Barebone

The Partaker PA-3046 is a fanless barebone mini PC built around an Intel Core i7-10810U processor with six cores reaching 4.9 GHz. It ships with 16GB of DDR4-2666 memory and a 256GB M.2 2280 SATA SSD, all enclosed in a rugged aluminium chassis measuring 280 x 143 x 40 mm. Designed for industrial environments, it operates on a wide 9-36 V DC input with polarity protection and includes TPM 2.0 encryption.

Suited for Multi-Port Industrial Deployments

This unit fits integrators who need four Intel I211-AT Gigabit LAN ports and four COM ports with RS232/RS422/485 options for legacy equipment. The fanless design supports -20 °C to 60 °C operation with an industrial SSD, while dual display outputs via HDMI and VGA simplify kiosk or signage setups. Builders who require active cooling, a pre-installed operating system, or a discrete graphics card should look elsewhere.

Single SO-DIMM Slot Limits Memory to 32 GB

Only one DDR4 SO-DIMM socket is provided, capping total system memory at 32 GB regardless of module density. Storage expansion relies on a single M.2 2280 SATA slot plus one 2.5-inch SATA bay that supports RAID 0/1. A Mini PCIe slot with SIM holder allows 4G or Wi-Fi add-ons, but no other internal expansion interfaces are present.

Istaknuto

  • 6-core i7-10810U up to 4.9 GHz handles demanding workloads
  • fanless aluminium chassis runs silently from 0 °C to 50 °C
  • four Intel I211-AT gigabit LAN ports for redundant networking
  • four COM ports with RS232/422/485 options connect legacy gear
  • TPM 2.0 plus 9–36 V wide-range input secures industrial deployments

Specifikacije

ColorGray
CPU TypeIntel Core i7 10th Gen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

What are the exact mounting dimensions and weight of the PA-3046?

The unit measures 280 x 143 x 40 mm and weighs 1.5 kgs. It includes mounting ears for desktop, wall-mounted, embedded, or VESA-standard installation.

How do I install memory and storage in the PA-3046, and what is the step people often miss?

Insert a single SO-DIMM DDR4-2666 module up to 32 GB and add an M.2 2280 SATA SSD plus a 2.5-inch SATA drive. The step often missed is enabling RAID 0 or 1 in BIOS after fitting both SATA drives.

What maintenance does the fanless cooling and wide-voltage input require over time?

The fanless design has no moving parts to service; keep the aluminum case vents clear for airflow. The DC 9-36 V input includes polarity protection, so only verify external power supply health periodically.
