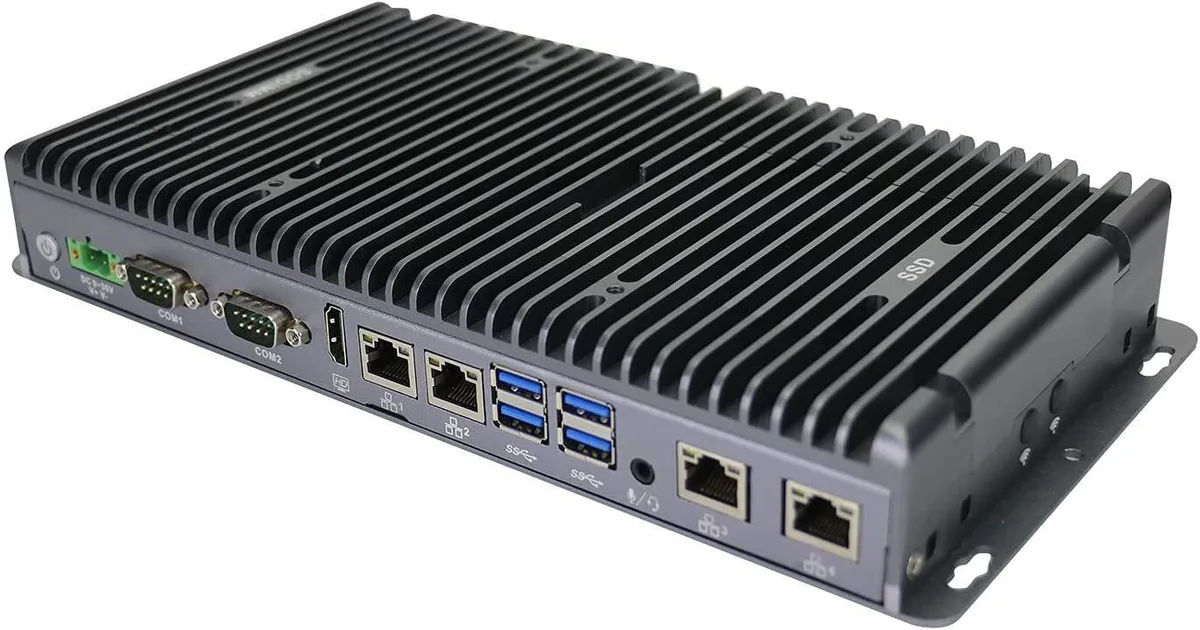

Gray aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

partaker PA-3046 i7-10810U 8GB 256GB barebone mini PC

SKU CH-NQ6M-7371T

Fanless industrial mini PC with a six-core i7-10810U up to 4.9 GHz, 8 GB DDR4, 256 GB SATA SSD, four Intel 2.5 GbE LAN ports, four COM ports, VGA, HDMI, TPM 2.0.

  • ColorGray
  • CPU TypeIntel Core i7 10th Gen

CPU Type Intel Core i7-10710U

Group 8GB / 256GB SSD

  • Fanless aluminium chassis runs silently in industrial settings
  • Six-core i7-10810U processor reaches 4.9 GHz for demanding workloads
  • Four Intel I211-AT Gigabit LAN ports plus four COM ports connect diverse equipment
  • Wide 9-36 V DC input with polarity protection suits unstable power sources
  • TPM 2.0 hardware encryption and watchdog timer secure unattended operation

Industrial Fanless Mini-PC

The Partaker PA-3046 is a compact barebone system built around an Intel Core i7-10810U processor with six cores and a maximum turbo frequency of 4.9 GHz. It ships with 8 GB of DDR4-2666 memory and a 256 GB SATA SSD installed in the M.2 2280 slot. The aluminium chassis measures 280 x 143 x 40 mm and weighs 1.5 kg, using passive cooling for silent operation in industrial environments.

Suited for Multi-Port Industrial Deployments

This unit targets integrators who need four Intel I211-AT Gigabit LAN ports and four COM ports with RS232, RS422 and RS485 options in a fanless design. The wide 9-36 V DC input with polarity protection suits vehicle or factory power systems. Buyers requiring active cooling, discrete graphics or a larger number of USB 3.0 ports should evaluate alternative platforms.

Dual Display and Storage Expansion

Video output is provided through one HDMI and one VGA port for dual independent displays. Storage can be expanded via the 2.5-inch SATA bay, which supports RAID 0 and 1 alongside the primary M.2 SATA drive. A Mini PCIe slot with a SIM holder allows 4G or Wi-Fi module installation for remote connectivity.

Istaknuto

  • Fanless aluminium chassis runs silently in industrial settings
  • Six-core i7-10810U processor reaches 4.9 GHz for demanding workloads
  • Four Intel I211-AT Gigabit LAN ports plus four COM ports connect diverse equipment
  • Wide 9-36 V DC input with polarity protection suits unstable power sources
  • TPM 2.0 hardware encryption and watchdog timer secure unattended operation

Specifikacije

ColorGray
CPU TypeIntel Core i7 10th Gen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Will the SO-DIMM slot or the 256GB M.2 SATA SSD need replacement first under heavy write workloads?

The single SO-DIMM DDR4-2666 slot supports up to 32GB RAM upgrades, while the M.2 2280 SATA SSD and optional 2.5-inch SATA drive handle storage; SSD endurance depends on the specific drive installed.

Which limit appears first during sustained load — the 15W TDP thermal ceiling or the 9-36V DC input range?

The 15W TDP defines the thermal ceiling for the fanless aluminum chassis, while the wide 9-36V DC input with polarity protection handles power delivery; thermal throttling would occur before voltage limits under continuous operation.

How much heat does the fanless 280x143x40mm chassis dissipate when the i7-10810U runs at 4.90 GHz all day?

The fanless design relies on the aluminum chassis surface airflow to dissipate the 15W TDP heat; operating temperature ranges from 0°C to 50°C with commercial drives or -20°C to 60°C with industrial SSDs.
