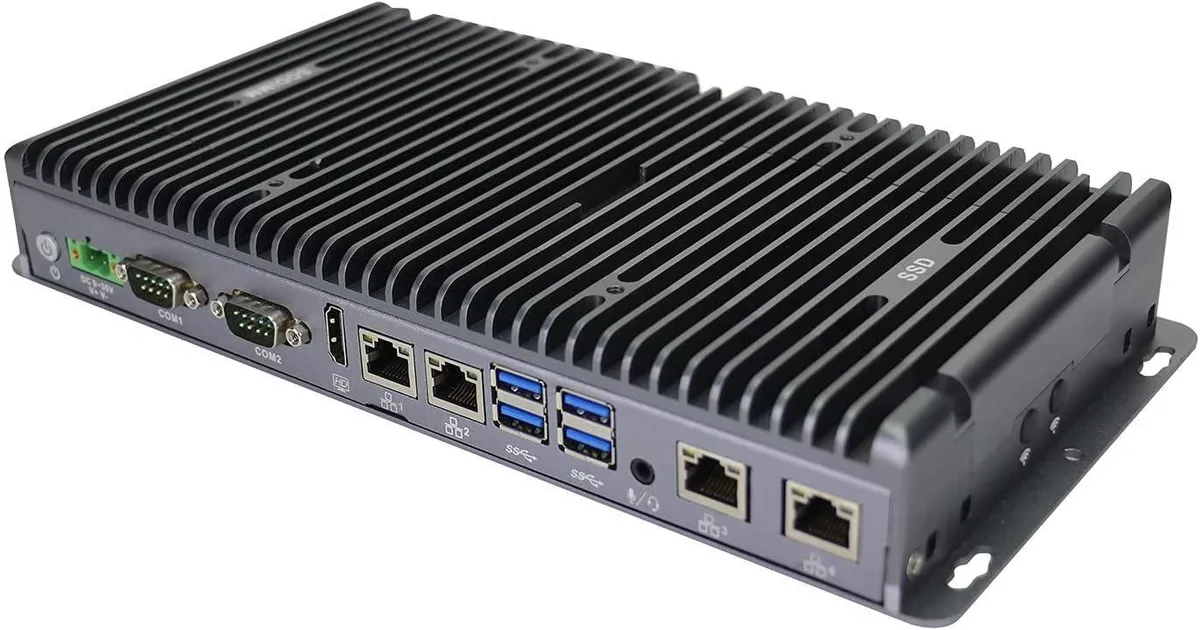

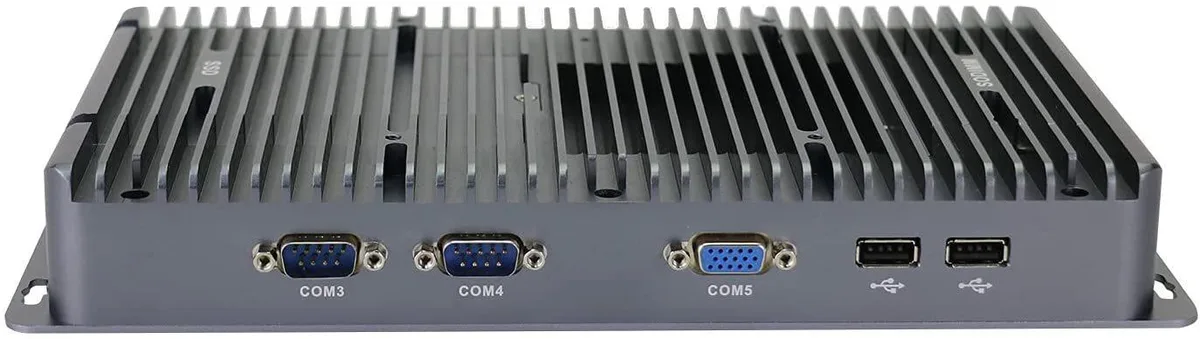

Gray aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

Partaker PA-3046 i7-10810U 8GB 128GB barebone mini PC

SKU CH-35CW-9067S

Fanless industrial mini PC with a six-core i7-10810U, 8 GB DDR4 and 128 GB SATA SSD, four Gigabit LAN ports, four COM ports, 9–36 V DC input and TPM 2.0 security

  • ColorGray
  • CPU TypeIntel Core i7 10th Gen

CPU Type Intel Core i7-10710U

Group 8GB / 128GB SSD

  • Fanless cooling enables silent operation in noise-sensitive environments
  • Intel i7-10810U with six cores reaches 4.9 GHz for demanding workloads
  • Four Intel I211-AT LAN ports provide redundant network connectivity
  • Wide 9-36V DC input with polarity protection suits industrial power supplies
  • TPM 2.0 hardware encryption secures data at rest and boot integrity

Industrial mini PC with i7-10810U

The Partaker PA-3046 is a fanless barebone system built around a six-core Intel i7-10810U processor that reaches 4.9 GHz. It ships with 8GB of DDR4-2666 memory and a 128GB M.2 2280 SATA SSD. The aluminium chassis measures 280 x 143 x 40mm and weighs 1.5 kgs, designed for desktop, wall, VESA or embedded mounting in commercial and industrial environments.

Wide-voltage input and SATA storage limits

The unit accepts DC 9-36V with polarity protection and includes a 12V 7A power supply. Storage expansion is limited to SATA devices: one M.2 2280 slot and one 2.5-inch bay that support RAID 0 or 1. Four Intel I211-AT ports provide 10/100/1000M Ethernet. Operating temperature ranges from 0°C to 50°C with a commercial drive or -20°C to 60°C with an industrial SSD at 5-95% non-condensing humidity.

Check mounting, RAM ceiling and OS needs

Verify that your intended mount matches the integrated ears and VESA pattern. The single SO-DIMM slot caps memory at 32GB, so plan upgrades accordingly. Wireless connectivity requires a Mini PCIe card and SIM, neither of which are included. Supported systems are Windows 10, Windows 11, Linux Ubuntu and FreeBSD-based router distributions.

Istaknuto

  • Fanless cooling enables silent operation in noise-sensitive environments
  • Intel i7-10810U with six cores reaches 4.9 GHz for demanding workloads
  • Four Intel I211-AT LAN ports provide redundant network connectivity
  • Wide 9-36V DC input with polarity protection suits industrial power supplies
  • TPM 2.0 hardware encryption secures data at rest and boot integrity

Specifikacije

ColorGray
CPU TypeIntel Core i7 10th Gen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Should I pick the 8 GB model or plan to upgrade to the 32 GB limit?

The board has one SO-DIMM slot running DDR4-2666; 8 GB is installed and you can replace it with a single 32 GB module.

What does the 4.9 GHz boost clock actually deliver inside this fanless chassis?

The i7-10810U can hit 4.9 GHz on short bursts, but the 15 W TDP and passive cooling mean sustained speeds will settle lower depending on workload and ambient temperature.

Are the four LAN ports full gigabit or do they share a slower bus?

Each port uses its own Intel I211-AT controller, so all four run at 10/100/1000 M independently without sharing bandwidth.
