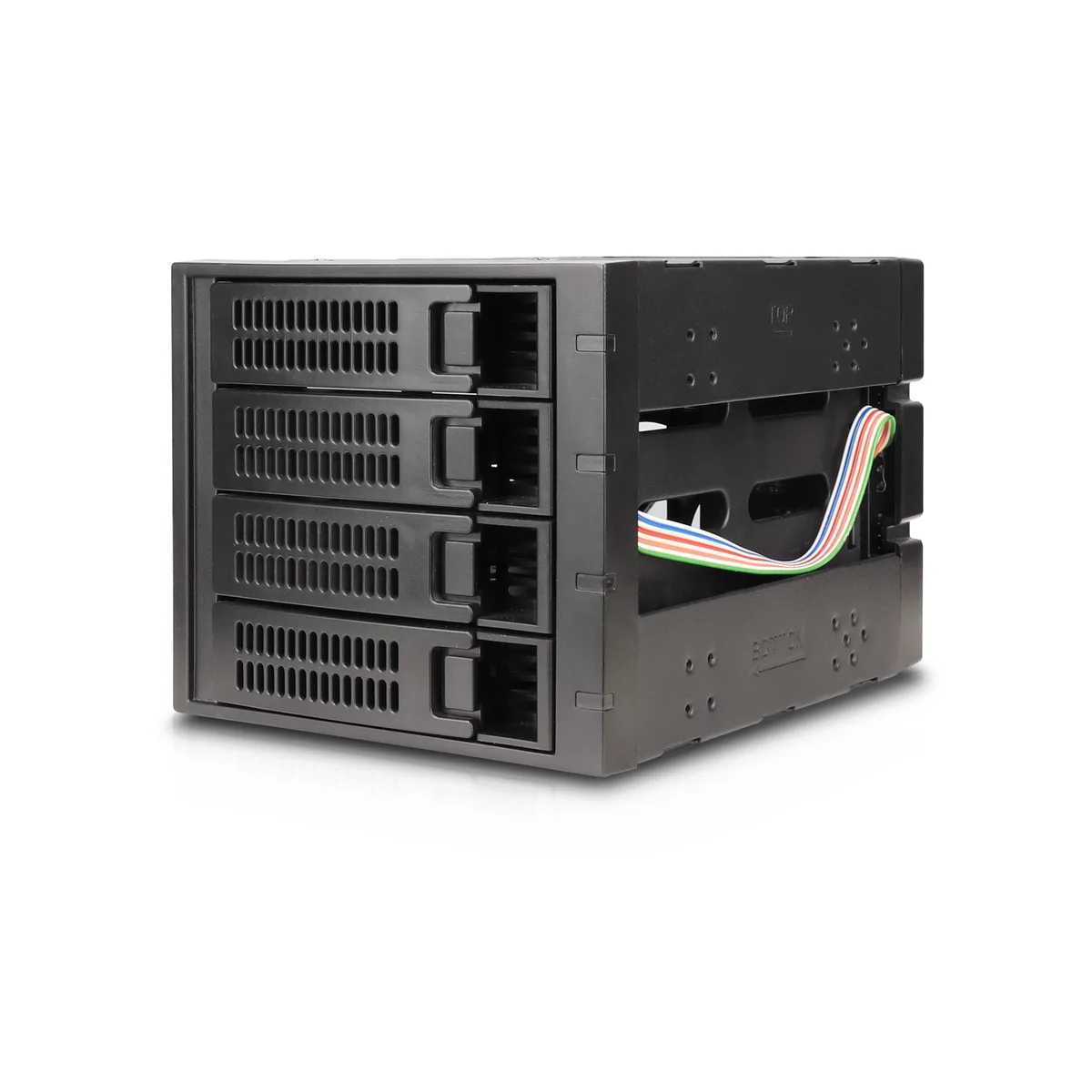

Metal drive cage with four hot-swap trays and rear 120mm fan

Rosewill

Rosewill RSV-SATA-Cage-34 Server Accessory 3x5.25" to 4x3.5" Hot-Swap SATA SAS 120mm Fan

SKU CH-BS1T-KWE4P MPN RSV-SATA-Cage-34

Converts three 5.25-inch bays into four hot-swap trays for 3.5-inch or 2.5-inch SATA and SAS drives with a rear 120mm exhaust fan

  • TypeHard Disk Drive Cage
  • SpecificationsOccupancy: 3 x 5.25" Drive Bays Capacity: 4 x SATA 3.5" HDD

Model RSV-SATA-Cage-34

  • RASA-11001
  • RSV-SATA-Cage-34

Az áthúzott konfigurációk léteznek, de nem érhetők el itt.

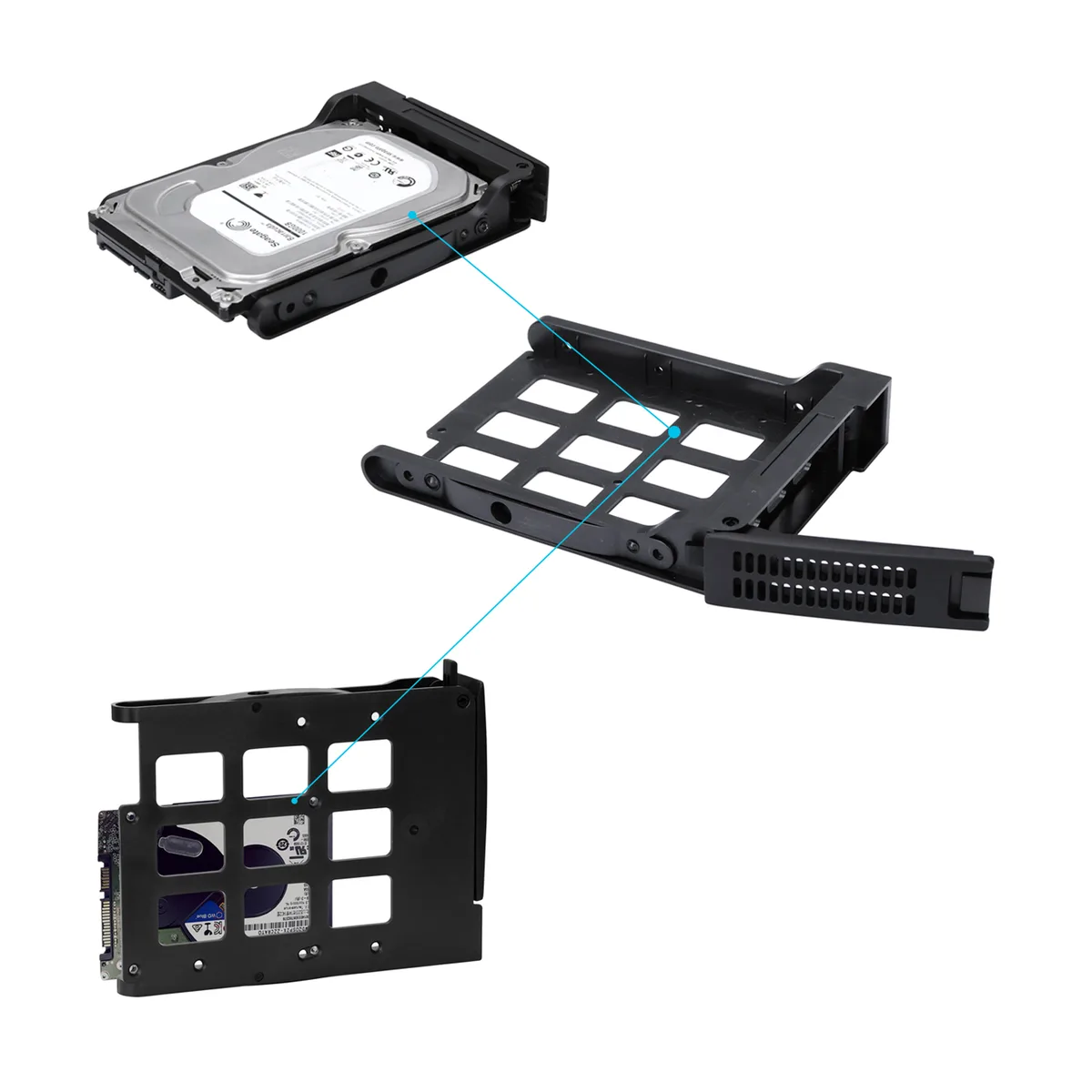

  • Converts three 5.25" bays into four 3.5" or 2.5" drive slots
  • Hot-swap SATA and SAS trays let you change drives without powering down

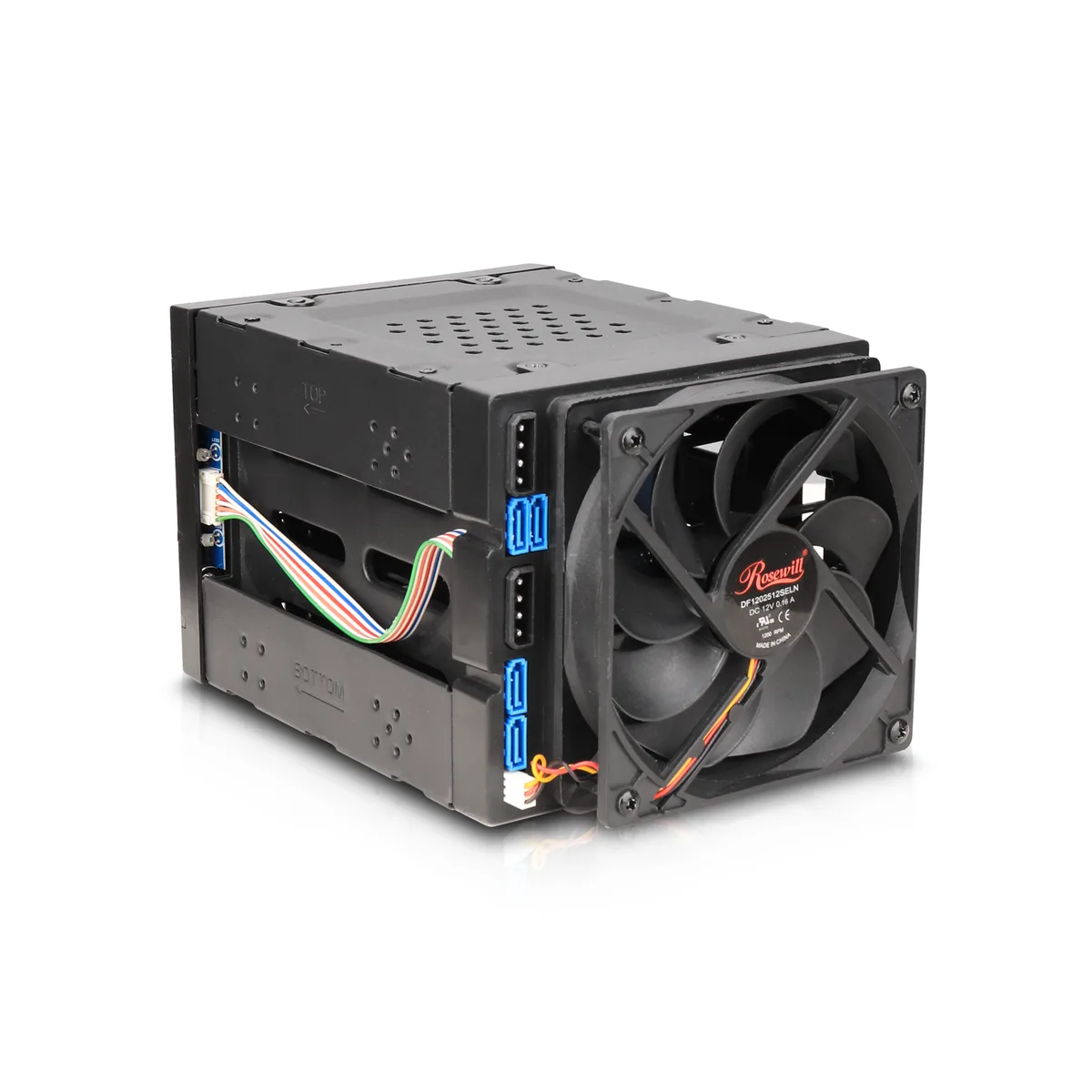

  • Rear 120 mm exhaust fan pulls heat away from installed drives
  • Steel and ABS construction resists wear in continuous server use
  • Fits Rosewill L4000U, L4500U and R4000U chassis for direct integration

What this cage does

The Rosewill RSV-SATA-Cage-34 converts three 5.25-inch drive bays into four hot-swap trays for 3.5-inch or 2.5-inch SATA and SAS hard drives. It targets server builders who need dense storage in a standard chassis. The steel and ABS construction is built for continuous operation. Compatible Rosewill chassis include the L4000U, L4500U and R4000U models.

Installation notes

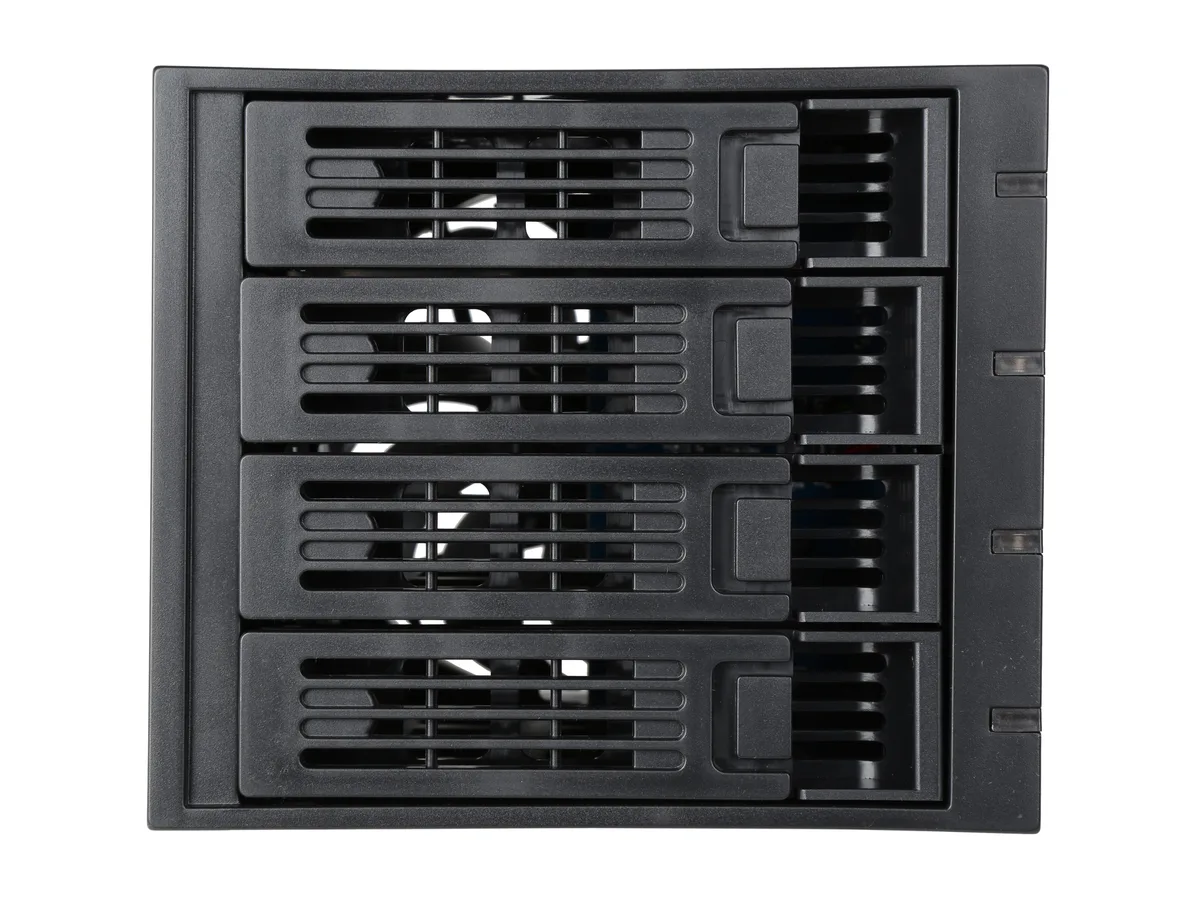

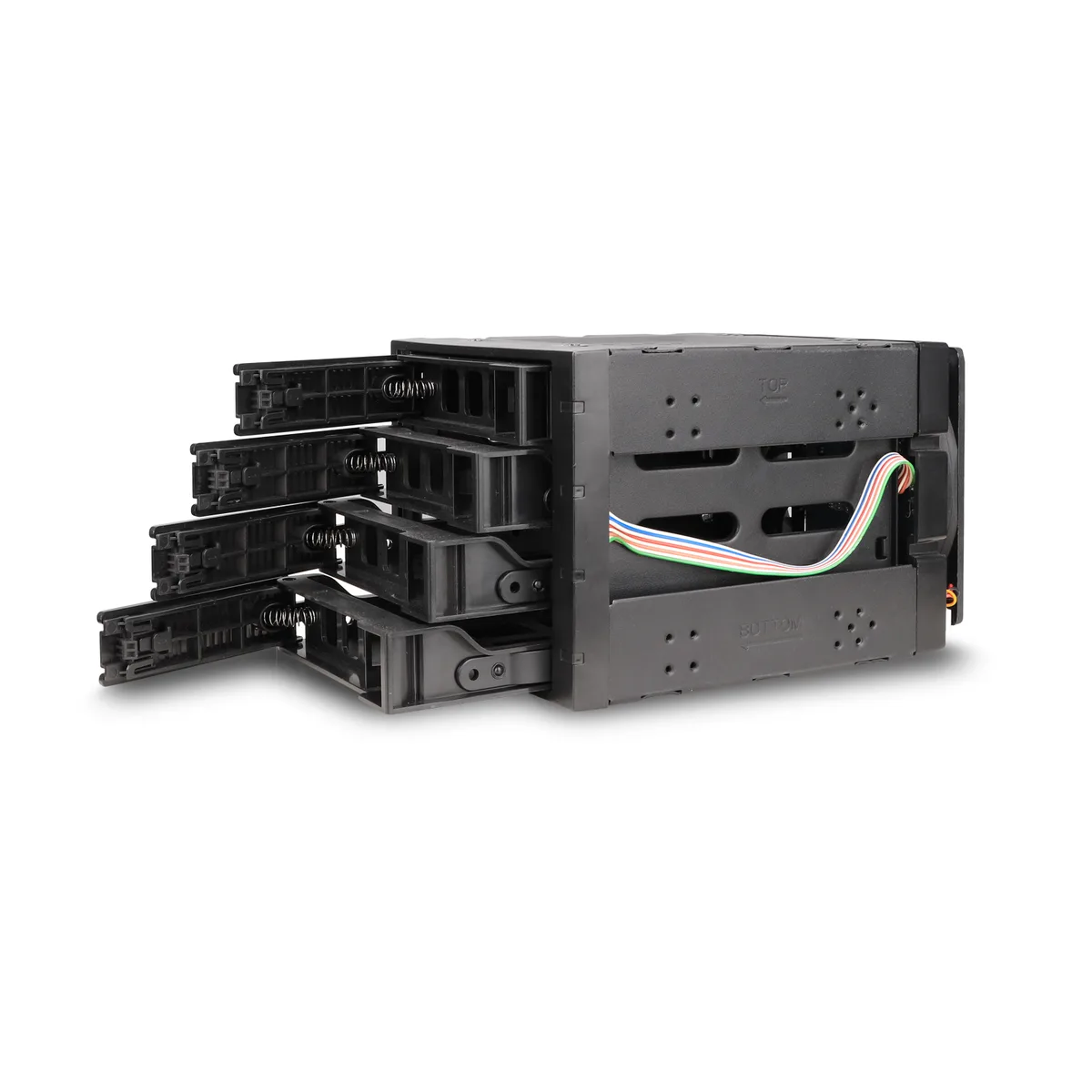

Mount the unit into three adjacent 5.25-inch bays using the supplied screws and connect the single 120mm exhaust fan to a motherboard or fan controller header. Hot-swap requires the motherboard BIOS to be set to AHCI mode and each drive formatted under AHCI; without this the tray eject function will not work. Drive trays slide in from the front and lock with a key mechanism.

SATA and SAS limits

The cage passes SATA I, II and III signals and supports SAS at 6 Gbps only; faster SAS speeds are not supported. Bandwidth per drive depends on the host controller and the drive itself. The single rear fan provides baseline airflow but may be insufficient for four high-RPM enterprise drives under sustained load. No active backplane electronics are included.

Erősségek

  • Converts three 5.25" bays into four 3.5" or 2.5" drive slots
  • Hot-swap SATA and SAS trays let you change drives without powering down
  • Rear 120 mm exhaust fan pulls heat away from installed drives
  • Steel and ABS construction resists wear in continuous server use
  • Fits Rosewill L4000U, L4500U and R4000U chassis for direct integration

Műszaki adatok

BrandRosewill
ModelRSV-SATA-Cage-34
TypeHard Disk Drive Cage
SpecificationsOccupancy: 3 x 5.25" Drive Bays
Capacity: 4 x SATA 3.5" HDD or 4 x SATA 2.5" HDD or SAS HDD
Supports Hot-Swap: SATA I / II / III
Cooling Subsystem: 1 x 120mm Exhaust Fan
Material: Steel & ABS
Dimension: 5.87" x 5.02" x 8.27"
Weight: 2.65 lbs.
Szállítási súly1.83 kg
Csomagméret287 × 211 × 196 mm

Kérdések a termékről

How do I confirm the 120mm exhaust fan is running after I install the cage?

The 120mm rear exhaust fan spins when the cage receives power; you should hear and feel airflow from the back of the unit once the system is on.

What comes in the box and what must I supply separately?

The package includes the cage, four hot-swap trays, mounting screws and a fan power cable; you must provide the 3.5" or 2.5" SATA or SAS drives and a motherboard with AHCI-enabled SATA ports.

Which Rosewill server chassis models does the RSV-SATA-Cage-34 fit?

It is compatible with Rosewill L4000U, L4500U and R4000U chassis.
