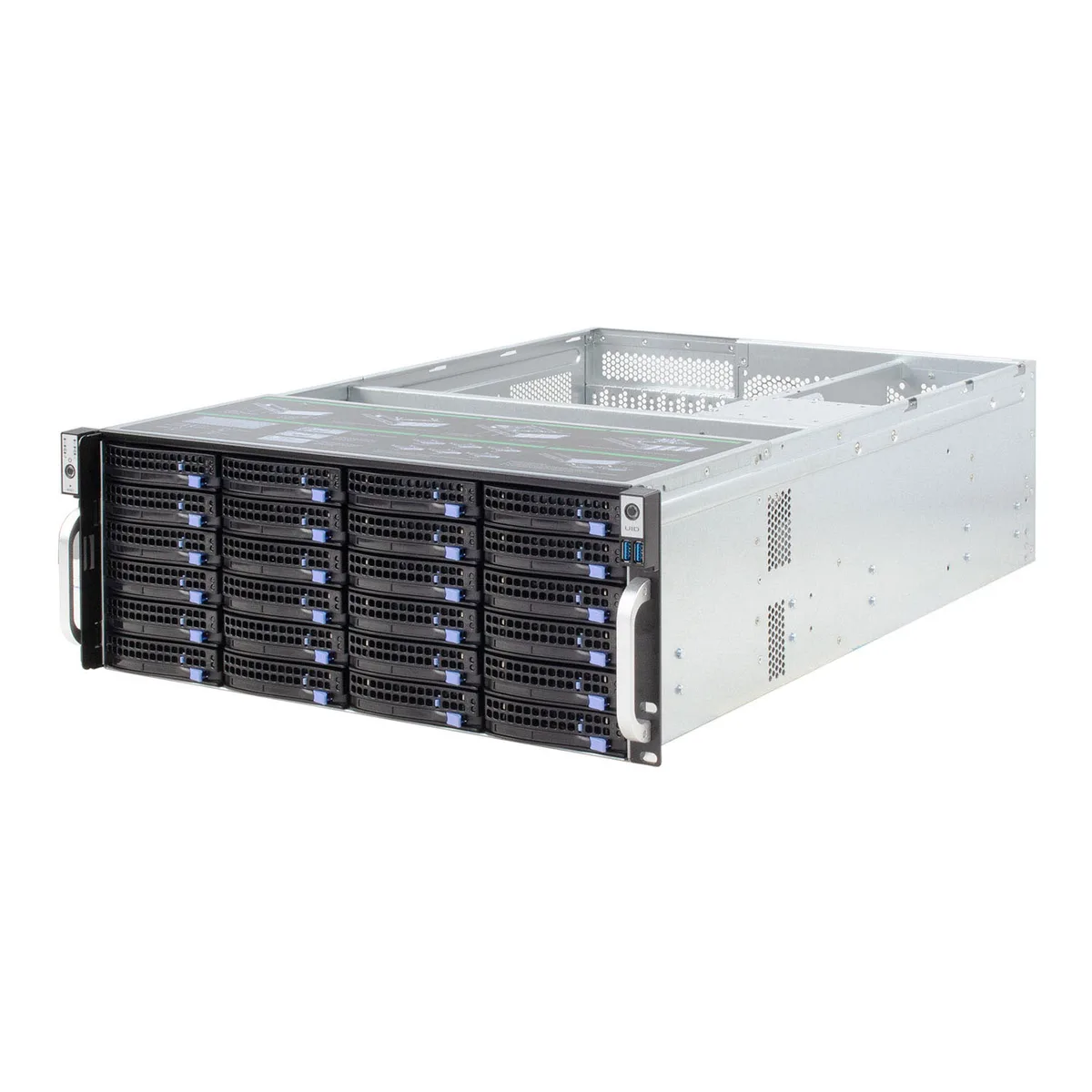

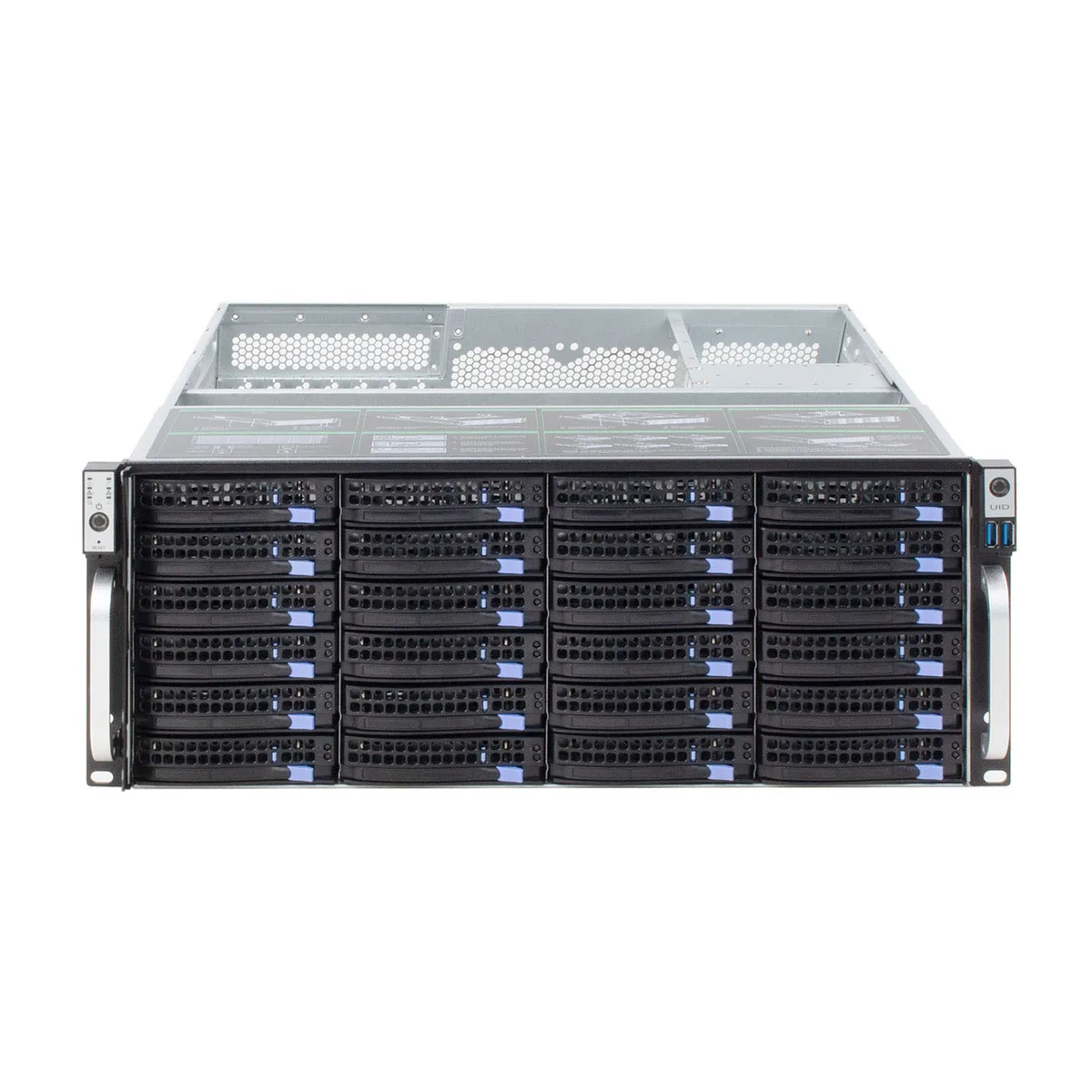

Silver 4U rackmount server chassis with 24 front drive bays and three 12 cm fans

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 24-bay 4U Server Chassis 12Gb/s Expander

SKU CH-GYRD-H7PW5

A 4U rackmount chassis that holds twenty-four front 3.5-inch drives plus three internal 2.5-inch drives on a 12 Gb/s SAS expander backplane with temperature control and SGPIO

  • Chassis TypeRackmount
  • Form Factor4U
  • 24 hot-swap 3.5" drive bays with 2.5" SSD compatibility
  • 12 Gb/s expander backplane with Mini-SAS HD SFF-8643 interface
  • 4U rackmount chassis measuring 650 mm deep × 437.5 mm wide × 176 mm high
  • Two hot-swappable 12038 ball fans with temperature-controlled cooling
  • Supports standard ATX or CRPS redundant power supplies up to 1500 W

24-Bay 4U Rackmount Chassis

This 4U rackmount server chassis provides 24 front-accessible hot-swap bays for 3.5-inch hard drives with compatibility for 2.5-inch drives. It accommodates standard motherboards up to 12 by 13 inches and includes three internal 2.5-inch drive positions. The unit targets cloud storage, big data and security monitoring deployments needing high-density storage in a standard rack footprint.

12Gb/s Expander Backplane

The chassis is equipped with a 12Gb/s SAS expander backplane using Mini-SAS HD SFF-8643 connectors. It features temperature-controlled cooling, SGPIO signalling and time-sharing spin-up to manage drive start-up currents. Two hot-swappable 12038 ball-bearing fans are installed as standard across three 12 cm fan positions to maintain airflow under sustained load.

Seven Full-Height PCIe Slots

Seven vertical full-height PCI/PCIe expansion slots are available at the rear for add-in cards such as RAID controllers or network adapters. Power can be supplied by a standard ATX unit or a CRPS redundant supply ranging from 800 to 1500 watts. The 1.0 mm SGCC construction with fingerprint-resistant finish measures 650 mm deep, 437.5 mm wide and 176 mm high.

Erősségek

  • 24 hot-swap 3.5" drive bays with 2.5" SSD compatibility
  • 12 Gb/s expander backplane with Mini-SAS HD SFF-8643 interface
  • 4U rackmount chassis measuring 650 mm deep × 437.5 mm wide × 176 mm high
  • Two hot-swappable 12038 ball fans with temperature-controlled cooling
  • Supports standard ATX or CRPS redundant power supplies up to 1500 W

Műszaki adatok

Chassis TypeRackmount
Form Factor4U

Kérdések a termékről

How loud and hot does the chassis get when all 24 bays and three 12038 fans run continuously?

Two 12038B ball-bearing fans are fitted as standard and the backplane includes temperature control; the third 12 cm position is available for extra airflow if needed.

Which host interface and cables are required to connect the 12Gb/s expander backplane to my RAID card or HBA?

The backplane uses Mini-SAS HD (SFF-8643) connectors, so you need matching SFF-8643 cables and a controller that supports 12 Gb/s SAS.

Will my existing ATX power supply and standard 12"×13" motherboard fit without modification?

The chassis accepts standard ATX supplies from 800 W to 1500 W and motherboards up to 12"×13", plus seven full-height PCIe slots for add-in cards.
