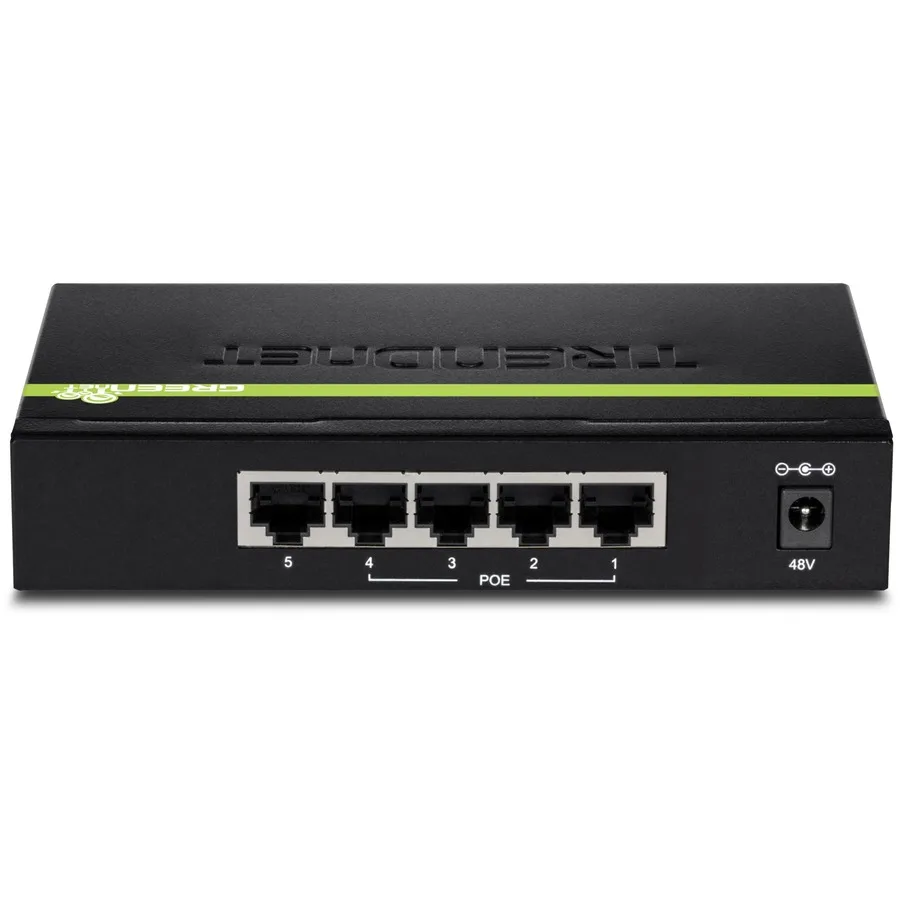

Black metal desktop switch with five RJ45 ports and LED indicators

TRENDnet

TRENDnet TPE-TG50g 5-Port Gigabit PoE+ Switch 31W

SKU CH-29BP-G84C7 MPN TPE-TG50g

A compact five-port Gigabit switch with four PoE+ ports and a 31W power budget for access points and IP cameras

  • FormatDesktop
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Uplink PortsNone
  • Primary Ports5 x RJ45
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast

Model TPE-TG50g

Sjá 4 stillingar til viðbótar

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • Power four PoE+ devices from one compact switch with 31 W budget
  • Gigabit speeds on every port give 10 Gbps total switching capacity
  • Metal desktop housing fits tight spaces and runs silently without fans
  • Lifetime manufacturer protection covers the switch for as long as you own it
  • NDAA and TAA compliant design meets U.S. government procurement requirements

Desktop PoE+ switch for edge devices

The TRENDnet TPE-TG50g is a compact five-port Gigabit switch that supplies both data and power over twisted-pair cable. Four ports deliver PoE+ for wireless access points or IP cameras while the fifth port handles a standard network uplink. A metal desktop chassis keeps the unit quiet and cool in office or wiring-closet settings.

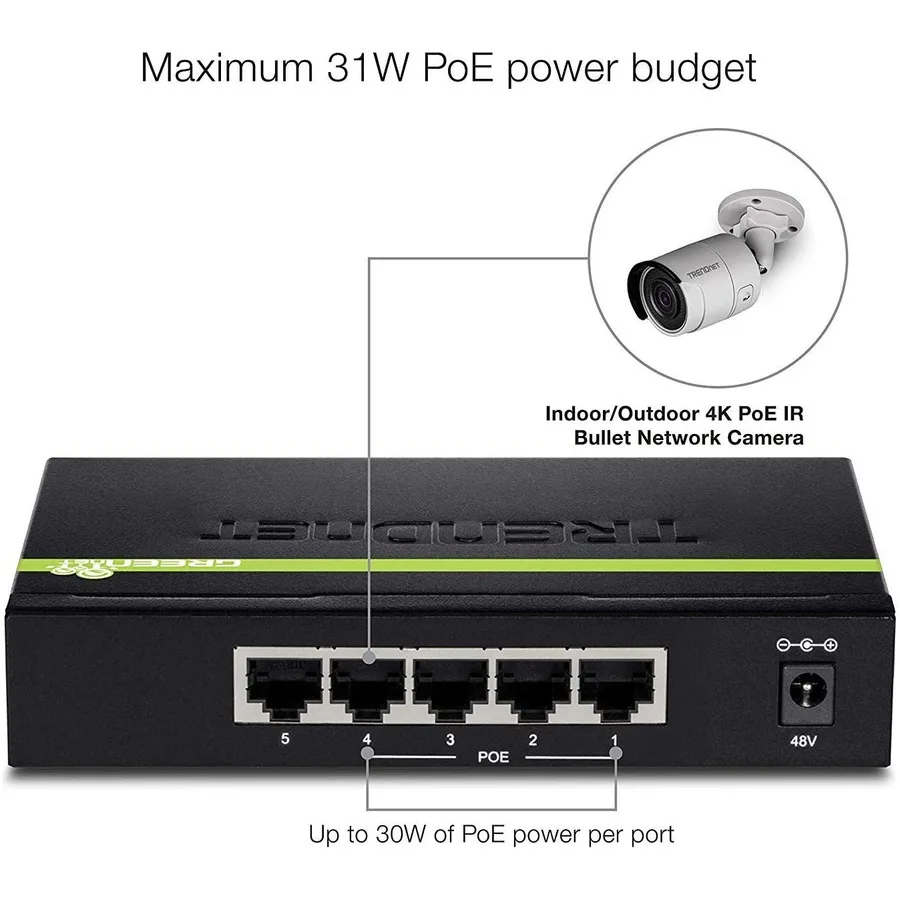

31 W total PoE budget

The switch shares a 31 W power budget across its four PoE+ ports, compliant with IEEE 802.3af at 15.4 W per port and IEEE 802.3at at 30 W per port. Connecting devices that together exceed 31 W will leave some ports unpowered, so installers must sum the draw of every attached access point or camera before deployment.

Sustained load within thermal limits

Operating between 0 °C and 40 °C, the switch draws up to 36 W from its 110-240 V AC supply while forwarding at 10 Gbps switching capacity. The 96 Kbyte buffer absorbs burst traffic, and 9K jumbo frames reduce per-packet overhead during continuous streams from multiple cameras. Fanless metal housing dissipates heat without audible noise.

Helstu kostir

  • Power four PoE+ devices from one compact switch with 31 W budget
  • Gigabit speeds on every port give 10 Gbps total switching capacity
  • Metal desktop housing fits tight spaces and runs silently without fans
  • Lifetime manufacturer protection covers the switch for as long as you own it
  • NDAA and TAA compliant design meets U.S. government procurement requirements

Tæknilýsing

BrandTRENDnet
ModelTPE-TG50g
FormatDesktop
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af (15.4 Watts/port)
IEEE 802.3at (30 Watts/port)
IEEE 802.3az
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Uplink PortsNone
Primary Ports5 x RJ45
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
MAC Address Table1K
Jumbo FramesUp to 9K
Buffer Memory96 Kbytes
ProtocolsTCP/IP
PoEYes
Layer2
PowerInput: 110-240 V AC, 50/60 Hz, 0.75 A
Output: 48 V DC, 0.75 A
Consumption: 36 Watts (Max.)
Dimensions5.60" x 3.70" x 1.20"(H x W x D)
Weight13.00oz
CertificationCertifications & Standards:
CE
FCC
IEEE Standards:
802.3
802.3u
802.3ab
802.3af
802.3at
802.3x
802.3az
Temperature0°C to 40°C (32°F to 104°F)
Humidity90% Maximum, Non-condensing
Features4 x Gigabit PoE+ ports and 1 x Gigabit port
31 Watt PoE budget
10 Gbps switching capacity
Sturdy metal switch
Plug and Play installation
Use with TRENDnet's PoE Splitter to network and power non-PoE devices
Package Contents5-Port Gigabit PoE+ Switch
Quick Installation Guide

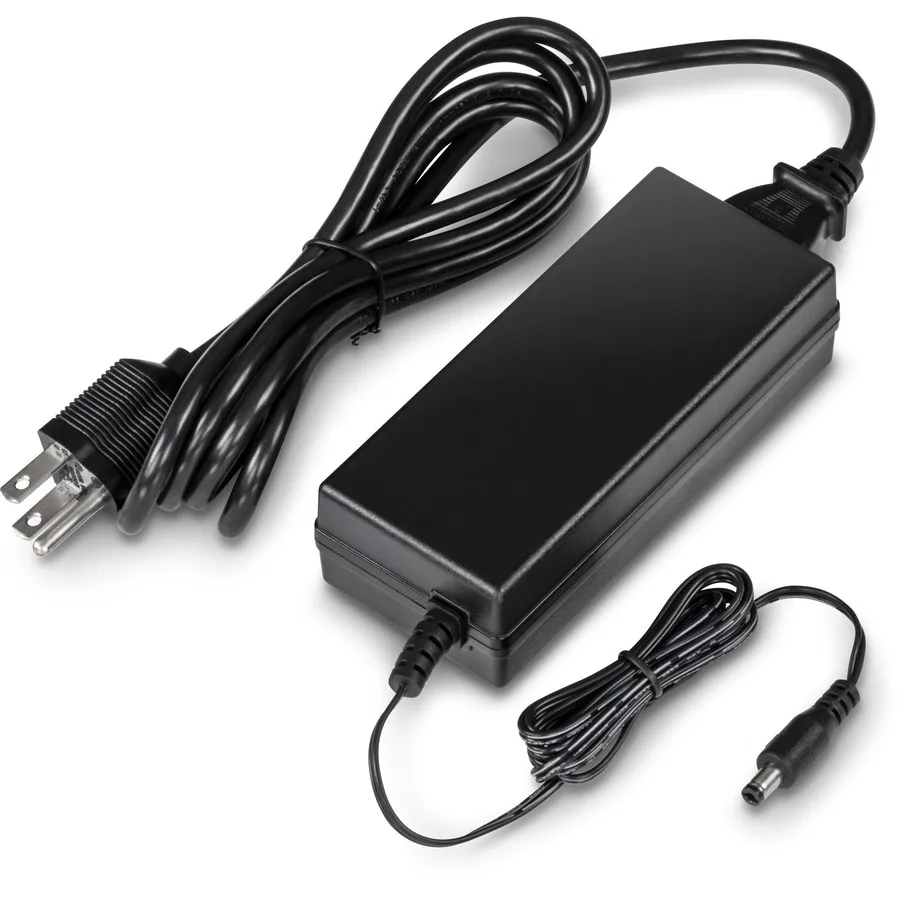

Power Adapter
Sendingarþyngd0.73 kg
Stærð sendingar221 × 160 × 91 mm

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What does the 10Gbps switching capacity mean for my network?

The 10Gbps switching capacity represents the total non-blocking bandwidth the switch can handle across all five ports simultaneously, allowing full Gigabit throughput on each port without congestion.

How does the IEEE 802.3at PoE+ standard limit the power I can draw per port?

Each PoE+ port can deliver up to 30 Watts, but the total power drawn across all four PoE+ ports cannot exceed the switch's 31W PoE budget.

What physical space and mounting does this desktop switch need?

The compact metal housing measures 5.60 x 3.70 x 1.20 inches and weighs 13.00oz, designed to sit on a desktop or shelf without requiring rack mounting hardware.
