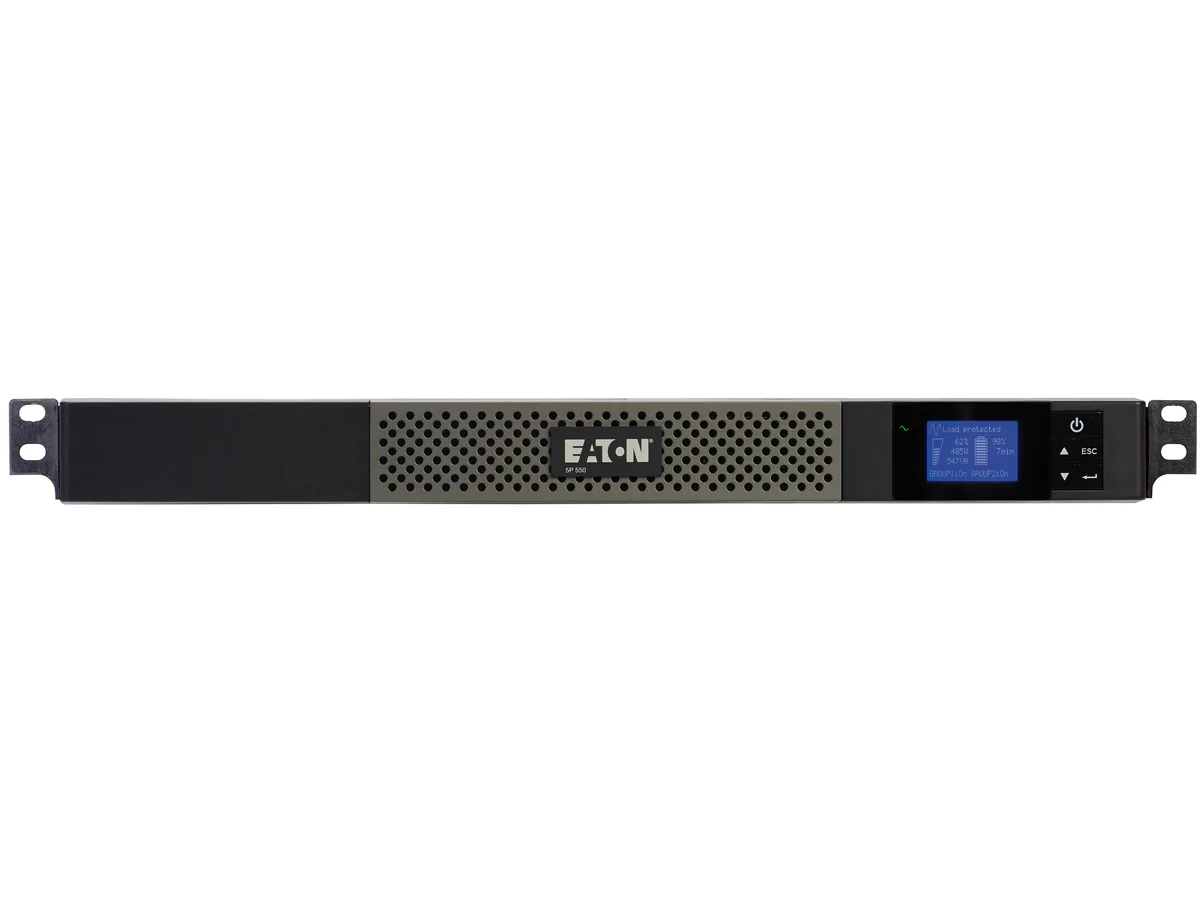

Black rectangular 1U rackmount UPS with five NEMA 5-15R outlets and USB port

Eaton

Eaton 5P1500R 1440 VA 1100 W UPS

SKU CH-7DCV-MSFYZ MPN 5P1500R

Rack-mountable 1440 VA battery backup delivers 1100 W through five NEMA 5-15R outlets with USB and RS-232 management

  • Input Voltage Range89 - 151 Vac (adjustable to 70 - 153 Vac)
  • Input Frequency50/60 Hz (auto-sensing)
  • Input ConnectionNEMA 5-15P
  • VA Rating1440 VA
  • Watts1100 W
  • Output Voltage102 - 132 Vac

VA 1440 VA

  • 1440 VA / 1100 W protects critical loads during outages
  • Five NEMA 5-15R outlets power multiple devices from one unit
  • 1U rack or wall mounting saves valuable space
  • USB and RS-232 ports enable automated shutdown software
  • Input range 89 – 151 V handles unstable utility power

Rackmount UPS for dense 1U deployments

The Eaton 5P1500R delivers 1440 VA and 1100 W in a 1.70-inch rackmount chassis. Five NEMA 5-15R outlets distribute protected power to servers, switches or storage arrays. A NEMA 5-15P plug connects to standard 120 V circuits while the adjustable input window of 89 to 151 Vac handles unstable feeds. USB and RS-232 ports with included cables enable direct management integration.

Steady output through extended events

Double-conversion topology maintains 102 to 132 Vac output with frequency locked to 50 or 60 Hz within 0.1 percent. The wide input range of 70 to 153 Vac (adjustable) prevents unnecessary battery transfers during brownouts or generator shifts. HID-compliant USB communication allows graceful shutdown scripts to trigger at configurable thresholds without proprietary drivers. UL 1778 and UL 497A listings confirm electrical safety under continuous rated load.

Thermal profile in a closed rack

Front-to-rear airflow matches standard server cooling paths, keeping internal temperatures stable when mounted in a 17.20 by 21.80 inch enclosure. Fan speed ramps proportionally to load rather than running at fixed high RPM, reducing acoustic output during typical 40 to 60 percent utilisation. The 44.10 lb mass anchors the unit securely on sliding rails without additional bracing. RoHS compliance restricts hazardous substances in the power path.

Puncte forte

  • 1440 VA / 1100 W protects critical loads during outages
  • Five NEMA 5-15R outlets power multiple devices from one unit
  • 1U rack or wall mounting saves valuable space
  • USB and RS-232 ports enable automated shutdown software
  • Input range 89 – 151 V handles unstable utility power

Specificații

BrandEATON
Model5P1500R
Input Voltage Range89 - 151 Vac (adjustable to 70 - 153 Vac)
Input Frequency50/60 Hz (auto-sensing)
Input ConnectionNEMA 5-15P
VA Rating1440 VA
Watts1100 W
Output Voltage102 - 132 Vac
Output Frequency50/60 Hz + / - 0.1 % (autosensing)
Outlets5
Outlet TypeNEMA 5-15R
Interface PortRS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
USB
Management SoftwareYES
ApprovalsUL 1778, UL497A, RoSH
RackmountableYes
Dimensions1.70" x 17.20" x 21.80" (H x W x D)
Weight44.10 lbs.
Greutate la expediere24.95 kg
Dimensiunile coletului729 × 527 × 157 mm

Alte versiuni ale acestui model

3 în plus din aceeași gamă

Aceeași familie, memorie, radiator sau frecvență diferite — comparați înainte de a vă decide.

Întrebări despre acest articol

How much heat and noise does the 1100 W unit produce when running continuously?

The rackmount chassis is 1.70" high and weighs 44.10 lbs; fan speed varies with load and internal temperature.

Which cables or connectors must I already have to connect my servers to the five NEMA 5-15R outlets?

Each outlet accepts a standard NEMA 5-15P plug; the UPS itself ships with a 5-15P input cord and both 6-foot RS-232 and USB communication cables.

Will the auto-sensing 50/60 Hz output work reliably with older equipment that expects a fixed 60 Hz supply?

Output frequency tracks the input within ±0.1 % once the UPS qualifies the source, so legacy gear sees the same frequency as the utility provides.
