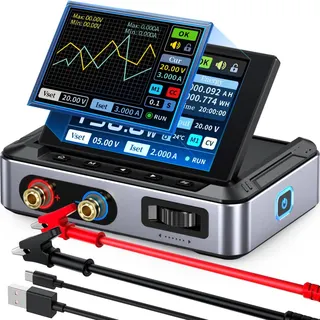

Compact rectangular unit with a 2.8-inch colour IPS screen, silver-grey metal casing, front-panel output terminals and a USB-C port

FNIRSI DPS-150 30V 5A 150W Adjustable DC Power Supply

SKU CH-610E-SWNJ0

Adjustable 0–30 V, 0–5 A, 150 W DC supply with <20 mV ripple, USB-C PD/QC/DC input, PC-programmable presets, 2.8″ flip IPS screen, and multiple safety protections

  • Watts150 watts
  • Surge Wats150 watts
  • Engine BrandFNIRSI
  • Voltage12
  • Amps8.5
  • Size/Dimensions8.2 cm x 13.1 cm x 17.6 cm
  • Stable 0–30 V 0–5 A output with
  • PC-programmable 6 presets let you recall voltage and current instantly
  • 8″ IPS screen flips 90° for clear multi-angle curve and numeric views
  • Eight built-in protections guard against over-voltage, over-current, short-circuit and over-heat
  • 4 mm banana, U-terminal and fine-wire connections fit diverse test leads

Adjustable 30V 5A Bench Supply

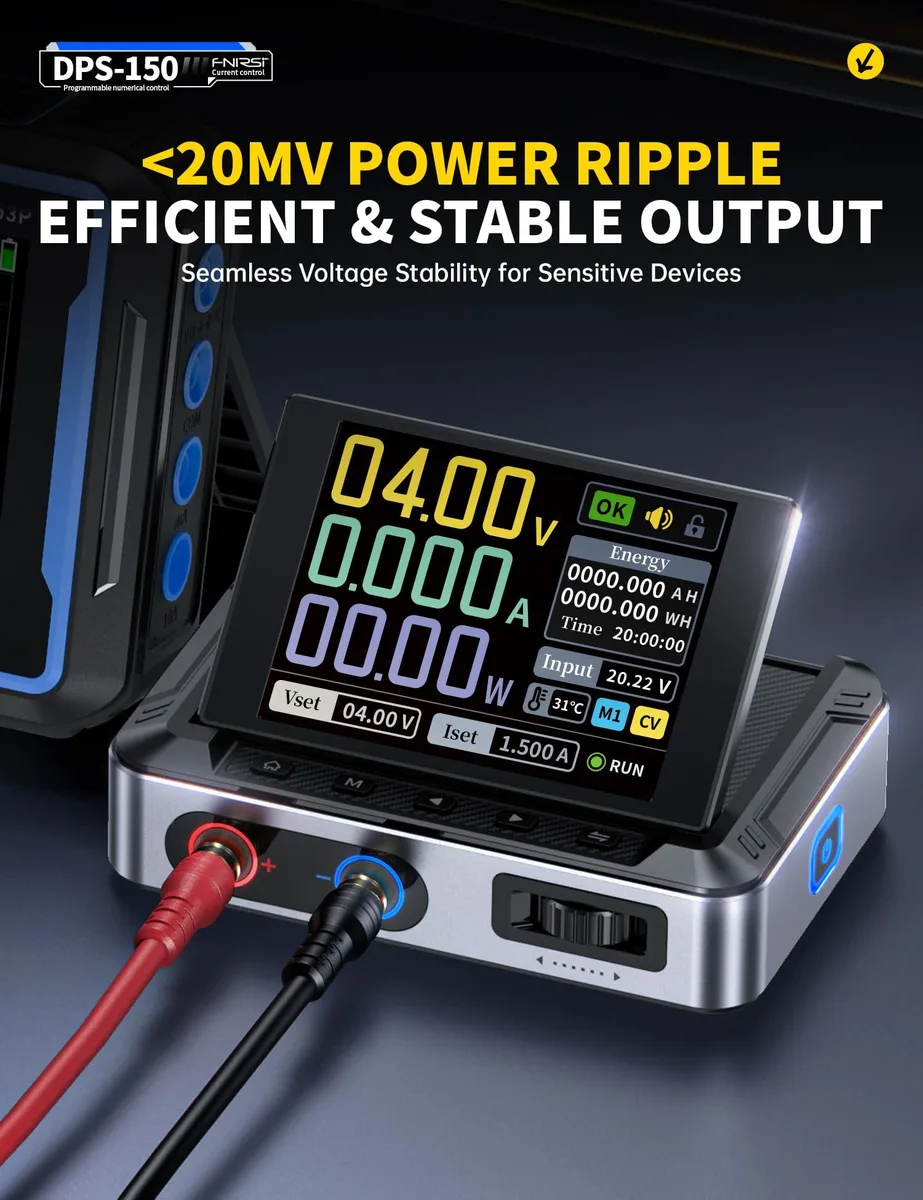

The FNIRSI DPS-150 is a programmable DC power supply delivering up to 30 volts and 5 amps with a 150 watt limit. It offers 0.01 V and 0.001 A resolution on a 2.8 inch IPS display that rotates 90 degrees for flexible viewing. Ripple stays below 20 mV to protect sensitive circuits. USB-C PD and QC input modes are supported alongside a DC jack, though no adapter is included.

Hobbyists and repair techs needing precise

Engineers who require PC-driven test sequences will appreciate the six preset slots and PC programmability. The unit suits bench prototyping, battery charging with an external protection diode, and component validation. Buyers needing more than 5 amps or voltages above 30 volts should consider higher-rated supplies. It is not a high-power laboratory mainframe.

150 W headroom for typical 12 V and 5 V rails

At 12 volts the supply can provide its full 5 amp rating, giving 60 watts of clean power for microcontroller boards, sensor arrays or small motors. Pushing toward 30 volts reduces available current proportionally, so loads near 150 watts only occur at the top of the voltage range. The 20 mV ripple spec holds across the operating envelope, but sustained maximum output will trigger thermal protection.

Puncte forte

  • Stable 0–30 V 0–5 A output with
  • PC-programmable 6 presets let you recall voltage and current instantly
  • 8″ IPS screen flips 90° for clear multi-angle curve and numeric views
  • Eight built-in protections guard against over-voltage, over-current, short-circuit and over-heat
  • 4 mm banana, U-terminal and fine-wire connections fit diverse test leads

Specificații

Watts150 watts
Surge Wats150 watts
Engine BrandFNIRSI
Voltage12
Amps8.5
Size/Dimensions8.2 cm x 13.1 cm x 17.6 cm
Horsepower15
Input VoltageDPS-150
Input AmpsDPS-150, 150 watts
SeriesFNIRSI-DPS-150
Compatibility/FitmentAdhesives; Enamels; Epoxies
Primary Openings1

Întrebări despre acest articol

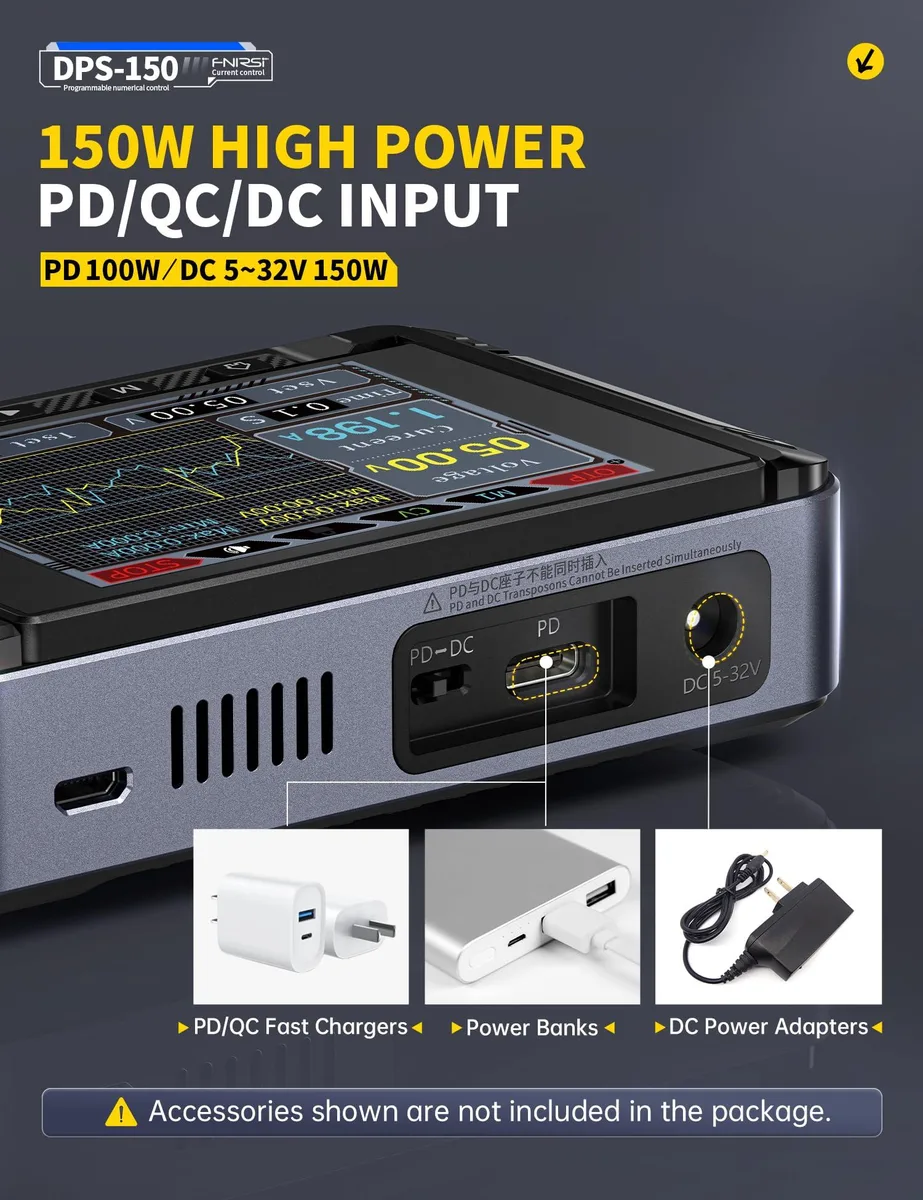

What power source must I provide to run the 150 W output of this DPS-150?

You need a separate USB-C PD or QC charger, or a DC source, capable of delivering at least 150 W; the unit ships without any power adapter.

Can I use my existing 4 mm banana leads and U-shaped terminals with the output connectors?

Yes, the supply provides 4 mm banana sockets, U-shaped terminals and fine-wire terminals so your current leads and lugs will fit directly.

How do I verify the ripple stays below 20 mV after I set the voltage and current?

Switch the 2.8-inch IPS display to curve mode; the on-screen waveform shows real-time output ripple so you can confirm it remains under 20 mV.
