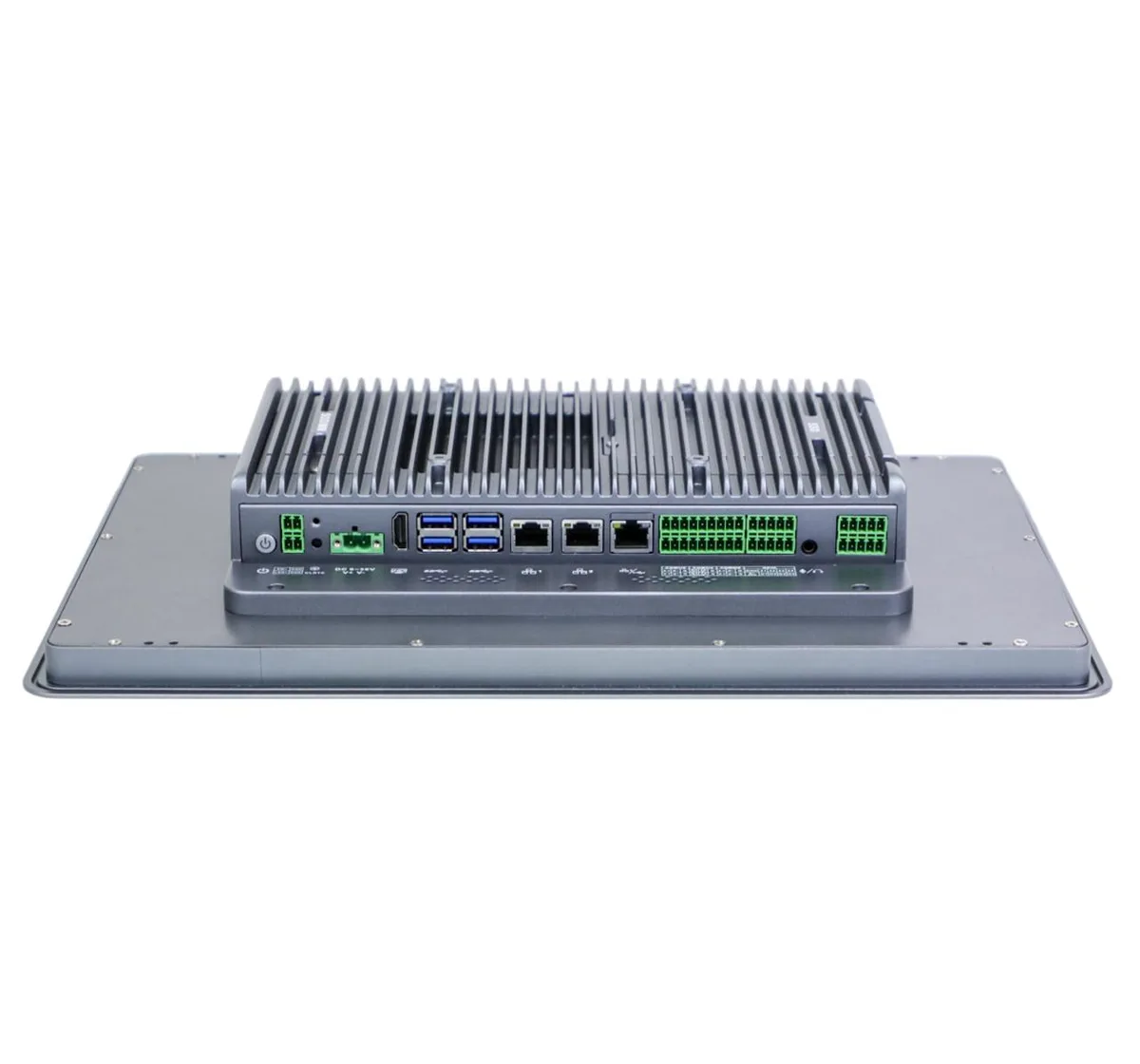

Gray 15-inch industrial all-in-one panel PC with flat capacitive touchscreen and fanless aluminum-steel chassis

partaker

Partaker A20 15" All-in-One PC i5-1235U 32GB 1TB Windows 11 Pro

SKU CH-2X3Z-1SH0A

15-inch fanless industrial all-in-one with IP65 front panel, Core i5-1235U, 32 GB DDR5, 1 TB storage, 6 COM ports and 9-36 V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 32GB RAM / 1TB SSD

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium-steel chassis runs silently in harsh environments
  • 10-core i5-1235U up to 4.40 GHz handles industrial workloads
  • 32 GB DDR5 4800 MHz and 1 TB NVMe for responsive multitasking
  • 9–36 V DC input with reverse-polarity protection suits unstable power supplies

Industrial Panel PC for Harsh Environments

The Partaker A20 is a 15-inch all-in-one computer built around an Intel Core i5-1235U processor with 10 cores and 12 threads. It arrives with 32GB of DDR5 memory and a 1TB SSD pre-installed, running Windows 11 Pro. The fanless aluminium and steel chassis carries an IP65-rated front panel, making it suitable for dusty, wet or vibration-prone industrial settings where a standard office PC would fail.

Connectivity and Display Constraints

The 4:3 aspect ratio screen runs at 1024×768 resolution with 350 cd/m² brightness and uses a capacitive multi-touch layer. Video output is provided by one HDMI port, while an optional second HDMI and an internal LVDS connection allow up to three simultaneous displays. Network access relies on two 1GbE ports and one 2.5GbE port; no wireless capability is included unless a Mini PCIe module is added in the available expansion slot.

Installation and Power Checks

The unit measures 366×290×66mm and requires a cut-out of 355×279mm for embedded mounting, weighing 3.8kg. It accepts a wide 9–36V DC supply through a 2×2-pin Phoenix connector with reverse-polarity protection. Verify that your enclosure accommodates the depth and cut-out dimensions, and that your DC source stays within the stated voltage range before ordering.

Puncte forte

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium-steel chassis runs silently in harsh environments
  • 10-core i5-1235U up to 4.40 GHz handles industrial workloads
  • 32 GB DDR5 4800 MHz and 1 TB NVMe for responsive multitasking
  • 9–36 V DC input with reverse-polarity protection suits unstable power supplies

Specificații

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Alte versiuni ale acestui model

5 în plus din aceeași gamă

Aceeași familie, memorie, radiator sau frecvență diferite — comparați înainte de a vă decide.

Întrebări despre acest articol

Should I choose the 32 GB DDR5 configuration or plan to upgrade the single SODIMM slot later?

The system ships with 32 GB DDR5 4800 MHz already installed in the sole SODIMM slot, reaching the maximum supported capacity, so no further memory upgrade is possible.

How does the Core i5-1235U with 10 cores and 12 threads perform in a fanless industrial chassis?

The 10-core, 12-thread processor reaches up to 4.40 GHz while passively cooled by the aluminium-steel enclosure, delivering sustained multi-threaded throughput for automation and edge-computing workloads without acoustic noise.

What real-world bandwidth can I expect from the 2.5 GbE and dual 1 GbE ports?

The 2.5 GbE link caps at 2.5 Gbps and each 1 GbE port at 1 Gbps, providing deterministic wired throughput for PLCs, cameras and SCADA networks in the 9–36 V DC supply range.
