Black square 87mm VGA cooling fan 22mm thick with four-pin connector

Vszerda

Vszerda PLD09220S12H 87x87x22mm vga cooling fan for RTX 3070 3080 3090 FTW3 Ultra

SKU CH-G036-6J4TX MPN PLD09220S12H

Replaces the 87x87x22mm cooler fan on RTX 3070, 3080, 3080 Ti and 3090 FTW3 Ultra cards with a 12V 0.55A four-pin model

  • Direct fit for RTX 3070 FTW3 Ultra models
  • Direct fit for RTX 3080 FTW3 Ultra models
  • Direct fit for RTX 3090 FTW3 Ultra models
  • Runs on standard DC 12V 0.55A power
  • Compact 87x87x22mm size fits existing shroud

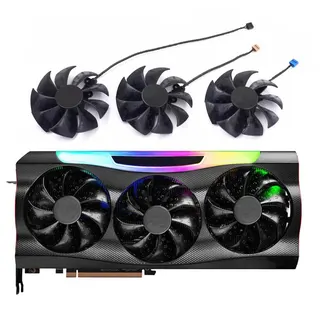

Replacement Fan for FTW3 Ultra Cards

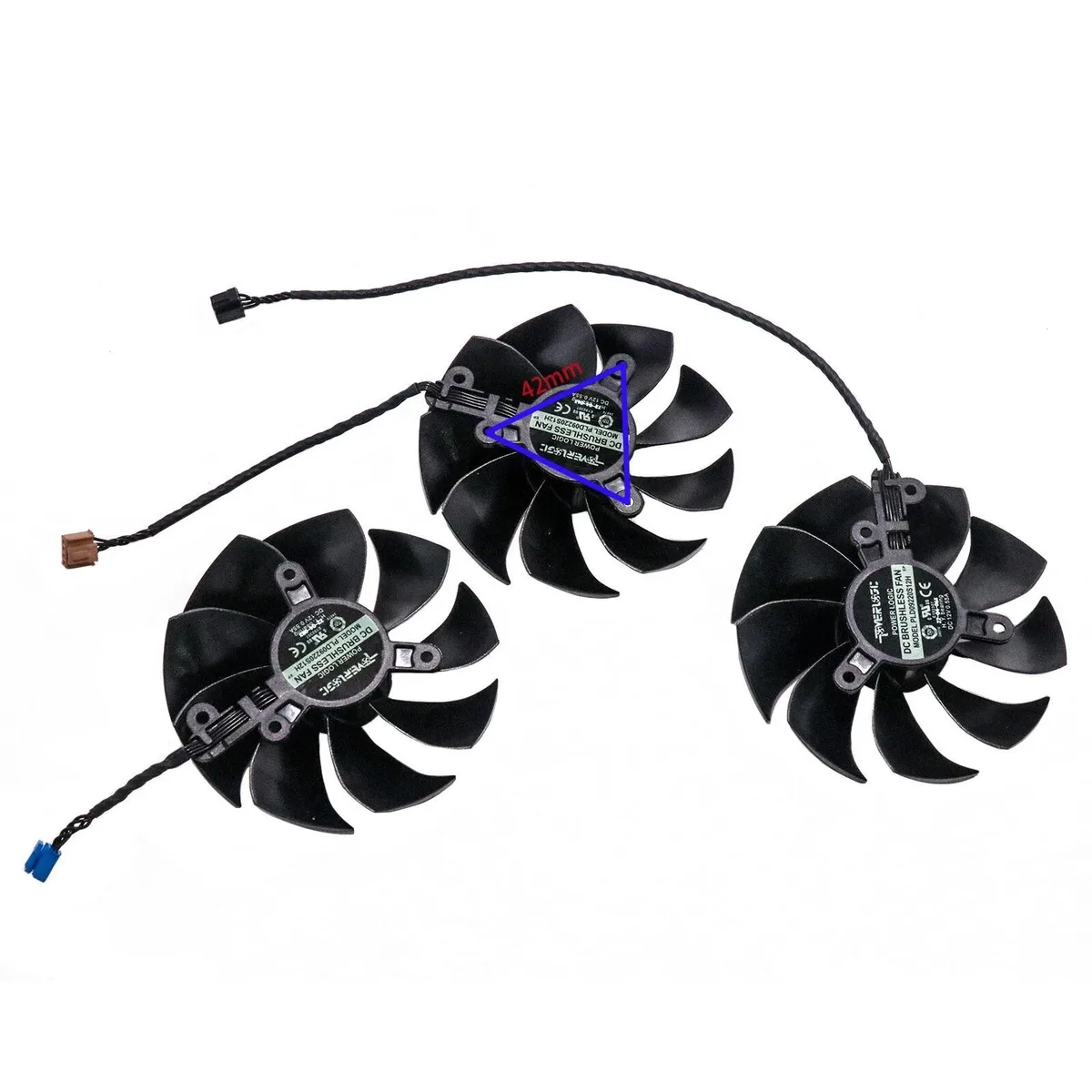

The Vszerda PLD09220S12H is a 12 V, 0.55 A replacement cooler designed for EVGA GeForce RTX 3070, 3080, 3080 Ti and 3090 FTW3 Ultra models. It measures approximately 87 x 87 x 22 mm and connects via a 4-pin header. No mounting screws are included in the package.

Who Should Buy This and Who Should Not

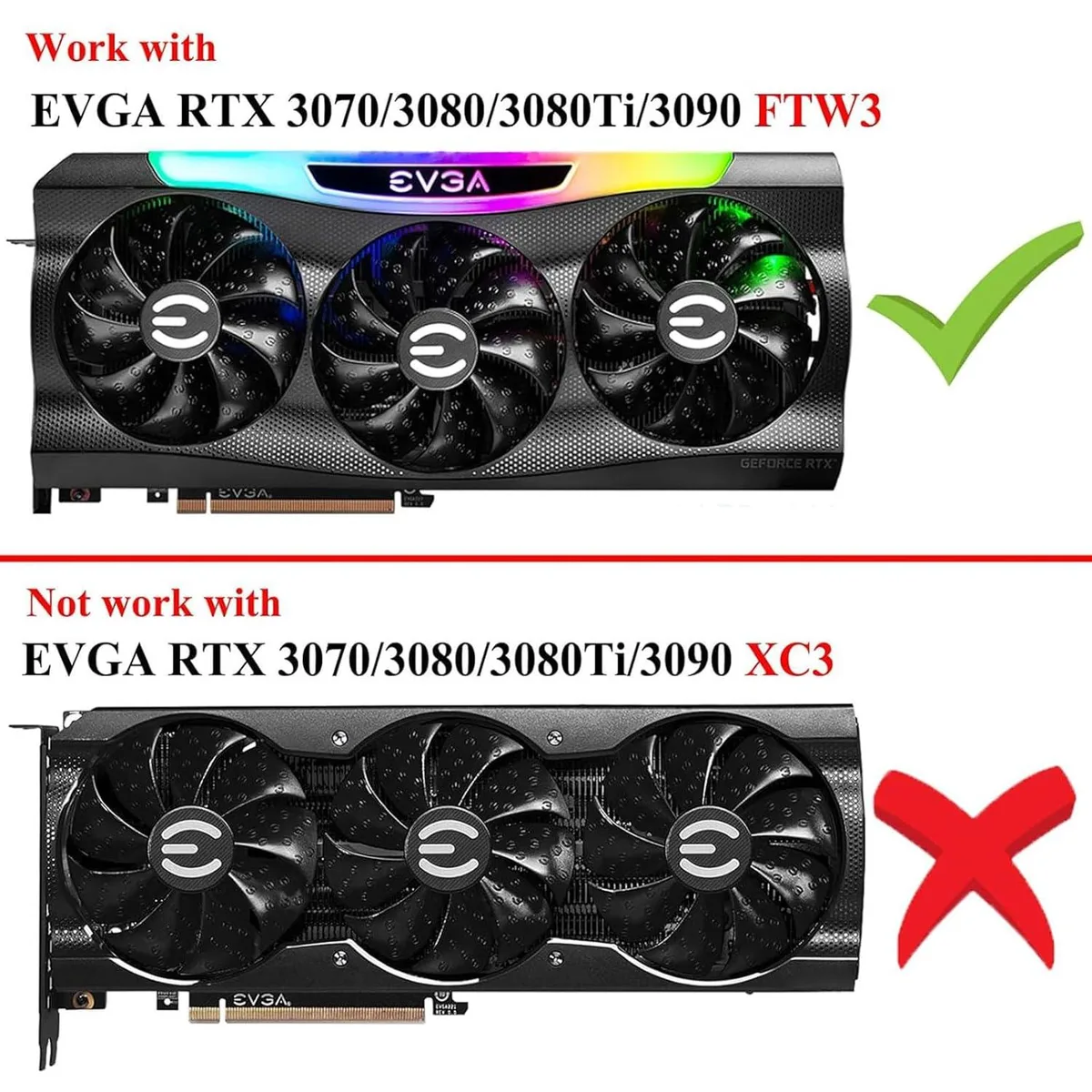

This part suits owners of the listed FTW3 Ultra cards who need to replace a worn or faulty original fan. It does not fit reference-design boards, other FTW3 variants without the Ultra suffix, or graphics cards from different manufacturers. Buyers needing a complete heatsink assembly or a different form factor should look elsewhere.

Critical Spec: 4-Pin PWM Connector

The fan uses a 4-pin header that supports PWM speed control, allowing the graphics card to regulate fan speed based on temperature. Verify that the original fan on your card also uses a 4-pin connector before ordering, as 3-pin versions are not directly compatible.

Puncte forte

  • Direct fit for RTX 3070 FTW3 Ultra models
  • Direct fit for RTX 3080 FTW3 Ultra models
  • Direct fit for RTX 3090 FTW3 Ultra models
  • Runs on standard DC 12V 0.55A power
  • Compact 87x87x22mm size fits existing shroud

Specificații

Nicio specificație publicată pentru acest articol deocamdată.

Întrebări despre acest articol

Will this 87x87x22mm fan fit the original FTW3 Ultra cooler shroud and heatsink mounting points?

The fan dimensions match the original 87x87x22mm specification for the FTW3 Ultra cooler, so it aligns with the existing mounting holes and shroud clearance.

How can I confirm the PLD09220S12H is running correctly once installed?

The 4-pin header reports speed to the GPU firmware; monitoring software will show RPM changes under load, and the 12 V 0.55 A rating matches the card's fan controller output.

Does the replacement include mounting screws or only the fan unit?

The package contains the fan only; you must reuse the original screws from the card you are repairing.
