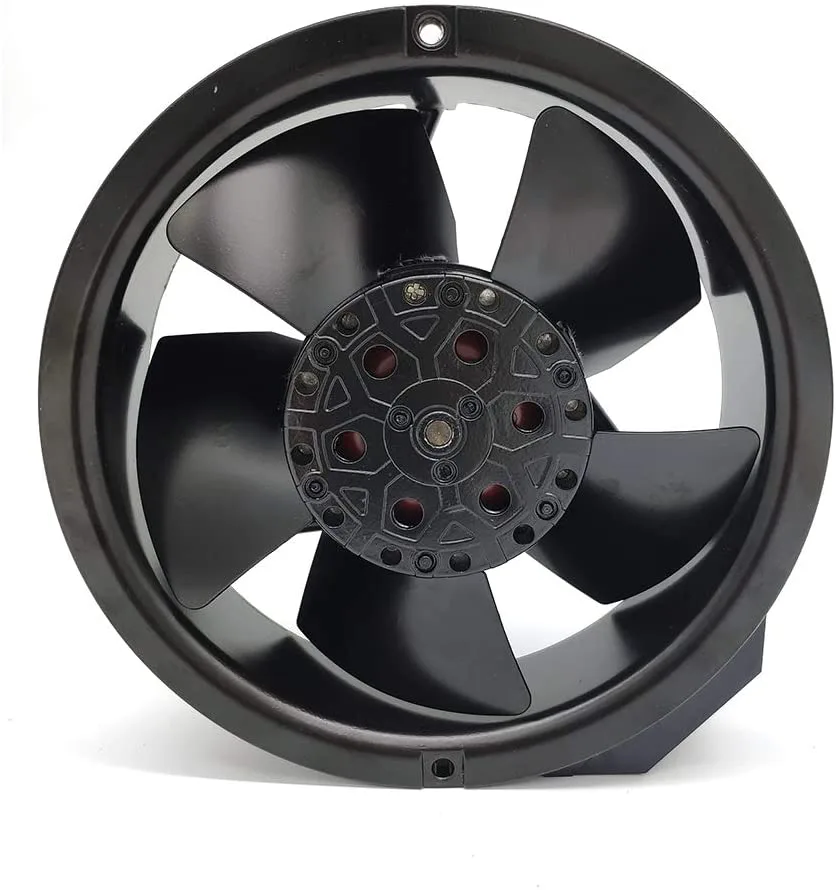

Black painted 143mm axial fan with five steel blades in die-cast aluminium housing

CAFELE

CAFELE No.W2E143-AB09-06 230VAC 0.13A 26/29W 2800/3300RPM 143mm case fan

SKU CH-1CYB-1FMG0 MPN No.W2E143-AB09-06

Axial fan with ball-bearing motor runs at 2800/3300 RPM, draws 0.13 A at 230 VAC and consumes 26/29 W

  • TypeCase Fan
  • 230 VAC mains voltage simplifies wiring in industrial cabinets
  • 2800–3300 RPM airflow cools Danfoss inverters reliably
  • Ball-bearing motor extends service life in continuous operation
  • IP20-rated die-cast aluminium housing resists dust ingress
  • Wide –25 °C to 75 °C ambient range suits harsh environments

230 VAC axial fan for industrial chassis

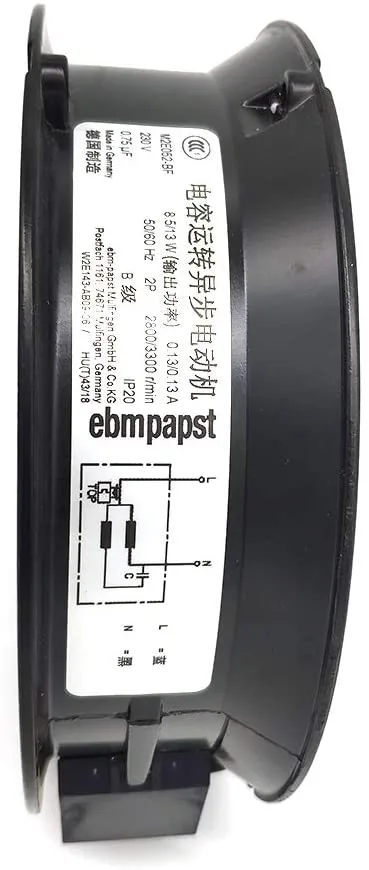

The CAFELE No.W2E143-AB09-06 is a 143 mm axial fan built by ebm-papst and driven by an M2E052-BF motor. It operates on 230 VAC mains supply and draws 0.13 A at 50/60 Hz, consuming 26 W at 2800 RPM or 29 W at 3300 RPM. The ball-bearing rotor and IP20-rated die-cast aluminium housing are rated for continuous ambient temperatures from -25 °C to 75 °C.

Suited for Danfoss inverter retrofits

Engineers maintaining Danfoss inverter cooling modules or similar 230 VAC industrial equipment will match the original airflow and mounting footprint. The five-blade steel impeller and class B insulation meet the thermal and electrical demands of those installations. Buyers needing a low-voltage DC chassis fan for standard PC cases cannot use this unit because the supply voltage and connector interface are incompatible.

Mains-voltage 230 VAC operation decides fit

The single specification that determines suitability is the 230 VAC nominal voltage paired with a 0.75 µF 400 VDB run capacitor. If the target system provides 230 VAC at 50/60 Hz and accepts a 143 mm frame with IP20 protection, the fan integrates directly; otherwise a different voltage class is required.

Poudarki

  • 230 VAC mains voltage simplifies wiring in industrial cabinets
  • 2800–3300 RPM airflow cools Danfoss inverters reliably
  • Ball-bearing motor extends service life in continuous operation
  • IP20-rated die-cast aluminium housing resists dust ingress
  • Wide –25 °C to 75 °C ambient range suits harsh environments

Specifikacije

TypeCase Fan
