iStarUSA Inc. D-230H-T 2U Rackmount Server Chassis
2U rackmount chassis with three hot-swap 3.5″ SAS/SATA bays, one internal 2.5″ bay, a slim 5.25″ optical bay and four low-profile expansion slots
- Chassis TypeRackmount
- Form Factor2U
- ColorBlack
- Case MaterialAluminum / Steel
- Motherboard CompatibilityMicroATX, Mini-ITX

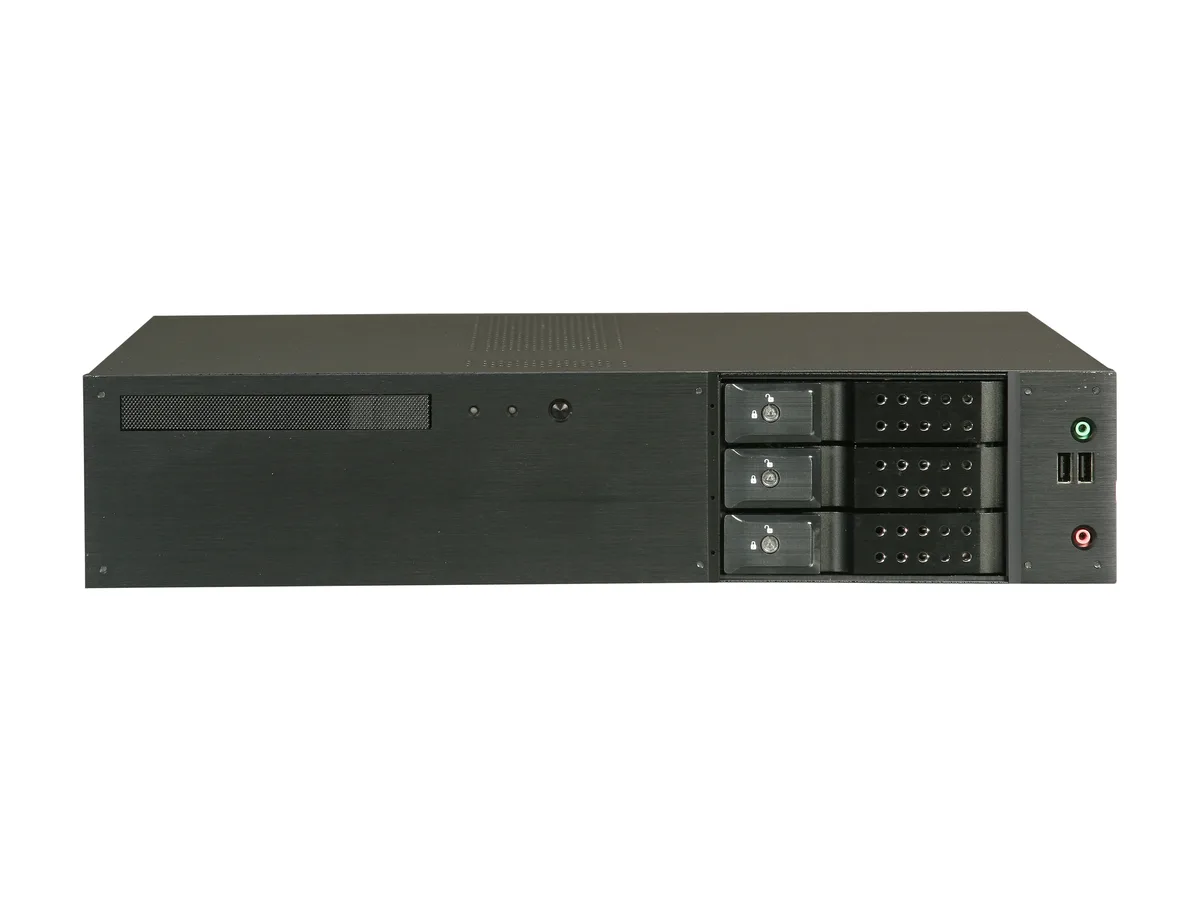

- Hot-Swap Drive Bays3 x 3.5"
- Three hot-swap 3.5" drive bays enable quick storage changes
- One internal 2.5" bay adds a boot drive without using a hot-swap slot
- 80 mm fan provides airflow for a compact 2U build
- Four low-profile expansion slots support add-in cards in a short-depth chassis
- Front USB 2.0 and audio ports give easy local access
Compact 2U Rackmount Chassis
The iStarUSA D-230H-T is a 2U rackmount server chassis built for microATX and Mini-ITX motherboards. It fits standard 19-inch racks and uses a mix of aluminium front bezel and zinc-coated steel for the main body. The compact 15.00-inch depth helps it sit in shallow cabinets where deeper enclosures cannot go.
Sustained Cooling and Drive Access

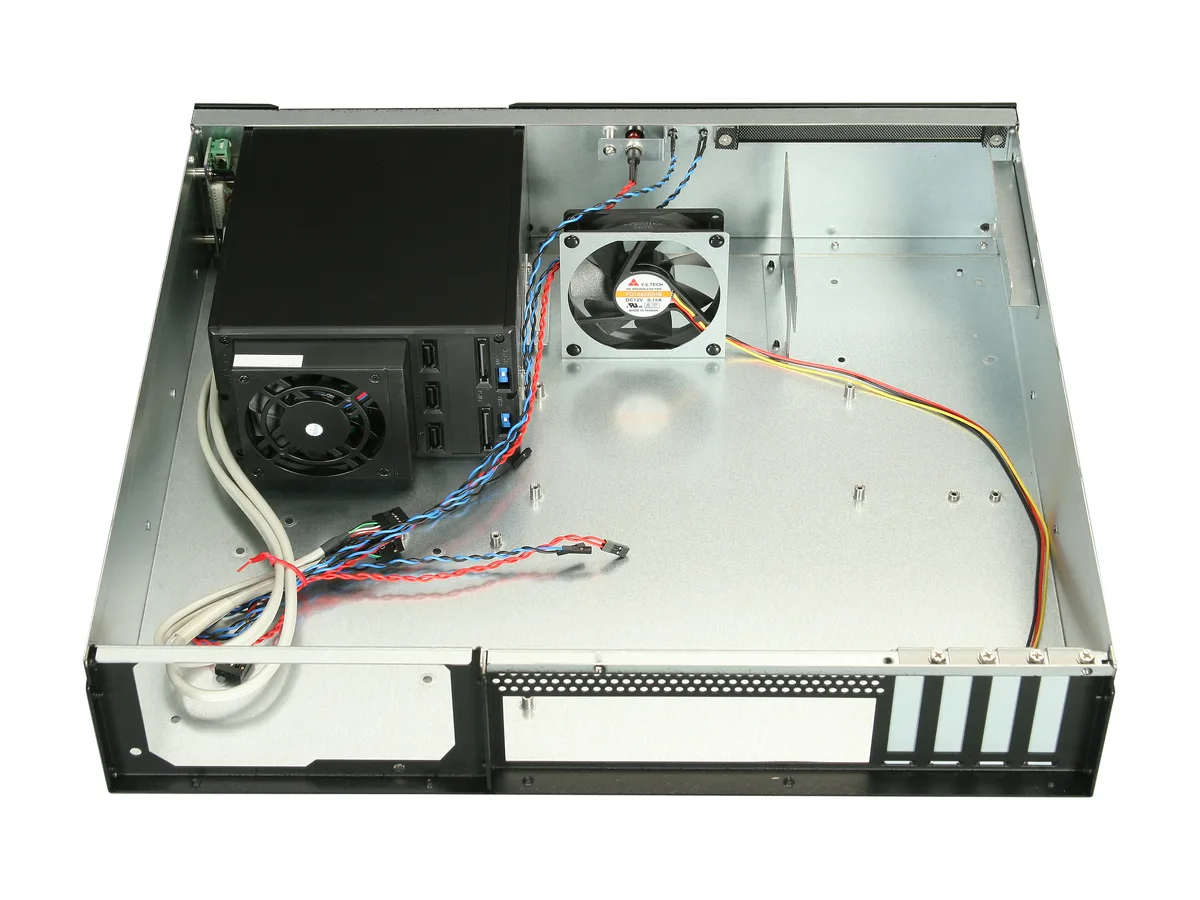

A single 80mm fan provides the baseline airflow for continuous operation in a 2U space. Three trayless 3.5-inch hot-swap bays accept SAS I/II and SATA I/II/III drives without powering down the system. One internal 2.5-inch mount and a slim 5.25-inch optical bay complete the storage layout for long-running workloads.
Power Supply Length Limit
The chassis only fits a standard ATX power supply up to 140mm long. Builders needing longer PSUs or full-height expansion cards cannot use this enclosure. The four low-profile slots and front USB 2.0 plus audio ports round out the fixed feature set.
Poudarki
- Three hot-swap 3.5" drive bays enable quick storage changes
- One internal 2.5" bay adds a boot drive without using a hot-swap slot
- 80 mm fan provides airflow for a compact 2U build
- Four low-profile expansion slots support add-in cards in a short-depth chassis
- Front USB 2.0 and audio ports give easy local access
Specifikacije
| Brand | iStarUSA |
|---|---|
| Model | D-230H-T |
| Chassis Type | Rackmount |
| Form Factor | 2U |
| Color | Black |
| Case Material | Aluminum / Steel |
| Motherboard Compatibility | MicroATX, Mini-ITX |
| Hot-Swap Drive Bays | 3 x 3.5" |
| Expansion Slots | 4 (Low profile) |
| External Slim Drive Bays | 1 x Slim 5.25" Optical |
| Front Ports | 2 x USB 2.0, Audio In/Out |
| 80mm Fans | 1 |
| Features | Standard Drive Bays: 2.5" Drive (internal): 1 Hotswap 3.5: 3 Slim 5.25" Optical: 1 Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III Indicators: Power, HDD Switches: Power Material of Front Bezel: Aluminum Material of Main Chassis: Zinc-Coated Steel 3x Hotswappable 3.5" Drive Bay Rackmount or Desktop Convertible Compatible with PS2 or PS3 Power Supply Slim Optical Drive Bay Available Front audio I/O ports available *Note: Fits standard ATX power supply with length no more than 140mm. |
| Dimensions | 19.00" x 3.50" x 15.00" |
| Teža pošiljke | 6.74 kg |
| Velikost pošiljke | 565 × 540 × 229 mm |
Vprašanja o tem izdelku
How much noise and heat does the single 80mm fan produce when the chassis runs continuously?
The chassis includes one 80mm fan; noise and thermal output depend on the components installed and the workload, so exact figures are not fixed.
Which power supply must I already own to fit this 2U rackmount case?
A standard ATX PS2 or PS3 power supply no longer than 140mm is required; longer units will not fit.
Will my existing 3.5" SAS or SATA drives work in the three hot-swap bays without adapters?
Yes, the bays accept 3.5" SAS I/II and SATA I/II/III drives directly, so older drives of those types install natively.
