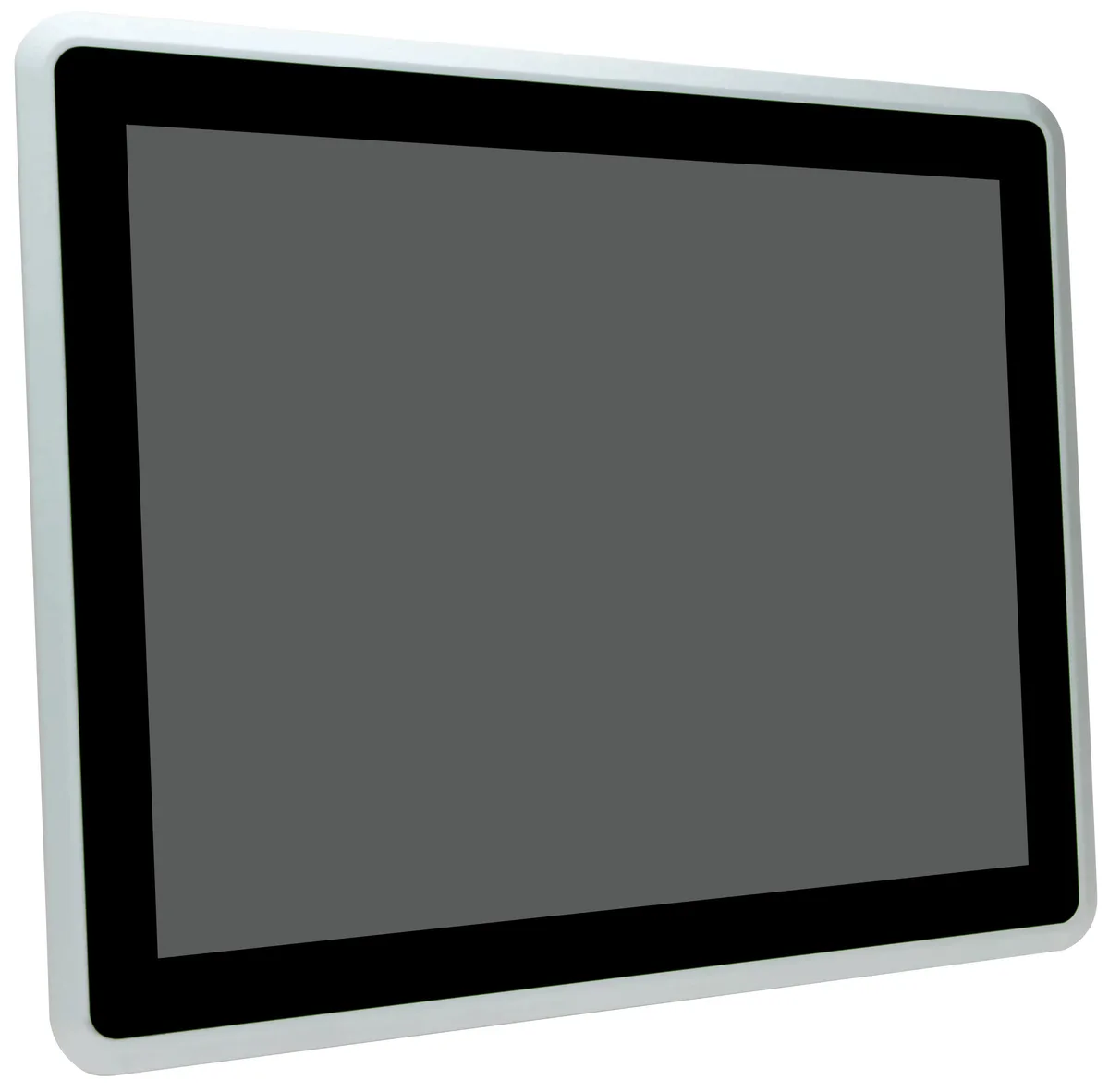

Gray aluminum 15-inch all-in-one panel PC with resistive touchscreen and IP65 front seal

partaker

partaker A27 15" IP65 All-in-One PC i3-5005U 8GB 256GB

SKU CH-SBKJ-JAY5N

A 15-inch fanless all-in-one with an IP65 front panel, resistive touchscreen, dual Gigabit LAN and Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A27 15" Resistive I3 5005U 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Intel Core i3-5005U dual-core processor handles industrial workloads
  • 8 GB DDR3 memory and 256 GB storage support daily operations
  • Dual Gigabit LAN plus four USB ports connect factory equipment

15-inch IP65 industrial panel PC

The Partaker A27 is a fanless all-in-one computer built around a 15-inch TFT LCD with 1024×768 resolution and a resistive touchscreen. An Intel Core i3-5005U dual-core processor running at 2.00 GHz drives the system, supported by 8 GB of DDR3 memory and a 256 GB mSATA SSD. Windows 10 Pro comes pre-installed on the aluminium alloy chassis.

Industrial integrators and harsh environments

This unit suits automation engineers, kiosk builders and machine operators who need a sealed front panel rated IP65 for dust and water resistance. The fanless design and -20 to +60 °C operating range make it viable for factories, outdoor cabinets or mobile equipment. Buyers who require a capacitive multi-touch surface or a wider 9–36 V DC input range should verify those options before ordering.

Dual Gigabit Ethernet and legacy I/O

Connectivity hinges on two Realtek Gigabit LAN ports plus dual RS232/485 serial ports, four USB ports, HDMI output and audio. Two mini-PCIe slots allow optional Wi-Fi, Bluetooth or 3G/4G expansion, while the watchdog timer and power-on scheduling support unattended operation.

Poudarki

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Intel Core i3-5005U dual-core processor handles industrial workloads
  • 8 GB DDR3 memory and 256 GB storage support daily operations
  • Dual Gigabit LAN plus four USB ports connect factory equipment

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size15"
Screen TypeMulti-Touch Screen

Druge različice tega modela

še 5 v isti paleti

Ista družina, različen pomnilnik, hladilnik ali takt — primerjajte, preden se odločite.

Vprašanja o tem izdelku

What mounting cutout dimensions must my panel already have for the IP65 front seal to fit?

The embedded mount requires a 355×279 mm panel cutout for the IP65 front seal to sit flush and maintain its dustproof and waterproof rating.

Can the dual COM ports talk to my existing RS-232 and RS-485 devices without extra adapters?

Both COM ports are configurable as RS232 or RS485, so they can connect directly to legacy serial equipment using the appropriate wiring.

How do I confirm the dual-display output is active after connecting an external monitor to the HDMI port?

With Windows 10 Pro installed, the HDMI port provides synchronous or asynchronous dual display output; verify in Display Settings that both the internal 1024×768 panel and the external monitor are detected and configured.
