15.6 inch industrial all-in-one PC with IP65 front panel and touchscreen

partaker

partaker A6 all-in-one PC 15.6" i5-1135G7 32GB 512GB

SKU CH-SMNK-J9Y0Y

Industrial 15.6" all-in-one with IP65 front panel, 10-point touch, i5-1135G7, 32GB DDR4 and 512GB SSD for 24/7 operation

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity32GB DDR4
  • SSD512GB

Memory Capacity 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD None

Prečrtane različice obstajajo, vendar tukaj niso na voljo.

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touch enables precise multi-finger control
  • Intel Core i5-1135G7 delivers up to 4.20 GHz for 24/7 workloads
  • Fanless aluminium alloy chassis runs silently with passive cooling
  • 32 GB DDR4-3200 and 512 GB SSD provide responsive multitasking

Industrial all-in-one for harsh environments

The Partaker A6 integrates a 15.6-inch TFT LED panel with IP65 front protection into a fanless aluminum chassis rated for 0 to 50°C operation. Its 10-point projected capacitive touch screen survives 200 million touches and meets CCC safety standards. The compact unit suits factory automation, kiosk and outdoor cabinet deployments where dust, moisture and vibration rule out conventional PCs.

Intel Core i5-1135G7 with 32 GB DDR4

An 11th-generation quad-core processor reaches 4.20 GHz and drives Intel Iris Xe graphics across a 1920 x 1080 display. Dual-channel DDR4-3200 memory is installed at 32 GB and expandable to 64 GB. Storage uses a 512 GB M.2 SSD with an additional 2.5-inch SATA bay available for extra capacity.

Versatile I/O and mounting flexibility

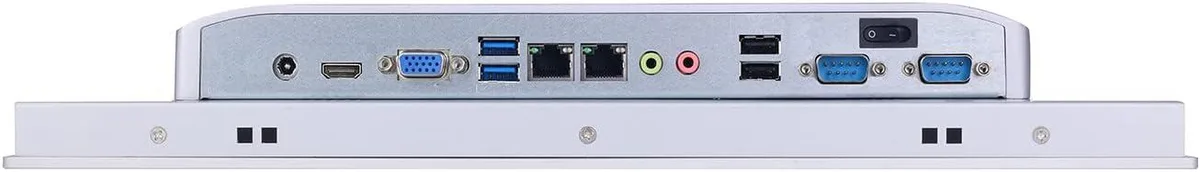

Two LAN ports, two COM ports, HDMI, VGA, two USB 3.0 and two USB 2.0 connectors cover legacy and modern peripherals. M.2 Key E and Key B slots accept WiFi 6 or 5G modules with a SIM slot. The package includes embedded mounting buckles for panel, wall, desktop or cantilever installation and a 12 V DC power adapter supporting 100-240 V AC input.

Poudarki

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touch enables precise multi-finger control
  • Intel Core i5-1135G7 delivers up to 4.20 GHz for 24/7 workloads
  • Fanless aluminium alloy chassis runs silently with passive cooling
  • 32 GB DDR4-3200 and 512 GB SSD provide responsive multitasking

Specifikacije

ModelA6-PA-156TPC-CE6A(I5B)-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
SSD512GB
HDDNo
Screen Size15.6"
TouchscreenYes

Druge različice tega modela

še 5 v isti paleti

Ista družina, različen pomnilnik, hladilnik ali takt — primerjajte, preden se odločite.

Vprašanja o tem izdelku

How does the 4.20 GHz boost clock on the i5-1135G7 behave during continuous 7×24 industrial workloads?

The fanless aluminium chassis dissipates heat passively, so sustained turbo depends on the 0 – 50 °C ambient range; expect clocks to settle below the peak once the thermal mass saturates.

What real-world throughput does the single PCIe ×1 M.2 slot cap the 512 GB SSD at?

The PCIe ×1 link limits sequential transfers to roughly 1 GB/s, well below the drive’s potential but sufficient for typical HMI and data-logging tasks.

Which mounting method matches the 386.5 × 236 mm cut-out and the supplied embedded buckle kits?

The panel is designed for flush embedded installation; the buckles lock into the 386.5 × 236 mm opening, while VESA or cantilever brackets would need separate hardware.
