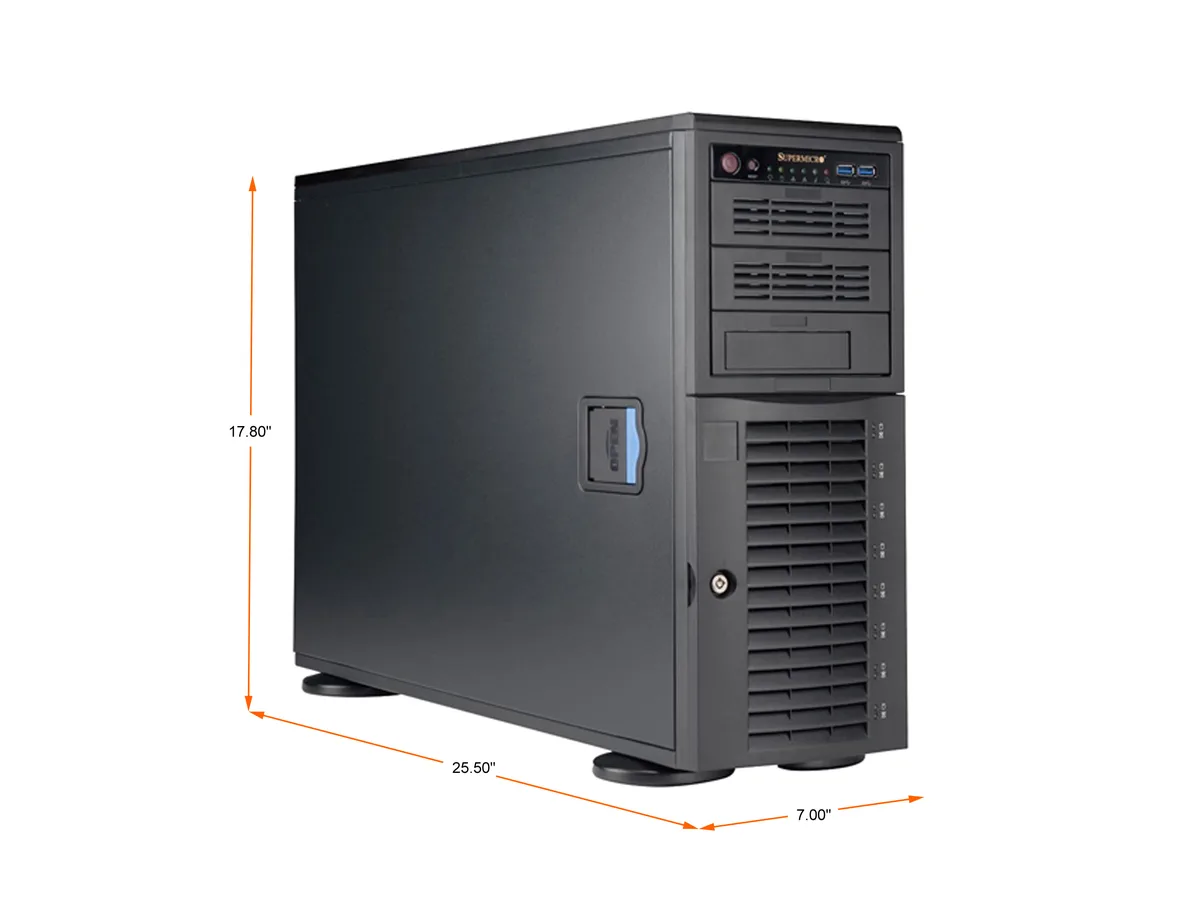

Black 4U tower server chassis with eight front hot-swap drive bays

Supermicro

Supermicro CSE-743AC-1K26B-SQ 4U tower server chassis 1200W 8 hot-swap bays

SKU CH-8THR-BKNRB MPN CSE-743AC-1K26B-SQ

A 4U tower chassis that holds eight hot-swap 3.5" or 2.5" SAS drives and includes a 1200 W power supply

  • Chassis TypeTower
  • Form Factor4U
  • ColorBlack
  • Motherboard Compatibility12" x 13" E-ATX and ATX
  • Power Supply1200W
  • Hot-Swap Drive Bays8 x 3.5"/2.5" hot-swap SAS drive bay with SES3
  • 1200 W platinum power supply runs high-load components
  • Eight hot-swap bays accept 3.5" and 2.5" SAS drives
  • Whisper-quiet cooling stays below 27 dB
  • Seven full-height slots fit long expansion cards
  • Front USB 3.0 ports give quick external access

4U Tower Chassis with 1200W Power

The Supermicro CSE-743AC-1K26B-SQ is a 4U tower server chassis finished in black. It supports motherboards up to 12" x 13" E-ATX and standard ATX sizes. The unit ships with a 1200W power supply installed. Two 80mm middle fans and one 92mm rear fan provide PWM cooling.

Suited for High-Density Storage Builds

This chassis fits administrators who need eight hot-swap drive bays for 3.5" or 2.5" SAS drives with SES3 monitoring. The seven full-height expansion slots accommodate multiple add-in cards. Buyers requiring more than eight drive bays or a rackmount form factor should consider a different platform.

Eight Hot-Swap SAS Bays Decide Fit

The defining specification is the eight 3.5"/2.5" hot-swap SAS drive bays backed by a SAS3 backplane. If the deployment demands eight removable SAS drives in a tower enclosure, this chassis matches that requirement. If the drive count or interface differs, another chassis is needed.

Poudarki

  • 1200 W platinum power supply runs high-load components
  • Eight hot-swap bays accept 3.5" and 2.5" SAS drives
  • Whisper-quiet cooling stays below 27 dB
  • Seven full-height slots fit long expansion cards
  • Front USB 3.0 ports give quick external access

Specifikacije

BrandSUPERMICRO
SeriesSuperChassis
ModelCSE-743AC-1K26B-SQ
Chassis TypeTower
Form Factor4U
ColorBlack
Motherboard Compatibility12" x 13" E-ATX and ATX
Power Supply1200W
Hot-Swap Drive Bays8 x 3.5"/2.5" hot-swap SAS drive bay with SES3
Expansion Slots7 full-height & full-length expansion slot(s)
80mm Fans2 x 80mm PWM Chassis Middle Fans
90mm Fans1 x 92mm PWM Rear fan(s)
Features8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
Whisper-Quiet (<27dB)
Front HDD Door Lock & Side Panel Intrusion Switch
Front I/O Ports: 2x USB 3.0
2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 12" x 13"/ATX/Micro ATX
1200W Platinum Level Certified High-Efficiency Power Supply
3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Dimensions17.80" x 7.00" x 25.50"
Weight53.00 lbs.
Teža pošiljke26.54 kg
Velikost pošiljke780 × 706 × 315 mm

Vprašanja o tem izdelku

What motherboard sizes fit inside the 17.80" x 7.00" x 25.50" chassis?

The chassis accepts 12" x 13" E-ATX and standard ATX boards.

How are the 8 hot-swap drive bays installed, and what step is often missed?

Slide each carrier into the front cage until the latch clicks; the SES3 backplane connection seats automatically, but forgetting to lock the front HDD door leaves the drives unsecured.

Which cooling parts will need replacement first in the whisper-quiet <27dB design?

The two 80mm PWM middle fans and the single 92mm PWM rear fan are the only moving cooling components; plan to swap them when bearing noise rises.
