Supermicro
Supermicro CSE-512L-200B 1U server chassis 200W 2×3.5″
A 1U rackmount chassis holding two 3.5″ drives with a 200W supply and one expansion slot
- Chassis TypeRackmount
- Form Factor1U
- ColorBlack
- Motherboard Compatibility12" x 9.6" ATX (max.)
- Power Supply200W
- Internal 3.5" Drive Bays2
- 1U rackmount depth of 14 inches fits tight cabinets
- 200 W power supply included for single-CPU builds
- Two fixed 3.5″ bays hold SAS or enterprise SATA drives
- 10 cm PWM blower at 3800 RPM cools dense layouts
- One full-height half-length slot via riser card adds I/O
Compact 1U rackmount server chassis

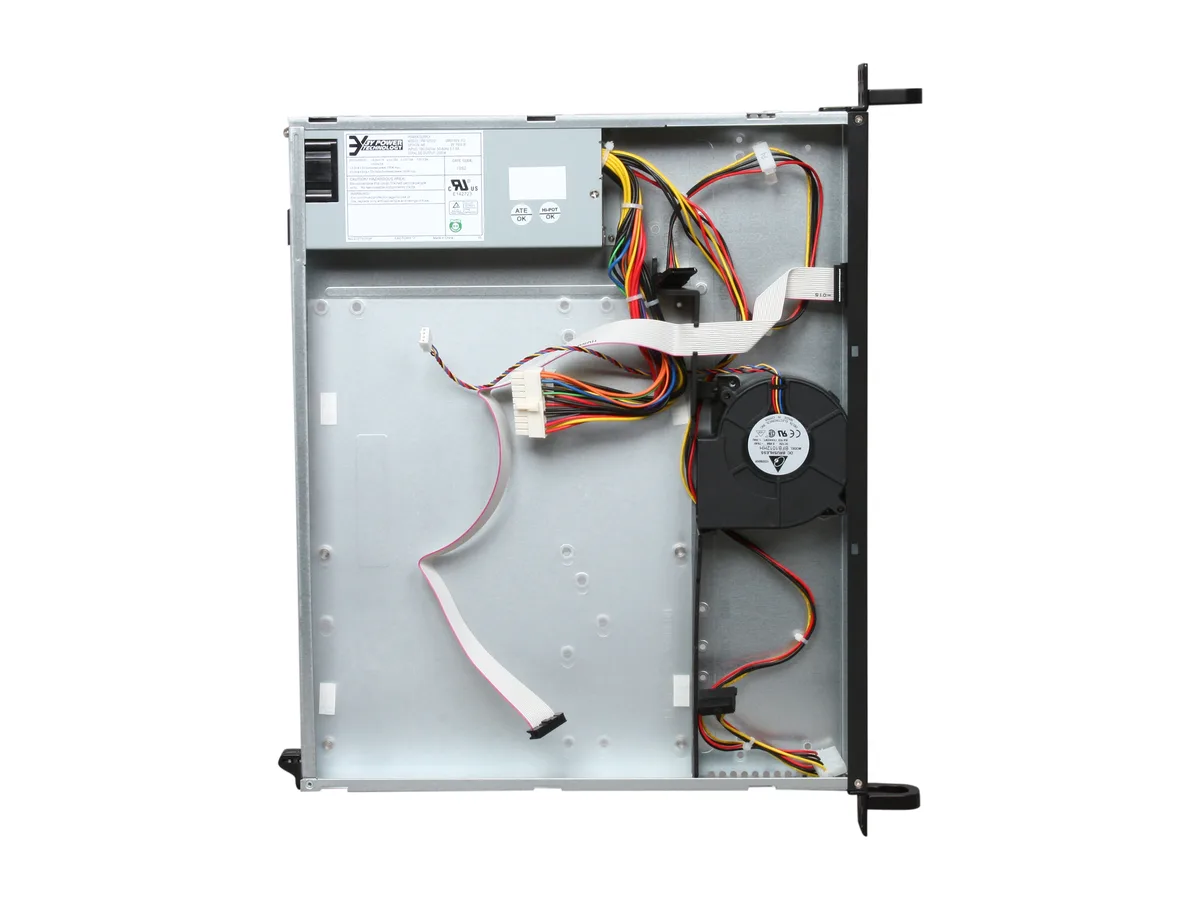

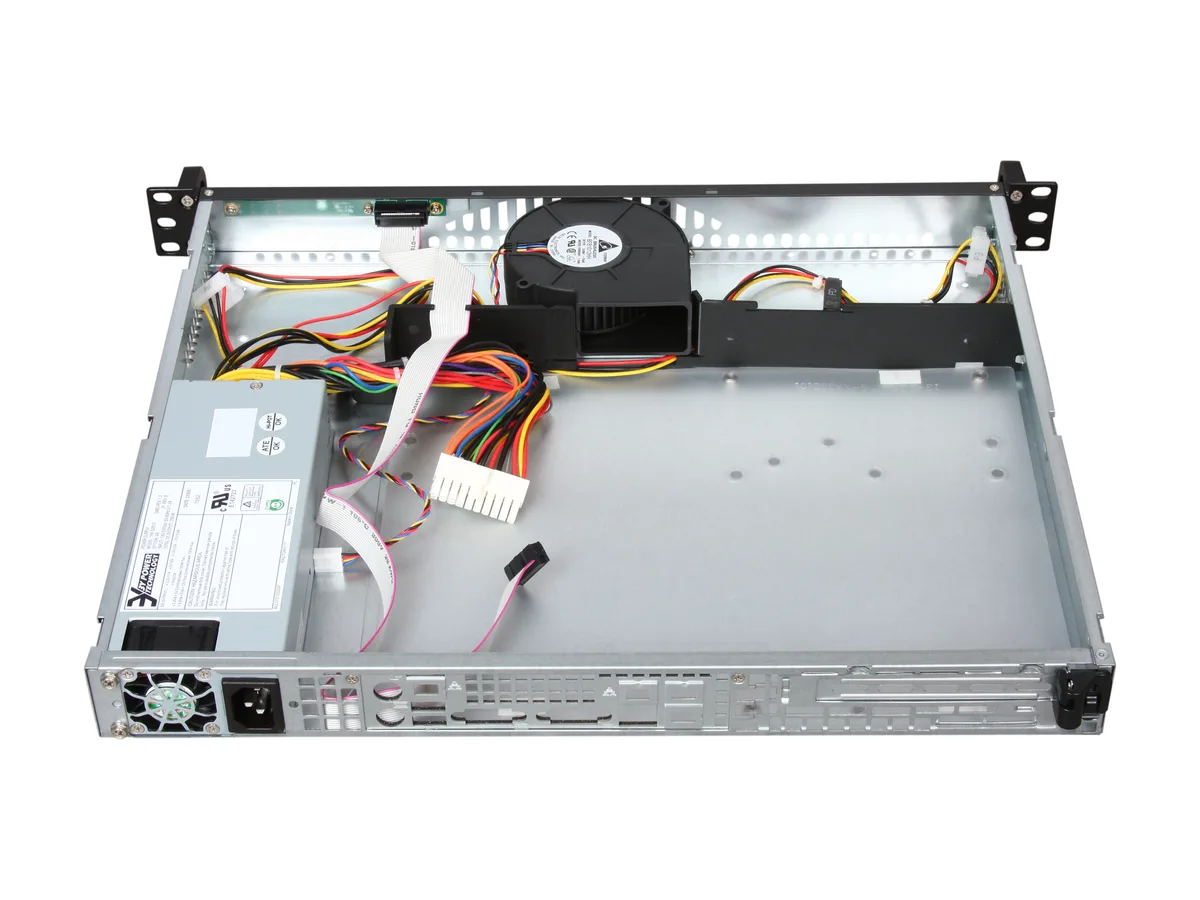

The Supermicro CSE-512L-200B is a 1U rackmount server chassis that fits a maximum 12" x 9.6" ATX motherboard and supports a single Intel or AMD processor. It ships with a 200W multi-output power supply and a 10cm PWM blower fan rated at 3,800 RPM. The 14" depth makes it suitable for shorter rack cabinets.
Two fixed 3.5″ drive bays and one expansion slot

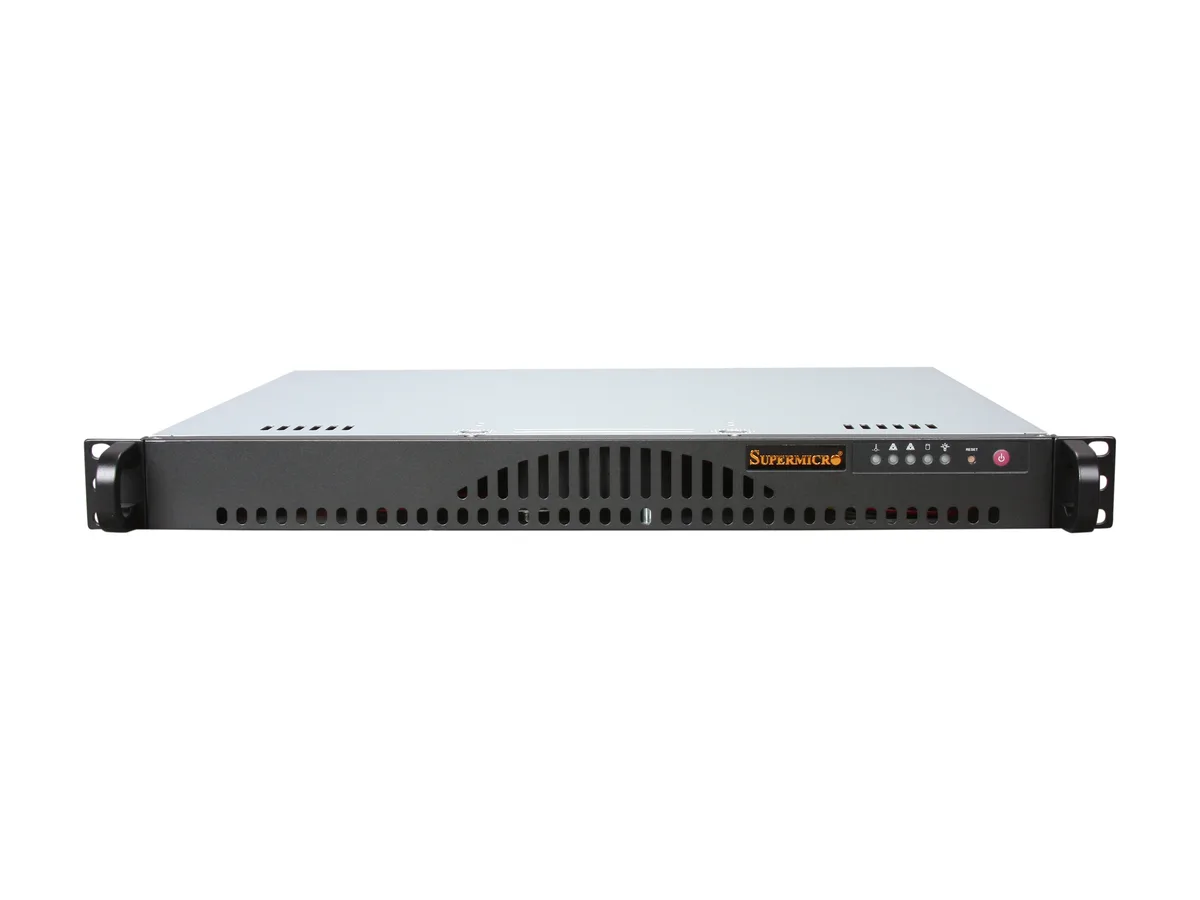

The chassis provides two internal 3.5" drive bays fixed in place, with the manufacturer recommending SAS or enterprise SATA hard drives only. A single full-height half-length expansion slot is available but requires a separate riser card to install an add-in card. Front-panel controls include power and reset buttons plus five status LEDs.
Verify motherboard size
Confirm your motherboard does not exceed the 12" x 9.6" ATX maximum, as larger boards will not fit the 1U form factor. Ensure you have SAS or enterprise SATA hard drives, since consumer SATA drives are not recommended for this chassis. Check that a compatible riser card is sourced if you plan to use the expansion slot.
Öne çıkanlar
- 1U rackmount depth of 14 inches fits tight cabinets
- 200 W power supply included for single-CPU builds
- Two fixed 3.5″ bays hold SAS or enterprise SATA drives
- 10 cm PWM blower at 3800 RPM cools dense layouts
- One full-height half-length slot via riser card adds I/O
Teknik özellikler
| Brand | SUPERMICRO |
|---|---|
| Series | SuperChassis |
| Model | CSE-512L-200B |
| Chassis Type | Rackmount |
| Form Factor | 1U |
| Color | Black |
| Motherboard Compatibility | 12" x 9.6" ATX (max.) |
| Power Supply | 200W |
| Internal 3.5" Drive Bays | 2 |

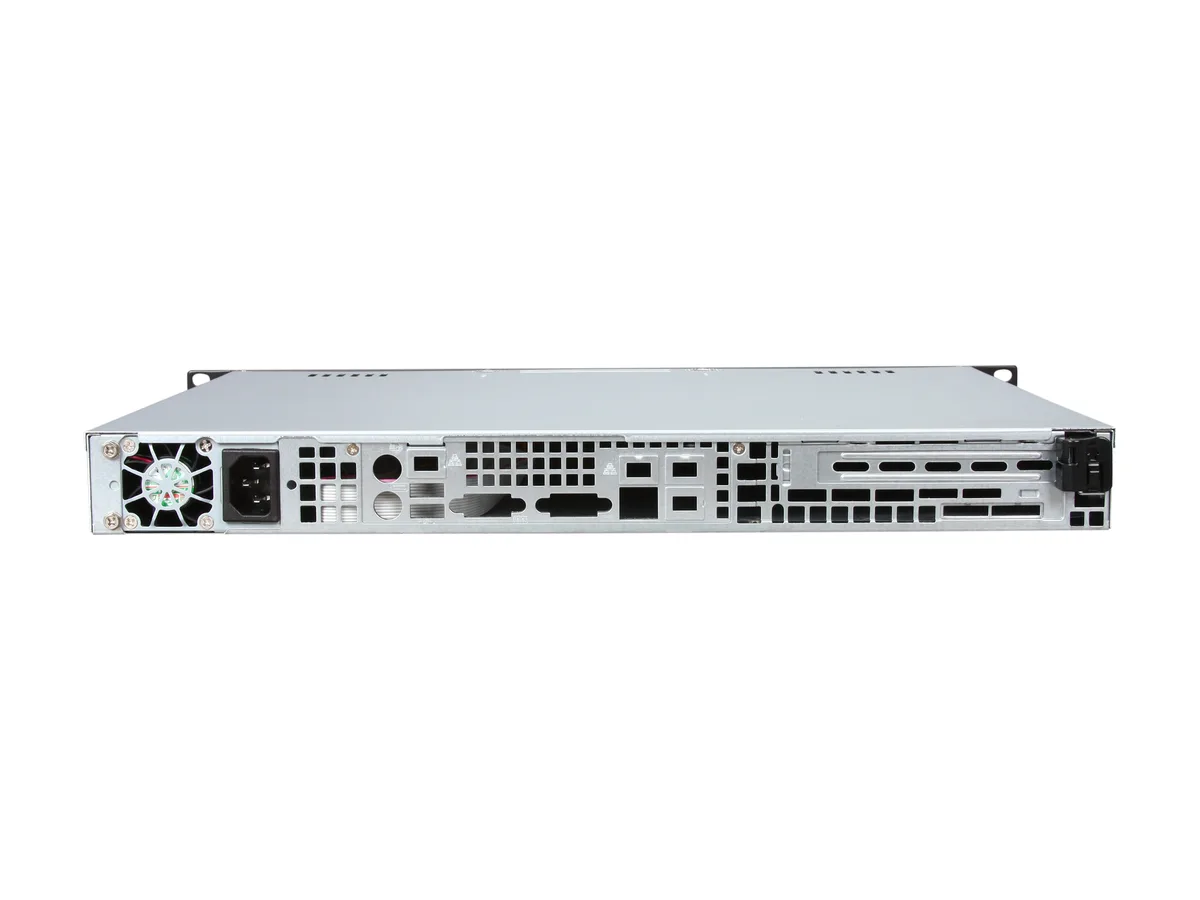

| Expansion Slots | 1 x full-height half-length expansion slot (Riser Card Required) |
| Features | Processor Support: Supports single Intel / AMD processor. SAS or enterprise SATA HDD only recommended Buttons: Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED 1 x 10cm 3,800 RPM PWM blower fan 200W Low Noise AC-DC power supply with PFC |
| Dimensions | 16.8" x 14.0" x 1.7" |
| Package Contents | DN7134 |
| Kargo ağırlığı | 5.92 kg |
| Koli boyutu | 566 × 516 × 170 mm |
Bu ürünle ilgili sorular
When will the 10 cm 3800 RPM PWM blower fan need replacement?
The 10 cm 3800 RPM PWM blower fan is the only active cooling component; plan to replace it when bearing noise increases or airflow drops below what the chassis requires.
Which limit appears first during sustained loads — the 35 °C operating temperature ceiling or the 200 W power supply capacity?
The 200 W multi-output supply will reach its rated output before the 35 °C ambient limit becomes the constraining factor.
How loud and hot does the chassis get when the 10 cm blower runs continuously at 3800 RPM?
The single 10 cm 3800 RPM PWM blower moves enough air for the 200 W supply and two 3.5″ drives, but sustained operation at full speed produces noticeable airflow noise and exhaust heat within the 5 °C–35 °C operating range.
