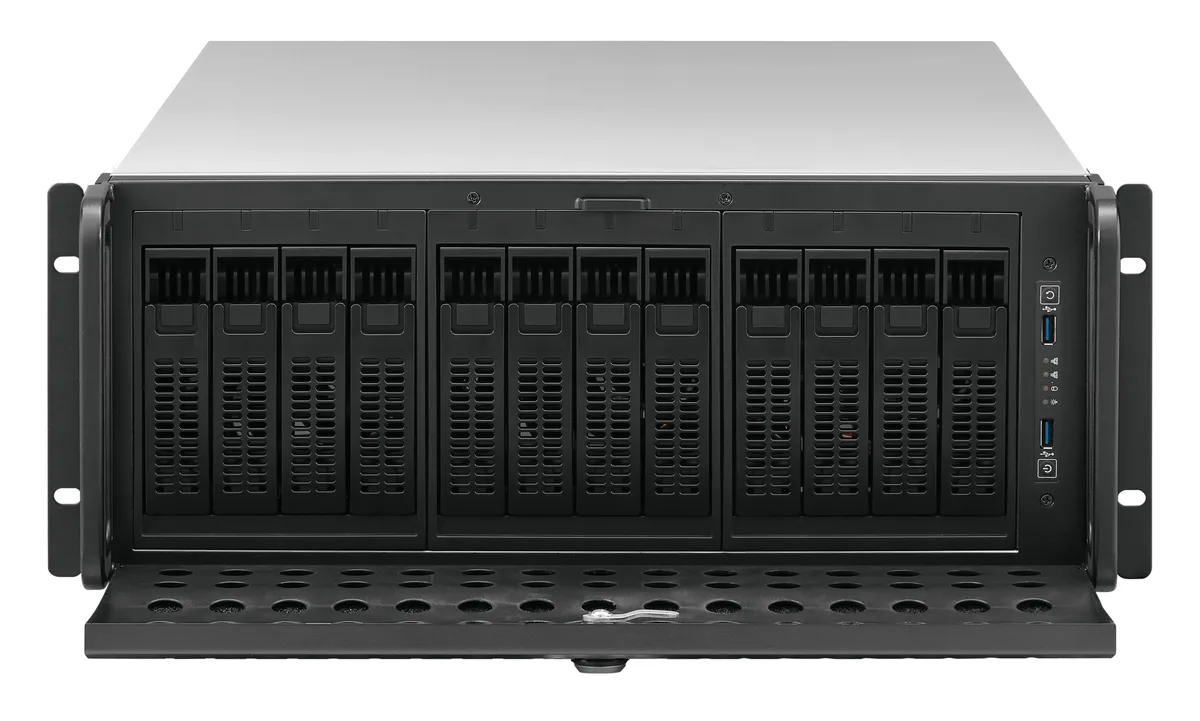

Black 4U rackmount server chassis with twelve front hot-swap drive bays, three 120 mm front fans, two 80 mm rear fans

Rosewill

Rosewill RSV-L4412U 4U server chassis 12 hot-swap 3.5" 2.5" SATA SAS E-ATX 5 fans

SKU CH-S1GQ-3ZSAQ MPN RSV-L4412U

A 4U rackmount chassis holding twelve hot-swap 3.5" or 2.5" SATA and SAS drives with five pre-installed fans, E-ATX support and seven expansion slots

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialSGCC
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Power SupplySupports PS2 power supply

Chassis Type 4U · 12 Hot Swap Bays · 2 Fans

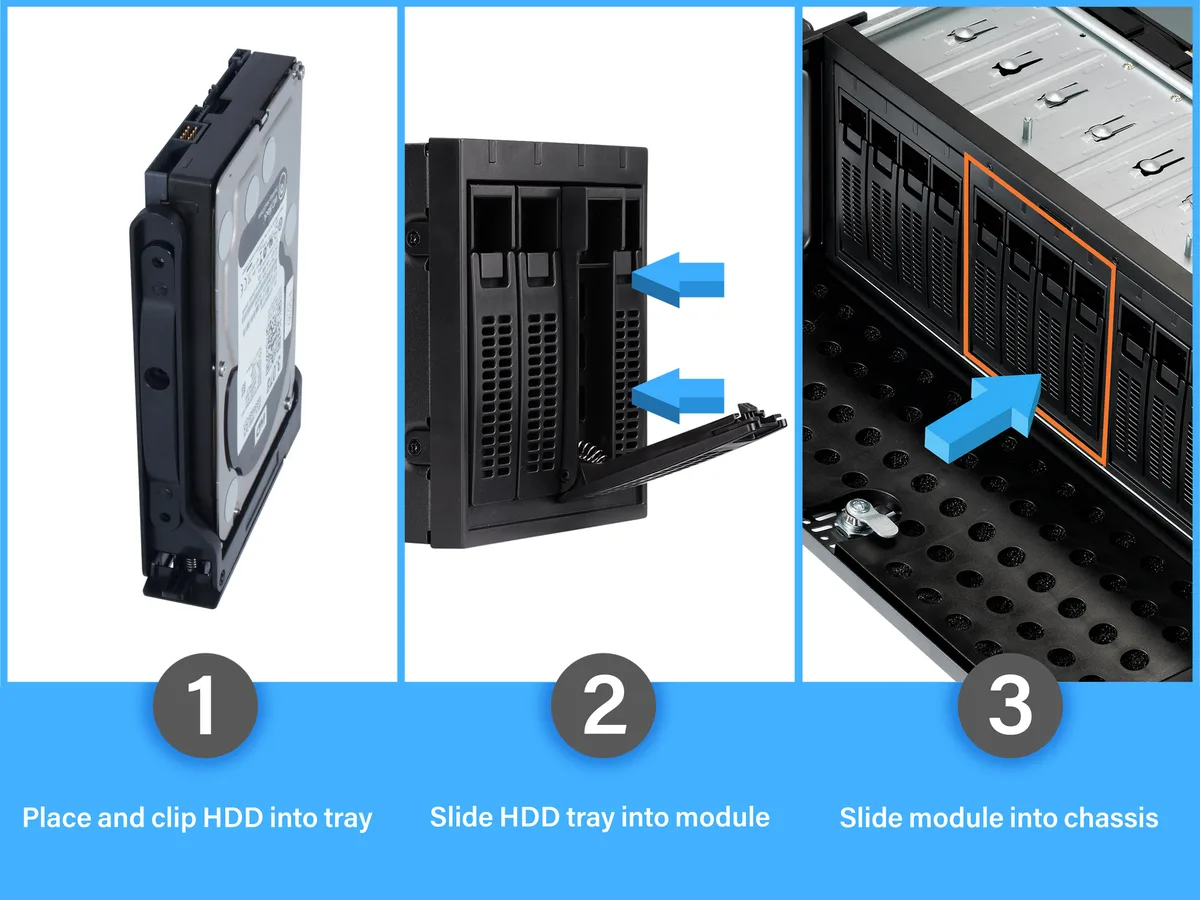

  • 12 hot-swap 3.5" and 2.5" SATA SAS bays for massive storage density
  • 5 pre-installed fans (3×120mm front, 2×80mm rear) deliver efficient airflow
  • E-ATX motherboard support enables high-end server builds
  • 7 expansion slots provide room for add-in cards

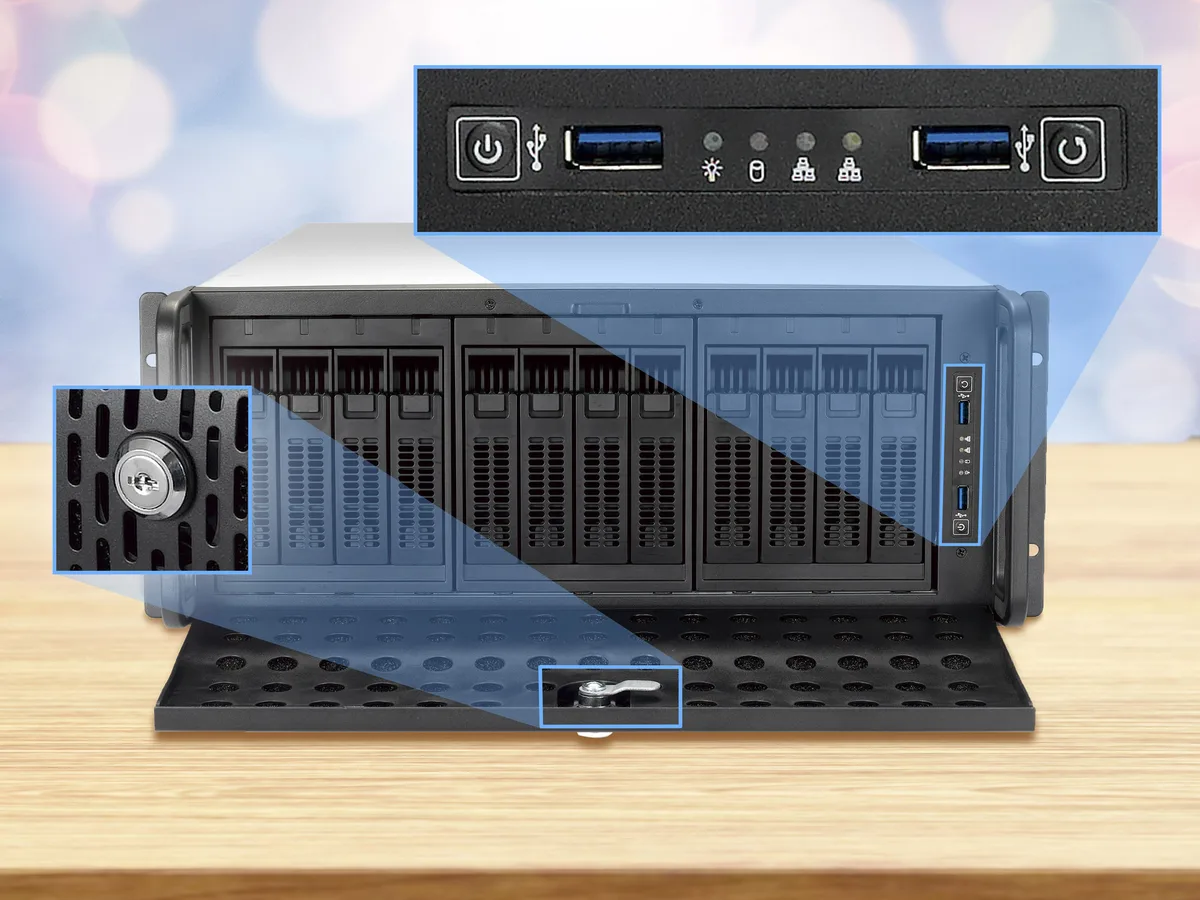

  • Front-panel lock plus USB 3.0 ports and LED status indicators add security and convenience

4U Rackmount Chassis with 12 Hot-Swap Bays

The Rosewill RSV-L4412U is a 4U rackmount server chassis built for environments that need dense, accessible storage. It accepts up to twelve 3.5" or 2.5" SATA and SAS drives in hot-swap trays and fits ATX, E-ATX, Micro ATX, or Mini ITX motherboards. Seven full-height expansion slots and two front USB 3.0 ports complete the core feature set.

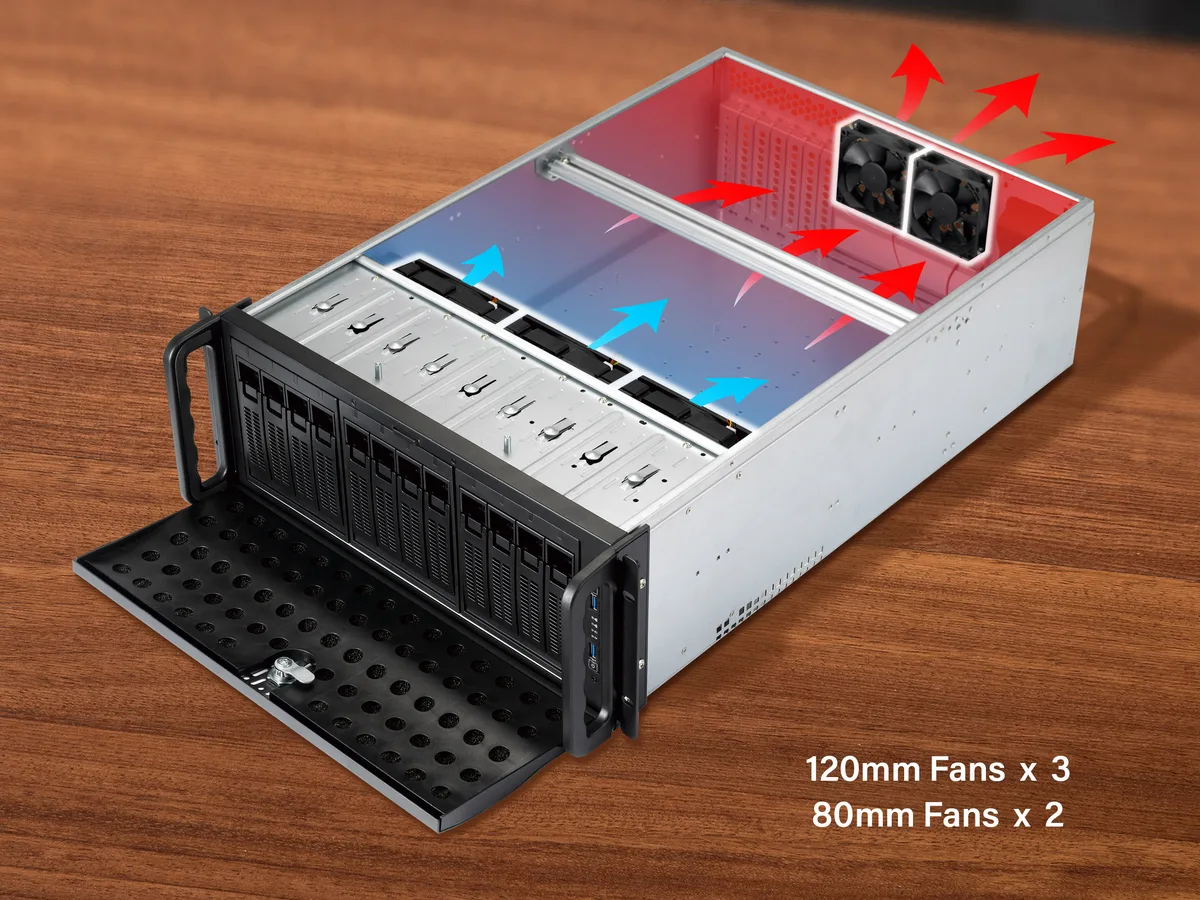

Sustained Cooling with Five Pre-Installed Fans

Three 120 mm front fans and two 80 mm rear fans ship installed, delivering continuous airflow across the drive cage and motherboard. The layout keeps inlet and exhaust paths separate so temperatures remain stable during long rebuilds, backups, or compute jobs. Fan noise stays low enough for office-adjacent racks while still moving enough air for fully populated bays.

Clearances and Power Supply Fit

Maximum CPU cooler height is 117 mm with the GPU holder fitted or 152 mm without it. Graphics cards up to 320 mm fit with the middle fan in place, or 400 mm if that fan is removed. The PS2 power supply bay accepts units up to 220 mm deep. Verify your cooler, card, and PSU dimensions against these limits before ordering.

Акценти

  • 12 hot-swap 3.5" and 2.5" SATA SAS bays for massive storage density
  • 5 pre-installed fans (3×120mm front, 2×80mm rear) deliver efficient airflow
  • E-ATX motherboard support enables high-end server builds
  • 7 expansion slots provide room for add-in cards
  • Front-panel lock plus USB 3.0 ports and LED status indicators add security and convenience

Спецификации

BrandRosewill
ModelRSV-L4412U
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialSGCC
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Power SupplySupports PS2 power supply
Hot-Swap Drive Bays12
Expansion Slots7
Max CPU Cooler HeightWith GPU holder: 117 mm / Without GPU holder: 152 mm
Max GPU LengthWith Middle Fan 320 mm/ Without Middle Fan: 400 mm
Max PSU Length220 mm PS2 (ATX)
Front Ports2 x USB 3.0
Fan OptionsMiddle - 3 x 120mm fans (3 x 120mm fan included)
Rear - 2 x 80 mm fans (2 x 80 mm fan included)
FeaturesThe Rosewill RSV-L4412U 4U rackmount server case features 12 3.5" SATA I, SATA II, SATA III, and SASA devices and supports hot swap to boost your home server or server room. 5 pre-installed cooling fans help prevent your server chassis from overheating. 7 PCI expansion slots allow you to customize your case as you wish. The front panel of the rackmount case includes two USB 3.0 ports. Built in lock adds layer of security to your case and server room.
Dimensions430mm x 178 mm x 650mm (16.93" x 7.01" x 25.59")
Weight14.80kg (32.63 lbs)
Package ContentsRSV-L4412 Hot-Swap Server Case
Keys
Screws
12 x SATA III 23.6" cables
Other Accessories
Тегло на пратката17.96 kg
Размери на опаковката790 × 582 × 279 mm

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How loud are the three 120 mm front fans and two 80 mm rear fans when the chassis runs continuously?

Five fans are pre-installed — three 120 mm units at the front and two 80 mm units at the rear — providing continuous airflow across the drive bays and motherboard without published decibel figures.

Which motherboards and power supplies fit the RSV-L4412U without extra parts?

The case accepts ATX, E-ATX, Micro-ATX and Mini-ITX boards, and supports a standard PS2 power supply up to 220 mm long; both are required for the system to operate.

Will a full-height PCIe card up to 400 mm long fit alongside the middle fan bank?

With the middle 120 mm fans installed the maximum graphics card length is 320 mm; removing those fans extends clearance to 400 mm while retaining the front and rear fans.
