Black and silver 4U rackmount server chassis with front USB 3.0 ports and LED indicators

Rosewill

Rosewill RSV-R4000U-SK 4U server chassis

SKU CH-RR94-1H5XG MPN RSV-R4000U-SK

A 4U rackmount server chassis holding eight 3.5" drives and three 5.25" bays with ATX and CEB motherboard support, seven expansion slots, front-panel LEDs, two USB 3.0 ports.

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX
  • Power SupplySupports ATX power supply

Chassis Type 4U · 8 Bays · 4 Fans (2x Sudokoo Fans)

  • Spacious 4U rackmount holds 8 internal 3.5" drives and 3 external 5.25" bays

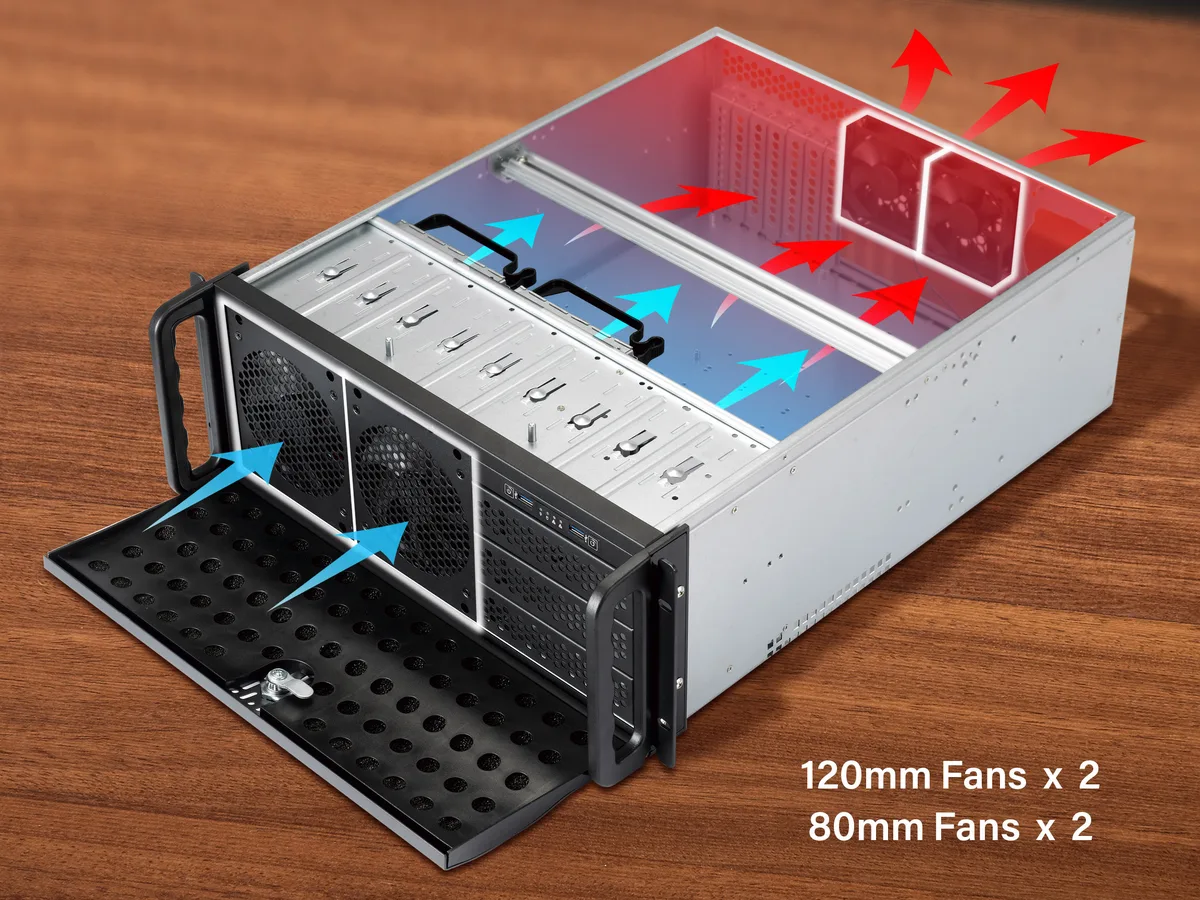

  • Four pre-installed fans (2 × 120 mm front PWM, 2 × 80 mm rear) move 500–3000 RPM airflow
  • ATX and CEB motherboard support with 7 full-height expansion slots for add-in cards
  • Front-panel LEDs show power, HDD and dual-LAN status at a glance
  • Two USB 3.0 ports and built-in front lock add convenience and physical security

4U rackmount server chassis

The Rosewill RSV-R4000U-SK is a 4U rackmount server chassis built for ATX, Micro ATX, Mini ITX and CEB motherboards. Its SGCC construction provides a black and silver enclosure suited to dedicated server builds that need high internal drive density.

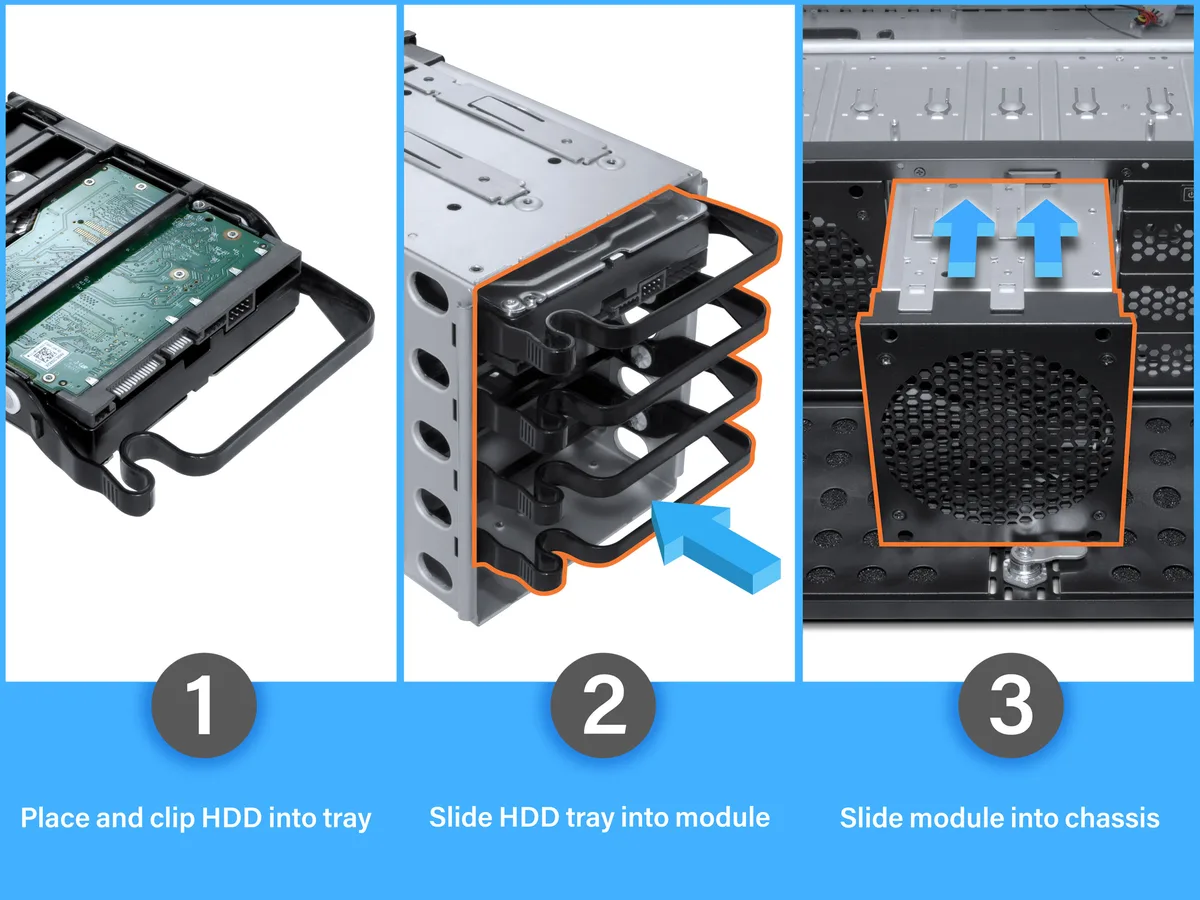

Eight 3.5-inch bays and three 5.25-inch bays

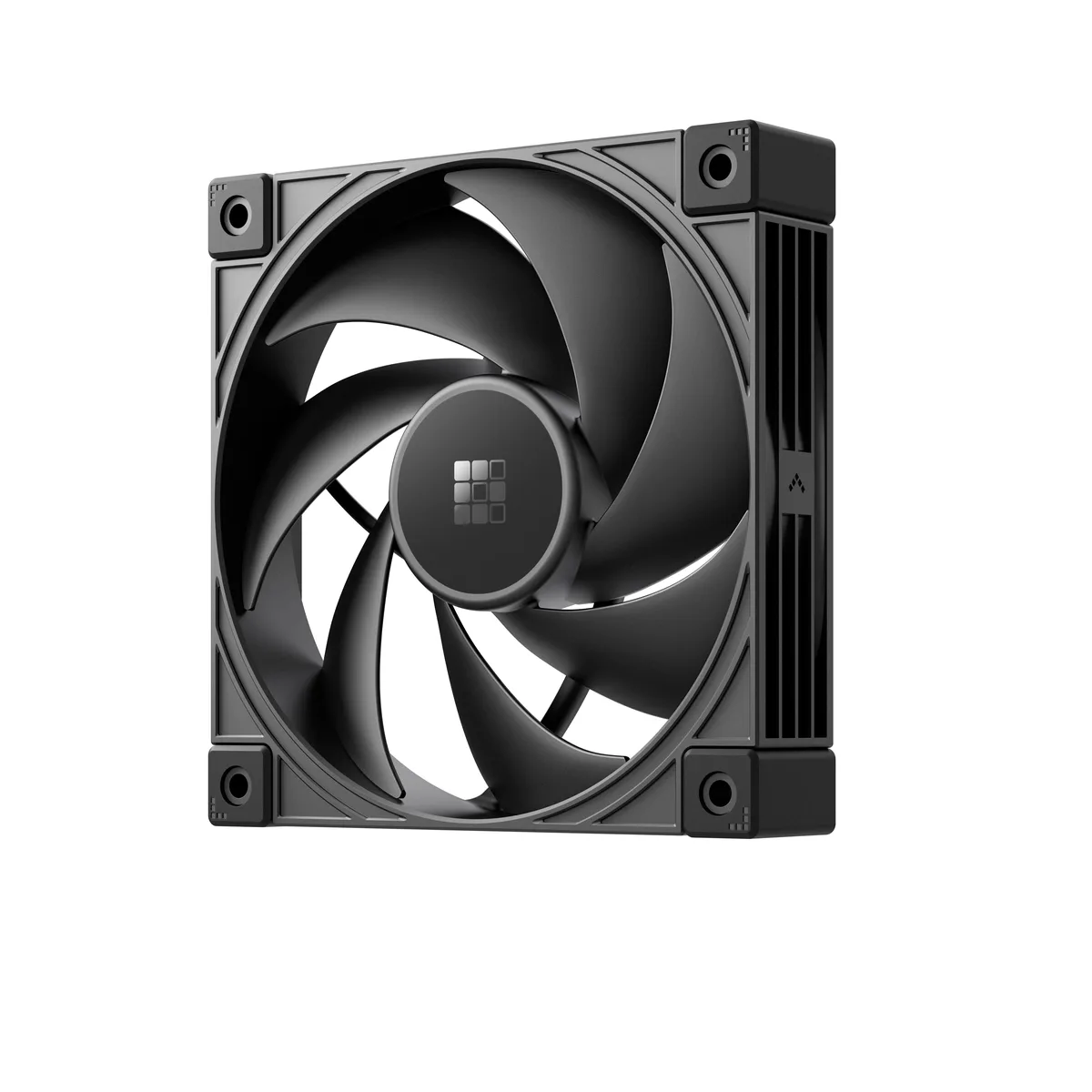

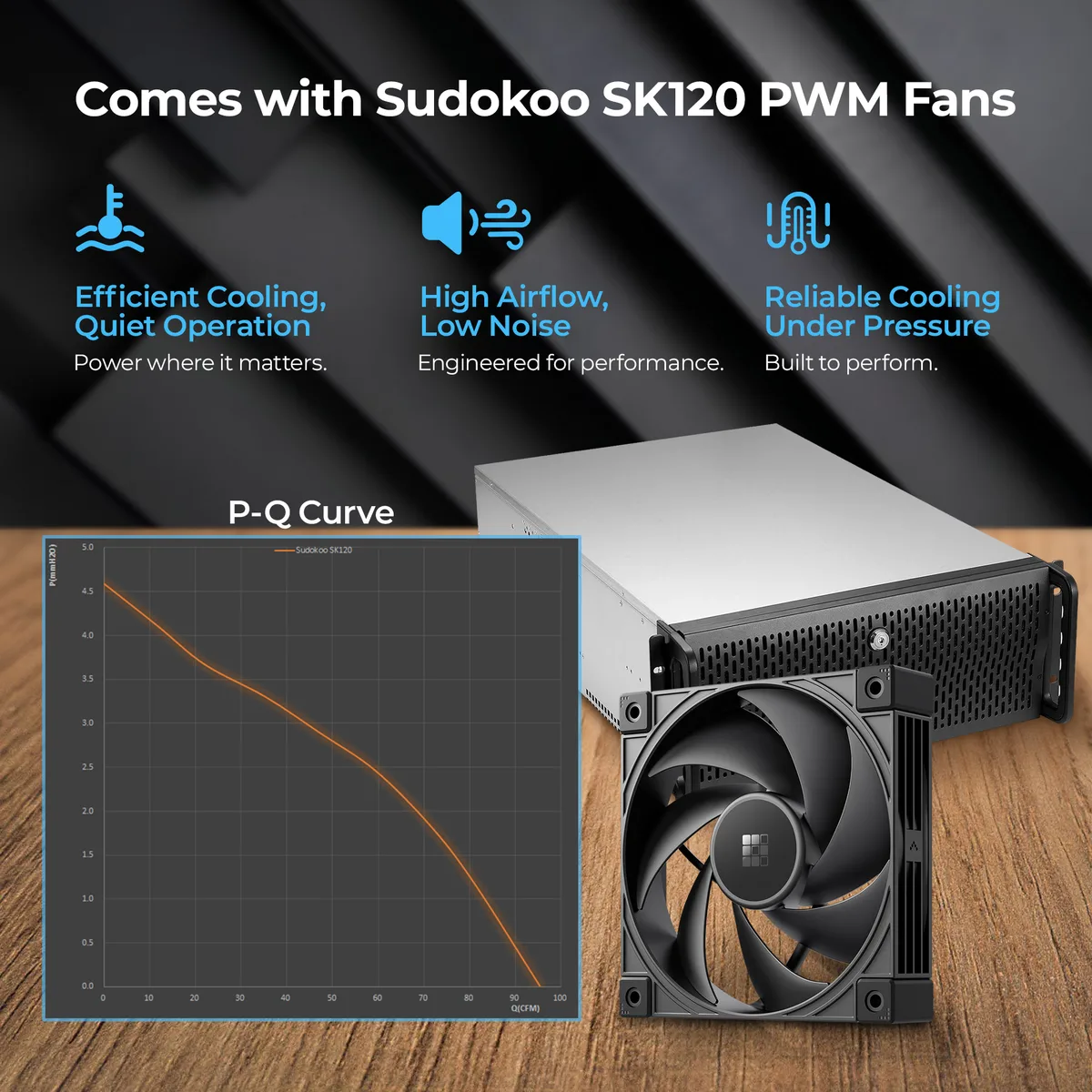

Eight internal 3.5-inch drive bays and three external 5.25-inch device slots give ample room for storage arrays and optical or backup units. Two Sudokoo SK120 PWM fans run at 500 to 3000 RPM alongside two rear 80mm fans, all pre-installed for immediate airflow.

Locking front panel with USB 3.0

A built-in front panel lock secures drive access while LEDs show power, drive activity and two LAN links. Front-mounted USB 3.0 ports allow quick peripheral connection. The chassis accepts CPU coolers up to 117mm with the GPU holder fitted or 152mm without, graphics cards to 270mm and ATX power supplies to 220mm depth.

Акценти

  • Spacious 4U rackmount holds 8 internal 3.5" drives and 3 external 5.25" bays
  • Four pre-installed fans (2 × 120 mm front PWM, 2 × 80 mm rear) move 500–3000 RPM airflow
  • ATX and CEB motherboard support with 7 full-height expansion slots for add-in cards
  • Front-panel LEDs show power, HDD and dual-LAN status at a glance
  • Two USB 3.0 ports and built-in front lock add convenience and physical security

Спецификации

BrandRosewill
ModelRSV-R4000U-SK
Chassis TypeRackmount
Form Factor4U
ColorBlack / Silver
Case MaterialSGCC
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Power SupplySupports ATX power supply
LED IndicatorsPower status, HDD activity, 2 x Lan activity
External 5.25" Drive Bays3
Internal 3.5" Drive Bays8
Expansion Slots7
Max CPU Cooler HeightWith GPU holder: 117mm / Without GPU holder: 152mm
Max GPU Length270 mm
Max PSU Length220 mm
Front Ports2 x USB 3.0
Fan OptionsFront: 2 x 120mm fans (2 x 120mm PWM fan included)
Rear: 2 x 80mm fans (2 x 80mm fan included)
Тегло на пратката15.06 kg
Размери на опаковката681 × 579 × 279 mm

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Will the Sudokoo SK120 PWM fans or the rear 80mm fans need replacement under sustained load?

The chassis includes two front 120mm Sudokoo SK120 PWM fans rated 500-3000 RPM and two rear 80mm fans. All four are pre-installed; fan lifespan depends on operating conditions and dust environment.

Which thermal limit is reached first when all eight 3.5" bays and seven expansion slots are populated?

Maximum CPU cooler height is 117mm with the GPU holder installed or 152mm without it, and GPU length is capped at 270mm. These clearances become the constraining factor before airflow does.

How much noise and heat should I expect from the four included fans running continuously?

Front Sudokoo SK120 PWM fans spin at 500-3000 RPM ±10%; rear 80mm fans run at fixed speed. Acoustic output varies with PWM duty cycle and system load, but the design targets quiet cooling.
