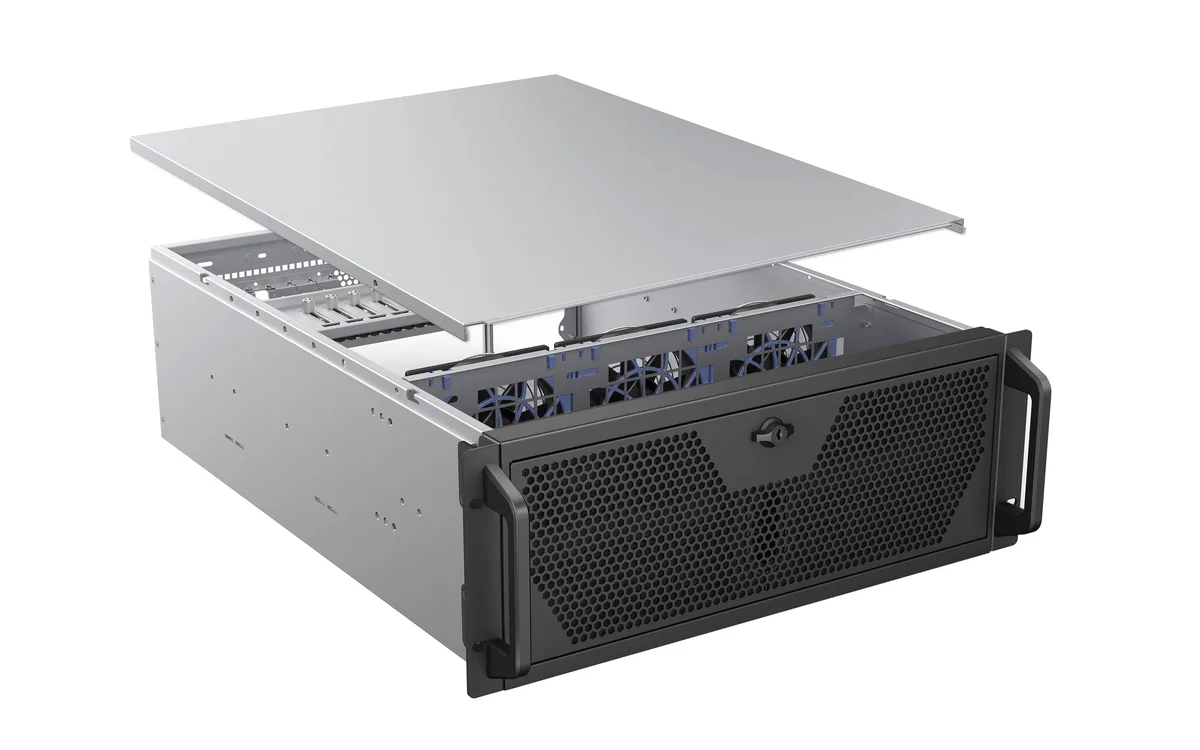

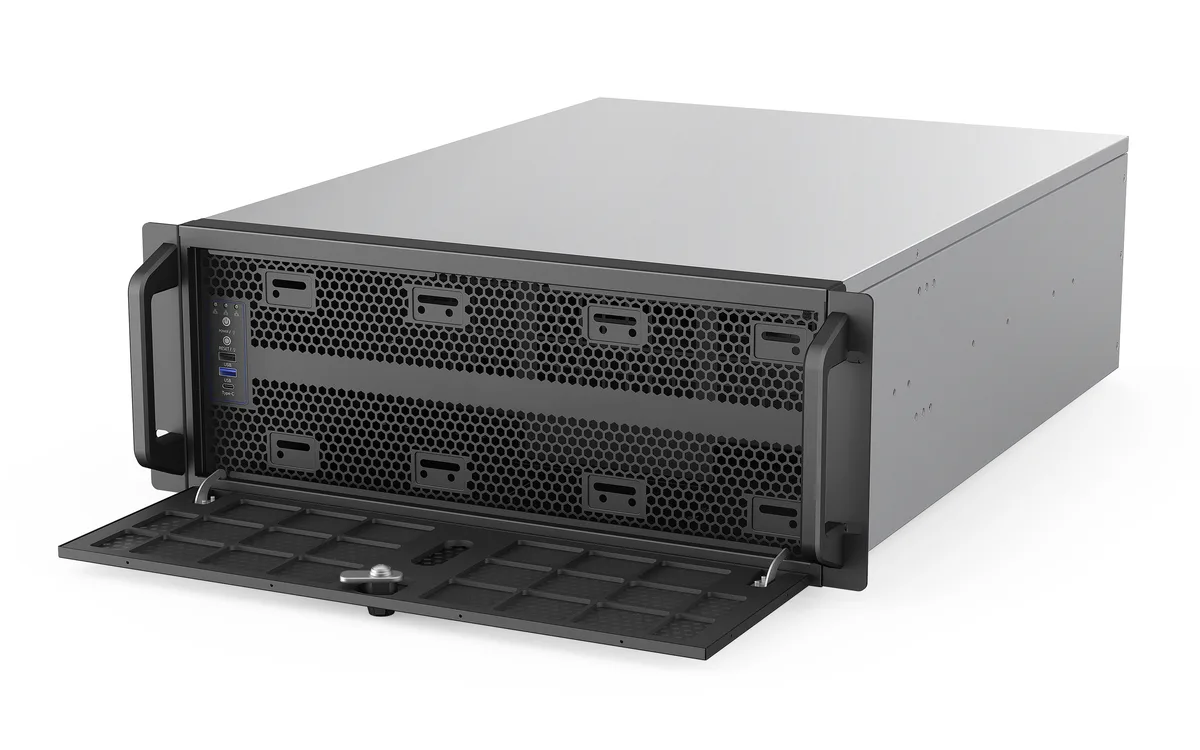

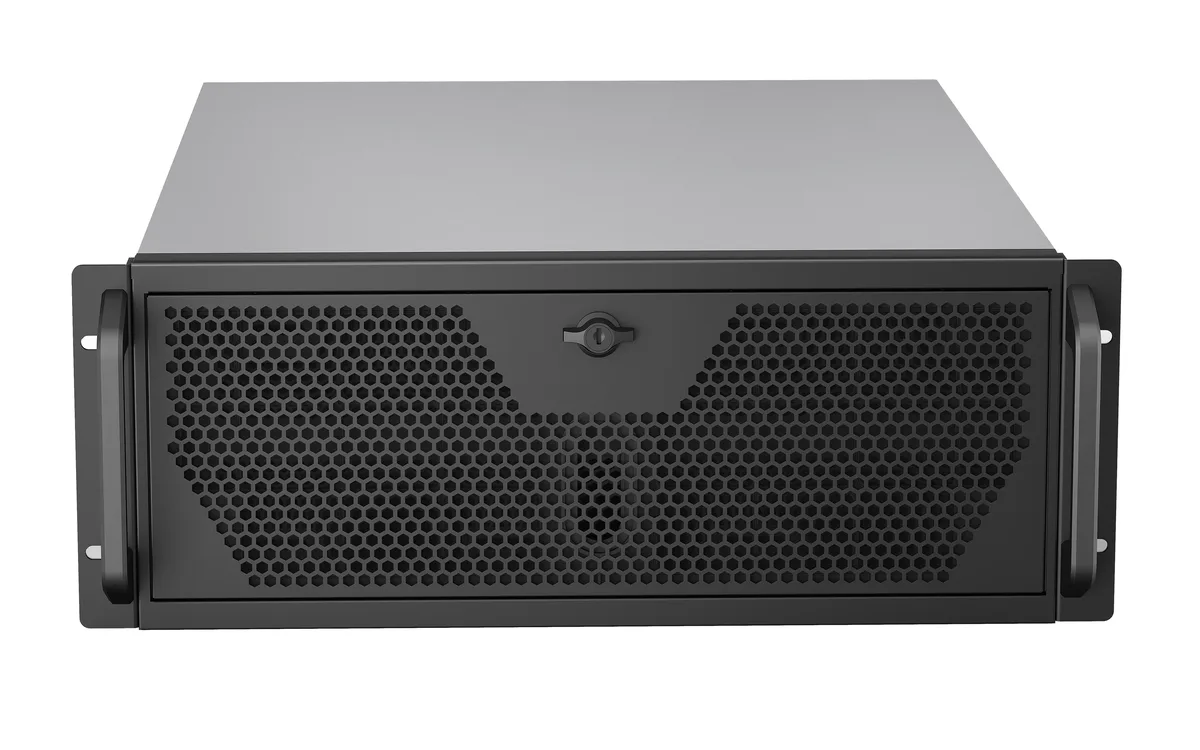

Black and silver 4U rackmount server chassis with front USB ports and three 120mm fans

Rosewill

Rosewill RSV-L4620 4U Rackmount Server Chassis

SKU CH-B1YN-BHB9V MPN RSV-L4620

A 4U rackmount chassis that fits E-ATX boards, holds two 3.5" and three 2.5" drives, includes three 120mm PWM fans and supports a 360mm AIO cooler

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard Compatibility12" x 13" E-ATX, 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and b
  • Power SupplySupports ATX power supply

Chassis Type 4U · 12 Bays · 3 Fans

  • Supports E-ATX motherboards for multi-GPU and high-performance server builds
  • Fits a 360 mm AIO radiator for sustained CPU cooling under heavy loads
  • Three pre-installed 120 mm PWM fans deliver quiet, controlled airflow across components
  • Front USB 3.2 Type-C port provides 10 Gbps transfers for large data moves
  • Holds two 3.5" and three 2.5" drives with eight expansion slots for flexible storage and add-in cards

Target Builds

The Rosewill RSV-L4620 is a 4U rackmount server chassis built for E-ATX, ATX and Mini-ATX motherboards. It suits multi-GPU rendering, AI training or virtualisation hosts that need up to eight expansion slots and room for long graphics cards. Buyers who need more than two 3.5-inch drive bays or a deeper power-supply cavity should look elsewhere.

Compatibility Check

Verify your motherboard measures no larger than 12 by 13 inches and that your CPU cooler stays within 158 millimetres. Graphics cards must not exceed 330 millimetres and the ATX power supply must fit within 180 millimetres. Front-panel connectivity requires a USB 3.0 header and a USB 3.2 Type-C header on the board.

Build & Connectors

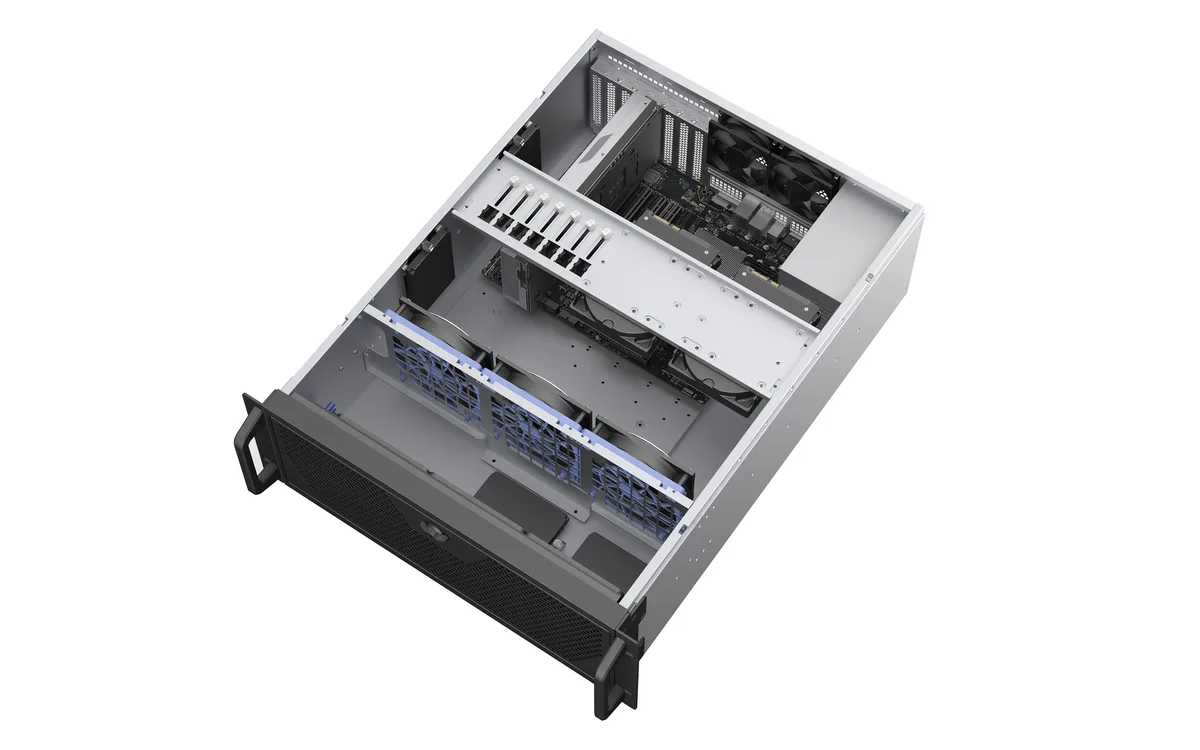

The SGCC steel frame ships in black and silver with three pre-installed 120-millimetre PWM fans in the middle chamber. A 360-millimetre AIO radiator mounts directly for liquid cooling. Front I/O provides one USB 3.0 port and one USB 3.2 Type-C port for 10 gigabit-per-second transfers. LEDs show power, drive activity and dual LAN status.

Акценти

  • Supports E-ATX motherboards for multi-GPU and high-performance server builds
  • Fits a 360 mm AIO radiator for sustained CPU cooling under heavy loads
  • Three pre-installed 120 mm PWM fans deliver quiet, controlled airflow across components
  • Front USB 3.2 Type-C port provides 10 Gbps transfers for large data moves
  • Holds two 3.5" and three 2.5" drives with eight expansion slots for flexible storage and add-in cards

Спецификации

BrandRosewill
ModelRSV-L4620
Chassis TypeRackmount
Form Factor4U
ColorBlack / Silver
Case MaterialSGCC
Motherboard Compatibility12" x 13" E-ATX, 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power SupplySupports ATX power supply
LED IndicatorsPower status, HDD activity, 2 x Lan activity
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays3
Expansion Slots8
Max CPU Cooler Height158 mm
Max GPU Length330 mm
Max PSU Length180 mm
Front Ports1 x USB 3.0 / 1 x USB 3.2 Type C
Fan OptionsMiddle: 3 x 120mm fans (3 x 120mm PWM fan included)
Тегло на пратката13.90 kg
Размери на опаковката727 × 570 × 275 mm

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Does the Rosewill RSV-L4620 come with the three 120 mm PWM fans already installed, and must I buy a power supply separately?

The chassis ships with three 120 mm PWM fans pre-installed in the middle section. An ATX power supply is supported but not included.

Which drive configuration does the RSV-L4620 allow — two 3.5" bays and three 2.5" bays, or a different mix?

It provides exactly two internal 3.5" drive bays and three internal 2.5" drive bays.

What does the 360 mm AIO support mean for CPU cooling inside this 4U rackmount case?

A 360 mm radiator can be mounted directly, enabling liquid cooling for high-heat CPUs without modification.
