Cudy GS1005P 5-port Gigabit PoE+ switch 60W

Five-port PoE+ switch for small networks

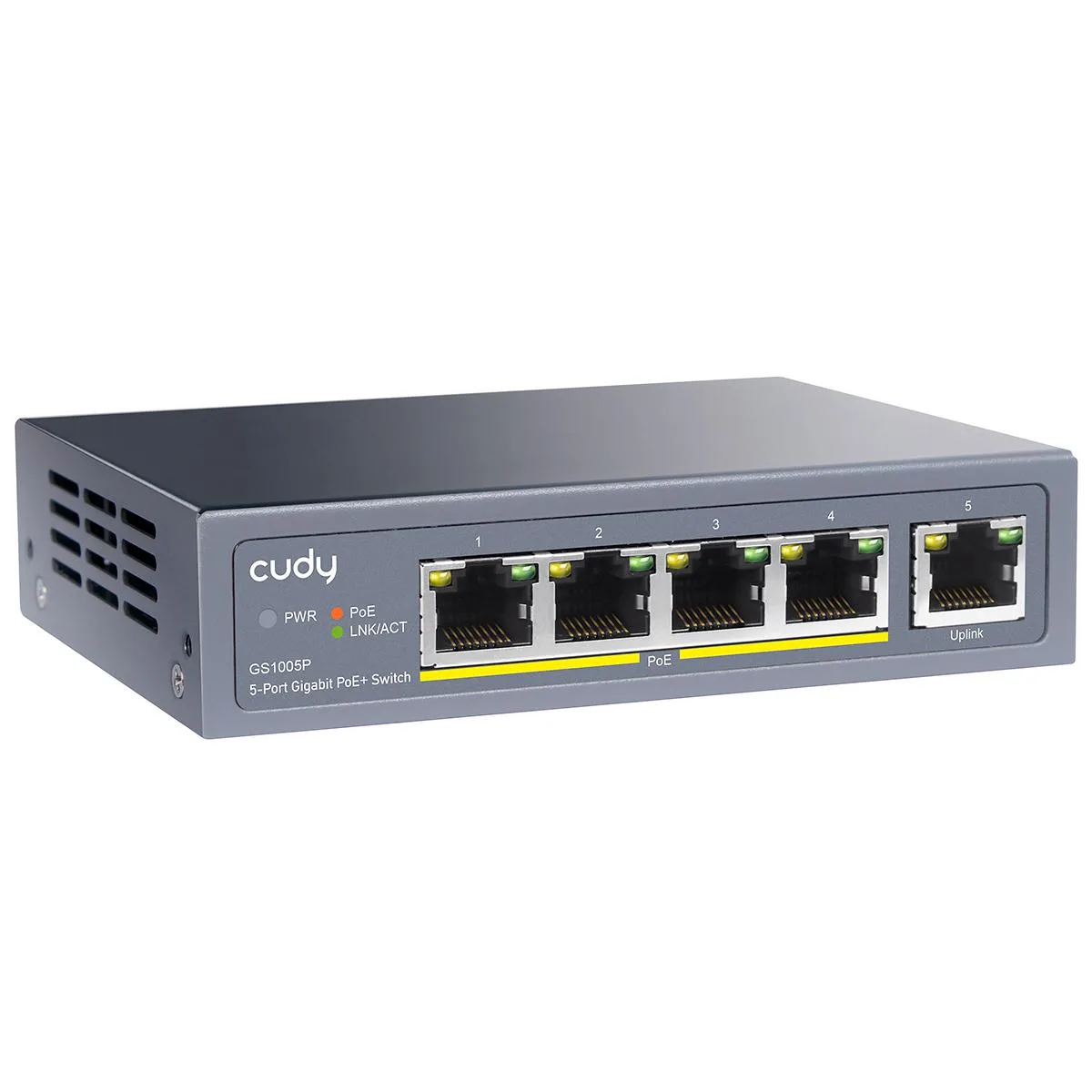

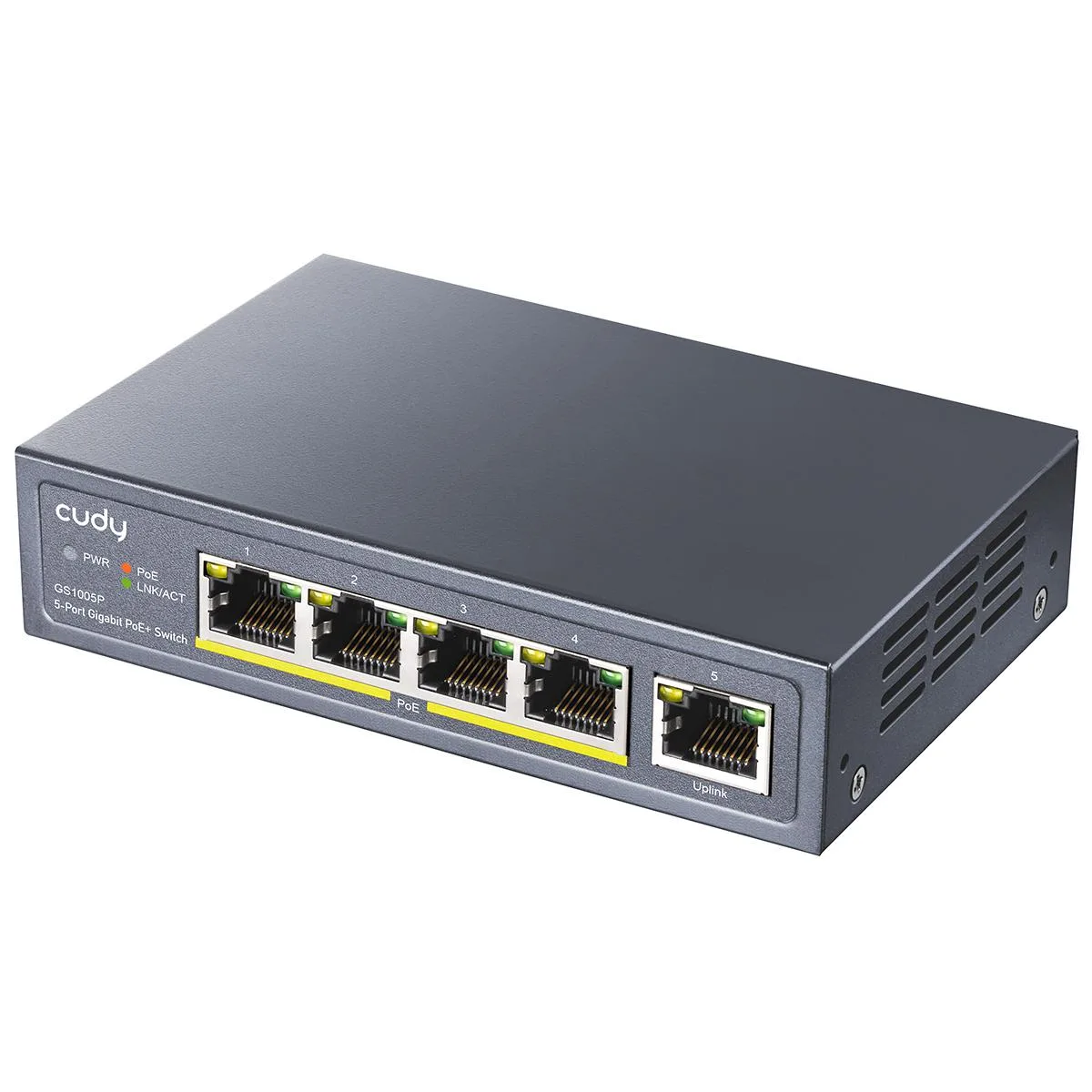

The Cudy GS1005P 2.0 is a desktop or wall-mountable smart switch that delivers power and data over four Gigabit RJ45 PoE+ ports. It targets installers who need to run access points, IP cameras or digital signage without separate power adapters. A single non-PoE uplink port connects the switch to the router or core network.

Plug-and-play integration with VLAN and Extend modes

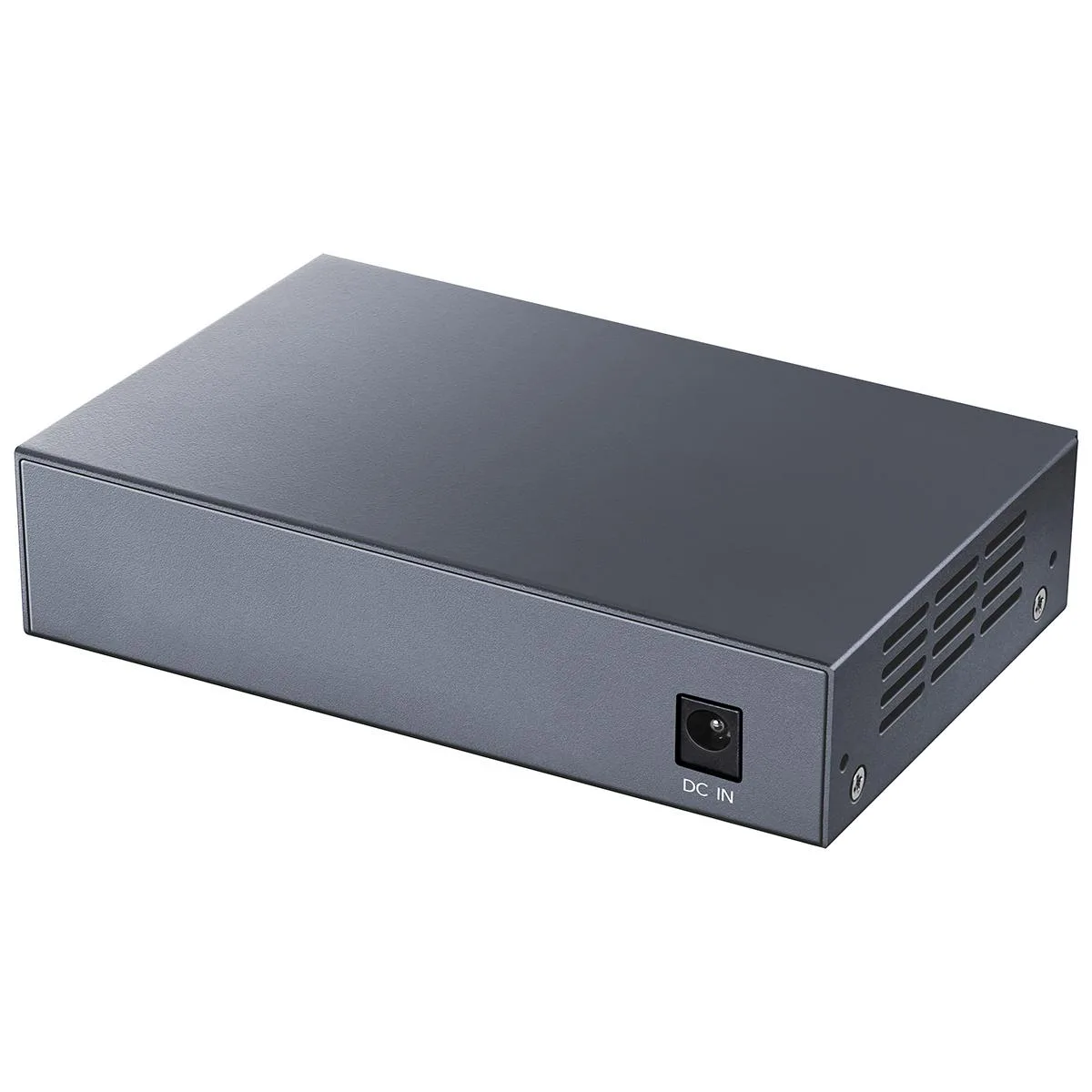

The unit draws its own power from an external supply and provides a 60 W total PoE budget across the four primary ports. Enable VLAN mode to isolate downlink ports so clients only talk to the uplink, or switch to Extend mode to reach devices up to 250 m away at 10 Mbps. No management software is required for basic operation.

30 W per port with 60 W total headroom

Each PoE+ port can supply up to 30 W, enough for most IEEE 802.3at devices, while the 60 W aggregate limit means four fully loaded ports will exceed the budget. The 0.375 MB packet buffer and 10 Gbps back-plane bandwidth handle burst traffic, but the switch lacks SNMP and offers only smart management features.
