Green PCIe card with three USB-C and two USB-A ports on a metal bracket

ESTONE

ESTONE PCIE22A3C3.2 USB 3.2 Gen 2 5-Port Card (3C/2A) 10Gbps

SKU CH-C5VA-ZKM33

Adds five USB 3.2 ports at 10 Gbps via a PCIe slot, three Type-C and two Type-A

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.2
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add five USB 3.2 ports with a single PCIe card
  • Reach 10 Gbps transfer rates for large-file workflows
  • Mix three USB-C and two USB-A connectors for current peripherals
  • Works in x1, x4, x8 or x16 slots on PCIe 2.0 or 3.0 boards
  • Driver-free on Windows 10/11 and Mac OS 10.8.2+

Five-port PCIe USB expansion

The ESTONE PCIE22A3C3.2 adds three USB-C and two USB-A ports through a single PCI Express slot, giving desktop builders more high-speed connections for drives, cameras and peripherals. It fits x1, x4, x8 or x16 sockets and works with Windows 7 through 11 plus macOS 10.8.2 and later. Driver installation is required on older Windows releases.

10 Gbps per-port bandwidth

Each port supports the USB 3.2 Gen 2 data rate of 10 Gbps, so the card can move large video or image files at the full interface speed when the attached device allows it. The total throughput is shared across all five ports, so simultaneous transfers divide the available bandwidth.

Sustained throughput under load

Because the card draws power only from the PCIe slot, continuous high-speed transfers across multiple ports stay within the slot’s delivery limits without extra cables. Actual sustained rates depend on the connected storage or device, but the controller maintains the link speed during extended copy operations rather than throttling after a short burst.

Fordele

  • Add five USB 3.2 ports with a single PCIe card
  • Reach 10 Gbps transfer rates for large-file workflows
  • Mix three USB-C and two USB-A connectors for current peripherals
  • Works in x1, x4, x8 or x16 slots on PCIe 2.0 or 3.0 boards
  • Driver-free on Windows 10/11 and Mac OS 10.8.2+

Specifikationer

BrandESTONE
SeriesPCIE22A3C3.2
ModelPCIE22A3C3.2
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.2
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.2 driver for your computer first.
Supports PCI Express 3.0 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (3X USB-C - 2X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesMaximum extension,Most USB interfaces: Update your Computer to 5 ports USB3.2--3 Port Type C and 2 ports Type A, You can connect keyboard, mouse, external hard drives, CD/DVD drives, webcams,usb printers, scanners, game controllers,USB VR, digital cameras, etc
Increasing Efficiency: Supports transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The actual transmission speed is limited by the setting of the device connected
Widely compatibility: USB 3.2 Backwards compatible with USB 3.0, 2.0 and 1.1
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Spørgsmål om denne vare

What does the 10 Gbps figure mean when the card is installed in a real system?

The card supports up to 10 Gbps per port, but the actual transfer speed is limited by the connected device and the PCIe lane width used.

Which PCIe interface standard does the card use and what does that cap in practice?

It complies with PCIe 3.0 and 2.0 and fits x1, x4, x8 or x16 slots; bandwidth is limited by the slot generation and lane count.

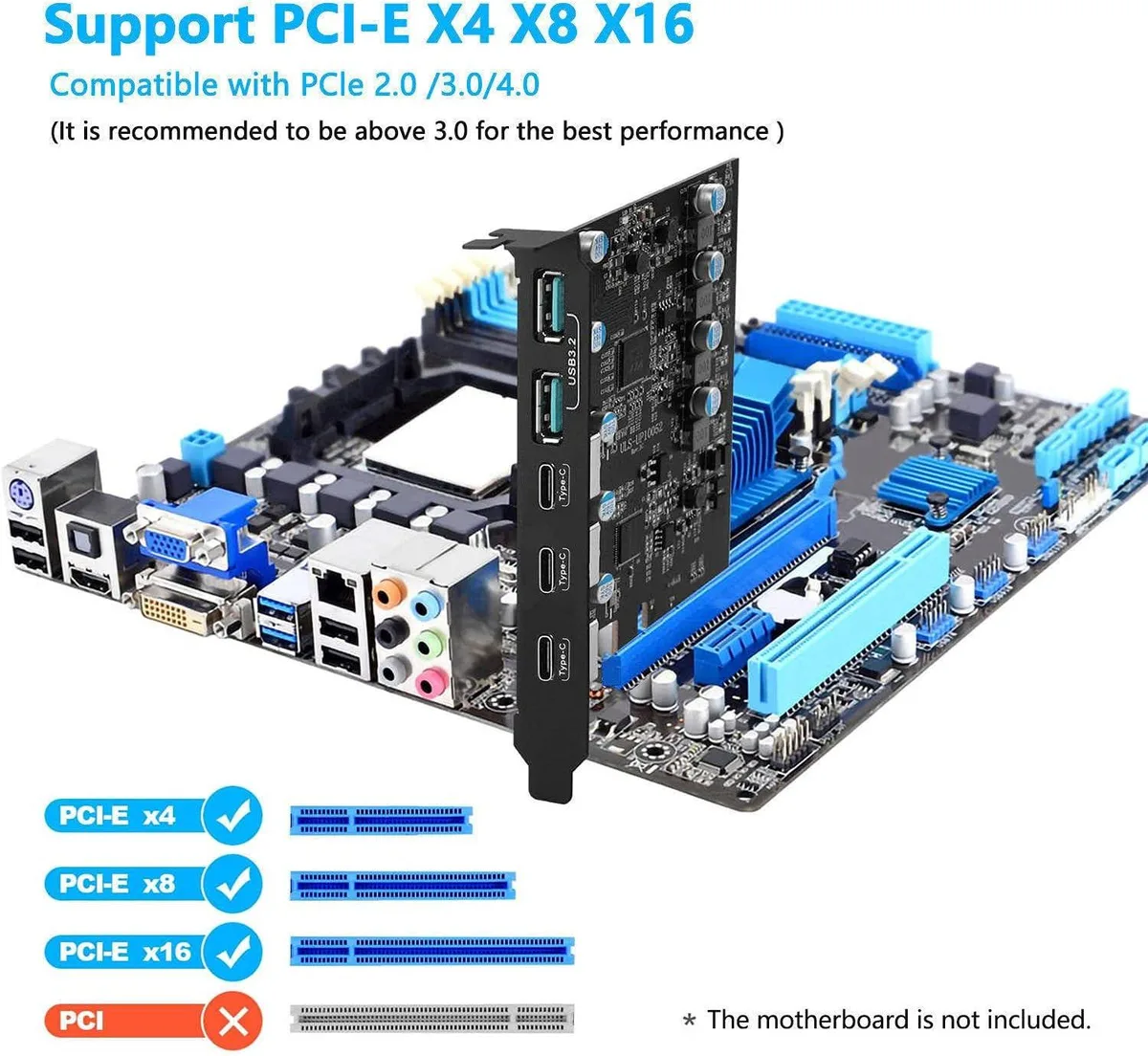

What physical slot and clearance does the card need to fit and mount?

It fits any PCI Express x1, x4, x8 or x16 socket and includes installation screws for securing the bracket.
