Green circuit board with silver PCIe x1 connector and five external ports — two USB-C, three USB-A

ESTONE

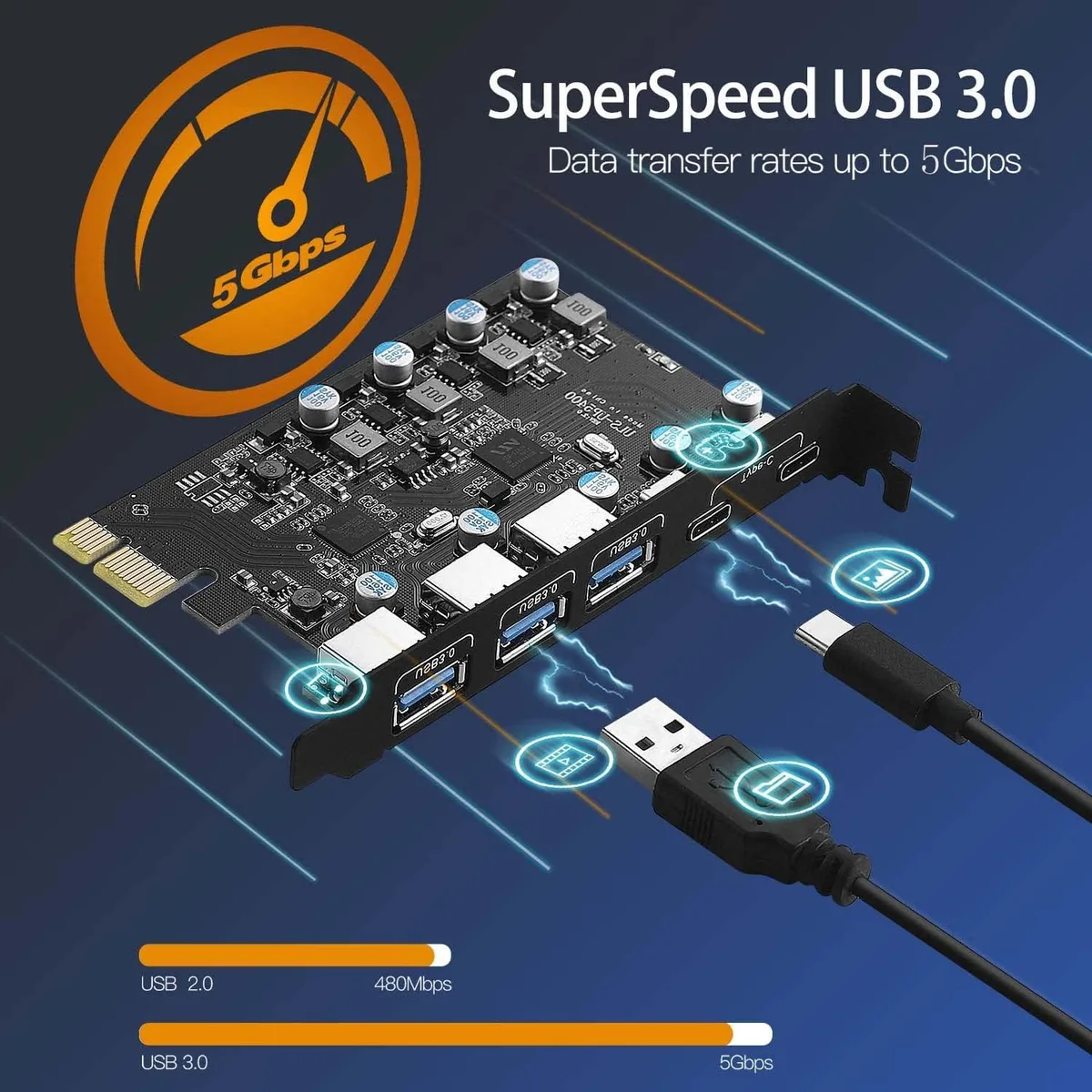

ESTONE PCIE23A2C 5-Port USB 3.0 Expansion Card (2×USB-C, 3×USB-A)

SKU CH-GA4C-0S98D

Adds five USB 3.0 ports (two USB-C, three USB-A) via a PCIe x1 slot, delivering up to 5.0 Gbps without an external power adapter

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add five USB 3.0 ports (2×USB-C, 3×USB-A) through one PCIe x1 slot
  • SuperSpeed USB 3.0 delivers up to 5.0 Gbps total bandwidth
  • Draws power directly from the PCIe slot with no external adapter needed
  • Each port protected by independent over-current and short-circuit safeguards
  • Compatible with Windows 7/8/10/11 (32/64-bit) and Mac OS 10.8.2+

5-Port USB 3.0 Expansion Card

This ESTONE PCIE23A2C card adds five USB 3.0 ports to a desktop computer through a PCI Express x1 slot. It provides two USB-C and three USB-A connectors for connecting additional peripherals. The card supports Windows 7 through 11 and Mac OS 10.8.2 or later with a driver installation.

PCI Express x1 Interface

The card installs into any available PCI Express x1 slot and is backward compatible with PCIe 2.0 and 3.0 motherboards. This single-lane connection determines the maximum aggregate bandwidth available to all five ports combined. No external power cable is required as the card draws power directly from the slot.

Sustained Transfer Behaviour

Each port can reach up to 5.0 Gbps when used individually, though actual speeds depend on the connected device. Under sustained load across multiple ports, the shared PCIe x1 lane and controller limit total throughput. The card includes over-current and short-circuit protection on each port for stable operation.

Fordele

  • Add five USB 3.0 ports (2×USB-C, 3×USB-A) through one PCIe x1 slot
  • SuperSpeed USB 3.0 delivers up to 5.0 Gbps total bandwidth
  • Draws power directly from the PCIe slot with no external adapter needed
  • Each port protected by independent over-current and short-circuit safeguards
  • Compatible with Windows 7/8/10/11 (32/64-bit) and Mac OS 10.8.2+

Specifikationer

BrandESTONE
SeriesPCIE23A2C
ModelPCIE23A2C
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (2X USB-C - 5X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesPCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB-A)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 5Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Spørgsmål om denne vare

Does the 5 Gbps figure apply to each port or the whole card?

The 5 Gbps rate is the total bandwidth shared across all five ports; a single port can reach 5 Gbps only when the others are idle.

What PCI Express generation does the x1 slot use?

The card complies with PCIe 2.0 and 3.0 motherboards and operates over a single PCIe 2.0 lane.

Will the card fit in a low-profile bracket?

The board measures 4.92 by 4.06 by 1.06 inches and includes standard-height mounting screws, so it requires a full-height slot.
