Green rectangular PCIe card with four vertical USB-C ports along its rear bracket

ESTONE

ESTONE PCIE24C PCIe to USB 3.2 4-Port Type-C Expansion Card

SKU CH-GM1C-V1KGM

Adds four USB-C ports running at 10 Gbps through a single PCIe x4 slot

  • TypePCI to USB Card
  • External USB Ports4x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/

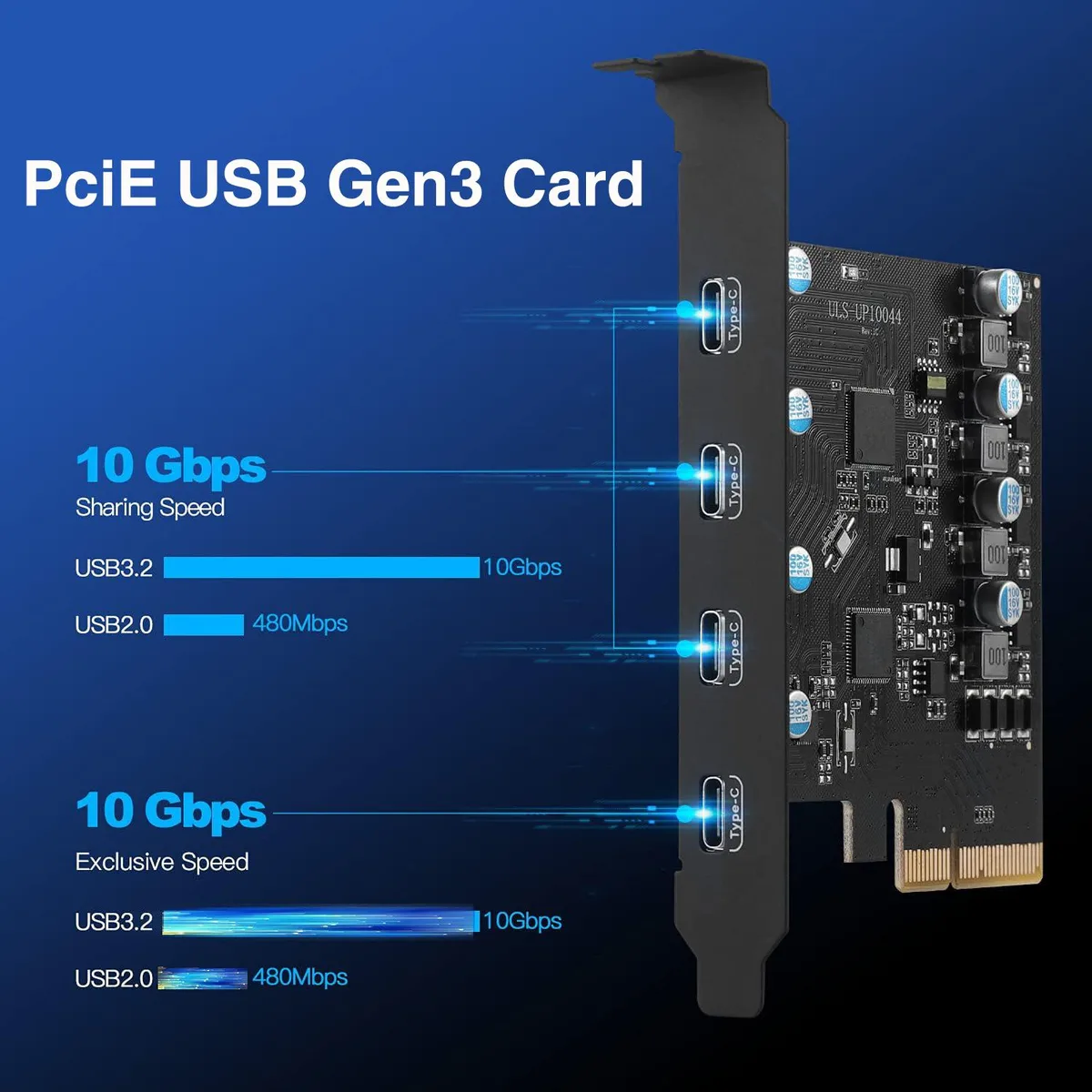

  • Adds four USB Type-C ports via a single PCI Express x4 slot
  • Transfers data at up to 10 Gbps with ASM3142 controller
  • Delivers up to 15 W per port when SATA power is connected
  • Works with Windows 8 and later, macOS, and Linux without extra drivers

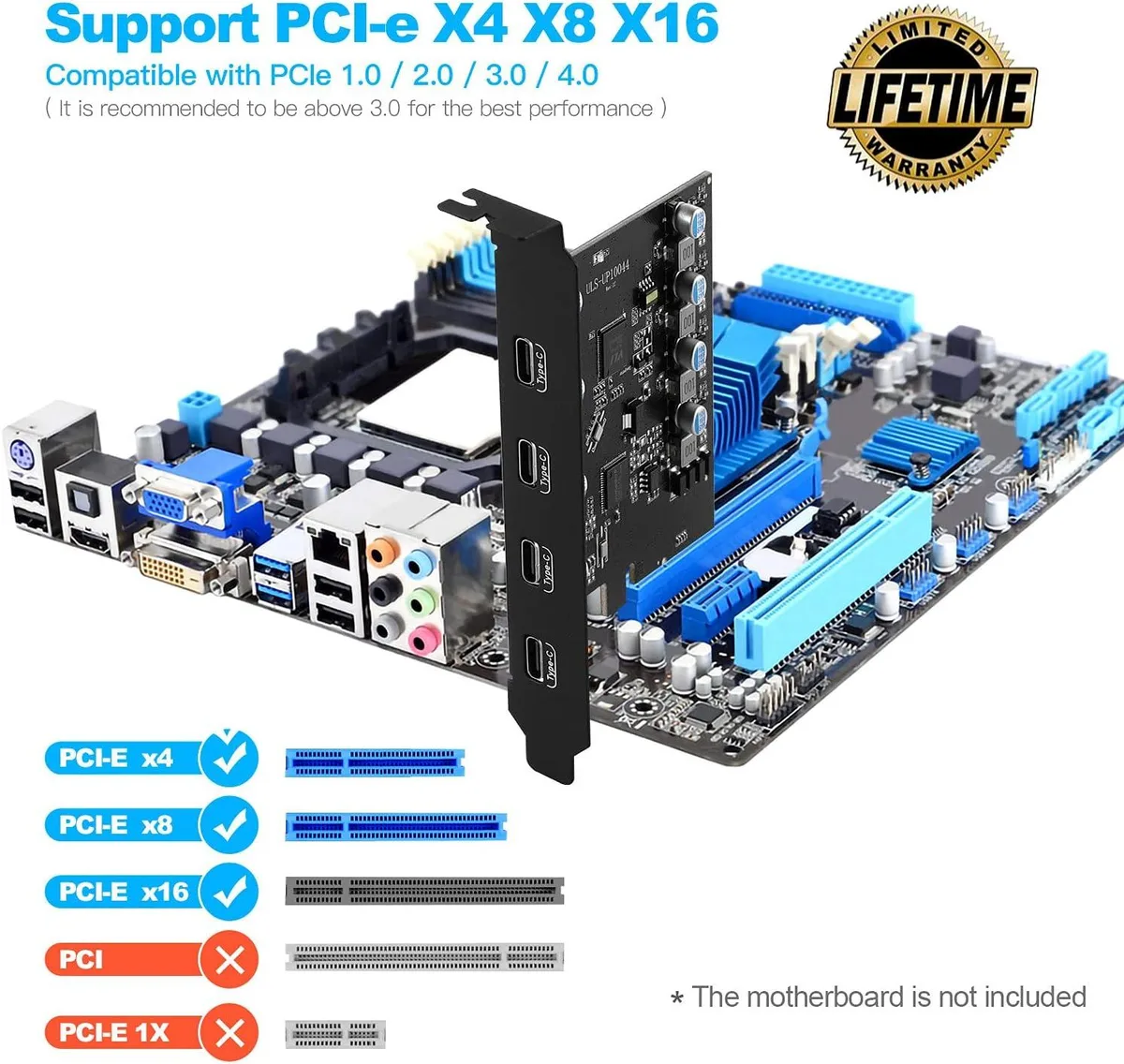

  • Fits x4, x8, or x16 slots on Intel, AMD, or Apple Silicon platforms

PCIe USB 3.2 Type-C Card

The ESTONE PCIE24C adds four external USB Type-C ports to a desktop through a PCI Express x4 slot. It targets builders who need more high-speed ports for external storage or peripherals. The card uses an ASM3142 controller and fits x1, x4, x8 or x16 slots. It does not serve buyers who require DisplayPort Alt Mode or USB Power Delivery negotiation.

Driver CD and SATA Power Option

A driver CD is included for Windows 7 and XP systems; Windows 8 and later, macOS 10.8.2 and above, and Linux typically load drivers automatically. An optional SATA power connector can supply up to 15 W per Type-C port when motherboard power is insufficient. The bundled screws secure the bracket to the case.

Installation Notes

The card draws slot power by default, so no extra cable is mandatory unless port current exceeds the slot budget. Common issues arise on PCIe 1.0 platforms, which are not supported, and on Windows 7 or XP where the CD driver must be installed manually. Each port includes independent over-current and short-circuit protection.

Fordele

  • Adds four USB Type-C ports via a single PCI Express x4 slot
  • Transfers data at up to 10 Gbps with ASM3142 controller
  • Delivers up to 15 W per port when SATA power is connected
  • Works with Windows 8 and later, macOS, and Linux without extra drivers
  • Fits x4, x8, or x16 slots on Intel, AMD, or Apple Silicon platforms

Specifikationer

BrandESTONE
SeriesPCIE24C
ModelPCIE24C
TypePCI to USB Card
External USB Ports4x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications4 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X4 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 5 Ports USB interface Card (4X USB-C)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
FeaturesPCI Express x4 slot card for usb expansion 4 Ports USB interface Card (4X USB-C)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The actual tr
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Spørgsmål om denne vare

Will the ASM3142 controller need a firmware update to stay compatible with future operating systems?

The ASM3142 controller runs on drivers that install automatically on Windows 8 and later, macOS and Linux; no separate firmware updates are mentioned.

At sustained loads, does the PCIe 2.0 x4 link or the 10 Gbps USB 3.2 interface saturate first?

The PCIe 2.0 x4 link caps at roughly 16 Gbps, so four 10 Gbps ports can exceed the upstream bandwidth before the USB interface does.

How much heat and power does the card draw when all four Type-C ports run at 5 V 3 A continuously?

With the optional SATA power connected, the card can deliver up to 15 W per Type-C port; without it, each port is limited to 5 W from the PCIe slot.
