Green circuit board with four blue USB 3.0 ports and a PCIe x1 edge connector

ESTONE

ESTONE PCIE24USBA 4-Port PCIe USB 3.0 Internal Hub Converter

SKU CH-P2X6-PTJCT

Adds four USB 3.0 ports at 5.0 Gbps through a PCIe 2.0 x1 slot with 8 A total power and Windows 7 through 11 support

  • TypePCI to USB Card
  • External USB Ports4-port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds four USB 3.0 ports through a PCIe 2.0 x1 slot
  • Up to 5.0 Gbps total transfer speed for files and media
  • Each port delivers up to 2 A power without extra cables
  • Works with Windows 7 through 11 on 32 and 64 bit systems
  • Low-profile card fits standard desktop cases measuring 4.92 x 4.06 x 1.06 inches

Four USB 3.0 ports via PCIe x1

This ESTONE expansion card adds four USB 3.0 ports to a desktop through a single PCI Express x1 slot. It uses a NEC chipset to deliver up to 5.0 Gbps total bandwidth for video, audio, photos and files. The card fits PCIe x1, x4, x8 or x16 slots and supports Windows 7 through 11, plus Windows Server 2012 to 2019.

Driver CD and self-powered design

A mini-CD supplies the RENESAS/VLI driver required for Windows 7, XP, Vista and older systems, while Windows 10 and 11 work plug-and-play. The card draws all power from the PCIe slot itself, providing up to 2 A per port and 8 A total without any extra cables or internal wiring.

Low-profile bracket and screw kit

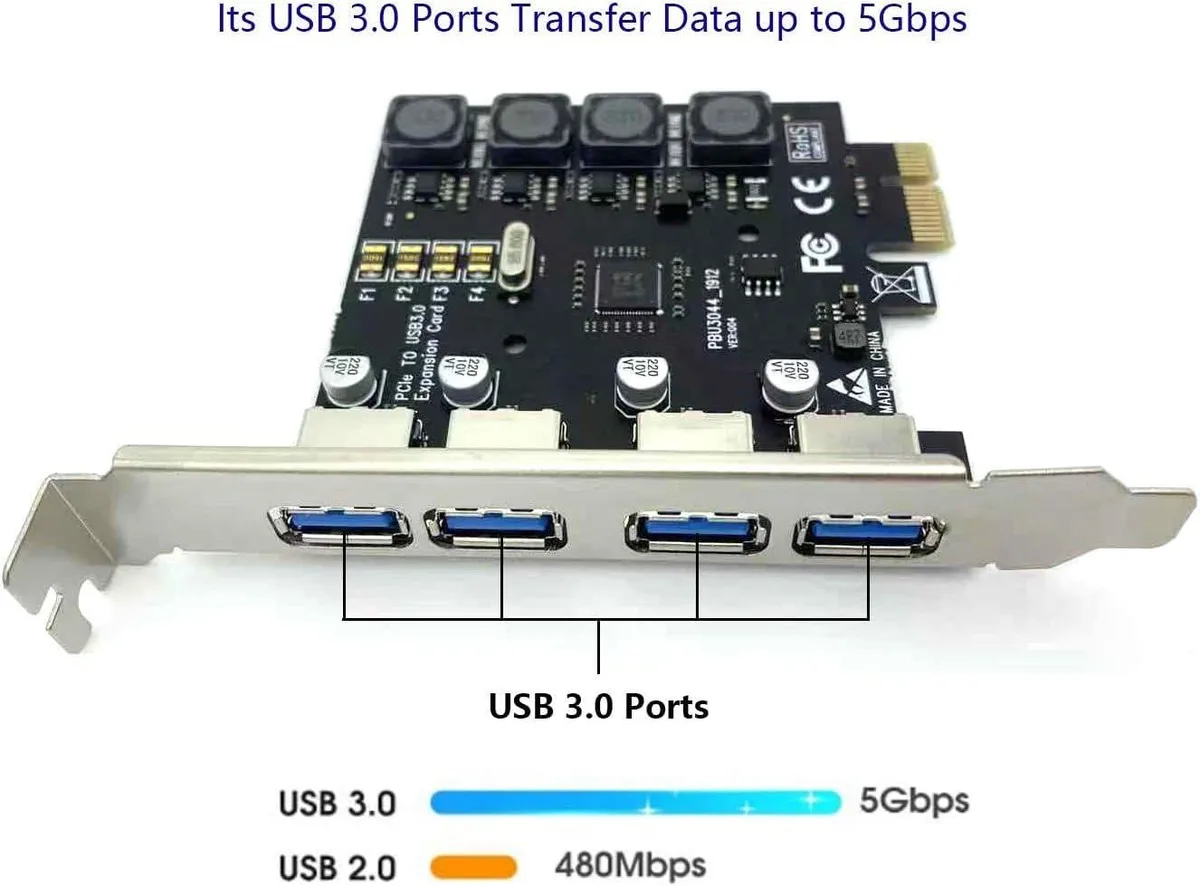

The board measures 4.92 by 4.06 by 1.06 inches and includes a low-profile bracket plus mounting screws for standard or slim cases. Four external Type-A ports face the rear panel, giving immediate access for webcams, hubs, keyboards, smartphones, capture devices or KVM switches.

Fordele

  • Adds four USB 3.0 ports through a PCIe 2.0 x1 slot
  • Up to 5.0 Gbps total transfer speed for files and media
  • Each port delivers up to 2 A power without extra cables
  • Works with Windows 7 through 11 on 32 and 64 bit systems
  • Low-profile card fits standard desktop cases measuring 4.92 x 4.06 x 1.06 inches

Specifikationer

BrandESTONE
SeriesPCIE24USBA
ModelPCIE24USBA
TypePCI to USB Card
External USB Ports4-port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications4 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
Supports USB 3.0 specification type A connector X 4 ports.,Backward compatible with USB 1.1/USB 2.0.
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
FeaturesAdding 4 USB 3.0 ports on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.

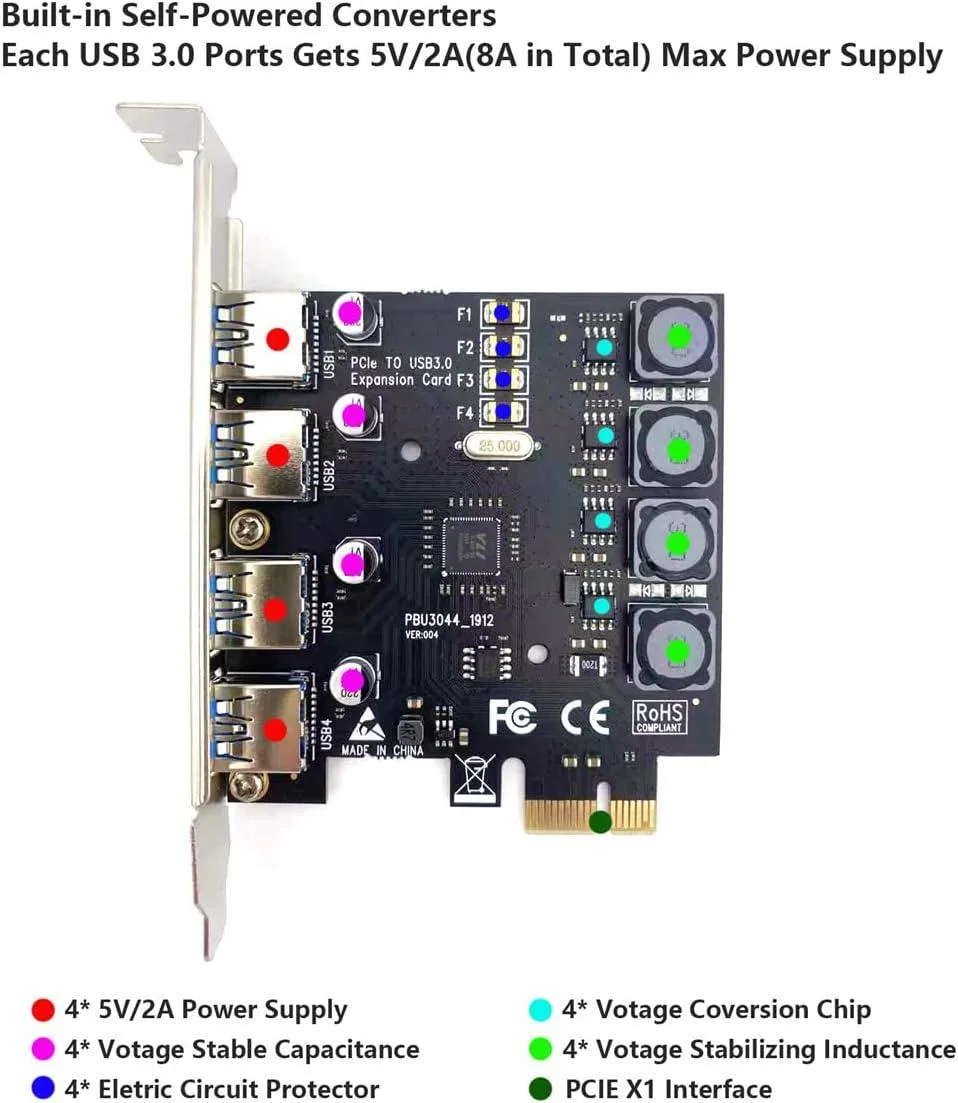

Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device safety than ever.
NOT supp
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Spørgsmål om denne vare

Will the on-board power converters or the NEC chipset need replacement after extended use?

The card uses built-in power converters and an advanced NEC chipset with no user-serviceable parts, so no scheduled maintenance or component replacement is required.

Does the PCI Express 2.0 x1 lane cap total throughput at 5.0 Gbps when all four ports are active?

Yes, the single PCIe 2.0 x1 lane provides up to 5.0 Gbps of total bandwidth shared across all four USB 3.0 ports.

How much heat or noise does the card produce when all ports run at full speed all day?

The passively cooled design has no fan, so it adds no audible noise; heat output is low enough that no extra case airflow is needed.
