Green PCIe x1 card with four blue USB-A ports and a metal bracket

ESTONE

ESTONE PCIE24USBA 4-port USB 3.0 PCIe expansion card

SKU CH-2Q98-5DA7Z

Adds four USB 3.0 ports at up to 5.0 Gbps through a PCIe x1 slot, powered without extra cables and compatible with Windows 7 through 11

  • TypePCI to USB Card
  • External USB Ports4-port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add four USB 3.0 ports through a single PCIe x1 slot
  • Up to 5.0 Gbps total bandwidth for fast file transfers
  • Self-powered design needs no extra power cable from the PSU
  • Each port delivers up to 2 A for high-draw devices
  • Works in x1, x4, x8 or x16 slots on PCIe 2.0 or newer

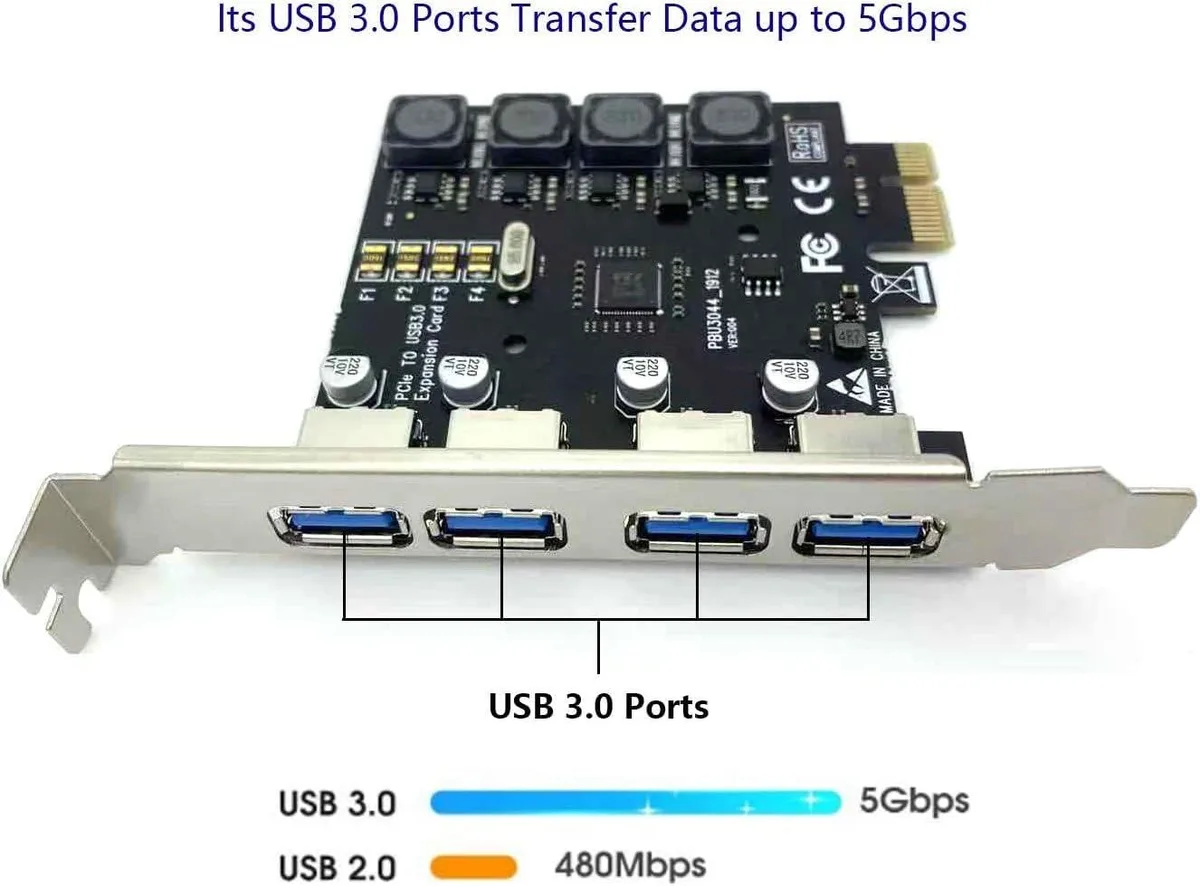

Four USB 3.0 ports via PCIe x1

This ESTONE PCIE24USBA card adds four USB-A 3.0 ports to a desktop through a single PCI Express x1 lane. It targets builders who need more front-panel or rear I/O for external drives, cameras or peripherals without using a motherboard header. The board draws all required power from the slot itself, so no extra cable from the PSU is needed.

Replaces an external hub or missing headers

Unlike a bus-powered external hub, the card provides dedicated bandwidth and up to 5.0 Gbps total throughput across the four ports. Each port can deliver 2 A, giving 8 A combined for high-draw devices. The step up is worthwhile when you regularly move large video or photo libraries and want consistent speeds without the drops common on daisy-chained hubs.

Sustained throughput with self-powered design

The on-board FebSmart self-powered circuitry keeps voltage stable during long transfers, avoiding the throttling that occurs when a hub shares limited bus power. PCIe 2.0 x1 electricals maintain the link over extended sessions, and the NEC chipset handles backward compatibility with USB 2.0 at 480 Mbps and USB 1.1 at 12 Mbps without disconnects.

Fordele

  • Add four USB 3.0 ports through a single PCIe x1 slot
  • Up to 5.0 Gbps total bandwidth for fast file transfers
  • Self-powered design needs no extra power cable from the PSU
  • Each port delivers up to 2 A for high-draw devices
  • Works in x1, x4, x8 or x16 slots on PCIe 2.0 or newer

Specifikationer

BrandESTONE
SeriesPCIE24USBA
ModelPCIE24USBA
TypePCI to USB Card
External USB Ports4-port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications4 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
Supports USB 3.0 specification type A connector X 4 ports.,Backward compatible with USB 1.1/USB 2.0.
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
FeaturesAdding 4 USB 3.0 ports on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.

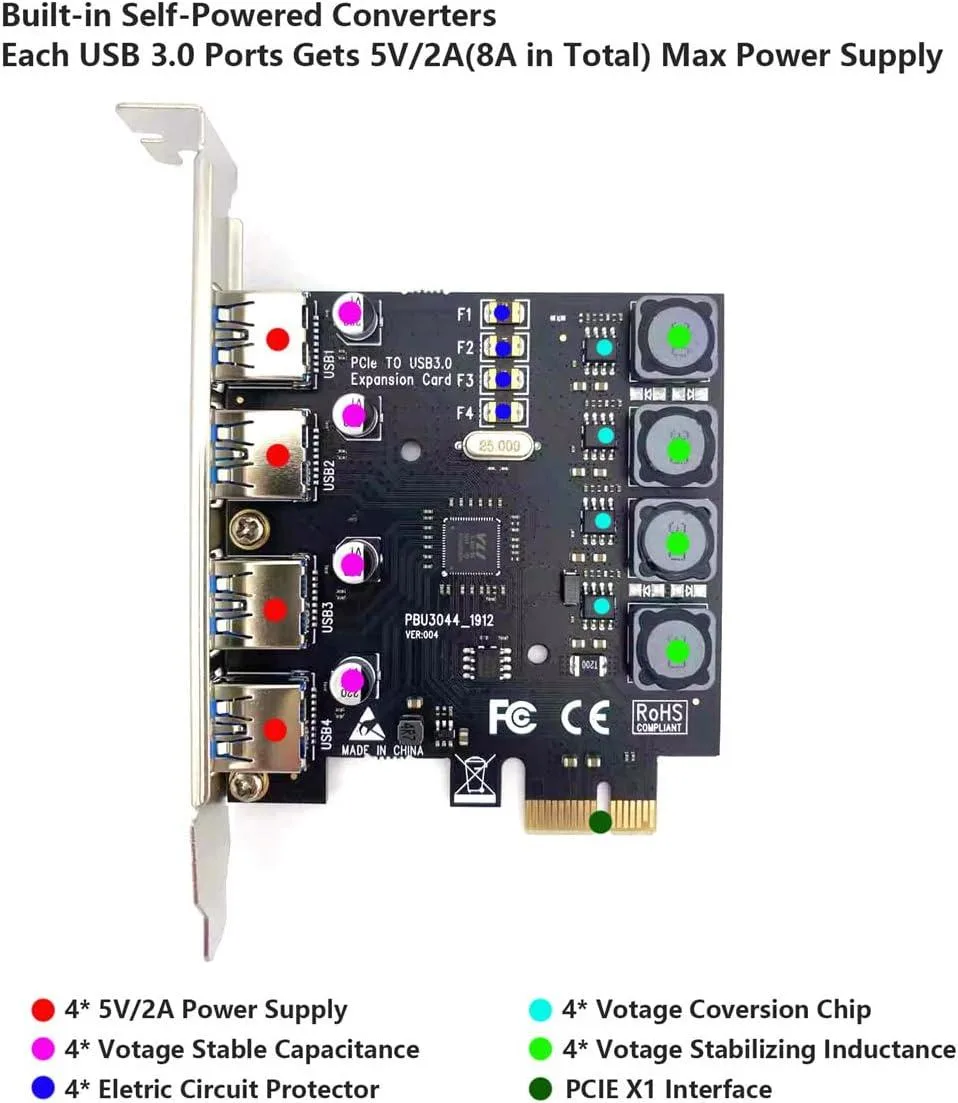

Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device safety than ever.
NOT supp
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Spørgsmål om denne vare

Does the card fit a standard PCIe x1 slot and what are its physical dimensions?

The card uses a PCI Express x1 interface that also works in x4, x8 and x16 slots. Its dimensions are 4.92 x 4.06 x 1.06 inches.

What driver step is required on Windows 7 and which media supplies it?

Windows 7 requires the RENESAS/VLI USB 3.0 driver, which is provided on the included mini-CD. Newer Windows versions install automatically.

Will the onboard power circuitry need replacement or servicing over time?

The FebSmart Self-Powered design draws all power from the PCIe slot — no external cables or replaceable power modules are used.
