Green PCB expansion card with five blue USB-A and two blue USB-C ports on a silver bracket

ESTONE

ESTONE PCIE25A2C3.2 7-Port USB 3.2 Expansion Card (5× USB A, 2× USB C) 10 Gbps

SKU CH-CX63-QG1J3

Adds seven USB 3.2 ports (five Type-A, two Type-C) through a single PCI Express slot with up to 10 Gbps per port

  • TypePCI to USB Card
  • External USB Ports7x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds seven USB 3.2 ports (five Type-A, two Type-C) via a single PCIe x1 slot
  • Delivers up to 10 Gbps per port with 20 Gbps total bandwidth shared across all ports
  • Type-C ports supply up to 30 W each for charging phones, tablets or laptops
  • Type-A ports provide up to 7.5 W each under BC 1.2 for powering peripherals
  • Works with Windows 7/8/10/11, Linux and Mac OS 10.8.2 and later

Port count and connector mix

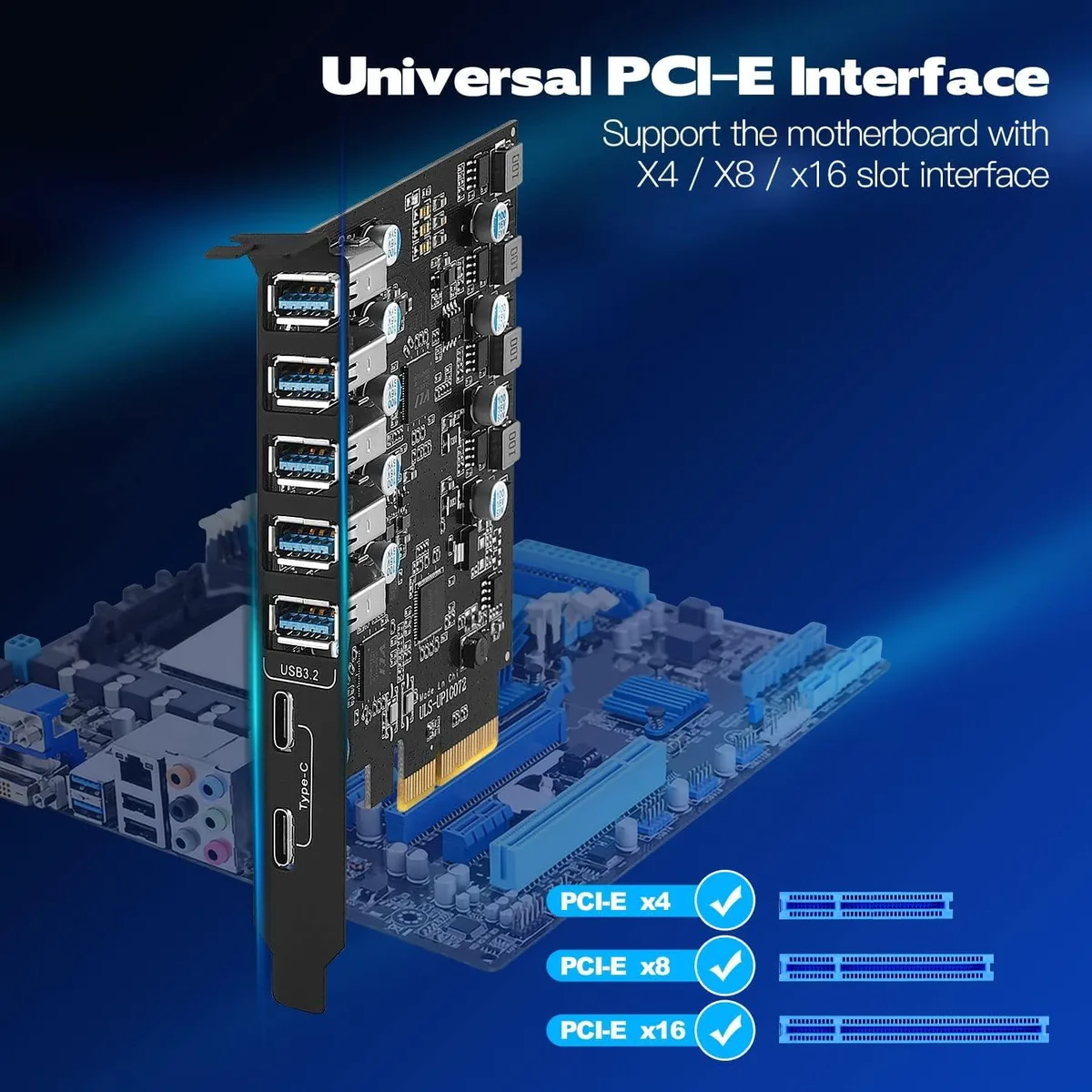

This PCIe expansion card adds seven USB 3.2 ports to a desktop computer, five of them Type-A and two Type-C. It is aimed at users who need to connect multiple peripherals such as keyboards, mice, printers, phones or game controllers at once. The card fits a single PCI Express x1 slot and works with x4, x8 or x16 slots as well.

Sustained throughput and shared bandwidth

The seven ports share a total pool of 20 Gbps, so simultaneous transfers across several devices will divide that bandwidth. Each individual port can reach 10 Gbps when used alone, but heavy multi-device workloads will see lower per-port speeds. The card draws all its power from the PCIe slot and does not require an external connector.

Driver installation and common issues

A driver must be installed before the card is recognised; the supplier provides a CD and a download link for the RENESAS/VLI USB 3.0 driver. Compatibility covers Windows 7, 8, 10 and 11 (32-bit and 64-bit), Mac OS 10.8.2 and later, and Linux. The card does not support Thunderbolt or video output, so it cannot drive a monitor.

Fordele

  • Adds seven USB 3.2 ports (five Type-A, two Type-C) via a single PCIe x1 slot
  • Delivers up to 10 Gbps per port with 20 Gbps total bandwidth shared across all ports
  • Type-C ports supply up to 30 W each for charging phones, tablets or laptops
  • Type-A ports provide up to 7.5 W each under BC 1.2 for powering peripherals
  • Works with Windows 7/8/10/11, Linux and Mac OS 10.8.2 and later

Specifikationer

BrandESTONE
SeriesPCIE25A2C3.2
ModelPCIE25A2C3.2
TypePCI to USB Card
External USB Ports7x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications7 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (2X USB-C - 5X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?"
?
FeaturesUSB PCIe Card upgrades your desktop computer to 7 USB 3.2 ports (2x USB C,5x USB 3.2) via a PCI Express x1 slot.Solve the problem of fewer USB ports inside the computer host, allowing more USB data devices to be connected to your computer system
SuperSpeed USB 3.2: Supporting data transfer rates of up to 10Gbps, The overall transfer speed is 20 times faster than the old version USB 2.0,providing greater efficiency for your file transfers.(Note: Actual transfer speeds may be limited by the connected device.)
Easy to Use: Each port supports a maximum power of 5W (5V/1A), the pcie usb c
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Spørgsmål om denne vare

How much heat or power does the 7-port card draw when all ports run at 10 Gbps all day?

The card is powered entirely from the PCIe x1 slot and has no external power connector, so it stays within the slot’s standard 25 W limit even under full load.

What must my motherboard provide for the card to function?

A free PCI Express x1, x4, x8 or x16 slot (PCIe 2.0 or 3.0) and a Windows 7/8/10/11, Linux or macOS 10.8.2+ installation with the supplied RENESAS/VLI driver.

Will my USB 2.0 keyboard and USB 3.0 external drive work together on this card?

Yes — the seven ports support USB 3.2, 3.0 and 2.0 devices simultaneously; the 5 USB-A ports deliver up to 7.5 W each and the 2 USB-C ports up to 30 W each for charging.
