Black metal mobile rack for two 2.5 inch drives and one 3.5 inch slot in a 5.25 inch bay with detachable dust cover

ICY DOCK

ICY DOCK MB322SP-B 2 x 2.5" SATA/SAS to 5.25" hdd accessory

SKU CH-41TY-EENV6 MPN MB322SP-B

Fits two 2.5″ SATA or SAS drives and one 3.5″ device into a single 5.25″ bay with hot-swap trays and a detachable dust cover

  • ColorBlack
  • Conversion Tray2.5" & 3.5" Drives to 5.25" Bay
  • Mobile Rack Drives Support2.5" & 3.5" Drives to 1 x 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products1 x 3.5" device or 1 x 3.5" hard drive (no backplane) 2 x 2.

Model 2 x 2.5in (SATA)

  • 2 x 2.5in (SATA)
  • 4 x 2.5in
  • 1 Pack

De overstregede versioner findes, men er ikke på lager her.

Option Express Cages 2Bay + HDD

De overstregede versioner findes, men er ikke på lager her.

  • Hot-swap two 2.5" drives up to 9.5 mm height
  • Add a 3.5" drive or device in the same bay
  • Fits any standard 5.25" front bay
  • SATA 6 Gbps and SAS host support
  • Detachable dust cover keeps the front panel clean

Two-bay 5.25" mobile rack

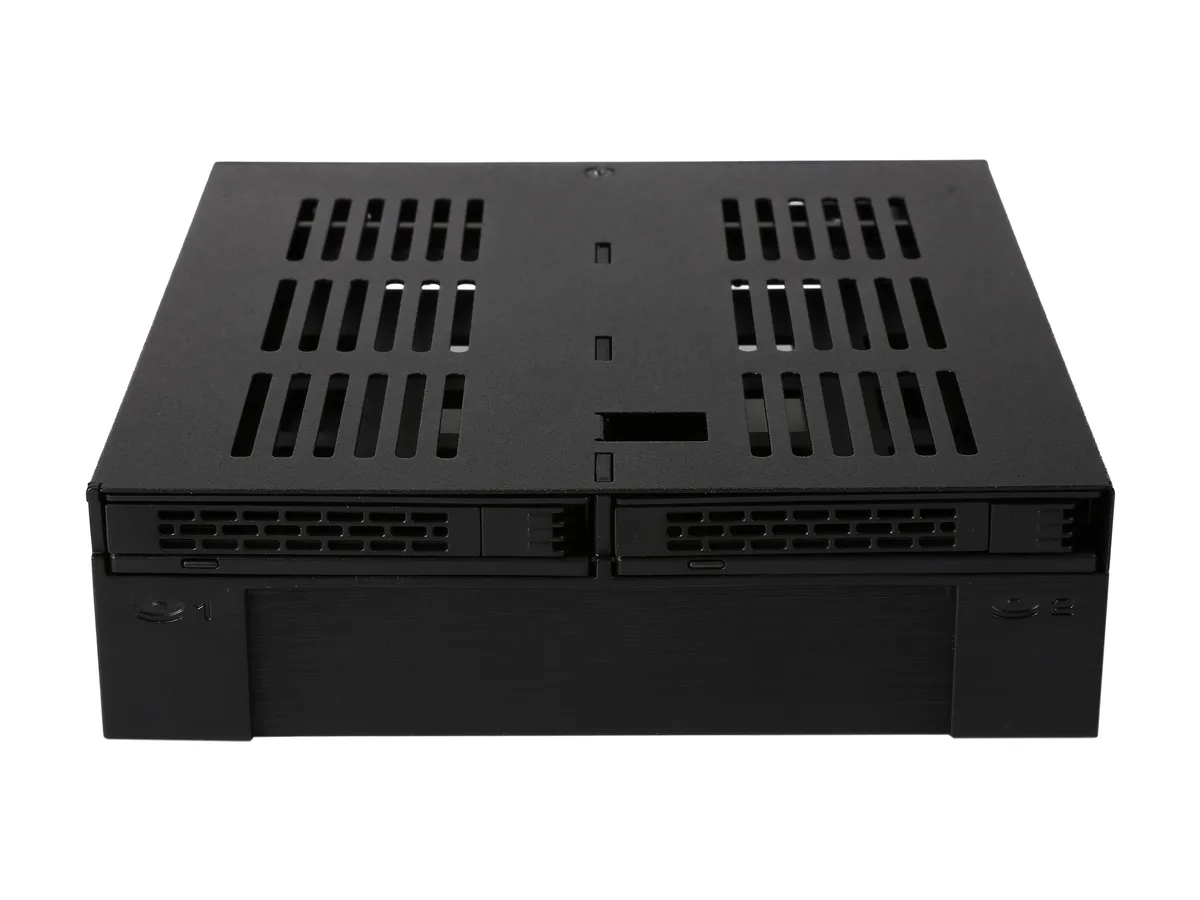

The ICY DOCK MB322SP-B converts a single 5.25" bay into two hot-swap slots for 2.5" SATA or SAS drives between 7 mm and 9.5 mm thick. A third opening accepts one 3.5" drive or device without a backplane. The tray uses a tool-less design with optional screw holes for extra security.

Replaces fixed 3.5" cages

Builders who currently mount 2.5" drives in 3.5" adapters gain direct front access and hot-swap capability without opening the case. The upgrade is worthwhile when drive changes are frequent or when a 3.5" peripheral such as a card reader must share the same bay.

Fits standard 5.25" bays

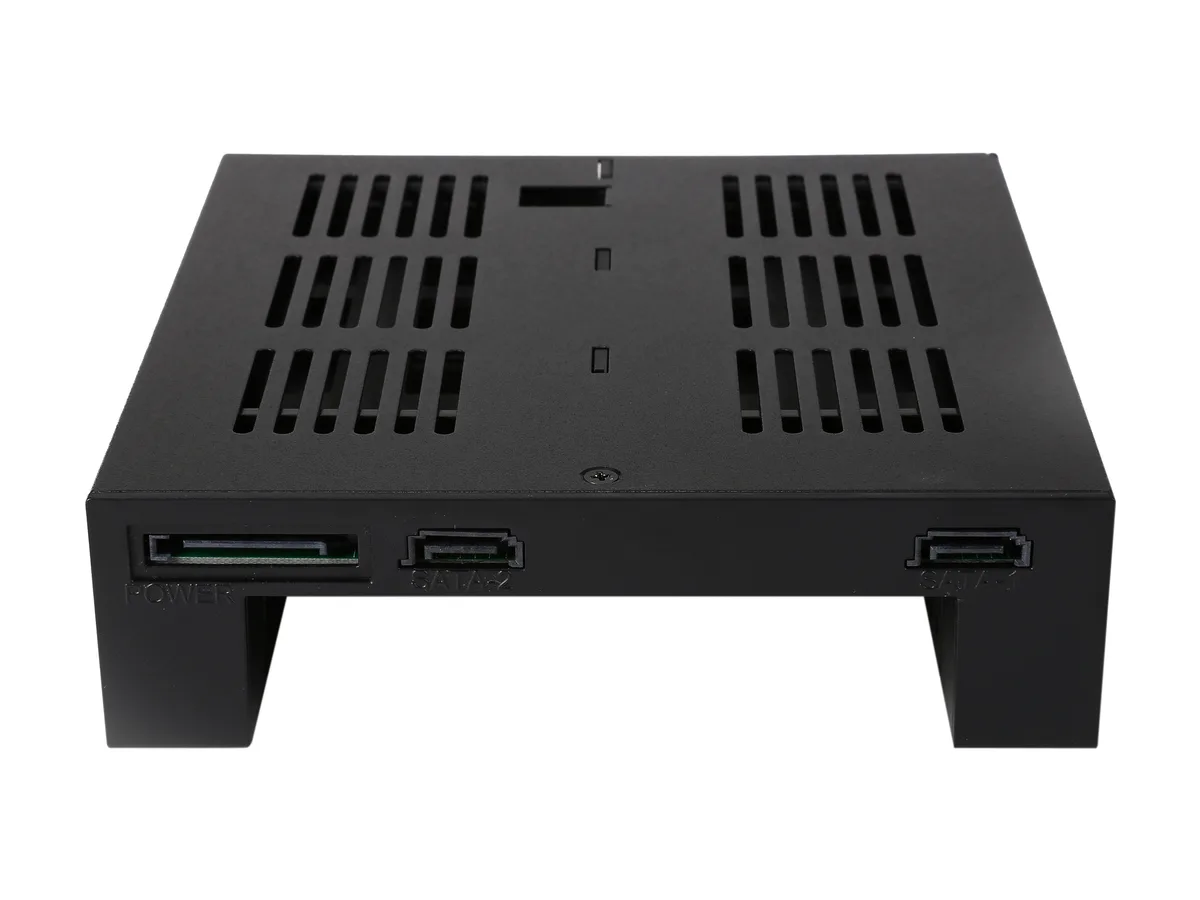

The unit connects through two 7-pin SATA host ports and a single 15-pin SATA power connector. A detachable dust cover seals the 3.5" opening when unused. Blue activity LEDs on each 2.5" slot show drive status. Metal housing and reinforced latches handle repeated insertions.

Fordele

  • Hot-swap two 2.5" drives up to 9.5 mm height
  • Add a 3.5" drive or device in the same bay
  • Fits any standard 5.25" front bay
  • SATA 6 Gbps and SAS host support
  • Detachable dust cover keeps the front panel clean

Specifikationer

BrandICY DOCK
ModelMB322SP-B
ColorBlack
Conversion Tray2.5" & 3.5" Drives to 5.25" Bay
Mobile Rack Drives Support2.5" & 3.5" Drives to 1 x 5.25" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products1 x 3.5" device or 1 x 3.5" hard drive (no backplane)
2 x 2.5" SATA or SAS (single channel) HDD/SSD
SpecificationsHost Interface: 2 x 7pin SATA
Compatible 2.5" Drive Heights: 7mm, 9.5mm
Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed)
Power Input: Single 15pin SATA power port
Insert& Extract connection Via: Direct SAS / SATA hard drive connection
Structure: Plastic and metal
Power Indicator: Solid blue LED
HDD Access Indicator: Blinking blue LED
Dimension (L x W x H): 5.95" x 1.63" x 5.74"
Weight: 0.76 lb.
Forsendelsesvægt0.43 kg
Pakkestørrelse165 × 165 × 56 mm

Andre versioner af denne model

2 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

Will this 5.25" cage fit a standard 5.25" bay in my case?

Yes, the unit is designed for any standard 5.25" device bay and occupies a single bay slot.

How do I install 2.5" drives without tools, and what step is often missed?

Slide each drive into an ExpressTray Mini until the SATA connectors engage fully; the optional bottom tray screws are often skipped but add stability.

Does the detachable dust cover need cleaning or replacement over time?

The cover is a passive plastic piece; wipe it with a dry cloth if dust builds up, but it has no moving parts that wear out.
